The blender model is quite ready!

[LigasN]

#Model

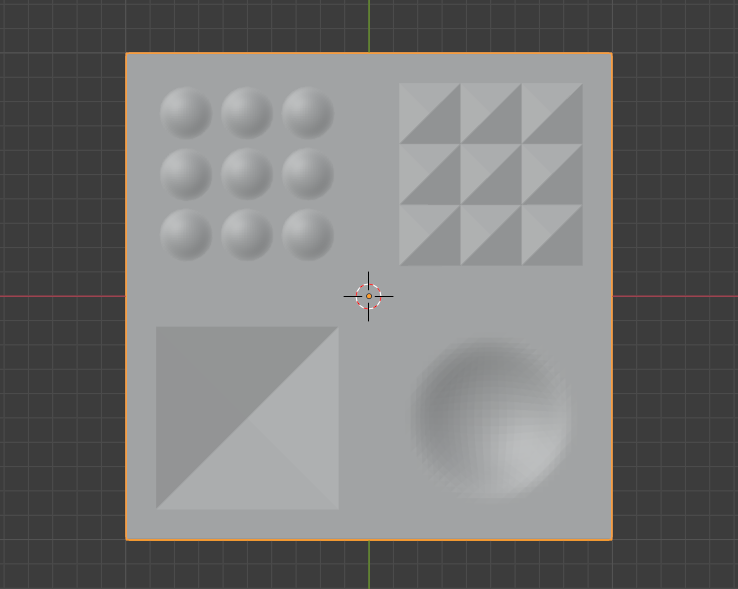

There is a model in Blender editor ready for review. Please check if it doesn't need some smoothing or other corrections. The model will be used for the theoretical experiment on a computer to check algorithm correctness and then to print the actual 3D model on a 3D printer.

[LigasN]

@kacprzak please check if it's ok. I was trying to improve smoothing but I've failed.

[kacprzak]

Result after some tweaks.

To make this render:

• Apply all transformations on model.
• Recalculate normals!
• Add material with nodes setup like this:

• In camera disable color management: Display device: XYZ, View Transform: Raw, Sequencer XYZ
• Change renderer to Cycles.

Note: this render was not tested yet. We should create simple box with this texture as NormalMap and render should be the same as for original model. I will try to do it.

[LigasN]

You were right thinking that I forgot how to render normal maps. Thanks for the instructions.

[LigasN]

Color management is placed under Render properties>Color Management.

[LigasN]

I have some issues with refreshing rendered images. I need to press F12 to open the Render Image and there I have the updated output. After some next changes, I need to close it and open it again to see the results. If you know any solution for that please let me know.

[LigasN]

OK with the steps described by you I've got a similar effect. I will try to test it in the way that you described in "Note". I was checking some tutorials about similar tests and I've got something with backing testures. This guy is sharing this way to generate normal maps which add-on for Blender on his GitHub. It didn't help me for now, but maybe it will be useful in some way.

[LigasN]

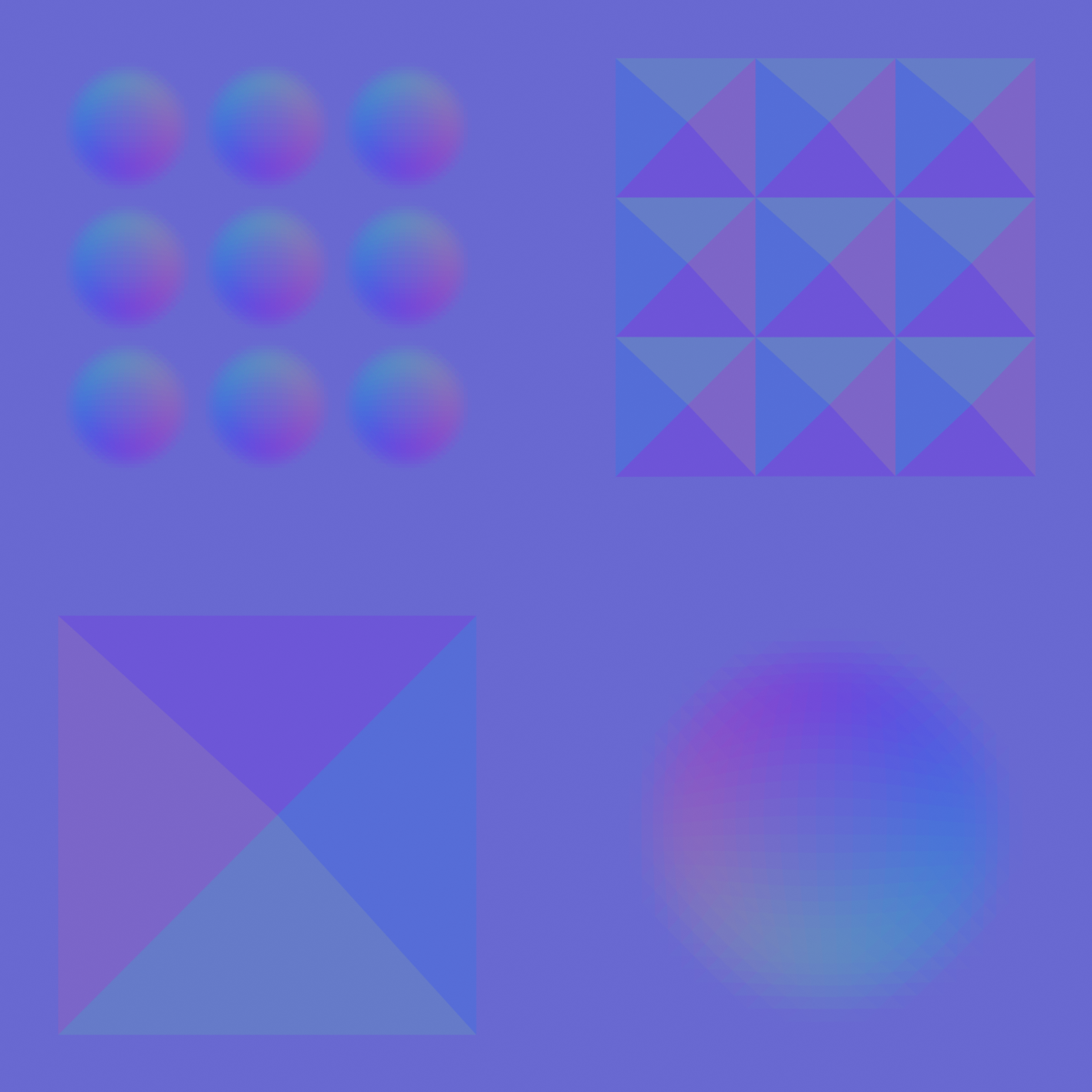

After applying the change from rendering to baking the normal map it looks like below:

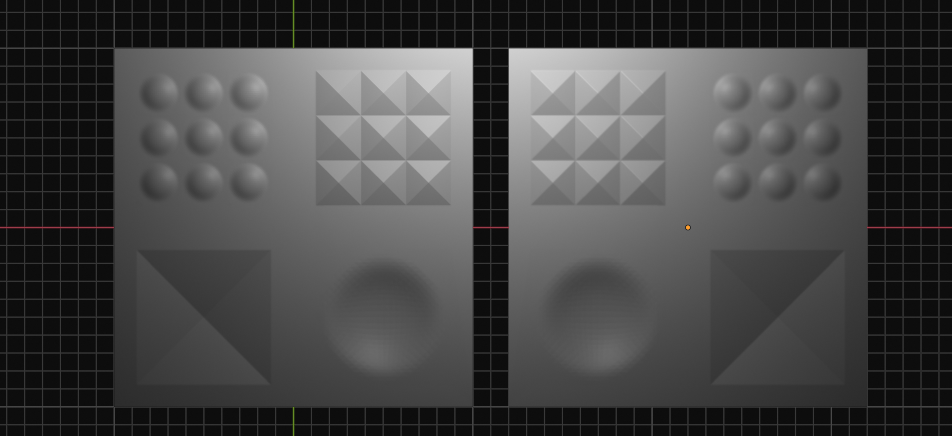

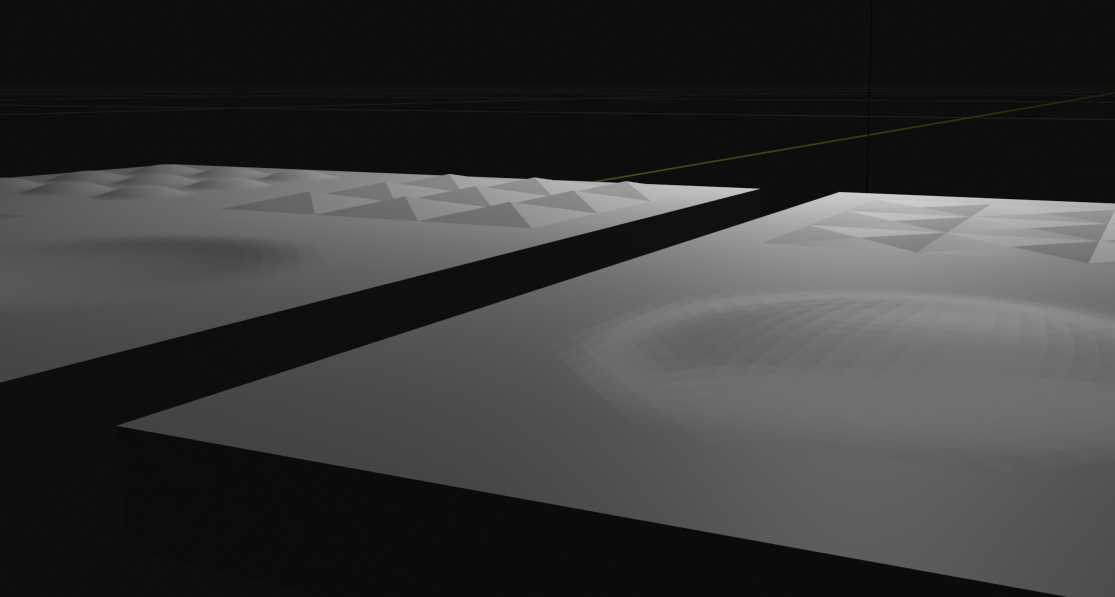

And some tests:
