Improve edge connection interface #63

@alexsb

Description

@alexsb

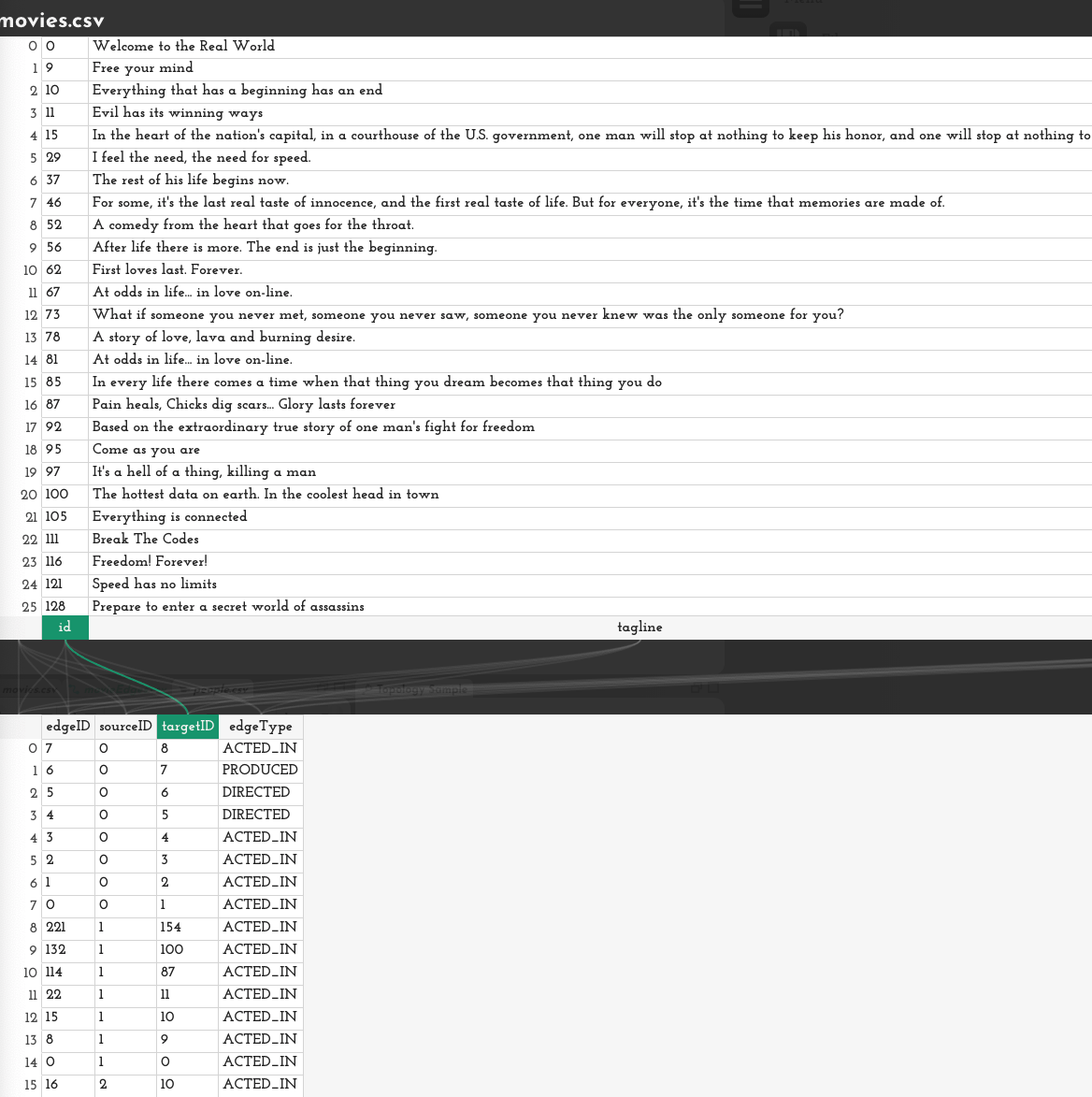

Right now it's tricky to understand which attributes match up between nodes and edges. We need a way to preview how many connections exist between two tables. This is the current interface:


Approaches to address this

  • scale edge width by number of matches
  • for selected source and target attribute, highlight all the matching cells in blue, all the non-matching cells in red.
  • for selected source and target attribute, show a label between the tables that shows how many fields match ( 133/181 rows match )
  • for a selected source, show all possible matches in the target
  • auto-connect source and target that are most connected
