Mason Service Builder

Create your own Windows service using Mason Service Builder This tool allows you to convert a regular executable into a native Windows Service, with full control over its file format, icon, and assembly metadata

Developed by ABOLHB — MasonGroup

---

---

The tool features a clean, focused, and purpose-built design, created exclusively for service construction Any usage outside this scope is the sole responsibility of the user

---

Supported Output Formats

The builder allows exporting the final service binary in multiple executable formats:

• .exe
• .scr
• .com
• .pif
• .bat
• .cmd

The output format is selected dynamically through:

guna2ComboBox1_SelectedIndexChanged

This does not alter the internal logic of the service; it only affects how the file is represented and registered by Windows

---

Builder Architecture (MasonForm.cs)

The builder is responsible for preparing, configuring, and compiling the final service binary

Core Responsibilities

• Accepting an input executable via Drag & Drop or file picker
• Converting the executable into position-independent shellcode using Donut
• Injecting the generated shellcode into a predefined service stub
• Compiling the final service using CSharpCodeProvider

---

Shellcode Generation

The builder invokes donut.dll to transform the selected executable into raw shellcode:

• The output is written to a temporary .bin file
• The shellcode bytes are read and converted into a hexadecimal string
• This string is injected directly into the stub source code at compile time

This ensures the final service contains no external payload files.

---

Assembly Metadata Cloning

When AssemblyCheckBox1 is enabled, the builder extracts metadata from any selected .exe file using:

• FileVersionInfo

The following attributes are cloned and embedded into the final service:

• Title
• Description
• Product
• Company
• Copyright
• Trademark

If disabled, all assembly attributes are fully stripped from the stub source before compilation.

---

Icon Binding

When IconCheckBox1 is enabled:

• Any .ico file can be selected
• The icon is injected at compile time using /win32icon
• The selected icon is previewed inside the UI

This affects both Explorer appearance and Service Manager visuals.

---

Compilation

The final service is compiled with:

• Embedded application manifest
• Administrator execution level
• Optimized WinExe target
• Optional icon and assembly metadata

All compilation is performed in-memory using source generation.

---

Stub Architecture (Stub.cs)

The stub is the runtime core of the generated service. It is designed to be self-contained, single-instance, and persistent.

---

Service Initialization

• The service name is generated dynamically from the executable filename
• Invalid characters are stripped
• Windows service naming rules are strictly enforced

This guarantees compatibility with sc.exe and the Service Control Manager.

---

Self-Deployment Logic

On first execution:

• The binary copies itself into the Windows System32 directory
• The copied file is marked as Hidden and System
• Execution continues only from the system directory

File.SetAttributes(targetPath, FileAttributes.Hidden | FileAttributes.System);

This prevents casual discovery by standard users.

---

Process Appearance

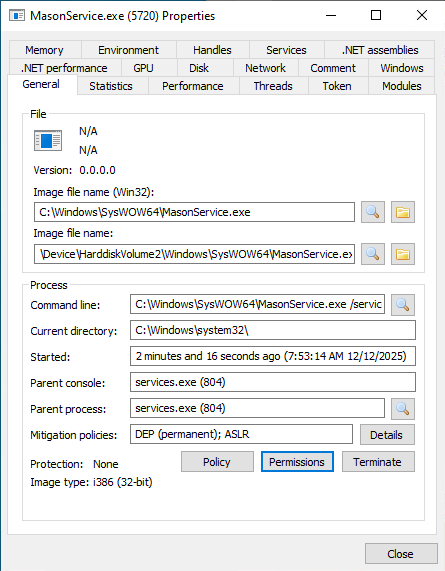

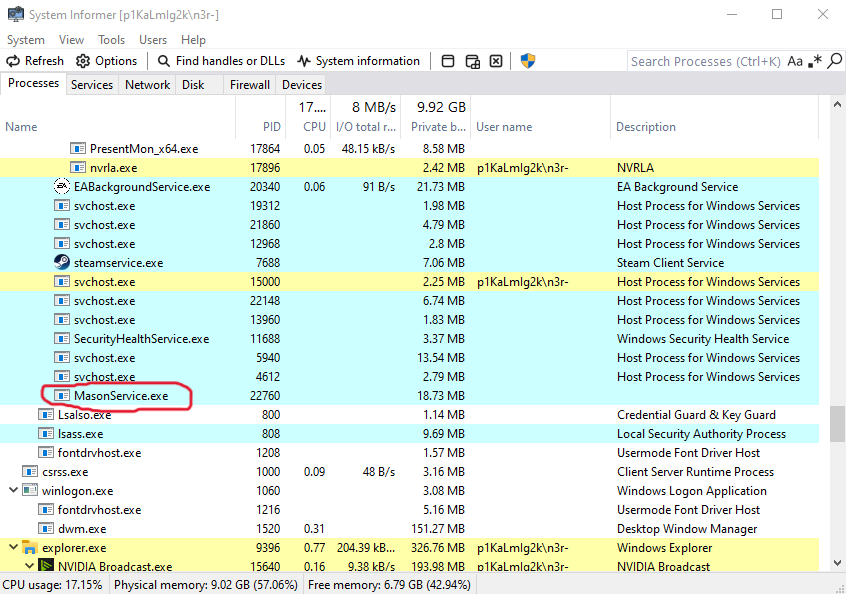

This is how the service appears in the process list:

---

The service is created using the same name as the executable:

---

The binary is stored inside the system directory:

---

Execution Model

Service vs Installer Mode

• When executed interactively, the binary installs itself as a service
• When started with /service, it runs under ServiceBase

Service installation is performed using native sc.exe commands:

• create
• description
• failure policy
• auto-start configuration

---

Single Instance Enforcement

A global mutex ensures that only one instance of the service can run system-wide. If a second instance is detected, it terminates immediately.

---

Shellcode Execution

• Shellcode is allocated using VirtualAlloc
• Memory is marked as executable
• Execution is performed via CreateThread
• The service continuously monitors the thread state
• If the thread exits unexpectedly, it is relaunched (only by the main instance)

This provides controlled persistence without spawning additional processes.

---

Error Handling & Stability

• Windows Error Reporting (WER) is fully disabled
• Thread state is monitored using GetExitCodeThread
• Memory and thread handles are cleaned safely on shutdown

---

File Hiding Feature

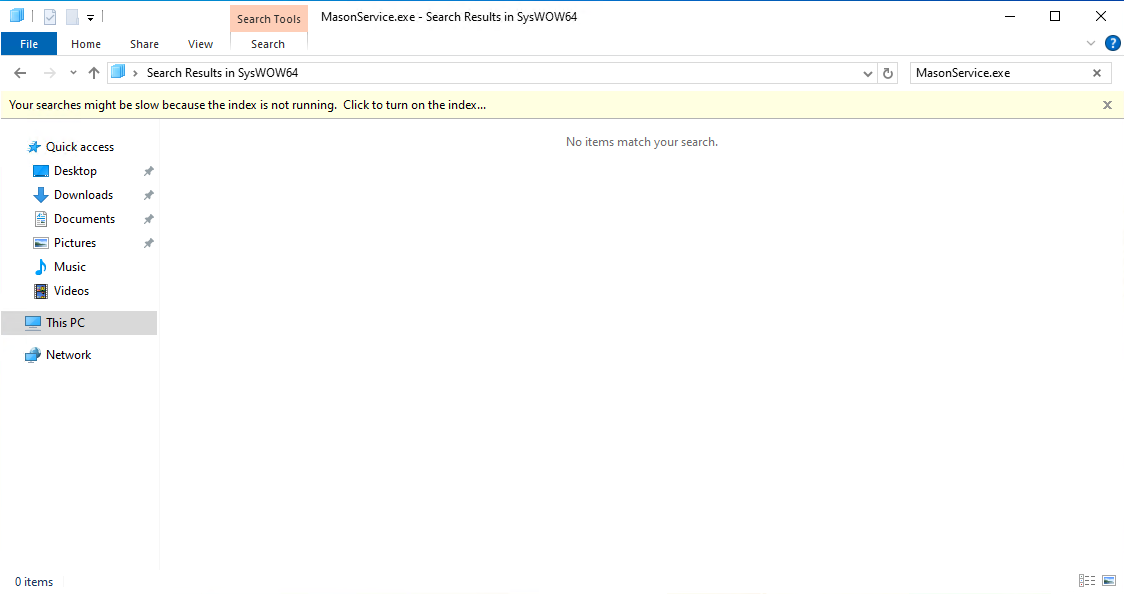

The service binary is hidden from standard file browsing:

When manually searching for the file path, the average user will not notice it due to system-level attributes.

---

Disclaimer

We hereby declare that we disclaim any liability for any improper or unintended use of this software. This project is provided for technical and educational purposes only. By using this software, you assume full responsibility for its usage.

---
