Allo Reservations

A concurrency-safe inventory reservation system built for the Allo Engineering take-home exercise.

Problem Statement

In ecommerce systems, payment confirmation may take several minutes due to UPI, 3DS, wallet redirects, or banking delays.

If inventory is decremented only after payment succeeds, multiple users may successfully pay for the same physical unit.

This project solves that problem using temporary inventory reservations.

---

Quick start

Prerequisites

• Node.js 20+
• PostgreSQL (Supabase or any hosted Postgres)

Setup

npm install
cp .env.example .env
# Set DATABASE_URL in .env to your Postgres connection string
npx prisma db push
npm run db:seed
npm run dev

Open http://localhost:3000.

Environment

Variable	Description
DATABASE_URL	PostgreSQL connection URL (use Supabase pooler port 6543 with ?pgbouncer=true for Vercel)

Deploy on Vercel

1. Import github.com/AdityaShankar1/allo-reservations
2. Set DATABASE_URL in Project → Settings → Environment Variables
3. Deploy (build runs prisma generate via postinstall + build script)
4. Seed once: npm run db:seed (from a machine with DB access)

Live: https://allo-reservations-nine.vercel.app

---

Core flow

1. User reserves inventory during checkout
2. Inventory becomes temporarily unavailable (reservedQuantity increases)
3. Reservation expires after 10 minutes
4. User may confirm purchase or cancel the reservation
5. Expired reservations release stock automatically (lazy cleanup)

---

Stack

• Next.js App Router
• TypeScript
• Prisma ORM
• PostgreSQL (Supabase)
• Tailwind CSS
• shadcn/ui
• Zod
• Sonner (toasts)

Architecture

Next.js App Router
        ↓
Route Handlers
        ↓
Business Logic Layer
        ↓
Prisma Transactions
        ↓
PostgreSQL Row Locks

sequenceDiagram
    participant U as User
    participant A as Next.js API
    participant D as Database (Postgres)
    participant C as Cleanup Job

    U->>A: POST /api/reservations (reserve)
    A->>D: SELECT ... FOR UPDATE (Lock Row)
    D-->>A: Current Capacity
    alt Sufficient Stock
        A->>D: Increment reservedQuantity + Create Reservation
        D-->>A: OK
        A-->>U: 201 Created (10m hold)
    else Insufficient Stock
        A-->>U: 409 Conflict
    end

    U->>A: POST /api/reservations/:id/confirm (pay)
    A->>D: Update stock + Release Reservation
    D-->>A: OK
    A-->>U: 200 OK

    C->>D: Sweep expired reservations
    D->>D: reservedQuantity -= quantity

Loading

API endpoints

Method	Path	Description
GET	/api/products	Products with per-warehouse stock and availableStock
POST	/api/reservations	Create reservation (409 if insufficient stock)
GET	/api/reservations/:id	Reservation details + countdown
POST	/api/reservations/:id/confirm	Confirm purchase (410 if expired)
POST	/api/reservations/:id/release	Cancel / release hold

---

Concurrency handling

PostgreSQL row-level locking was chosen over distributed locking systems because it provides strong transactional guarantees with minimal infrastructure complexity for this scale of application.

The create-reservation endpoint uses a Prisma transaction with PostgreSQL row-level locking:

SELECT ... FROM "Inventory" WHERE ... FOR UPDATE

Inside the transaction:

1. Lock the inventory row
2. Check totalQuantity - reservedQuantity >= requested quantity
3. Increment reservedQuantity
4. Create the reservation with expiresAt = now + 10 minutes

If stock is insufficient, the transaction rolls back and the API returns 409.

---

Reservation expiry

Current approach: lazy cleanup

• On GET /api/reservations/:id, expired pending reservations are released
• On POST .../confirm, expired reservations return 410 and stock is released first

Production improvement: a Vercel Cron job (or pg_cron) to sweep expired reservations periodically, so stock is returned even if nobody reads the reservation again.

---

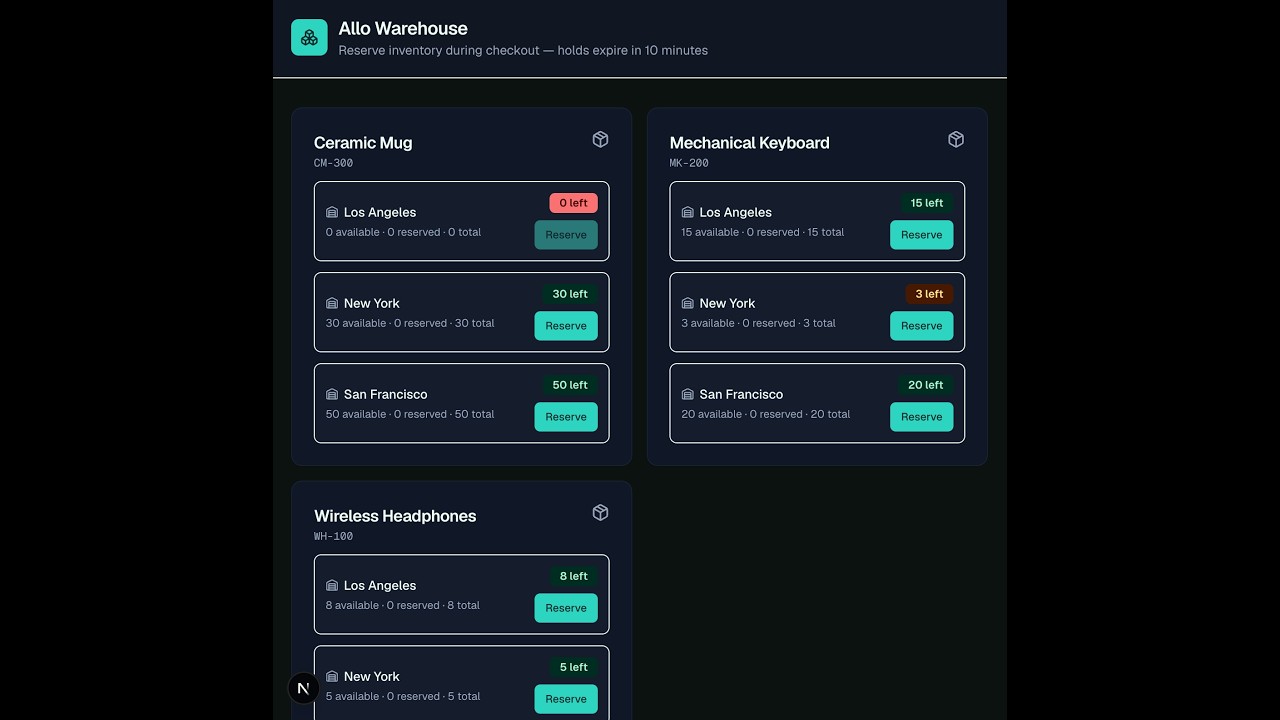

Output Screenshot:

Trade-offs

• No auth — demo MVP only
• No idempotency keys — would add Redis or a DB table for the bonus
• Lazy expiry — simple and correct, but stock may stay reserved until the next read/confirm if the user abandons the page
• Polling UI — reservation page refetches every 3s instead of WebSockets
• Redis - Redis-based distributed locking was intentionally avoided in the MVP because PostgreSQL transactions already provide sufficient correctness guarantees for inventory reservation at this scale.

---

Project structure

src/
  app/
    api/          # Route handlers (thin)
    page.tsx      # Product catalog
    reservation/  # Checkout / hold page
  components/     # UI + client features
  lib/
    reservations.ts  # Business logic + transactions
    products.ts
    validations.ts
prisma/
  schema.prisma
  seed.ts

---

Demo script

1. Open the home page — three products across three warehouses
2. Reserve 1 unit of Ceramic Mug from Los Angeles (only 1 available)
3. On the reservation page, watch the 10-minute countdown
4. Confirm — stock is permanently decremented
5. Or Cancel — reserved units return to available stock
6. Try reserving the last LA mug in two browser tabs — one gets 409

---

Scripts

Command	Description
npm run dev	Start dev server
npm run build	Production build
npm run db:push	Sync schema to database
npm run db:seed	Seed demo data

Next Improvements

• Idempotency keys for retry-safe payment flows
• Cron-based expiry sweeper
• WebSocket inventory updates
• Reservation metrics / audit logs
• Distributed worker queues for async processing
