Aws-AppStream

AppStream 2.0 is a fully managed service that can be configured for application streaming or for delivery of virtual desktops with selective persistence. When AppStream 2.0 is used for virtual desktops, saved files and application settings remain persistent between user sessions, and a fresh desktop is assigned to the user every time they log on. This Code will help you to set up the Amazon App stream 2.0 Environment. To know more about app stream, kindly go-through with the following documents.

Amazon AppStream 2.0 By Ashish Kasaudhan.

Amazon AppStream 2.0

---

Pre-Requisites

• An AWS Account
• An Ec2 instance with an instance profile having access to Amazon App-Stream 2.0 service and For an On-Prem instance an IAM role.
• Vpc with 2 or More Public and Private Subnet with Appropriate tagging. These tags will be used in terraform code, to pull out vpc and subnet information.

• Terraform version greater/equal to 1.2.9.
• AwsCli

---

Terraform Execution Steps To Create ImageBuilder

• Clone the git repo.
• Go To AppStream-ImageBuilder Directory.
• Update the variable into tfvars file as per your environment/requirement.
• Push change to git repo.

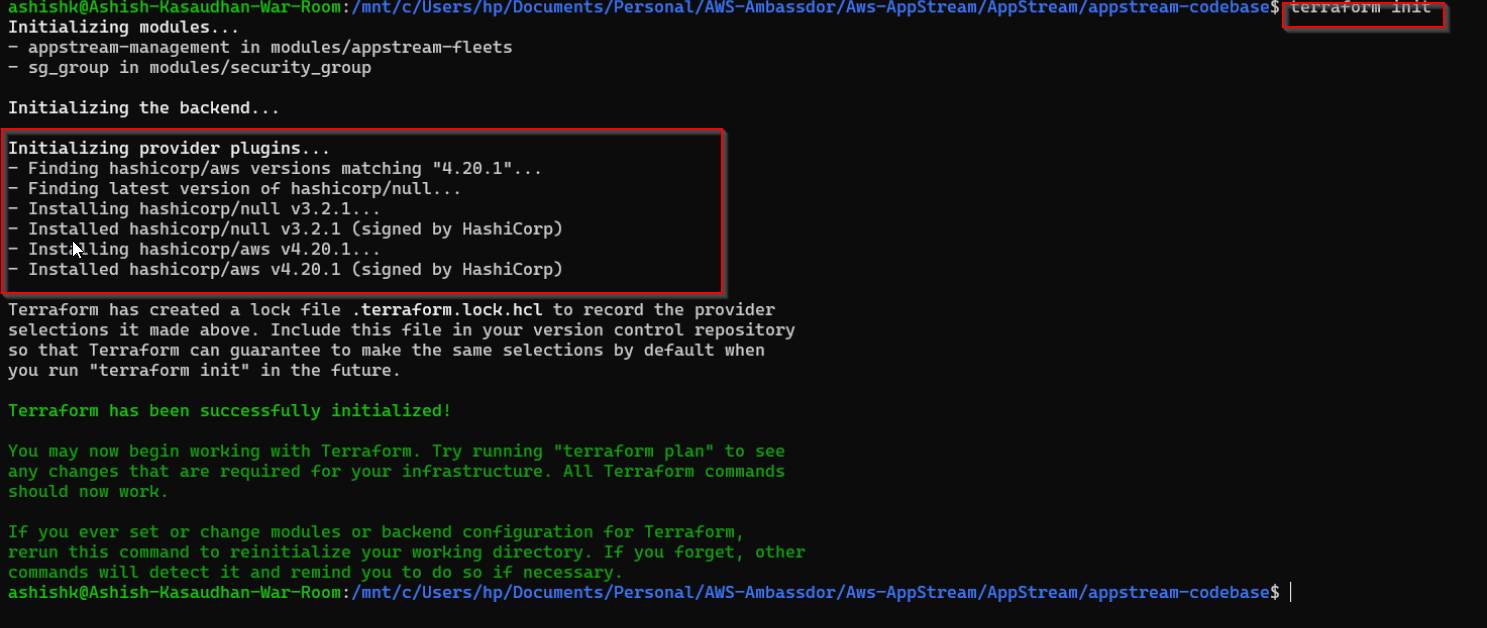

• To initialize a working directory containing Terraform configuration files:

terraform init

• To validate the Terraform configuration

terraform validate

• To format your Terraform code

terraform fmt --recursive

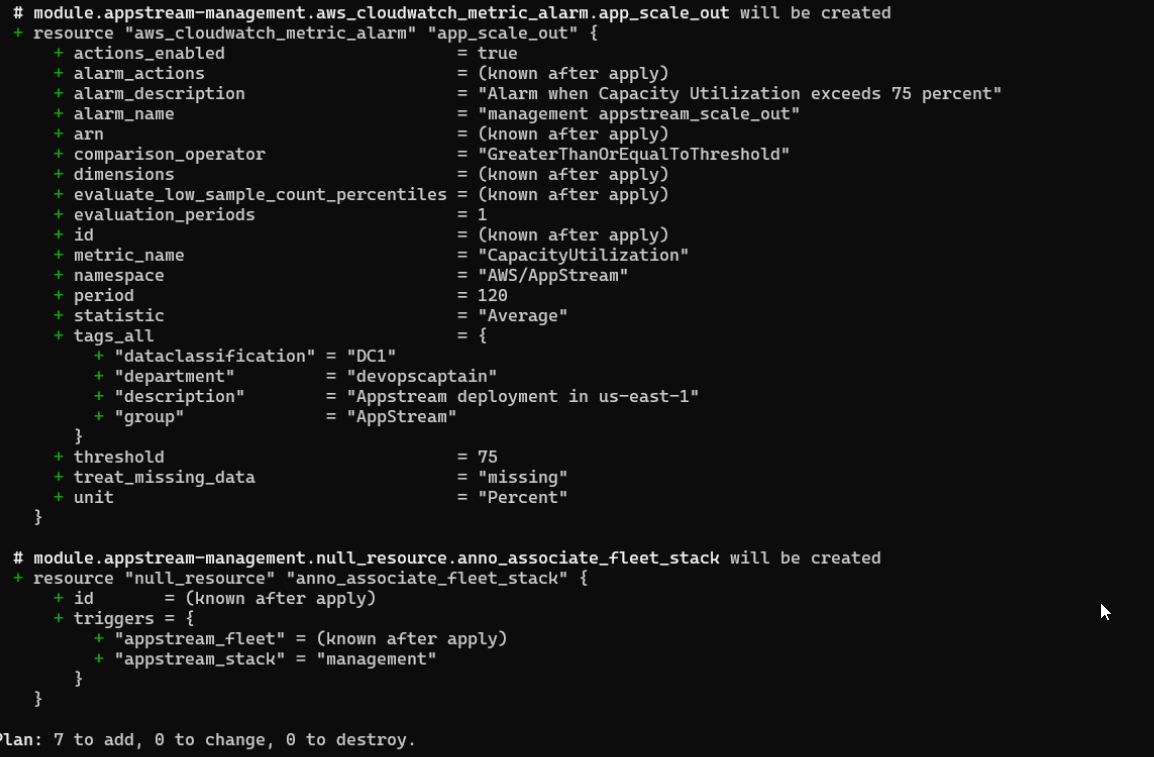

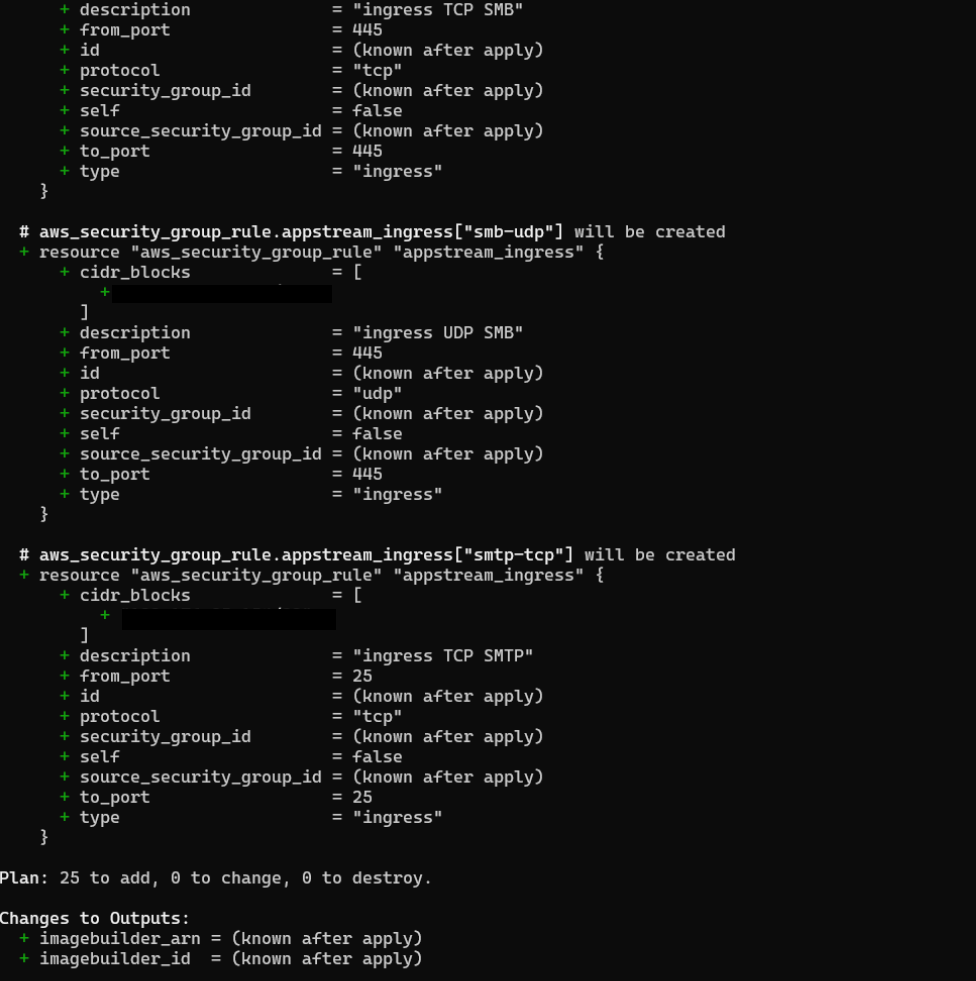

• To create an execution plan, which lets you preview the changes to your infrastructure:

terraform plan

terraform apply --auto-approve

After the successful execution of terraform Code Imagebuilder Instance gets created, which we are going to customize. For this demo, we are going to install notepad++.

---

Customize Image Builder Instance

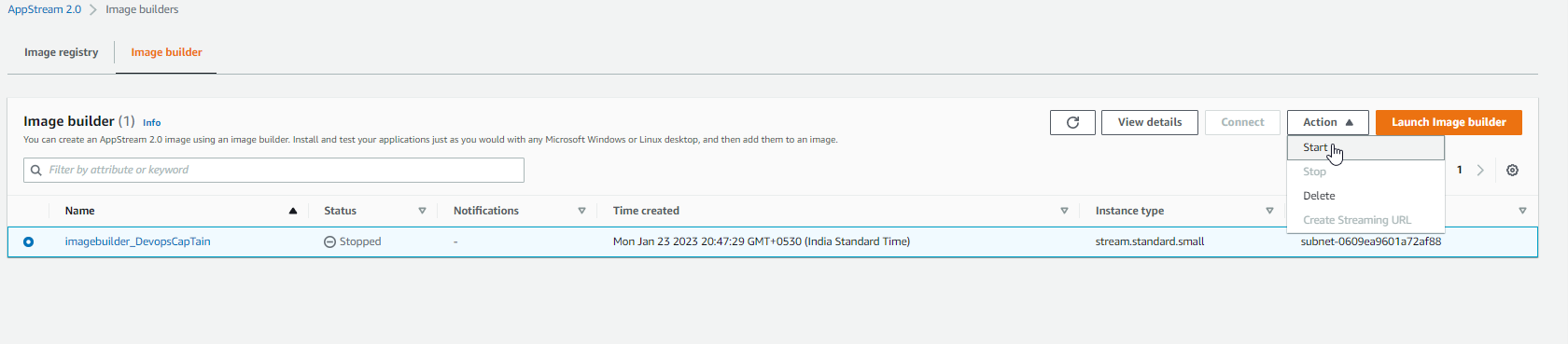

• Go To APPStream 2.0 ----> Image Builders ----> Click on Start -----> After Start login as Administrator

• Download Notepad +++ from the internet and Install it on the image builder

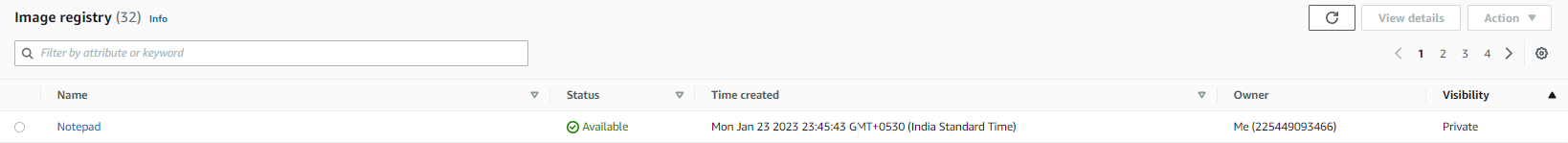

• Follow the steps mentioned in (https://docs.aws.amazon.com/appstream2/latest/developerguide/tutorial-image-builder.html) to create image.We are tagging our image as Notepad.

---

Terraform Execution Steps To Create Amazon AppStream 2.0 Stack And Fleet

• Clone the git repo.
• Go To AppStream Directory.
• Update the variable into tfvars file as per your environment/requirement.
• Push change to git repo.
• To initialize a working directory containing Terraform configuration files:

terraform init

• To validate the Terraform configuration

terraform validate

• To format your Terraform code

terraform fmt --recursive

• To create an execution plan, which lets you preview the changes to your infrastructure:

terraform plan

terraform apply --auto-approve

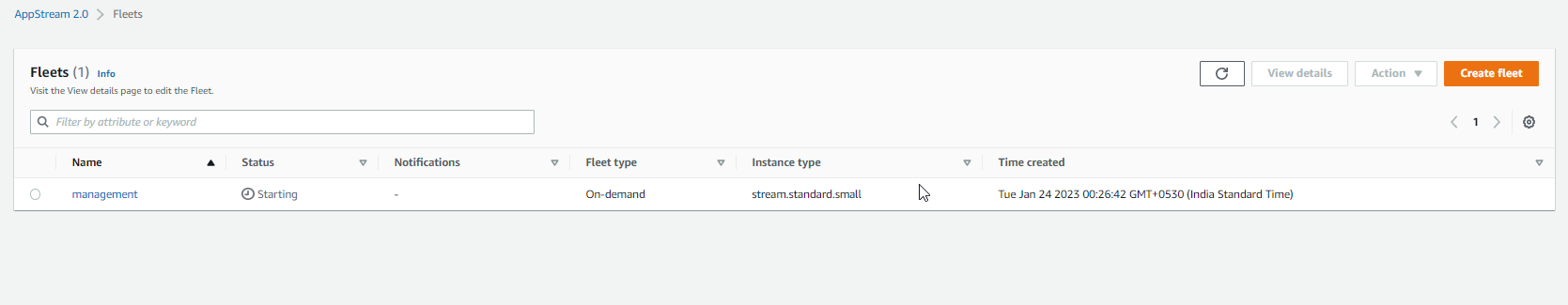

After the successful execution of terraform Code Amazon AppStream fleet and stack gets created.

* Once everything becomes available, login into AppStream Stack.

Requirements

Name	Version
terraform	= 1.2.9

Providers

Name	Version
aws	4.20.1

Modules

AppStream/modules/appstream-fleets

Inputs

Name	Description	Type	Default	Required
mgmt_stack_name	Name of AppStream Stack	string	""	yes
mgmt_fleet_name	Name of AppStream Fleet	string	""	yes
mgmt_fleet_type	Name of AppStream Type	string	""	yes
mgmt_instance_name	Type of AppStream Instance	string	""	yes
mgmt_image_name	Name of AppStream Image create via image builder	string	""	yes
mgmt_desired_capacity	Desired Number of AppStream Instance	number	""	yes
mgmt_max_capacity	Maximum Number of AppStream Instance	number	""	yes
mgmt_min_capacity	Minimum Number of AppStream Instance	number	""	yes
image_name	Base Image for ImageBuilder	string	""	yes
instance_type	Instance Type for Imagebuilder Instance	string	""	yes

Outputs

Name	Description
stack_arn	ARN of the created appstream stack.
imagebuilder_arn	ARN of the created imagebuilder instance.
imagebuilder_id	Name of the created imagebuilder instance.

---

For more information on Amazon AppStream 2.0 , visit Amazon AppStream 2.0 By Ashish Kasaudhan.

For more information on Amazon AppStream 2.0, visit Amazon AppStream 2.0.
