Wam-Studio

Updated September 7, 2023

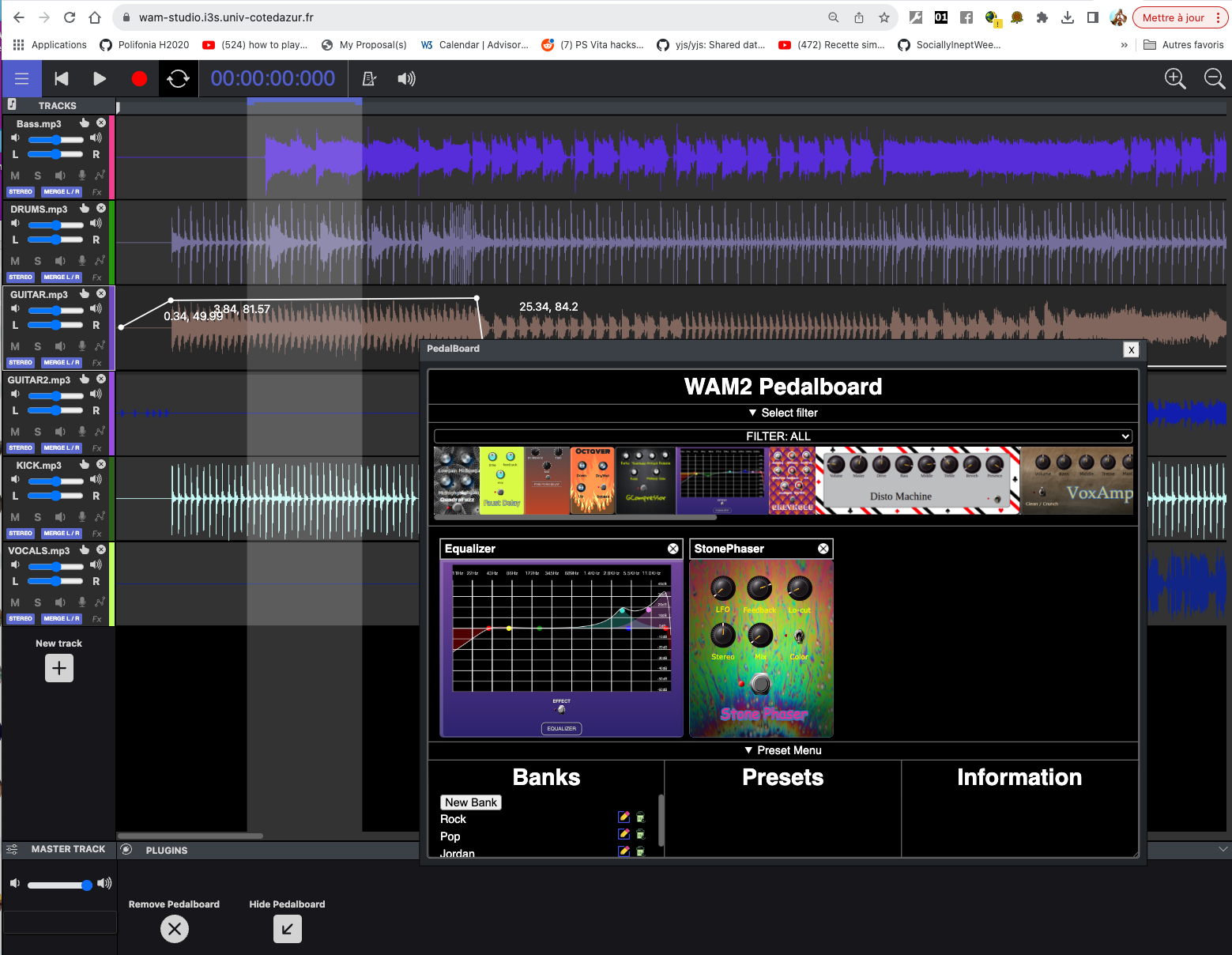

Wam-Studio’s is an online tool for creating audio projects that you can imagine as multi-track music. Each track corresponds to a different "layer" of audio content that can be recorded, edited, or just integrated (using audio files for example). Some track can be used to control virtual instruments: in that case we record the sound that is generated internally by these virtual instruments (and played using a MIDI piano keyboard, for example). Tracks can be added or removed, played isolated or with other tracks. They can also be "armed" for recording, and when the recording starts, all other tracks will play along, while the armed track will record new content.

Current features: robust audio track recording, track regions, loop area on tracks, track plugin fx chain, parameter automation, audio input and output device selection, latency measuring tool + inout latency compensation when recording, project saving on cloud (audio + all metadata), rendering mix with choice of tracks to render, viewport management on tracks (zoom in/out) using pixiJS/WebGL canvas.

### Citation

If you use our resource, please cite the following articles:

@inproceedings{buffa2023wam,
  title={WAM-studio, a Digital Audio Workstation (DAW) for the Web},
  author={Buffa, Michel and Vidal-Mazuy, Antoine},
  booktitle={Companion Proceedings of the ACM Web Conference 2023},
  pages={543--548},
  year={2023}
}

Running guide

Running the Application Locally

Frontend

1. Navigate to the public folder.
2. Install dependencies by running npm install.
3. Create a .env file in the root directory of the public folder.
4. Configure the following variables in the .env file:
   • PORT: The port number that the frontend server will run on. For example, 5002.
   • HTTPS: Set this to true if you want to enable HTTPS. If true, you must create a certificate and set the SSL_CRT_FILE and SSL_KEY_FILE variables.
   • BACKEND_URL: The URL of the backend server. For example, http://localhost:6002.
   • BANK_PLUGIN_URL: The URL of the bank plugin. For example, http://localhost:6002.
5. Start the frontend server by running npm start.

Back-end (Bank Plugin)

1. Navigate to the bank folder.
2. Install dependencies by running npm install.
3. Create a .env.local file in the root directory of the bank folder.
4. Configure the following variables in the .env.local file:
   • PORT: The port number that the bank plugin server will run on. For example, 6002.
   • STORAGE_DIR: The directory where the bank plugin will store data. For example, storage.
   • ADMIN_PASSWORD: The password for the admin user.
   • JWT_SECRET: The secret for JSON Web Tokens (JWT).
   • NODE_ENV: The environment that the bank plugin is running in. For example, development.
5. Start the bank plugin server by running npm start.

Running the Application with Docker

1. Install Docker on your machine if you haven't already.
2. Clone the project repository to your local machine.
3. Navigate to the root directory of the project.
4. Start the application with Docker by running docker-compose up.
5. Docker will read the docker-compose.yml file to build and run the containers.
6. Configure the following variables in the docker-compose.yml file:
   • HTTPS: Set this to false to disable HTTPS. If true, you must create a certificate and set the SSL_CRT_FILE and SSL_KEY_FILE
   • BACKEND_URL: The URL of the backend server. For example, http://localhost:6002.
   • BANK_PLUGIN_URL: The URL of the bank plugin. For example, http://localhost:7002.
   • STORAGE_DIR: The directory where the backend will store data. For example, /data/storage (inside the volume).
   • ADMIN_PASSWORD: The password for the admin user.
   • JWT_SECRET: The secret for JSON Web Tokens (JWT).

Note : The server and the plugin bank can be hosted elsewhere, in that case do not forget to provide the URLs in the public .env or in the docker-compose.yml.

That's it! The application should now be running. You can access the frontend by going to http://localhost:5002 in your web browser.
