irap_recam — ESP32-CAM Stream Bridge for ROS2 Humble

A ROS2 node that receives streamed JPEG frames from an ESP32-CAM over a serial link, reassembles them, decodes them, and publishes the result as a sensor_msgs/Image message on /recam/image_raw.

Important: Do not rename the irap_docker folder. This name is fixed inside docker-compose.yml as the volume bridge identifier and must remain unchanged.

---

Table of Contents

• Firmware Installation (ESP32-CAM)
• High-Level Package Installation (Docker)
• Prerequisites
• Build
• Run
• Camera Settings
• Parameters
• View the Stream
• Console Output
• Overview
• Latency Test

---

Firmware Installation (ESP32-CAM)

1. Navigate to the irap_docker folder that you cloned from GitHub.
2. Enter the espcam_firmware subdirectory.
3. Install esptool if it is not already available:

   pip install esptool

4. Connect the ESP32-CAM to your computer, then run the following command. Replace --port with your actual port.
   • Linux/Ubuntu: check available ports with ls /dev/tty*
   • Windows: check Device Manager under COM Ports

   python3 -m esptool --chip esp32s3 --port /dev/ttyACM0 --baud 460800 \
       write_flash 0x0000 bootloader.bin 0x10000 firmware.bin

5. A successful flash produces output similar to the following:

   esptool.py v4.7.0
   Serial port /dev/ttyACM1
   Connecting...
   Chip is ESP32-S3 (QFN56) (revision v0.2)
   Features: WiFi, BLE, Embedded PSRAM 8MB (AP_3v3)
   Crystal is 40MHz
   MAC: 10:20:ba:03:9c:b4
   Uploading stub...
   Running stub...
   Stub running...
   Changing baud rate to 460800
   Changed.
   Configuring flash size...
   Flash will be erased from 0x00000000 to 0x00003fff...
   Flash will be erased from 0x00010000 to 0x00061fff...
   Compressed 15104 bytes to 10430...
   Wrote 15104 bytes (10430 compressed) at 0x00000000 in 0.2 seconds (effective 499.5 kbit/s)...
   Hash of data verified.
   Compressed 334128 bytes to 191627...
   Wrote 334128 bytes (191627 compressed) at 0x00010000 in 2.4 seconds (effective 1113.6 kbit/s)...
   Hash of data verified.
   Leaving...
   Hard resetting via RTS pin...


6. Open a serial monitor and verify that the device repeatedly prints the following every 100 milliseconds:

   [irap-recam] : firmware-version=1.0.0


---

High-Level Package Installation (Docker)

1. Push the irap_docker folder to the Arduino UNO Q device using ADB:

   adb push irap_docker /home/arduino/

2. Disable the hardware serial debugger on the Arduino UNO Q to free up /dev/ttyMSM0 for ESP32-CAM communication. This script patches the boot entry console to use an alternate debugging console:

   sudo bash patch_serial.sh

3. Disable the default Wi-Fi configuration and remove Gretty to optimize Wi-Fi adapter performance:

   sudo bash set_wifi_and_remove_gretty.sh

4. Build the Docker image (requires an internet connection):

   sudo bash docker_build.sh

5. Start the Docker Compose stack:

   sudo docker compose up -d

6. Open an interactive shell inside the container:

   sudo docker compose exec ros2_humble bash

7. ros2 launch inside the container:

   ros2 launch irap_recam irap_recam_launch.py

8. Launch the ROS2 node. If everything is connected and configured correctly, you should see frame rate statistics similar to:

   [irap_recam] FPS: 10.16 | FrameID:  65 | Size: 32764 | Resolution: 640x480 | Processing: 14ms | Serial latency: 171.98ms
   [irap_recam] FPS: 10.24 | FrameID:  78 | Size: 32776 | Resolution: 640x480 | Processing: 16ms | Serial latency:  71.15ms
   [irap_recam] FPS: 11.12 | FrameID:  90 | Size: 32692 | Resolution: 640x480 | Processing: 15ms | Serial latency:  97.55ms
   [irap_recam] FPS: 11.09 | FrameID: 102 | Size: 33220 | Resolution: 640x480 | Processing: 15ms | Serial latency:  97.46ms
   [irap_recam] FPS: 11.15 | FrameID: 114 | Size: 32200 | Resolution: 640x480 | Processing: 14ms | Serial latency:  90.33ms
   [irap_recam] FPS: 11.12 | FrameID: 126 | Size: 31543 | Resolution: 640x480 | Processing: 15ms | Serial latency:  88.08ms


---

Prerequisites

System Requirements

• Ubuntu 22.04 (tested; other 22.04-based distributions should work)

• Latency Test

• ROS2 Humble
• C++17-capable compiler (g++ ≥ 11)

ROS2 Packages

Direct Run

ros2 run irap_recam irap_recam

Override defaults via command-line arguments:

ros2 run irap_recam irap_recam --ros-args \
    -p device:=/dev/ttyUSB0 \
    -p baudrate:=4000000

Launch File

Important: Update the device and baudrate values in the launch file to match your setup before launching.

device_arg = DeclareLaunchArgument(
    'device',
    default_value='/dev/ttyACM0',
    description='Serial device path'
)

baudrate_arg = DeclareLaunchArgument(
    'baudrate',
    default_value='4000000',
    description='Serial baud rate'
)

ros2 launch irap_recam irap_recam_launch.py

---

Camera Settings

All camera parameters are configurable at runtime via rqt or the command line without restarting the node.

Parameter	Range	Default	Description
cam_resolution	1 – 21	8 (VGA)	Image resolution (see table below)
cam_quality	1 – 63	15	JPEG quality (lower = better)
cam_brightness	−3 – 3	3	Camera brightness
cam_contrast	−3 – 3	3	Camera contrast
cam_saturation	−4 – 4	4	Camera saturation
cam_exposure	−4 – 4	4	Camera exposure

Resolution Reference

Index	Resolution	Label
0	96 × 96	FRAMESIZE_96X96
1	160 × 120	FRAMESIZE_QQVGA
2	176 × 144	FRAMESIZE_QCIF
3	240 × 176	FRAMESIZE_HQVGA
4	240 × 240	FRAMESIZE_240X240
5	320 × 240	FRAMESIZE_QVGA
6	400 × 296	FRAMESIZE_CIF
7	480 × 320	FRAMESIZE_HVGA
8	640 × 480	FRAMESIZE_VGA
9	800 × 600	FRAMESIZE_SVGA
10	1024 × 768	FRAMESIZE_XGA
11	1280 × 720	FRAMESIZE_HD
12	1280 × 1024	FRAMESIZE_SXGA
13	1600 × 1200	FRAMESIZE_UXGA
14	1920 × 1080	FRAMESIZE_FHD
15	720 × 1280	FRAMESIZE_P_HD
16	864 × 1536	FRAMESIZE_P_3MP
17	2048 × 1536	FRAMESIZE_QXGA
18	2560 × 1440	FRAMESIZE_QHD
19	2560 × 1600	FRAMESIZE_WQXGA
20	1080 × 1920	FRAMESIZE_P_FHD
21	2560 × 1920	FRAMESIZE_QSXGA

Runtime Parameter Updates

ros2 param set /irap_recam cam_quality 25
ros2 param set /irap_recam cam_resolution 5   # QVGA 320×240

---

Parameters

Parameter	Type	Default	Description
device	string	/dev/ttyMSM0	Serial device path
baudrate	int	4000000	Serial baud rate (minimum 9600)

---

View the Stream

# GUI image viewer
ros2 run image_view image_view --ros-args -r image:=/recam/image_raw

# Or via rqt
rqt_image_view

---

Console Output

The node prints a statistics line once per second while running:

FPS: 44.2 | FrameID: 1042 | Size: 18765 | Resolution: 640x480 | Processing: 1ms | Serial latency: 49.3ms

Field	Description
FPS	Decoded frames per second
FrameID	Last completed frame sequence number received from the ESP32-CAM
Size	Raw JPEG size in bytes before decoding
Resolution	Decoded image dimensions
Processing	Time from last chunk received to frame published (ms)
Serial latency	Round-trip time measured via the dataControl bit handshake (ms)

---

Overview

• Runtime reconfiguration of ESP32-CAM settings directly from rqt

---

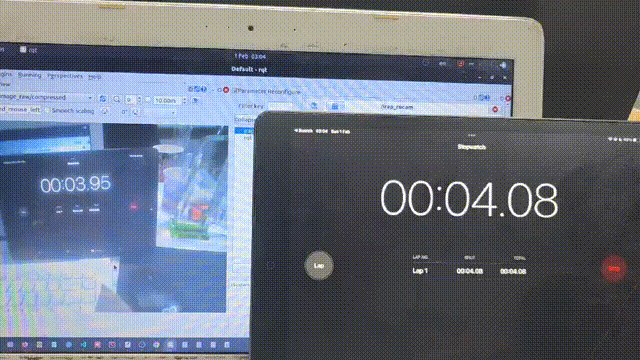

Latency Test

End-to-end latency at 640 × 480 resolution and 1 Mbaud is typically 50–70 ms.
