Groups panel mirrors the directory structure (phase 4, #10930)

[koppor]

📚 Directory-as-library stack — bottom → top, each builds on the one below:

1. Programmatic Hayagriva writer (directory-as-library, phase 0) #736 · Hayagriva YAML writer
2. Open folder as library (directory as library, phase 1) #737 · Open folder as library
3. Live inbound sync for directory libraries (phase 2) #738 · Inbound file sync
4. Write-back to Hayagriva sidecars (directory as library, phase 3) #739 · Write-back to sidecars
5. Groups panel mirrors the directory structure (phase 4, #10930) #740 · Directory-structure groups ← this PR
6. Pattern-driven pair renames for directory libraries (phase 5a) #741 · Pattern-driven pair renames
7. Mirror directory libraries into a .bib with git-sync merge-back #743 · .bib mirror + merge-back
8. Convert .bib libraries into directory libraries #744 · Convert .bib → directory
9. Make directory libraries reachable through the REST API #745 · REST API support
10. Split DirectoryLibrarySynchronizer into collaborators #760 · Split the synchronizer

Related issues and pull requests

Phase 4 of the "directory as library" plan (PLAN.md), stacked on #739 (base branch directory-write-back). Implements the directory-library part of JabRef#10930 (dynamic groups mirroring the file system) — not closing it, since the issue also covers plain .bib libraries.

PR Description

🤖 The groups panel of a directory library now mirrors its folder tree: each subdirectory appears as a group holding the entries whose files live there, nested folders included. The groups are read-only and follow external file changes as they happen. Saving the library as a .bib still works — parsed back outside a directory library, the groups are simply empty.

jabref-contrib-policy:4.2:reviewed​:ok

Analogies

Like honey stored cell by cell, every entry sits visibly in the comb it came from — the folder becomes the group. Like a chocolate bar's grooves, the directory tree gives natural break lines that the groups panel simply traces. And like the moon mirrored on water, the panel is a live reflection: move the folder underneath, and the image follows without anyone redrawing it.

Steps to test

1. Open a folder with subdirectories as library (File > Open folder as library...), show the groups panel (View > Groups).

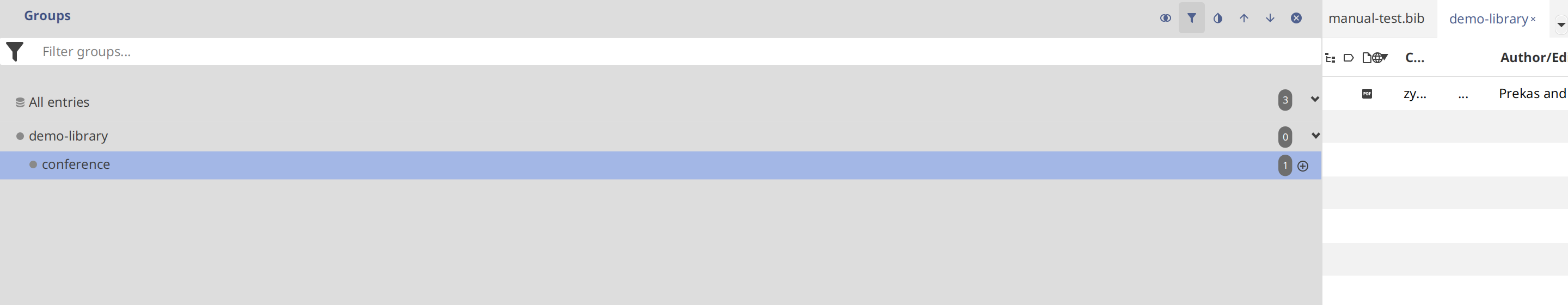

2. The library's folder appears as a group with one subgroup per subdirectory; selecting a subgroup filters the table to the entries whose files live there (hit counts shown):

3. Rename or add a .yml in a subdirectory externally — the tree and counts follow.

Guarded by DirectoryStructureGroupTest (chain building, tree merging, containment semantics, serialize/parse round trip) and a scanner test asserting the installed groups tree.

AI usage

Claude Code (model claude-fable-5).

AI CHECKLIST.md walkthrough

1. Code self-review

• JSpecify conventions followed (model group classes match their unannotated neighbors); Optional chains for the lookup; no Objects.requireNonNull.
• No broad catches, no RuntimeException/IllegalStateException thrown.
• Modern Java (pattern-matching switch labels, records untouched); Markdown Javadoc; no commented-out code.
• [/] User-facing text: group names are folder names; the "All entries" root reuses GroupsFactory's localized name.
• [/] Security: no HTML output.
• Tests assert object contents, plain JUnit, no @DisplayName.

2. Verification commands

• ./gradlew :jablib:check — only the known environmental Remote*Test port-conflict failures on this machine (green on CI).
• ./gradlew :jablib:checkstyleMain :jablib:checkstyleTest :jabgui:checkstyleMain.
• ./gradlew :jablib:modernizer, ./gradlew traceRequirements (new req~directory-library.groups~1 covered), ./gradlew :rewriteRun clean.
• npx markdownlint-cli2 on changed Markdown.
• [/] IntelliJ-format docker image — not runnable on this machine; CI format job is the backstop.

3. Documentation

• CHANGELOG.md entry (TODO replaced with this PR's link after creation).
• Requirement req~directory-library.groups~1 added with impl marker.
• [/] ADR — ADR-0072 already sketches this phase (groups section).

4. Pull request

• Body from the template, all sections filled, HTML comments removed, created from a body file via gh api (stacked cross-repo).
• CHANGELOG TODO replaced after creation, committed and pushed.

Checklist

• I own the copyright of the code submitted and I license it under the MIT license
• If AI tools were used, I disclosed them in the "AI usage" section and reviewed, understood, and take full ownership of all AI-generated code
• I manually tested my changes in running JabRef (opened the demo folder on the X display: the groups panel showed the folder tree, selecting a folder group filtered the table with correct hit counts; see screenshot)
• I added JUnit tests for changes (if applicable)
• I added screenshots in the PR description (if change is visible to the user)
• [/] I added a screenshot in the PR description showing a library with a single entry with me as author and as title the issue number
• I added one sentence (max 20 words) to CHANGELOG.md describing the change from the user's point of view (if the change is visible to the user)
• I checked the user documentation for up to dateness and submitted a pull request to our user documentation repository — deferred until the feature stabilizes; tracked in PLAN.md phase 5

🤖 Generated with Claude Code
