Small drone powered by an ESP32, and controlled by a web server in hopes of a future fully autonomous drone.
The drone is a quadcopter containing:
- 4 2206 2400KV Motors
- 4 15a ESCs
- 1 ESP32 Minikit
- 1 2s Lipo Battery
- 1 Adafruit BNO055 Breakout Board
- 1 Adafruit MPL3115A2 breakout Board
- 1 Buzzer
The BNO055 and MPL3115A2 are connected via I2C to the ESP32
A voltage divider is also present containing a 2.2K and 1.2K resistor
The website contains 3 main pages:

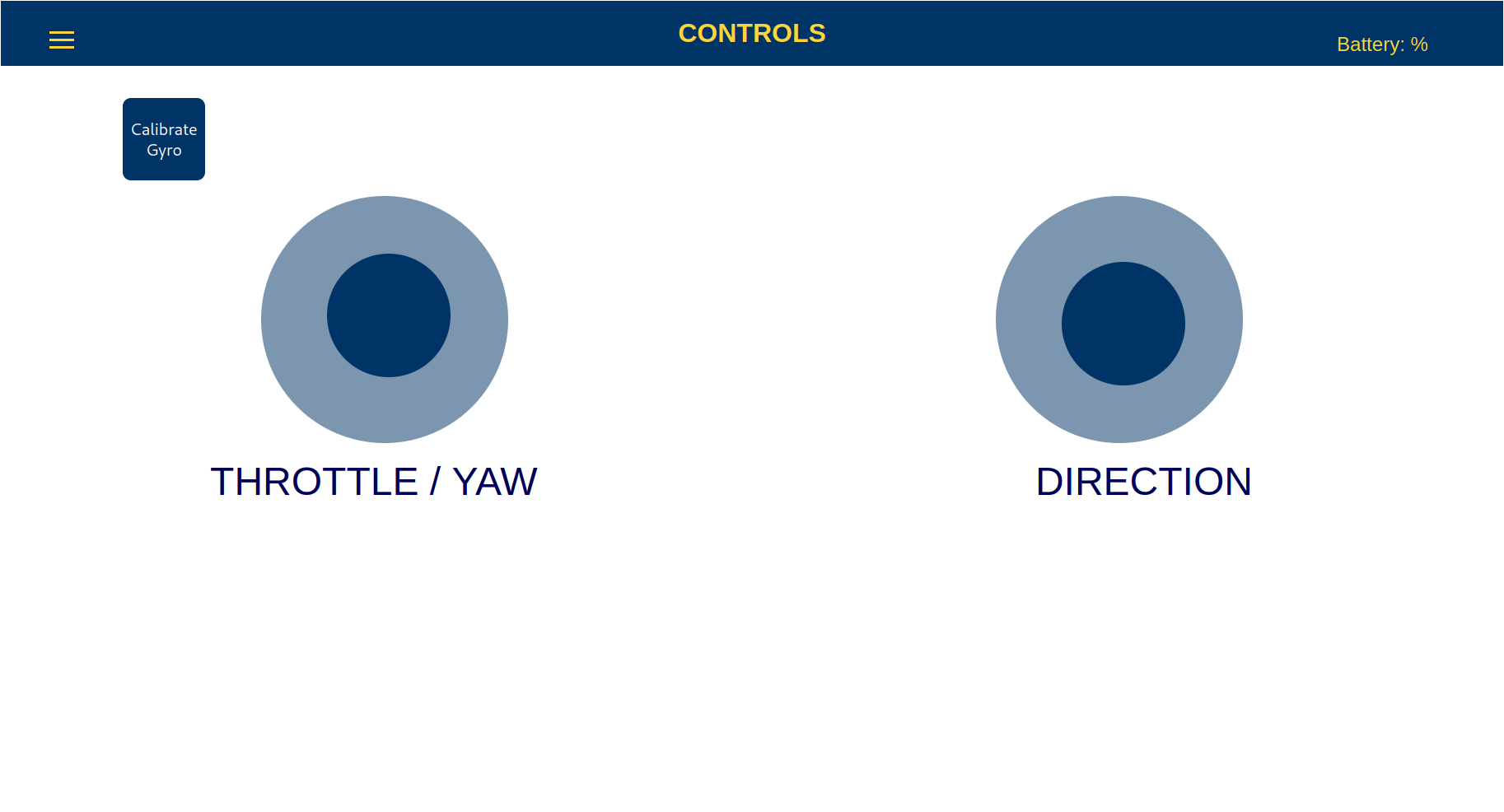

This is the main control panel
*UPDATE: Joystick Controls Implemented: MANY BUGS

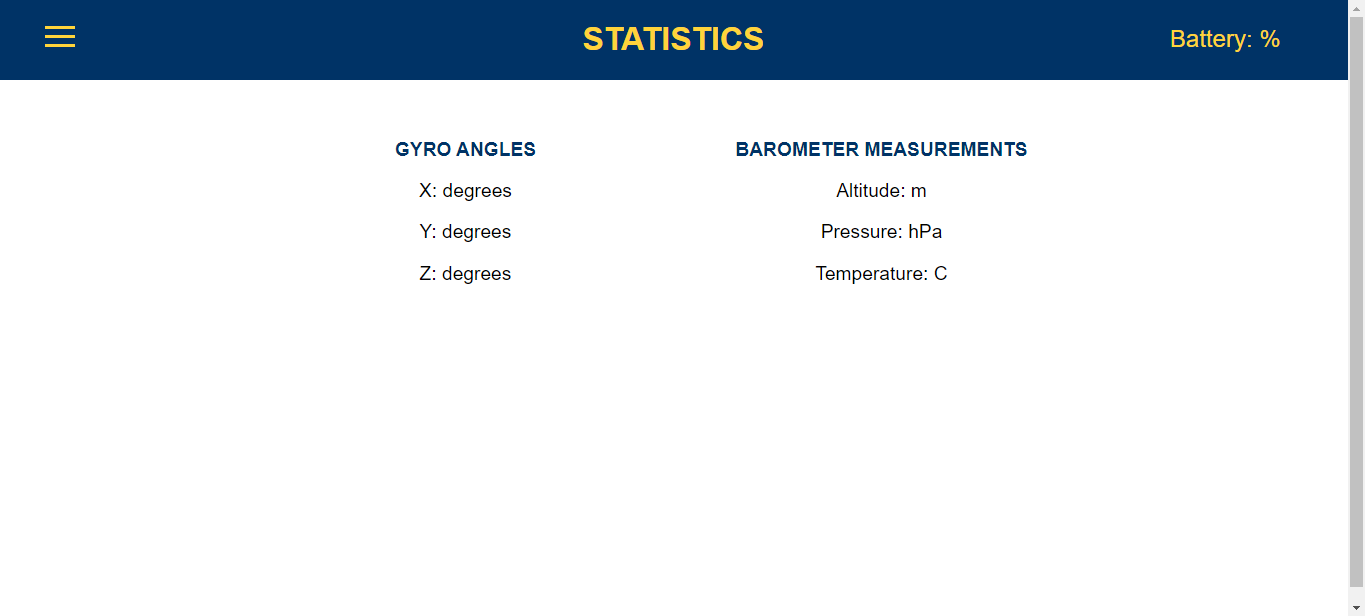

This is the page containing sensor data of the gyro and barometer

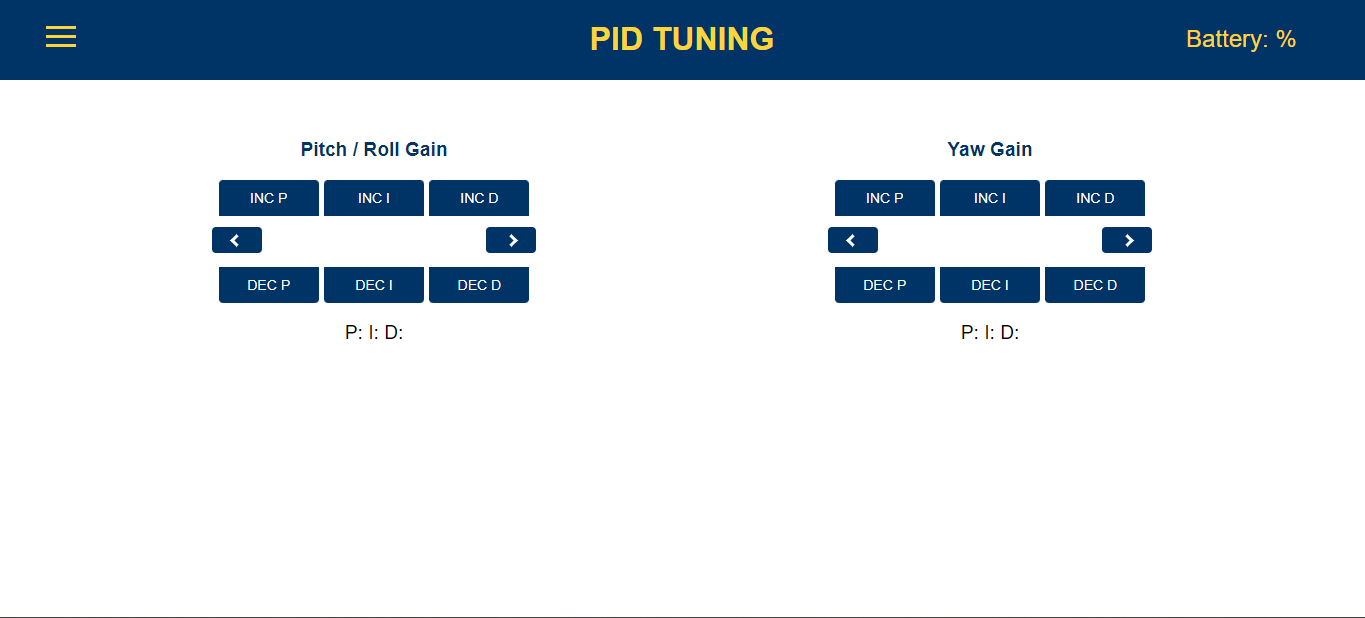

And this page is for PID Tuning, the arrows on the side are increasing/decreasing the multiplier for ALL PID Gains
The one thing not shown is the calibrate gyro page, which prompts the user whether they want to calibrate the gyro, then shows status and instruction messages of whats going on before saving to EEPROM and resetting the Drone.
