Suunto → Home Assistant (suunto_app)

A custom HACS integration that pulls your Suunto data into Home Assistant from the Suunto app (Sports Tracker) - signing in with just your email and password, no Docker and no partner keys.

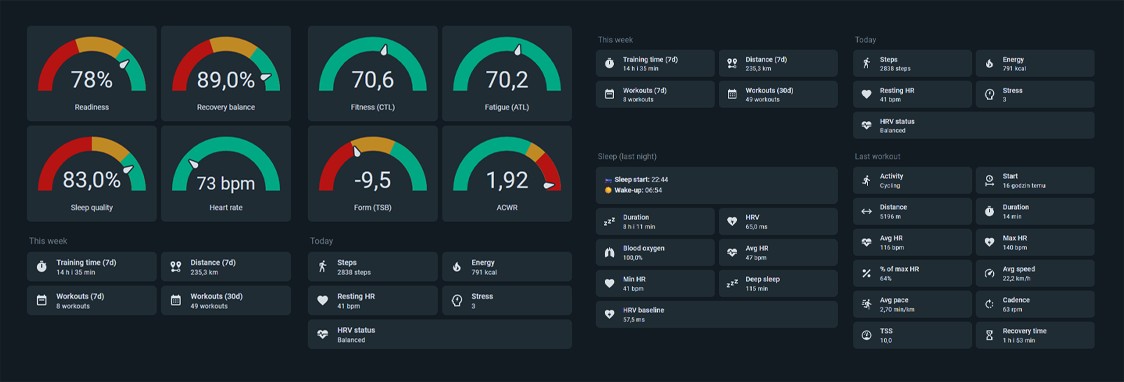

Example dashboard - live sensors plus backfilled long-term statistics (heart rate, training load, sleep).

Tip

⭐ Enjoying this integration? Every star is real motivation for me to keep developing it :)

Suunto watch ──▶ Suunto app / Sports Tracker ──▶ Home Assistant

⚠️ Unofficial integration - not affiliated with or endorsed by Suunto. It signs in with your own Suunto account and may stop working after a Suunto app update. Use your own account, at your own risk. Login pipeline ported from tajchert/suuntool.

Documentation

Full docs are in the project wiki: installation, every sensor, dashboard examples, derived metrics, long-term statistics and troubleshooting.

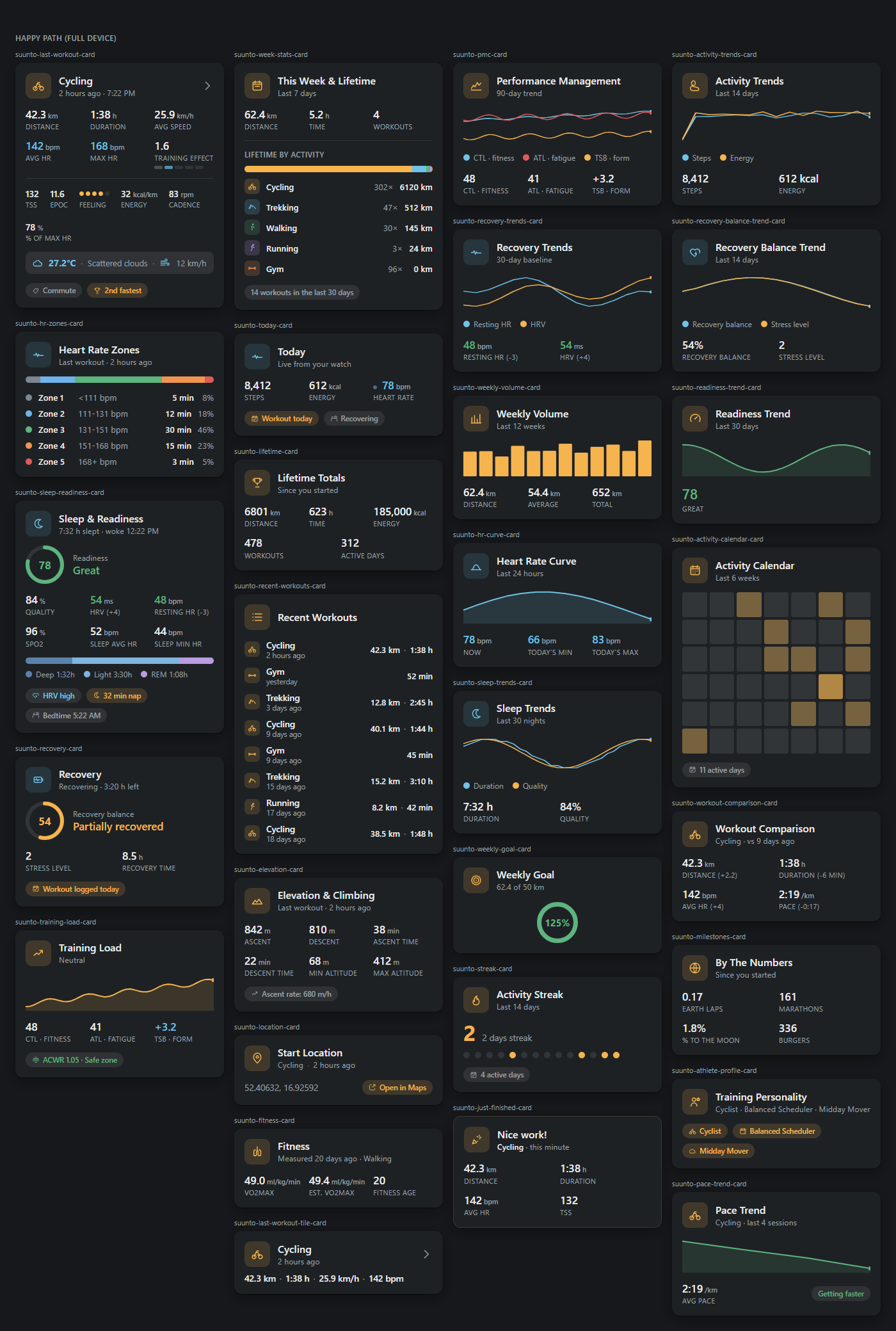

Custom Lovelace cards

Want a dashboard without wiring 74 sensors into generic entity/gauge cards by hand? Suunto Cards is a companion HACS repo with 29 purpose-built cards - last workout, HR zones, sleep & readiness, recovery, training load, a live 24/7 heart rate curve, an activity heatmap calendar, workout-to-workout comparisons, fun lifetime-distance equivalents, a computed training personality, and more. Each card auto-detects your Suunto device (zero YAML for the common case), themes with your Home Assistant theme automatically, and follows your HA language (English, Polish, German, Portuguese, French, Spanish, Italian, Dutch).

Installation & configuration

1. Install via HACS (Custom repositories → this repo as an Integration) and restart HA.

2. Settings → Devices & Services → Add Integration → "Suunto App (unofficial)" → enter the email and password of your Suunto app account. (Account 2FA may block login.)

3. Options ("Configure" button): two refresh cadences -

   • Live data interval (default 15 min): current heart rate, daily steps/energy.
   • History interval (default 60 min): sleep, recovery, workouts, training load, baselines and other derived metrics - and the hourly long-term statistics (see below).

   Splitting the cadences keeps live values fresh without re-fetching ~90 days of history every few minutes.

Credential storage

The password is used only once (at setup), exchanged for a session token, and is not stored. Only the email and the revocable session token are written to HA's .storage. If the session ever expires, HA shows "reauthentication required" and asks for the password once (reauth) - the password is still not kept between times.

"New login" emails

Suunto sends a new-login notification on every /login2 call. The integration caches the session token and reuses it across restarts - it only logs in again on first setup or when the server invalidates the session. During normal operation (data fetching) it does not log in and does not generate emails.

Diagnostics

Settings → Devices & Services → the Suunto entry's ⋮ menu → Download diagnostics gives a redacted JSON dump of the integration's current state (useful when reporting a bug). Email, session token and GPS start coordinates are stripped; everything else - including the raw 24/7 sleep export used to build the sleep and nap sensors - is included as-is.

Entities (74 sensors + 2 binary sensors + a workouts calendar under one "Suunto" device)

Every entity name follows your Home Assistant language automatically - English, Polish, German, Portuguese, French, Spanish, Italian and Dutch are built in. Anything else falls back to English. (Display names only; entity_ids never change with your language.)

The device card itself shows your actual watch model (e.g. "Suunto 9 Peak Pro"), read from your most recent workout - not just "Suunto App (unofficial)".

• Sleep: duration, stages (deep/light/REM), average/min heart rate, quality, SpO₂, HRV, sleep start, wake-up time, and nap duration (tracked separately from night sleep so a nap never inflates it; state holds the most recent day that had a nap, with nap_count and date attributes since naps are irregular and the value can be several days old).
• Recovery: recovery balance, stress state.
• Daily activity: steps, active energy (kcal), current heart rate.
• Last workout: type, start, start location (latitude/longitude - plots on a Map card), distance, duration, recovery time, average/max heart rate, average speed (km/h) and pace (min/km), cadence, TSS, time in 5 heart-rate zones, Peak Training Effect (Suunto's own 1-5 rating of the session), peak EPOC, your own feeling rating (1-5, when you set it on the watch), the workout type as Suunto classifies it (commute, strength, long aerobic base ...; the raw list is in the sensor's tags attribute), and recovered-at (when the recovery countdown ends). Each heart-rate zone sensor also carries its bpm range in the lower_limit_bpm / upper_limit_bpm attributes, so "38 min in zone 3" reads as an actual effort. Zone 1 is everything below zone 2, so it has an upper bound only; the top of zone 5 is your max heart rate.
• Last workout - weather: on-site temperature (°C) as the sensor state, with humidity, wind speed (km/h), wind direction and a decoded condition (e.g. "Scattered clouds") in its attributes. Outdoor workouts only - unknown on an indoor session, since there's no weather to record.
• Last workout - achievements: state is how many route achievements (e.g. "Fastest time on this route") the workout earned - 0 on most workouts, since Suunto only awards these on a route you've ridden/run before. The full raw list and this workout's route_ranking (if Suunto tracked one) are in the attributes.
• Last workout - climbing: ascent and descent (m), time spent climbing and descending, and the altitude range (min/max). Indoor sessions have no barometer data, so the altitude sensors stay unknown there.
• Lifetime stats: total distance (km), total time (h), total energy, number of workouts, active days, plus a per-sport breakdown (distance/time/count/energy for each activity type, in the sensor's attributes).
• Fitness: VO2max, estimated VO2max and fitness age, as measured by the watch. Suunto derives these from runs and walks only, so they hold their last reading between such workouts - each sensor's measured_at attribute shows when (and from which activity) it was taken.
• Derived - training load: Fitness (CTL), Fatigue (ATL), Form (TSB) from TSS history, plus the acute:chronic workload ratio (ACWR; safe zone ~0.8-1.3).
• Derived - recovery: HRV baseline + status (low/balanced/high), resting heart rate + baseline, and Readiness (0-100, a heuristic blending sleep, HRV, resting HR and recovery balance).
• Derived - per workout: % of max HR, calories per km, ascent rate, stride length.
• Weekly volume: workout distance and time over the last 7 days.
• Counts: workouts in the last 7 / 30 days.
• Workouts calendar & recent list: a calendar entity with every past workout as a browsable event, plus a Recent workouts sensor whose attribute holds the last 15 (date, type, distance, duration, HR, TSS) - see below.
• Binary sensors: Recovering (on while Suunto's recovery countdown from the last workout is still running) and Workout today. Both flip on their own clock, so they change the moment the countdown ends or the day rolls over, without waiting for the next poll.

Automations: the new-workout event

When a workout first reaches the integration (i.e. after your watch has synced to the Suunto app), it fires a suunto_app_new_workout event on the Home Assistant bus, so you don't have to watch a sensor for changes:

automation:
  - alias: Notify me about a new workout
    triggers:
      - trigger: event
        event_type: suunto_app_new_workout
    actions:
      - action: notify.persistent_notification
        data:
          message: >
            {{ trigger.event.data.activity }}:
            {{ (trigger.event.data.distance_meters | float(0) / 1000) | round(1) }} km
            in {{ trigger.event.data.duration_minutes }} min,
            TSS {{ trigger.event.data.tss }}, PTE {{ trigger.event.data.pte }}

The event carries key, activity, activity_id, start_time, duration_minutes, distance_meters, avg_hr_bpm, max_hr_bpm, tss, pte, recovery_time_hours and tags. The first poll after a Home Assistant restart only takes stock of what already exists, and a workout that shows up more than a week after it happened is recorded silently - your history is never replayed as a burst of events.

Derived metrics are computed locally in HA from history fetched via the API (sleep ~60 days, workouts ~90 days, paginated). CTL/ATL are seeded with the mean daily load to avoid an early-window underestimate. Readiness and its weights are a heuristic, not an official Suunto metric. All the math (CTL/ATL/TSB, ACWR, baseline, readiness) is covered by deterministic tests in metrics.py.

Long-term statistics (intraday curves + backfill)

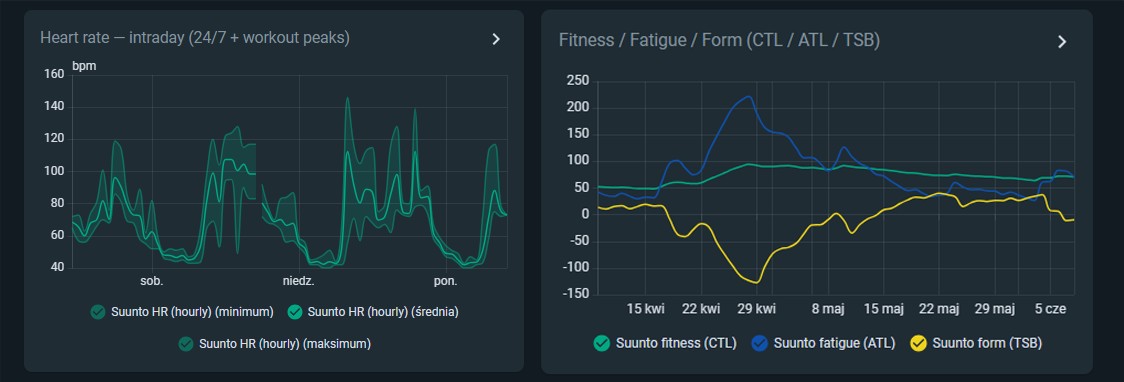

Backfilled statistics: intraday heart rate (24/7 + workout peaks) and the Fitness / Fatigue / Form (CTL / ATL / TSB) trend.

Beyond the 74 live sensors, the integration imports hourly long-term statistics for the fast-changing and daily metrics. They are backfilled over a rolling window, so if your watch syncs to the app late (e.g. hours later), the missed hours are filled in retroactively - something a normal sensor can't do, since it only records the latest value at poll time.

These are external statistics (suunto_app:...), not entities - view them in a Statistics Graph card (or ApexCharts); they don't add to the sensor count.

• Hourly: heart rate (mean/min/max - the 10-min 24/7 stream plus the dense ~25 s heart-rate samples from workouts, so workout peaks show up), steps, energy, recovery balance, stress.
• Daily: sleep duration, HRV, resting heart rate, quality, SpO₂; Readiness; and the Fitness / Fatigue / Form (CTL/ATL/TSB) trend.

The backfill window is ~5 days - a sync delayed beyond that won't fill the part older than the window. The hourly heart-rate statistic is the way to see a gap-free daily HR curve (with workout peaks); the live current_hr sensor only steps to the newest synced value and can't be filled backwards.

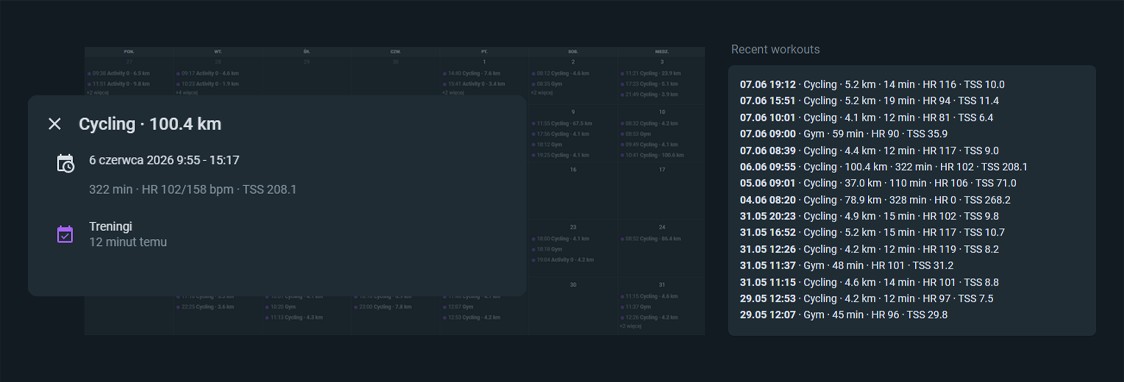

Workouts calendar & recent activities

Every past workout is exposed as an event on a calendar entity - browse your whole training history in a Calendar card, each event showing the activity, distance and key stats (duration, HR, TSS). A companion Recent workouts sensor keeps the last 15 sessions in its attributes for a compact list/table card. Both reuse the workout history already fetched - no extra requests.

Workout start on a map

The Last workout location sensor carries the start latitude/longitude of your most recent workout as attributes, so it can be plotted directly on a Map card:

type: map
entities:
  - sensor.suunto_last_workout_location   # your entity id (named after the account)

Indoor workouts with no GPS track show as unknown (no marker). The same start_lat / start_lon are also present on every entry of the Recent workouts sensor's attributes, if you'd like to plot more than just the latest one (e.g. with a template sensor or a custom card).

Lifetime totals per sport

The Lifetime by activity sensor's state is the number of activity types; the per-sport totals ride in its activities attribute (each with activity, workouts, distance_km, time_hours, energy_kcal). Render them with a Markdown card:

type: markdown
content: |
  | Sport | Workouts | Distance | Time |
  | --- | --: | --: | --: |
  {% for a in state_attr('sensor.suunto_lifetime_by_activity', 'activities') -%}
  | {{ a.activity }} | {{ a.workouts }} | {{ a.distance_km }} km | {{ a.time_hours }} h |
  {% endfor %}

Troubleshooting

• "Login was rejected" - wrong email/password, or account 2FA.
• "Reauthentication required" - the session expired; enter the password again.
• Light/REM sleep sensors are unknown - your watch does not report them.
• Daily energy dropped by ~4x after updating to 1.0.14 - that is the fix, not a regression. The value was previously read as calories when the API sends joules. It is active energy (above resting), so it is meant to be well below your total daily burn. Existing history is not rewritten, so expect a step in the graph; you can clear the old long-term statistics in Developer Tools > Statistics if the jump bothers you.
• Altitude sensors are unknown after an indoor workout - intended. Without GPS or a barometer reading the watch reports no altitude, and showing 0 m would claim you trained at sea level.
• Stride length is unknown - it is only computed for foot-based activities, so it stays empty after a ride.

Changelog

See CHANGELOG.md.

Disclaimer

An unofficial, experimental hobby project - run it at your own risk.

• No ties to Suunto. Not affiliated with, endorsed by, or supported by Suunto Oy, Amer Sports, or Sports-Tracker. All trademarks stay with their owners.
• Built on shifting ground. It talks to a private, undocumented endpoint that can change or stop working at any moment - a single app update may break it.
• Possibly against Suunto's terms. Check them yourself. Hammering the service could get your account limited or closed; that's on you, not the author.
• Your account only. Use it strictly for your own data - never to collect or aggregate anyone else's.
• No warranty, no liability. Provided "as is", with no guarantees and no responsibility for anything that follows from using it.
• Not legal advice. If any of this gives you second thoughts, just use the official Suunto app.
