GlyphStream

Dynamic ASCII Art Components for the Browser

Five generative algorithms — each a living system, every render unique.

🔗 Live Demo · 📦 Components · 🚀 Quick Start · 📖 API Reference

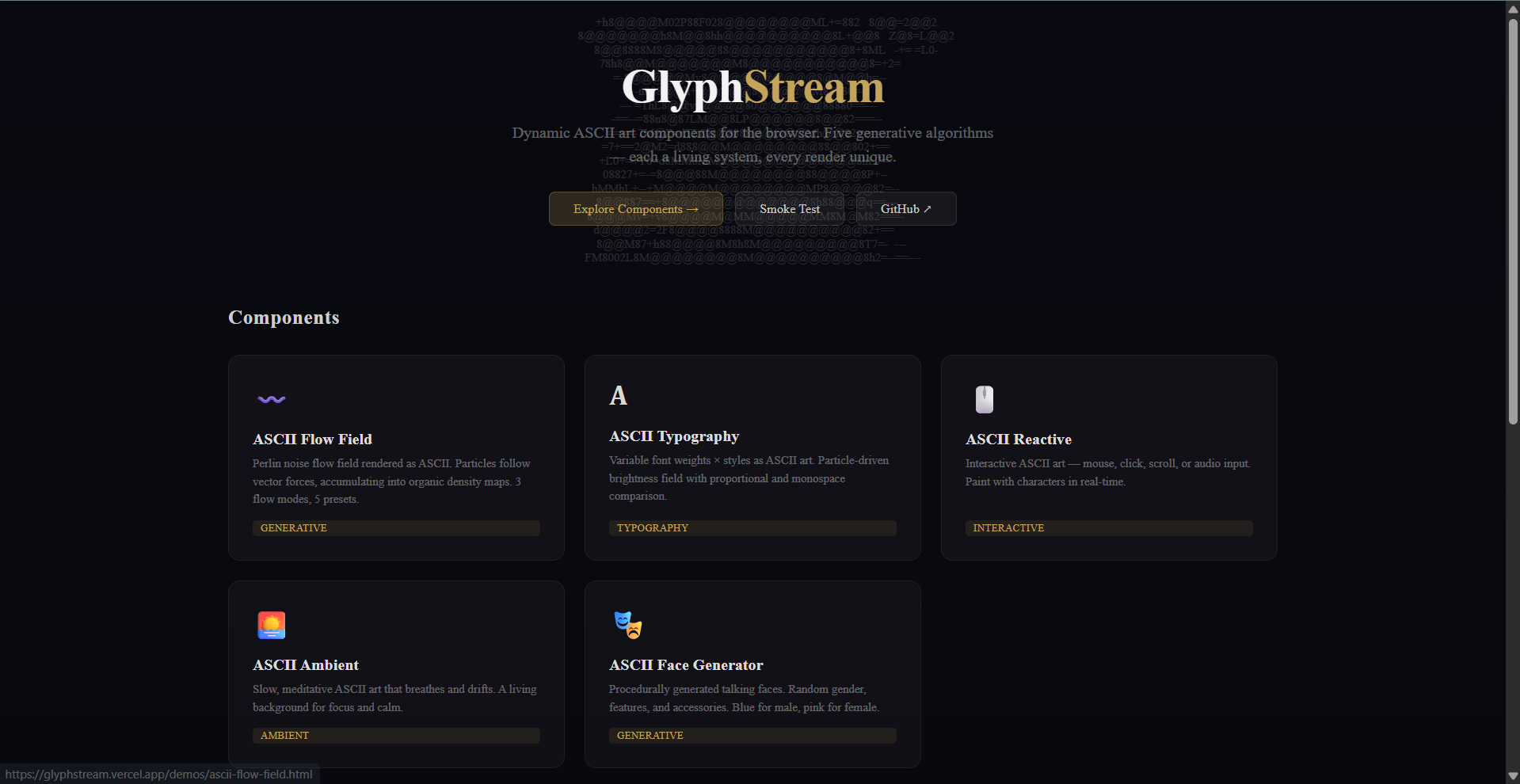

The GlyphStream homepage — a live ASCII flow field runs as the hero background.

---

What is GlyphStream?

GlyphStream is an open-source generative ASCII art engine built for the browser. It uses particle-driven brightness fields, text measurement via pretext, and variable font rendering to create stunning, ever-changing ASCII art.

Each component is a living algorithm — not a static image. Every render is unique, driven by seeded randomness and emergent behavior.

Why it's cool

• 🎨 5 distinct components — flow fields, typography, reactive art, ambient backgrounds, and face generation
• 🔧 Designer-first API — clean props for fonts, colors, particle counts, seeds
• ⚡ Zero framework dependency — works with vanilla JS, React, Vue, anything
• 🌈 Color palettes — monochrome, gradient, multi-color modes
• 🎯 Seeded randomness — reproduce any render with a seed value
• 📱 Responsive — works on any screen size
• 🏗️ Built on pretext — precise text measurement by Cheng Lou

---

Components

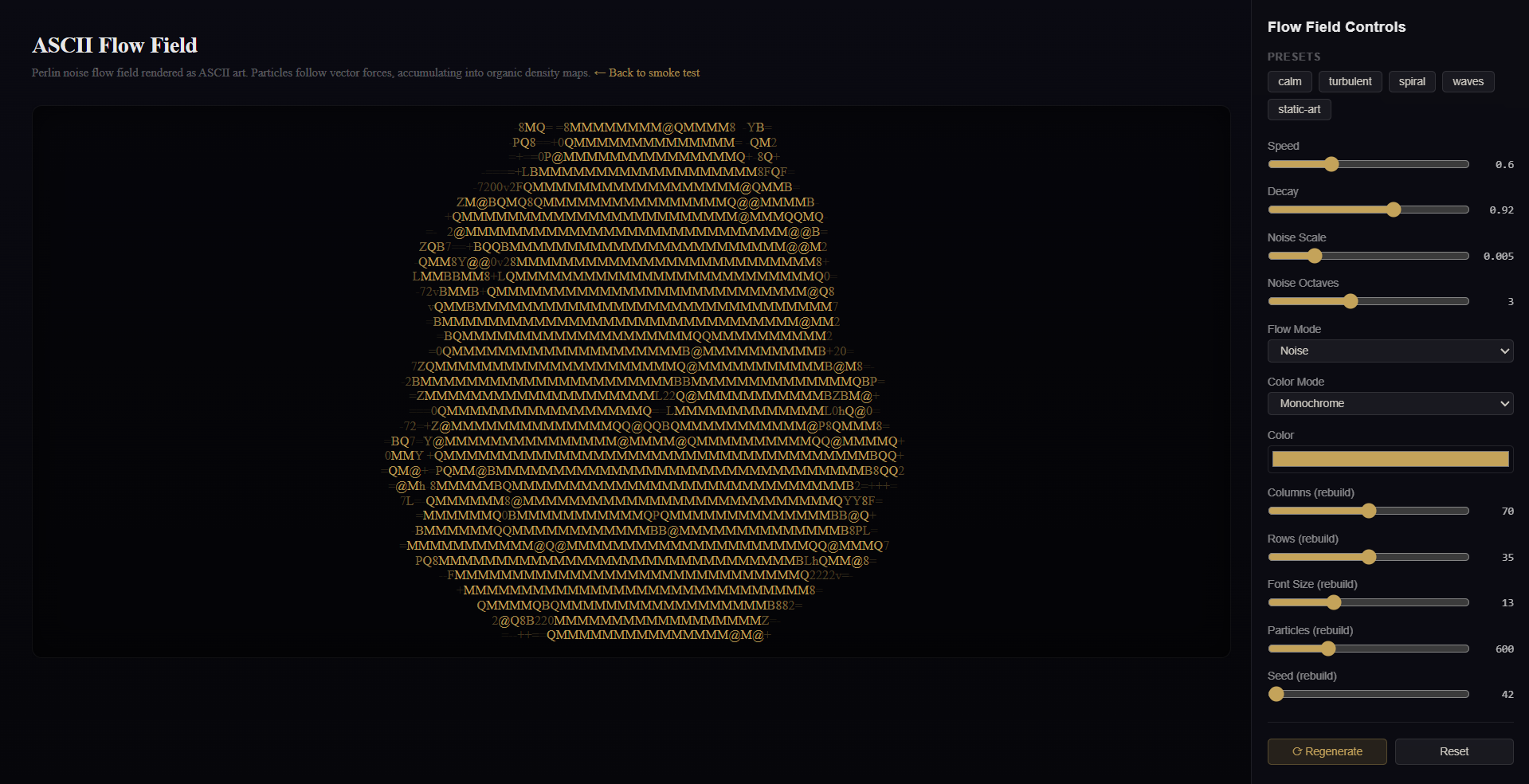

〰️ ASCII Flow Field

Generative ASCII art from layered Perlin noise flow fields. Particles follow vector forces, accumulating into organic density maps.

Feature	Details
Use cases	Hero sections, generative backgrounds, loading screens
Modes	noise, spiral, waves
Particles	100–2000
Presets	calm, turbulent, spiral, waves, static-art
Live Demo →

---

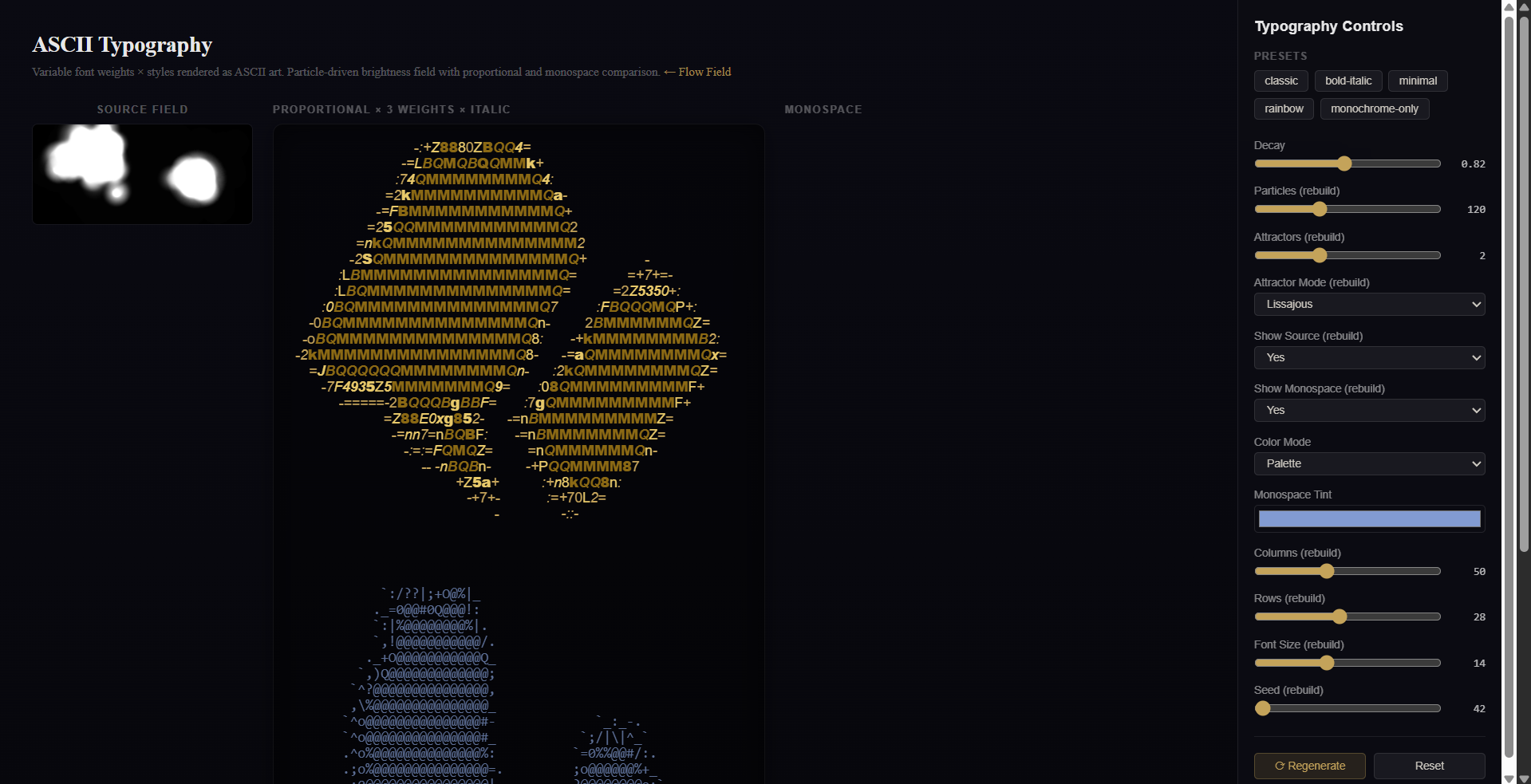

𝐀 ASCII Typography

Particle-driven brightness field rendered with variable font weights, styles, and sizes. Supports proportional AND monospace side-by-side comparison.

Feature	Details
Use cases	Portfolio hero pieces, typography showcases, generative art posters
Font variants	Multiple weights (300, 500, 800) × styles (normal, italic)
Attractors	lissajous, circular, random, mouse
Panels	Proportional + monospace comparison
Live Demo →

---

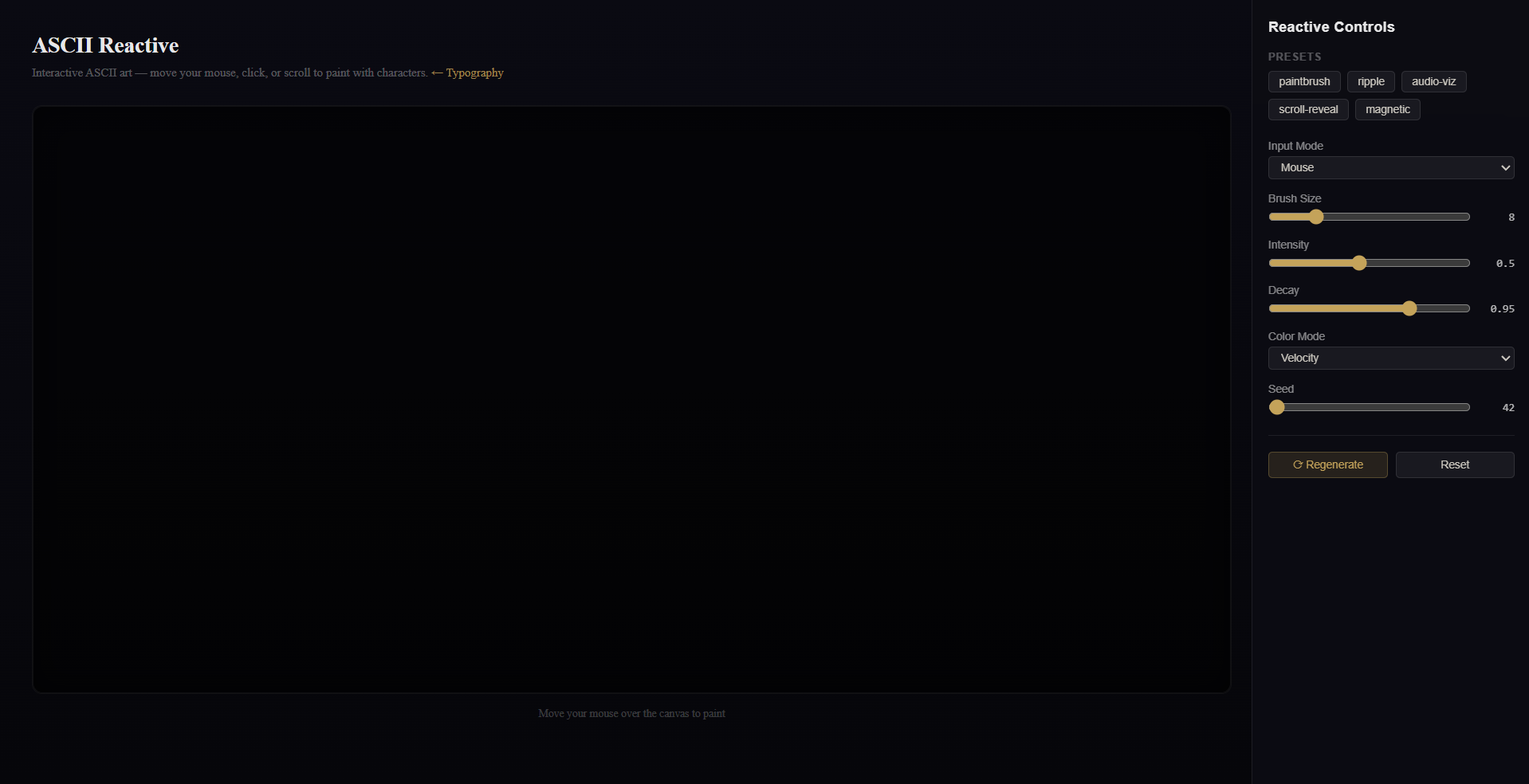

🖱️ ASCII Reactive

ASCII art that responds to user input — mouse position, clicks, scroll, or custom data streams.

Feature	Details
Use cases	Interactive installations, audio visualizers, data-driven art
Input modes	mouse, click, scroll, audio, custom
Color modes	velocity, position, time, palette
Brush	Configurable size, intensity, trail modes
Live Demo →

---

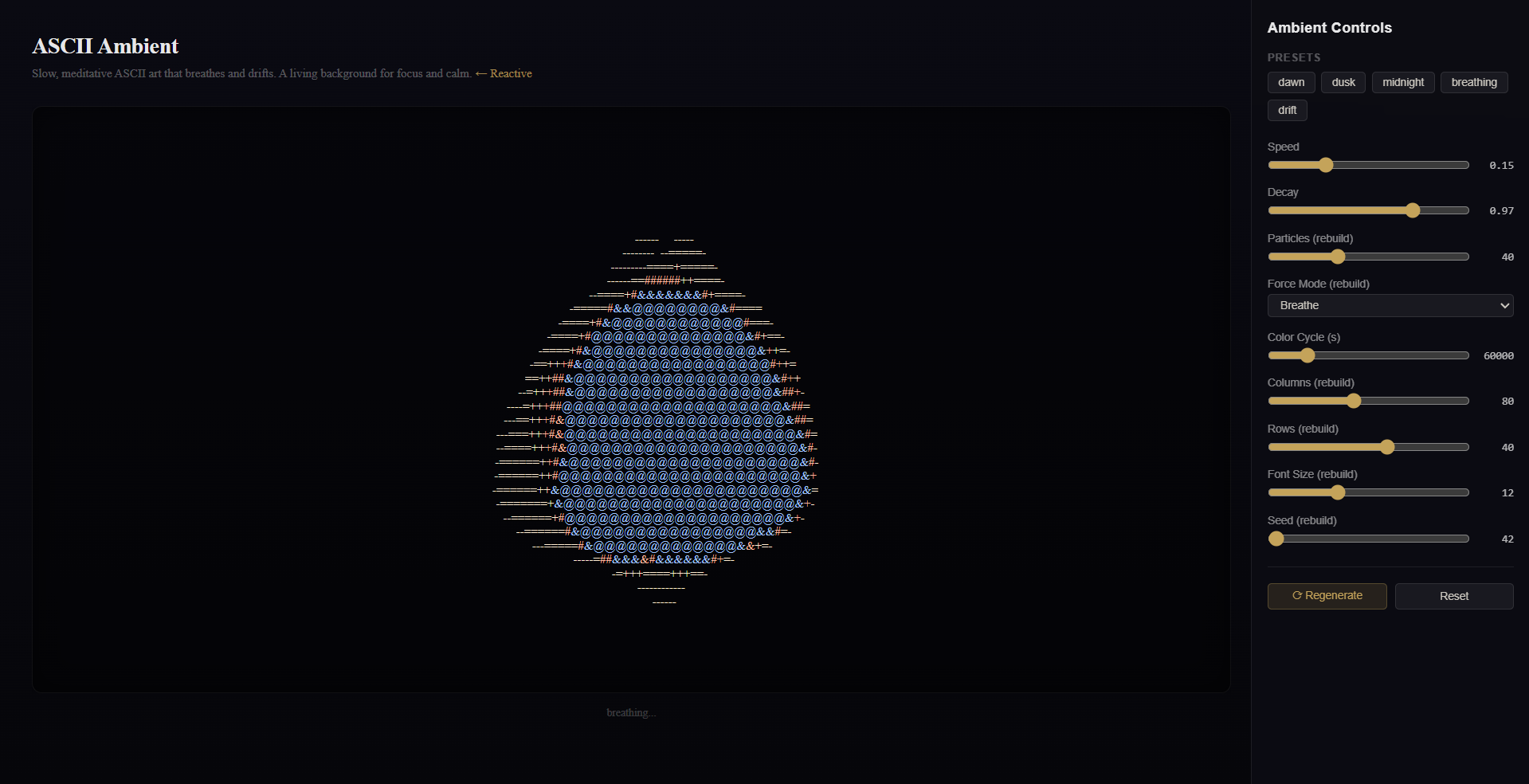

🌅 ASCII Ambient

Slow, meditative ASCII art that evolves over time. Minimal particle count, gentle forces, long decay times.

Watch the ambient background breathe and drift in real-time.

Feature	Details
Use cases	Ambient screensavers, portfolio backgrounds, meditation apps
Particles	20–80 (low count for minimalism)
Force modes	gentle, drift, breathe
Color modes	dawn, dusk, midnight, custom
Live Demo →

---

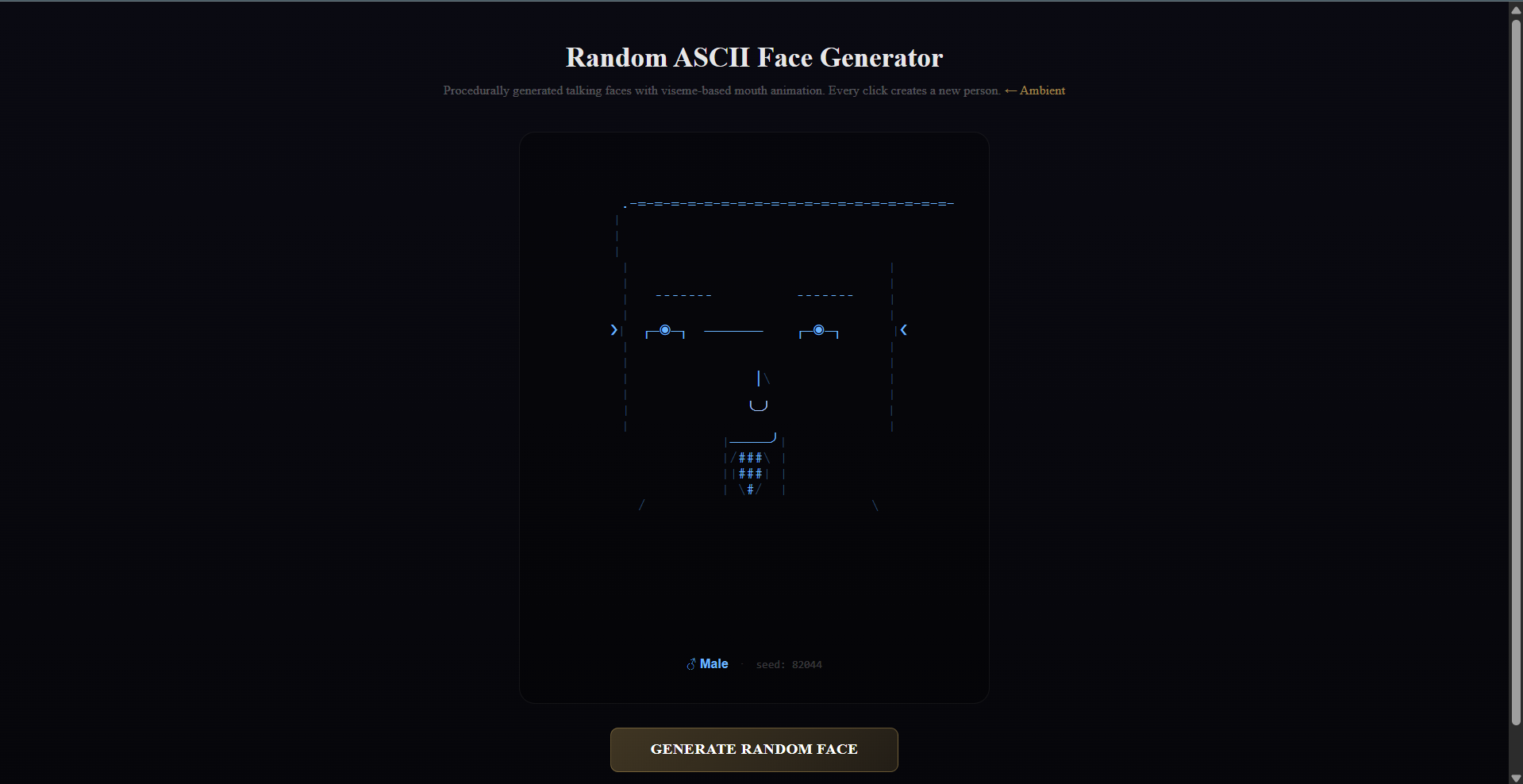

🎭 ASCII Face Generator

Procedurally generated talking faces with random gender, features, and accessories.

Feature	Details
Use cases	Fun demos, avatar generation, procedural art
Randomization	Gender, eye shape, mouth style, accessories
Color coding	Blue tones, pink tones, custom palettes
Live Demo →

---

Quick Start

Clone & Run

git clone https://github.com/Poojan38380/glyphstream.git
cd glyphstream
npm install
npm run dev

Open http://localhost:3001 — that's it.

Use in Your Project

Each component is a self-contained TypeScript module. Import and instantiate:

import { AsciiFlowField } from './src/components/ascii-flow-field'

const art = new AsciiFlowField('#container', {
  cols: 80,
  rows: 40,
  particleCount: 600,
  noiseScale: 0.005,
  colorMode: 'gradient',
  palette: ['#c4a35a', '#8b6914', '#4a3520'],
  seed: 42,
})

art.start()
art.setPreset('turbulent')
art.regenerate(123) // new seed, new art

Production Build

npm run build

Output goes to dist/ — deploy anywhere as a static site.

---

API Reference

Common Component API

Every component follows the same pattern:

class AsciiComponent {
  constructor(container: string | HTMLElement, config: ComponentConfig)

  start(): void          // Begin animation
  stop(): void           // Stop animation
  dispose(): void        // Clean up (important for SPAs)
  regenerate(seed?: number): void  // New seed
  setPreset(name: string): void    // Apply a preset
  updateConfig(partial: Partial<ComponentConfig>): void
  getElement(): HTMLElement
}

Configuration Options

All Components

Option	Type	Default	Description
cols	number	80	Grid columns
rows	number	40	Grid rows
fontSize	number	12	Font size in px
fontFamily	string	'Georgia, serif'	CSS font family
charset	string	' .,:;!+-=*#@%'	Character ramp (dark → light)
colorMode	string	'monochrome'	'monochrome' | 'gradient' | 'palette'
palette	string[]	[]	Array of hex colors
seed	number	random	Random seed for reproducibility
decay	number	0.94	Field decay rate (0.0–1.0)

Flow Field Specifics

Option	Type	Default	Description
particleCount	number	600	Number of particles
noiseScale	number	0.005	Noise zoom level
noiseOctaves	number	3	Noise detail level
particleSpeed	number	1.0	Speed multiplier
flowMode	string	'noise'	'noise' | 'spiral' | 'waves'
monochromeColor	string	'#c4a35a'	Color for monochrome mode

Typography Specifics

Option	Type	Default	Description
weights	number[]	[300, 500, 800]	Font weights
styles	string[]	['normal', 'italic']	Font styles
monoFontFamily	string	'Courier New, monospace'	Monospace font
attractorMode	string	'lissajous'	'lissajous' | 'circular' | 'random' | 'mouse'
showMono	boolean	true	Show monospace panel
showSource	boolean	false	Show source simulation
monoTint	string	'rgba(130,155,210,0.7)'	Monospace panel tint

Reactive Specifics

Option	Type	Default	Description
inputMode	string	'mouse'	'mouse' | 'click' | 'scroll' | 'audio' | 'custom'
brushSize	number	8	Reactive brush size
brushIntensity	number	0.6	Brightness per interaction
trailMode	string	'fade'	'fade' | 'accumulate' | 'bounce'

Ambient Specifics

Option	Type	Default	Description
particleCount	number	40	Low count (20–80)
speed	number	0.15	Very slow evolution
forceMode	string	'breathe'	'gentle' | 'drift' | 'breathe'
colorMode	string	'dawn'	'dawn' | 'dusk' | 'midnight' | 'custom'
cycleTime	number	60000	Full color cycle in ms

---

Project Structure

glyphstream/
├── README.md                    # You are here
├── PLAN.md                      # Full project vision & architecture
├── package.json                 # Dependencies & scripts
├── vite.config.ts               # Vite MPA configuration
├── vercel.json                  # Vercel deployment config
├── tsconfig.json                # TypeScript configuration
│
├── pages/
│   ├── index.html               # Homepage (gallery + playground)
│   ├── demos/                   # Individual component demos
│   │   ├── ascii-flow-field.html
│   │   ├── ascii-typography.html
│   │   ├── ascii-reactive.html
│   │   ├── ascii-ambient.html
│   │   └── ascii-face-generator.html
│   └── src/                     # All source code
│       ├── core/                # Core generative engine
│       │   ├── brightness-field.ts
│       │   ├── char-palette.ts
│       │   ├── field-renderer.ts
│       │   ├── particle-system.ts
│       │   └── types.ts
│       ├── components/          # 5 reusable components
│       │   ├── ascii-flow-field/
│       │   ├── ascii-typography/
│       │   ├── ascii-reactive/
│       │   ├── ascii-ambient/
│       │   └── ascii-face-generator/
│       └── utils/               # Shared utilities
│           ├── color.ts
│           ├── dom.ts
│           └── math.ts
│
├── public/                      # Static assets (screenshots, videos)
└── dist/                        # Production build output

---

Tech Stack

Layer	Technology
Language	TypeScript (strict mode)
Build	Vite 5 (Multi-Page App)
Text Measurement	@chenglou/pretext
Rendering	Canvas 2D + DOM
Deployment	Vercel (static site)
Dependencies	1 runtime dependency (pretext)

---

Philosophy

Algorithmic art as living systems — beauty emerges from process, not product.

GlyphStream is built on the idea that every render tells a different story. The same seed, the same parameters — but watch it breathe, and you'll never see the exact same art twice.

---

Built With GlyphStream

Projects and demos powered by GlyphStream:

• glyphstream.vercel.app — Live demo site

Built something with GlyphStream? Open a PR and add it here!

---

Contributing

We love contributions! Whether it's:

• 🐛 Bug fixes
• ✨ New components
• 🎨 New presets
• 📖 Documentation improvements
• 🚀 Performance optimizations

See CONTRIBUTING.md for guidelines.

---

License

MIT — Free to use, modify, and distribute. Attribution appreciated but not required.

---

Credits

• Built by Poojan
• Text measurement powered by pretext by Cheng Lou
• Inspired by pretext's variable-typographic-ascii demo

---

_{Made with ☕ and ASCII characters}
