Microsoft PKI 2-Tier Infrastructure

Automated deployment scripts for building a Microsoft PKI 2-tier infrastructure (Root CA + Enterprise Subordinate CA) on Windows Server Core.

📋 Overview

This project provides PowerShell scripts to automate the deployment of a complete Microsoft PKI infrastructure in approximately 15 minutes. Designed for organizations that need to quickly establish PKI for:

• LDAPS (LDAP over SSL/TLS)
• Certificate-based authentication
• Code signing
• Document signing
• Email encryption
• VPN certificates
• And other certificate-based security solutions

Why This Project?

After working on ransomware recovery and infrastructure improvements, I noticed that PKI infrastructure is consistently missing at customer locations. This project was created to fill that gap with a reliable, automated solution.

---

🏗️ Architecture

Two-Tier PKI Design

┌─────────────────────────────────────────────────────────────┐
│                    Root CA (Offline)                        │
│  - Standalone CA (not domain-joined)                        │
│  - Valid for 10 years                                       │
│  - Only online during SubCA installation                    │
│  - Taken offline after deployment                           │
└───────────────────────┬─────────────────────────────────────┘
                        │ Issues certificate to
                        ▼
┌─────────────────────────────────────────────────────────────┐
│              Enterprise Subordinate CA (Online)             │
│  - Domain-joined Enterprise CA                              │
│  - Valid for 5 years                                        │
│  - Issues certificates to domain members                    │
│  - Valid for 1 year (configurable)                          │
└─────────────────────────────────────────────────────────────┘

Key Features

• ✅ Automated deployment - Minimal manual intervention
• ✅ Server Core optimized - Designed for headless deployment
• ✅ Security best practices - SHA-384, 4096-bit keys, proper CRL configuration
• ✅ Comprehensive logging - Full audit trail
• ✅ Post-installation validation - Ensures proper configuration
• ✅ Backup automation - Secure backup of CA keys
• ✅ Windows Server 2025 compatible - Tested on all modern Windows Server versions

---

📦 Prerequisites

Before You Begin

1. Obtain an OID (Object Identifier)

   • Register at: https://pen.iana.org/pen/PenApplication.page
   • You'll receive a 5-digit PEN (Private Enterprise Number)
   • This is required for the CA policy OID

2. DNS Configuration

   • Create a DNS CNAME record (e.g., pki.company.com) pointing to your Enterprise Subordinate CA server
   • This will be used for CRL and AIA distribution points

3. Server Requirements

   • Root CA Server:

     • Windows Server 2012/2016/2019/2022/2025 (Server Core recommended)
     • NOT domain-joined (standalone/workgroup)
     • Administrator access
     • Network connectivity (temporary, for SubCA installation)

   • Subordinate CA Server:

     • Windows Server 2012/2016/2019/2022/2025 (Server Core recommended)
     • Domain-joined (required for Enterprise CA)
     • Domain administrator access
     • Network connectivity to Root CA

4. Network Configuration

   • Both servers need network connectivity during deployment
   • Root CA can be disconnected after SubCA installation completes
   • Ensure firewall allows PSRemoting (WinRM) between servers

---

🚀 Quick Start

Step 1: Prepare Servers

1. Deploy two Windows Server Core instances
2. Configure IP addresses and basic networking
3. Root CA: Ensure it's NOT domain-joined
4. SubCA: Ensure it's domain-joined and you're logged in with a domain account

Step 2: Deploy Root CA

# On Root CA server (not domain-joined)
.\Build-RootCA.ps1

Script Parameters:

• -EnablePSRemoting - Enable PSRemoting (default: enabled, required for SubCA)
• -CreateBackup - Automatically create backup after installation
• -BackupPath - Custom backup path (default: SystemDrive\CA-Backup)

Example with backup:

.\Build-RootCA.ps1 -CreateBackup

Step 3: Deploy Subordinate CA

# On SubCA server (domain-joined, domain admin account)
.\Build-SubCA.ps1

Step 4: Post-Deployment

1. Verify SubCA installation completed successfully
2. Take Root CA offline:
   • Disable network adapters
   • Disable PSRemoting
   • Shutdown and store securely
3. Verify certificate issuance from SubCA

---

📖 Detailed Deployment Guide

Root CA Deployment

The Root CA script will prompt you for:

1. CA Common Name (e.g., Corp-Root-CA)
2. OID (5-digit number from IANA)
3. CRL URL (e.g., pki.company.com)

Security Configuration (Hardcoded):

• Hash Algorithm: SHA-384
• Key Length: 4096 bits
• CA Validity: 10 years
• CRL Period: 1 year
• Certificate Validity: 1 year

What the Script Does:

1. ✅ Validates prerequisites (admin rights, Windows Server, not domain-joined)
2. ✅ Enables PSRemoting (required for SubCA connection)
3. ✅ Creates CAPolicy.inf with security settings
4. ✅ Installs ADCS-Cert-Authority feature
5. ✅ Installs Standalone Root CA
6. ✅ Configures CRL distribution points
7. ✅ Configures AIA entries
8. ✅ Creates CertConfig share (\\RootCA\CertConfig)
9. ✅ Publishes initial CRL
10. ✅ Validates CA configuration
11. ✅ Optionally creates backup

Important Notes:

• ⚠️ Root CA must remain ONLINE during SubCA installation
• ⚠️ PSRemoting is required - The SubCA script connects via PSRemoting
• ⚠️ Scripts must run LOCALLY - Not through remote PowerShell

Subordinate CA Deployment

The SubCA script will:

1. Connect to Root CA via PSRemoting
2. Submit certificate request
3. Retrieve signed certificate
4. Install Enterprise Subordinate CA
5. Configure CRL and AIA distribution points

---

🔒 Security Considerations

Root CA Security

The Root CA is designed to be offline after deployment:

1. During Deployment:

   • Network connectivity required
   • PSRemoting enabled
   • CertConfig share accessible

2. After Deployment:

   • ✅ Disable all network adapters
   • ✅ Disable PSRemoting
   • ✅ Disable unnecessary services
   • ✅ Enable BitLocker (if supported)
   • ✅ Store in physically secure location
   • ✅ Create and verify backups

3. When to Bring Online:

   • SubCA certificate renewal
   • Root CA certificate renewal
   • SubCA certificate revocation
   • CRL updates

Security Features

• Strong Cryptography:

  • SHA-384 hash algorithm
  • 4096-bit RSA keys
  • Proper certificate validity periods

• CRL Configuration:

  • Annual CRL publication
  • Weekly delta CRL
  • 2-week CRL overlap period

• Audit and Logging:

  • Comprehensive file-based logging
  • All CA operations audited
  • Full deployment audit trail

---

📝 Certificate Validity Periods

Certificate Type	Validity Period	Notes
Root CA	10 years	Hardcoded in script
Subordinate CA	5 years	Configured during SubCA installation
Issued Certificates	1 year	Configurable (1-2 years recommended)

---

🛠️ Troubleshooting

Common Issues

Issue: "Root CA must NOT be domain-joined"

Solution: Ensure the Root CA server is in a workgroup, not joined to a domain.

Issue: "PSRemoting is required"

Solution: The Root CA script enables PSRemoting by default. If disabled, run:

Enable-PSRemoting -Force

Issue: "SubCA cannot connect to Root CA"

Solution:

• Verify Root CA is online and accessible
• Check firewall rules (WinRM port 5985/5986)
• Verify CertConfig share is accessible: \\RootCA\CertConfig
• Test PSRemoting: Test-WSMan -ComputerName RootCA

Issue: "OID validation failed"

Solution: Ensure you enter exactly 5 digits (your IANA PEN number).

Issue: "CAPolicy.inf already exists"

Solution: The script will prompt to overwrite. Choose 'y' if you want to update it.

Log Files

Log files are automatically created in:

C:\ProgramData\PKI\Logs\RootCA-Build-YYYYMMDD-HHMMSS.log

Check these logs for detailed error information.

---

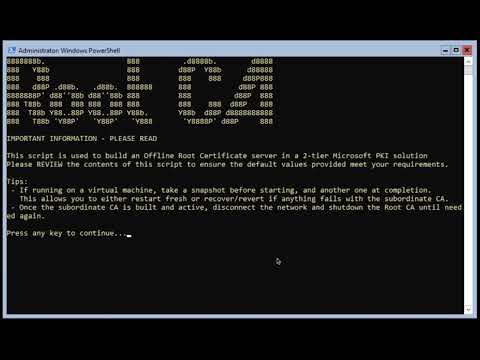

🎥 Video Tutorial

---

⚙️ Script Parameters

Build-RootCA.ps1

Parameter	Type	Default	Description
-EnablePSRemoting	Switch	Enabled	Enable PSRemoting (required for SubCA)
-CreateBackup	Switch	Disabled	Automatically create backup after installation
-BackupPath	String	SystemDrive\CA-Backup	Custom backup path

Example:

.\Build-RootCA.ps1 -CreateBackup -BackupPath "D:\CA-Backup"

Build-SubCA.ps1

See script help for SubCA parameters:

Get-Help .\Build-SubCA.ps1 -Full

---

🔄 Version History

Version 3.1 (Current)

• Simplified parameters (3 instead of 14)
• Hardcoded secure defaults
• Optimized for single-use deployment
• Server Core friendly

Version 3.0

• File-based logging
• Post-installation validation
• Automated CertConfig share
• Progress indicators
• HSM support
• Configuration export/import

Version 2.x

• Security enhancements (SHA-384, proper CRL periods)
• Domain-joined validation
• Network isolation checks
• Automated backup

---

📋 Post-Deployment Checklist

Root CA

• Verify CA installation completed successfully
• Verify backup created and tested
• Verify CertConfig share is accessible
• Verify PSRemoting is enabled
• Take VM snapshot (if virtualized)
• Proceed with SubCA installation
• After SubCA installation: Disable PSRemoting
• After SubCA installation: Disable network adapters
• After SubCA installation: Store server securely

Subordinate CA

• Verify SubCA installation completed successfully
• Verify certificate issuance works
• Verify CRL distribution points are accessible
• Verify AIA entries are accessible
• Test certificate enrollment
• Document CA configuration

---

🤝 Contributing

Contributions are welcome! Please feel free to submit issues or pull requests.

---

📄 License

This project is licensed under the MIT License.

---

👤 Author

Marc Bouchard

• Created: 2021/03/04
• Last Updated: 2024/12/19
• Version: 3.1

---

⚠️ Important Notes

1. These scripts must be run LOCALLY on the servers, not through remote PowerShell
2. Root CA must remain ONLINE during SubCA installation
3. PSRemoting is required for SubCA to connect to Root CA
4. Backup is critical - Always create backups before taking Root CA offline
5. Test in a lab environment before deploying to production

---

🆘 Support

For issues, questions, or contributions:

• Open an issue on GitHub
• Review the troubleshooting section above
• Check log files for detailed error information

---

Deploy a complete PKI infrastructure in 15 minutes! 🚀
