Capture saves to the cloud library while signed in, through a pending capture queue

[SunkenInTime]

Capture in the replay viewer always saved to the local library. A signed-in player's captured strategy ended up on this device while the rest of their library lived in the cloud, so it never showed on their other devices. Now, while signed in, Capture saves to the cloud library the way New Strategy does: in the cloud folder open in My Library when that folder is the player's own (never a shared one), or at the top level. Signed out, or on a build without cloud, nothing changes.

The first version of this PR wrote each capture straight to the server and kept Capture disabled until the server answered. Astra's second review showed that path could forget its strategy or make a second one, and it put the network in the player's way. Dara chose a client-only queue with no server change. This is that queue.

How a capture gets to the cloud

Capture waits only on this device. Each capture becomes one versioned JSON record in its own Hive box (replay_captures_box, opened with the other outboxes). The record holds every id the server will see, fixed at capture time: the strategy, the page, each item, each op, and a client id kept for the whole replay session. Capture returns as soon as the record is written, about 100 ms in the release build from click to "N pages captured" on screen. Rapid captures are written one after another in the order they were made.

ReplayCaptureQueue sends captures of one strategy in order (lib/providers/collab/replay_capture_queue_provider.dart), and only while the record's account is signed in and online:

• The first capture calls createWithInitialPage with its fixed ids. When it's sent again, the server answers with the strategy it already has.
• Each later capture sends a PageAddOp against the revision it just read. If someone changed the strategy in between, it reads again and resends under a new op id, since the server answers a repeated op id with its first answer.
• Then the page's items go out in batches, and each op's answer is recorded. A capture leaves the queue only when its page and every item are accepted.
• If an answer is lost (timeout, connection), the same ops are sent again with the same ids. The server answers them without writing again, so nothing lands twice.
• If the server refuses, the capture waits for the user. Retry gives whatever didn't land new op ids. A refused capture holds back the later captures of its strategy, never another strategy's.
• Before the page and before each batch of items, every time (first send, resend, Retry), the queue reads the strategy again. Item adds aren't checked against the map by the server, so this is what keeps old-map positions off a strategy that moved. If it was deleted or moved to another map, that capture and the later ones for the same strategy fail with that reason, and the next capture starts a new strategy, even if the failed ones were discarded. If the page itself was deleted after it landed, the capture says so.
• If writing a capture's progress to this device fails, the queue doesn't stop. That capture is held as stopped on this device: the capture card gives the reason ("Icarus couldn't store its progress on this device") with Retry, the library card offers Retry, and sign-out is blocked. Other strategies' captures keep going.
• A server that needs a newer Icarus is reported to the app, so its update notice shows. Sending stops until the server accepts this build again, and the card says "Update Icarus to finish saving N".
• If the folder a capture was made for is gone or isn't the player's when it's sent, the strategy goes to the top level and a toast says so.
• A record this build can't read stays in the box untouched. It counts as unreliable cloud work, which the library card reports and which blocks sign-out.

Where the player sees it:

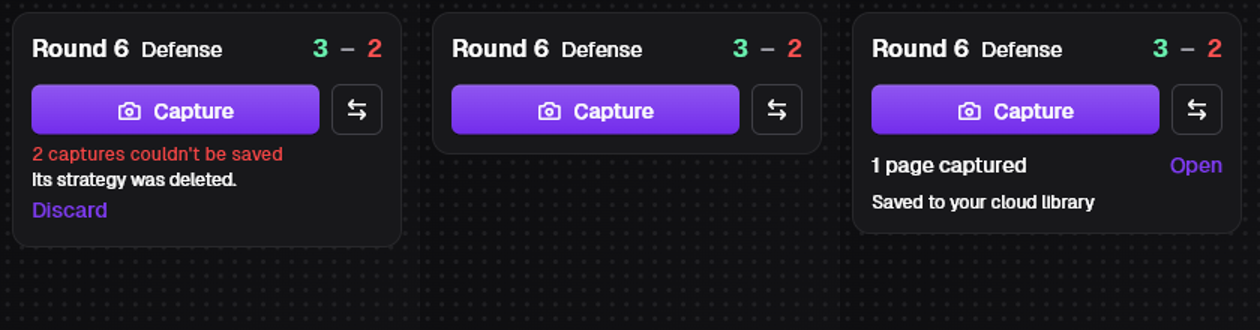

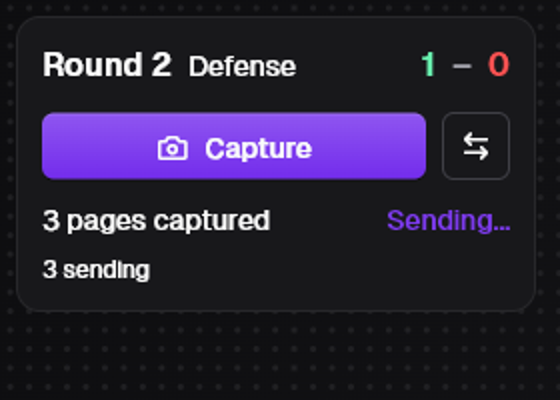

• Capture card: "3 pages captured", then "3 sending" (or "3 waiting for the connection" when offline, or "3 sending. Couldn't confirm the last send, trying again." after a lost answer), then "Saved to your cloud library". A refused capture shows "1 capture couldn't be saved" with the reason, Retry and Discard. A strategy that was deleted or moved to another map offers only Discard.

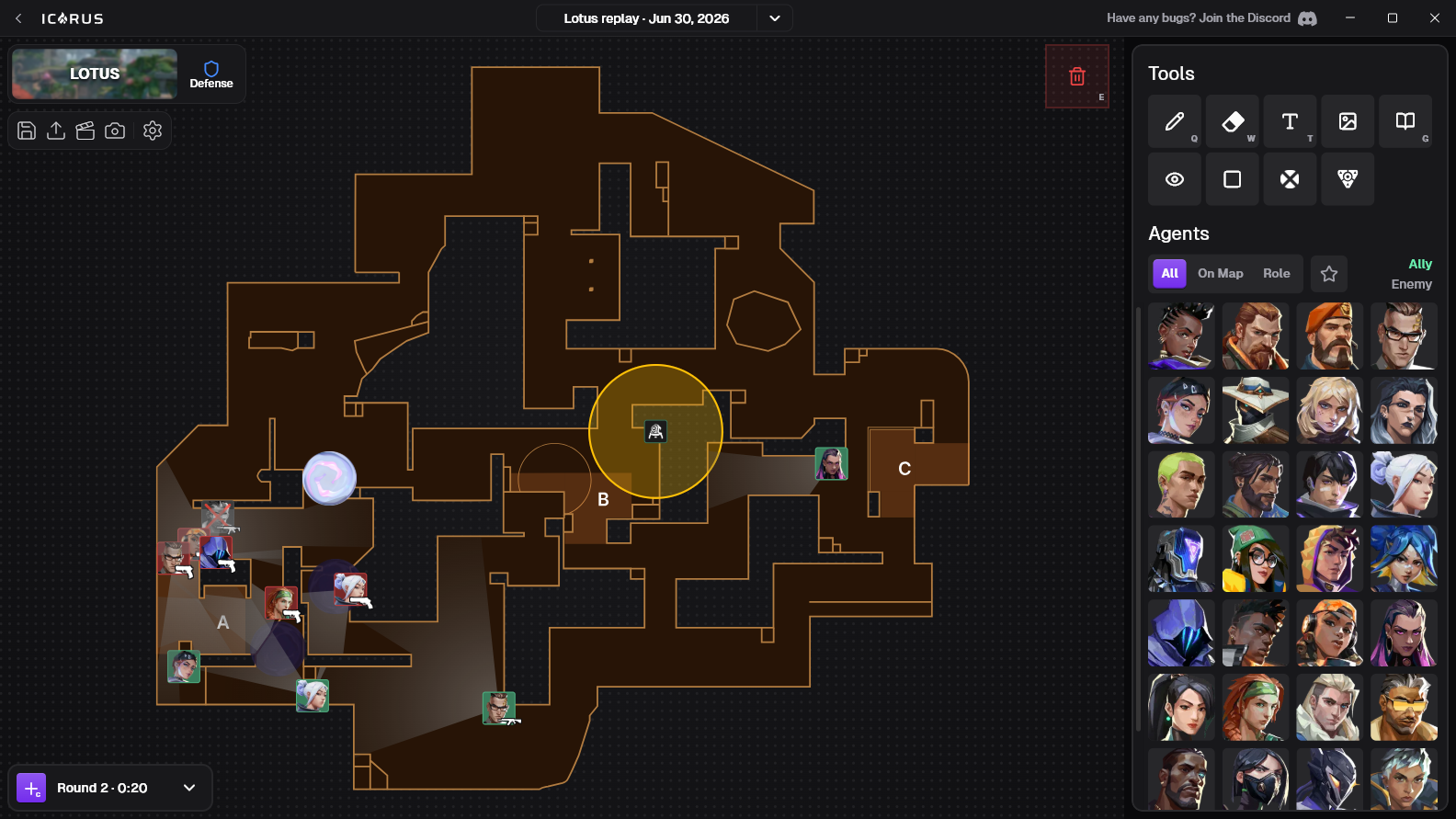

• Open waits with "Sending…" until the captured page is in the cloud, then opens the editor on it. Pressing it again stops waiting. If a capture failed, a toast says why the strategy can't open.
• The library's cloud work card and the sign-out check both count captures still on their way or refused. The library card offers "Retry replay capture" / "Discard replay capture".
• Discard removes the record from this device. A capture that was already sent can't be taken back, so in that case the toast says "Discarded. It may still appear in your library."

Kept from the first version: items get fresh ids, because the server keeps one row per item id across all strategies and a replay's ids repeat in every strategy captured from it. Each player keeps one root id across pages (<root>~cp1~<uuid>, via move-to-cloud's MovedItemIds). transition_planner.dart now pairs an agent with its copy whether or not it shows a view cone, so a player who died between two captures moves instead of fading out and back in. That also affects copy-to-page: an agent whose copy gained or lost its view cone now glides instead of fading, which local strategies already did. openCloudStrategy takes a pageId, so Open lands on the captured page.

No server change. No convex/ change, no new op type, no payload change. The queue uses createWithInitialPage, fetchShell and applyBatch with PageAddOp/ElementAddOp, all of which shipped clients already send.

Ground truth

Windows release build against the dev deployment, test account +icarus-l2c-final4, driven from inside the app. To stand in for "can't reach the server", a scratch switch in my build (not in this PR) held the queue's sends.

• Rapid captures stay instant. With sends held, three captures each showed on the card about 100 ms after the click (logged: 103, 103, 104 ms). The card read "3 pages captured · 3 sending", and Open turned into "Sending…" (card). The library card said "Syncing cloud work: 3 saved changes are being sent from 1 strategy" (library).
• Quit with pending captures, relaunch. I quit with the three records still on disk and nothing in the cloud. On relaunch they were delivered within the first 3 s: one strategy, 3 pages (13, 14 and 13 items), with items on pages 2 and 3 carrying <page-1 id>~cp1~<uuid> ids. The queue was empty afterwards.
• Delivered later, no duplicates. With sends held, two captures and Open showed "Sending…". Releasing the hold delivered both, and the editor opened on the last page ("Round 4 · 0:16"). Back in the replay the card read "2 pages captured · Saved to your cloud library", and the server held exactly 2 pages.
• Second client (fresh --hive-store-dir, same account): one strategy with all three pages, an empty local library, and players moving between pages (the second half of the GIF).
• Strategy deleted meanwhile. One capture delivered. I deleted the strategy on the server, then made two captures while sends were held, then released. The card showed "2 captures couldn't be saved · Its strategy was deleted. · Discard". After Discard, the next capture made a new strategy and the card said "Saved to your cloud library" (states).
• Rechecked after the Astra round 3 fixes on a fresh build: three captures at 103 ms each with sends held, quit, relaunch delivered one strategy with 3 pages (13, 14, 13 items); then two held captures with Open waiting, released, editor opened on "Round 4 · 0:16", card "Saved to your cloud library", server holding exactly 2 pages.

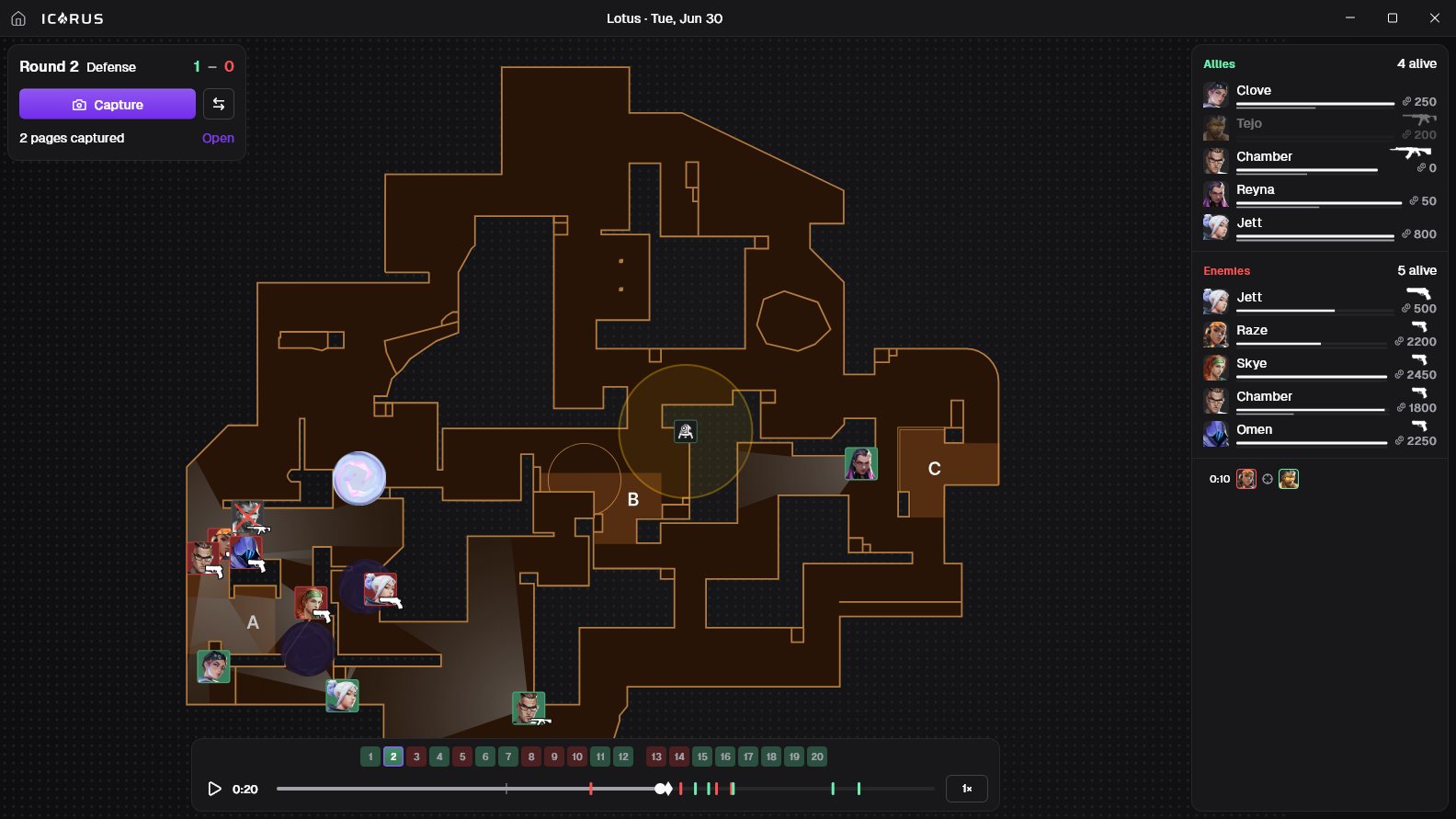

• Signed out (session storage swapped for an empty one by a scratch switch): two captures made a local strategy with 2 pages, and nothing went into the queue (card, editor).

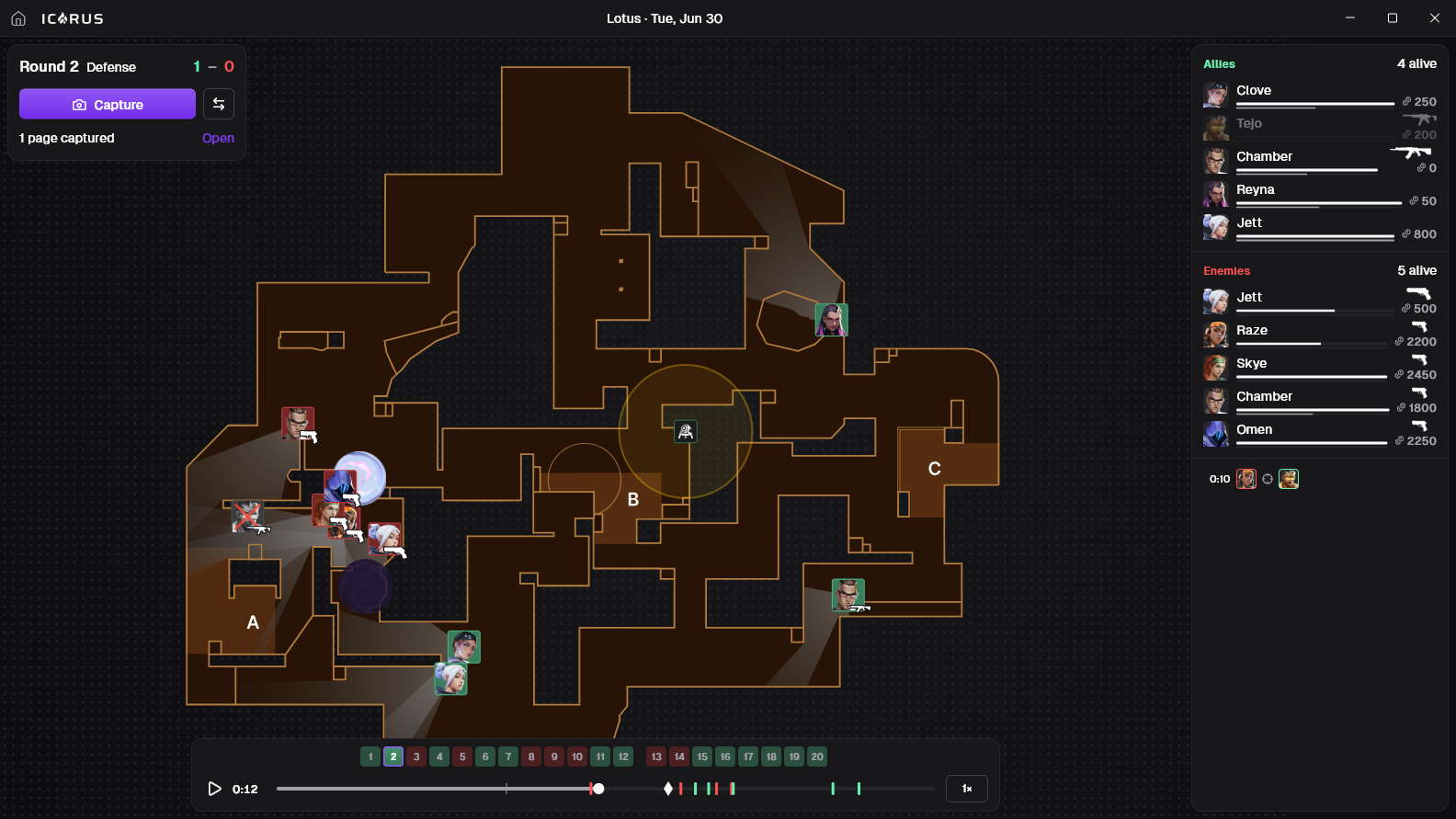

• Before (main, signed in): the capture went to the local library (card).

Tests:

• test/providers/replay_capture_queue_test.dart runs against a fake server that dedupes by op id, answers identical pages and items without writing, keeps one row per item id, and checks page revisions. It covers: offline captures sent in order once online; lost answers (to the create, a page add, or a batch of items) resent without duplicates; items accepted beside a refused one kept, with Retry sending only the refused item; a map change landing between the page and its items stopping the items; a retry rechecking the strategy (moved map, deleted) before sending; a storage failure holding one capture while another strategy's goes, then Retry; a folder the account can't use, and the toast saying so; a server needing a newer Icarus, with sending stopped; records surviving a restart; a revision conflict resent under a new op id; a refusal held, then retried under new op ids; a deleted strategy failing its captures, with the next capture starting a new strategy even after discard; a moved-map strategy left untouched; discarding the first capture so the next one makes the strategy; discard reporting that a sent capture may still land; an unreadable record kept.
• The banner and sign-out tests check that captures are counted, and replay_capture_test.dart checks a shared folder is never the destination. page_copy_id_test.dart checks that an alive player pairs with its dead copy.
• The full suite passes locally.

Not covered, and gaps Dara accepted

• A refused capture (Retry) wasn't seen in the running build. I had no way to make dev Convex refuse an item, so it's covered by unit tests only.
• Accepted gaps, from the design: (a) if the user deletes the strategy while a capture's outcome is unknown, resending can recreate it; (b) a capture left unsent for over 30 days loses the server's op dedupe, though id reuse still prevents ordinary duplicates.
• Account switch in the middle of a capture session isn't handled (Dara's ruling). A record is only sent while its own account is signed in.
• A cold start that can't reach Convex leaves the cloud unavailable, so captures go to the local library, as New Strategy does in that state.
• test/widgets/web_beta_library_test.dart: one test's name claimed a replay capture "still starts a local strategy" while signed in. It still tests createNewStrategy(local: true), so I renamed it to say what it checks.

ci: test replay
