Unity bindings for Box3d — the 3D physics engine by Erin Catto, author of Box2D. The full native C API (~580 functions) is exposed through a Unity-friendly C# layer: no pointers in user code, no per-frame allocations, deterministic simulation, and excellent multithreaded performance.
This project was inspired by, and owes its architecture to, two projects:
- Box3d by Erin Catto — the engine itself. This package is only a thin, faithful wrapper around it; all the hard physics work is his.
- JoltPhysicsUnity inspired the way this wrapper is implemented. Its binding-generation pipeline and packaging decisions shaped mine (what I deliberately did differently, is covered in the docs).
Status: early (0.3.x). Box3d itself is a young engine (v0.1) with no API stability guarantees yet, and this wrapper tracks it. It is usable and well-tested, but expect breaking changes on engine updates.
- World & bodies — static/kinematic/dynamic bodies, full body API (velocities, forces, mass, damping, per-axis motion locks, bullets/CCD, gravity scale).
- Shapes — sphere, capsule, convex hull (with cylinder/cone/rock/point-cloud builders), triangle mesh, height field, compound. Clear, documented geometry lifetime rules. Concave objects: triangle meshes for static geometry, compounds of convex parts for dynamic bodies (details).
- Joints — all nine box3d joints: distance, motor, filter, parallel, prismatic, revolute, spherical (cone/twist limits), weld, wheel (suspension + steering + drive) — each with its full spring/limit/motor accessor surface.
- Events — polled contact begin/end/hit, sensor enter/exit, joint force-threshold and body-move events, delivered as zero-copy spans (the compiler enforces the transient-memory rule).
- Queries — closest-hit and all-hits ray casts, shape casts, AABB/shape overlaps, all allocation-free via caller-provided buffers.
- Character mover — box3d's kinematic capsule toolkit (collide → solve planes → clip velocity) with a ready-made sample controller.
- Callbacks — custom collision filtering, pre-solve contact veto, friction/restitution mixing (with clear worker-thread safety rules).
- Diagnostics — debug-draw overlay (shapes, contacts, forces, islands) toggled right on the
Box3dWorldcomponent; a drop-in stats HUD (step time, per-phase profile, live counts); andWorld.GetProfile()/GetCounters()for programmatic profiling. - Determinism & replay — record a simulation, verify it reproduces bit-identical state (even across worker counts), save it, and scrub the replay frame by frame with divergence detection — for lockstep/rollback netcode and bug repro. No other Unity physics wrapper ships this.
- Extras — explosions, wind, conveyor surface materials.
- Multithreading — box3d's internal scheduler, configurable worker count per world.
- Component layer (experimental) — author bodies and shapes in the Inspector, mirroring Unity's Rigidbody/Collider model (see the docs).
Measured against Unity's built-in PhysX with identical seeded scenes (editor, same machine, box3d running 4 sub-steps vs PhysX defaults — details and CSVs in the docs):
| Scene | PhysX | Box3d (16 workers) | |
|---|---|---|---|
| 10,000 spheres raining | 6.70 ms | 1.84 ms | ~3.6× faster |
| Destroyed city, ~10,000 bodies (buildings + props) | 10.94 ms | 7.67 ms | ~1.4× faster |
| 64 piles, 1,024 bodies (sleep off) | 1.15 ms | 0.54 ms | ~2.1× faster |
| Joint-grid cloth, 930 joints | 0.54 ms | 0.71 ms | PhysX ahead on single-island loads |
The city scene is a mixed real-world load — a town of running-bond brick buildings and props on terrain, smashed by a scripted sequence of wrecking balls (identical seeded content on both engines). There, Box3d's slowest step matched PhysX's median — tighter frame times through the collapses.
A pure-box3d stress test ships too: a 16,290-box pyramid, one box deep, held upright by contact recycling. It steps in single-digit milliseconds, roughly halving once the stack settles to sleep — throw spheres to wake and collapse it, and dial the worker thread count to see how box3d's built-in scheduler scales. Ships in the Benchmarks sample.
Box3d's threading scales with the number of independent simulation islands — piles, debris, and crowds are its home turf; one giant coupled constraint network is its least favorable shape.
Via the openupm-cli:
openupm add com.suvitruf.box3d
Or add the scoped registry manually — Edit → Project Settings → Package Manager → Scoped Registries, add:
- Name:
package.openupm.com - URL:
https://package.openupm.com - Scope(s):
com.suvitruf
then install box3d for Unity from Window → Package Manager → My Registries.
Alternatively, in the Package Manager choose Add package from git URL and paste:
https://github.com/Suvitruf/box3d-unity.git
Requires Unity 6000.0+. Native binaries are included for Windows x64, Linux x64,
Android arm64, and WebGL; macOS/iOS build scripts are provided but binaries are not
shipped yet (see Documentation~/building-natives.md).
using Box3d;
using Unity.Mathematics;
using UnityEngine;
World world = World.Create(WorldDef.Default);
// Static ground box.
Body ground = world.CreateBody(BodyDef.Default);
BoxHull groundHull = BoxHull.Create(10f, 0.5f, 10f);
ground.CreateHullShape(ShapeDef.Default, in groundHull);
// Dynamic sphere. Defs come from .Default (never zero-initialize them!), then mutate.
BodyDef bodyDef = BodyDef.Default;
bodyDef.Type = BodyType.Dynamic;
bodyDef.Position = new float3(0f, 5f, 0f);
Body body = world.CreateBody(bodyDef);
body.CreateSphereShape(ShapeDef.Default, new Sphere { Radius = 0.5f });
// Step from FixedUpdate; sync transforms from move events.
world.Step(Time.fixedDeltaTime);
foreach (BodyMoveEvent move in world.GetBodyMoveEvents())
{
// move.Transform.Position / .Rotation → your Unity Transform
}
world.Destroy();See Documentation~/getting-started.md for the full walkthrough, and install the samples from

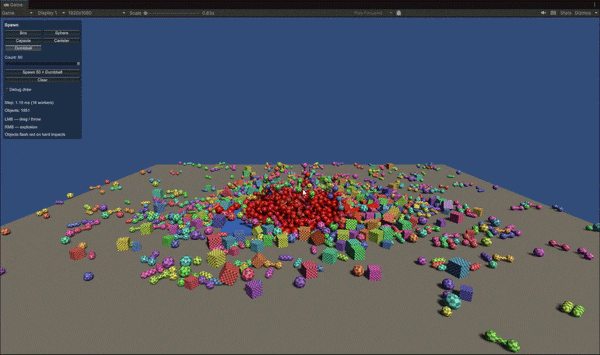

the Package Manager window: an interactive playground, basic simulation, joints, mouse drag,
character controller, a drivable vehicle, and benchmark scenes comparing against PhysX — including a
16,290-box pyramid stress test you can smash by
throwing spheres.
The sample scenes assume URP (they render fine elsewhere, minus materials), and the interactive
ones require the Input System package.
- Getting started
- Component layer (experimental) — author physics in the Inspector
- Core concepts — ids, defs, lifetimes, the rules that matter
- Shapes & geometry
- Joints
- Events
- Queries
- Character mover
- Callbacks & threading
- Debug draw
- Determinism & replay — record, validate, and scrub replays
- Performance
- Building the native libraries
MIT (see LICENSE). Box3d itself is MIT, © Erin Catto.
