FSOC

AI-assisted coarse alignment for mobile optical terminals
A reproducible camera-to-control workbench for acquisition, tracking, and recovery.

Team IRODOV · Smart India Hackathon 2026 · SIH26169

Quick start · Demo · Results · Architecture · Documentation

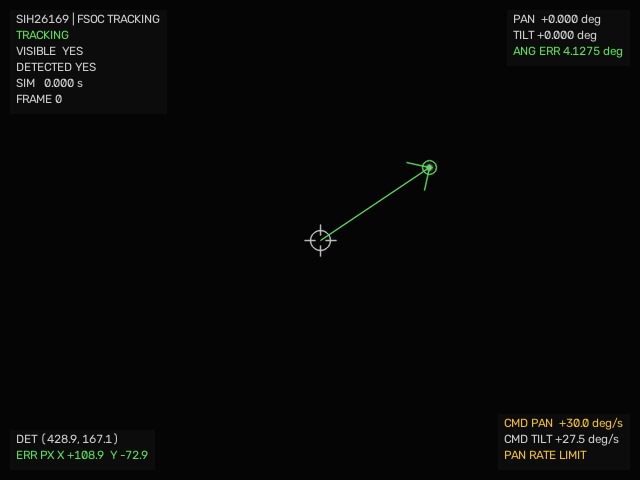

Actual C++ Step-9 visualizer output during initial acquisition. Click to open the recorded simulation demo.

FSOC closes the loop between what a camera sees and how an optical terminal points. It renders a moving beacon, locates it with classical or learned perception, checks temporal consistency, and commands a rate-limited virtual pan/tilt camera. Every correction changes the next observation.

The core runs in C++20. TinyBeaconNet performs neural inference through OpenCV DNN, while Mission Control makes the resulting trajectories, errors, controller commands, and tracking states inspectable.

Current scope: the default branch provides a deterministic software-in-the-loop system. The phone-camera branch extends it toward real image input with a virtual actuator; its physical validation remains separate from the simulation results below.

Why this exists

An optical communication beam must stay aligned with its receiver. When a terminal moves, a camera must acquire the remote beacon and maintain coarse pointing so a downstream fine-tracking stage can take over.

FSOC addresses SIH26169, the ISRO / Department of Space problem statement: Development of an AI-Based Virtual Camera Tracking System for Coarse Alignment of Mobile Free Space Optical Communication Terminals.

The workbench lets developers investigate a practical question: when sensing becomes uncertain, which measurements should a controller trust? Repeatable scenarios make it possible to compare perception and tracking changes before integrating an optical terminal.

What you can do

Capability	What it provides
Run the complete feedback loop	Image-derived centroid → pointing error → PID rate command → virtual camera motion → new image
Compare perception modes	Classical detection, standalone neural detection, and a conservative hybrid decision policy
Track through short gaps	An optional alpha-beta estimator with acquisition checks, bounded prediction, and loss/reacquisition states
Challenge the detector	Seeded noise, clutter, occlusion, and degraded-frame evaluation scenarios
Inspect the experiment	A nine-screen Mission Control UI with tracking overlays, spatial view, charts, events, and playback
Keep the evidence	A 42-column CSV schema, reproducible evaluation tools, model artifacts, and documented trade-offs

Quick start

1. Install prerequisites

You need a C++20 compiler, Ninja, OpenCV with core, imgproc, imgcodecs, and dnn, plus Node.js and npm for Mission Control. The frontend CI currently uses Node.js 20.

Use CMake 3.25 or newer for the checked-in presets: they use preset schema version 6, even though the underlying project declares a 3.24 minimum.

macOS setup

Install Xcode Command Line Tools if they are missing:

xcode-select --install

With Homebrew available:

brew install cmake ninja opencv node

See SETUP_MACOS.md for the repository's setup guide.

Ubuntu setup

sudo apt-get update
sudo apt-get install -y build-essential cmake ninja-build libopencv-dev
cmake --version

Ensure the installed CMake supports schema version 6; older distribution packages may need updating. Install Node.js and npm separately. The CI workflow records the exact automated build environment.

2. Clone and build the engine

git clone https://github.com/ThatKJ/FSOC.git
cd FSOC

cmake --preset debug -DFSOC_ENABLE_OPENCV=ON
cmake --build --preset debug
ctest --preset debug --output-on-failure

Explicitly enabling OpenCV makes missing image-processing dependencies a configuration error. The default AUTO setting can otherwise build only the math/control subset.

3. Run your first experiment

Run these commands from the repository root so the bundled model resolves correctly:

# Classical baseline
./build/debug/fsoc_demo static

# Hybrid perception with temporal tracking
./build/debug/fsoc_demo static --mode hybrid --tracker

# Save a complete run
mkdir -p generated/demo
./build/debug/fsoc_demo sinusoidal --mode hybrid --tracker --csv generated/demo/sinusoidal.csv

The ONNX model is already committed; training is not required to run the demo. Python is used by the optional offline training tools, not the C++ inference runtime.

4. Open Mission Control

cd frontend
npm ci
npm run dev

Open localhost:4317. Select ENGINE to compute a new experiment with the local binary, or REPLAY to inspect a checked-in recording.

Demo

The CLI includes five self-contained disturbance presets:

Command	What to inspect
./build/debug/fsoc_demo normal	Classical baseline acquisition and correction
./build/debug/fsoc_demo noise	Response to ordinary image noise
./build/debug/fsoc_demo clutter	Conservative rejection and reduced tracking availability under bright distractors
./build/debug/fsoc_demo occlusion	Short prediction-assisted bridging across a detection gap
./build/debug/fsoc_demo reacquisition	Loss after a longer gap, followed by fresh acquisition

These presets fix their own perception mode, tracker setting, and duration. Use the base scenarios—static, sinusoidal, loss, open, closed—when supplying --mode, --tracker, or --duration yourself. --csv remains available for preset runs.

Sinusoidal tracking	Loss and re-entry scenario

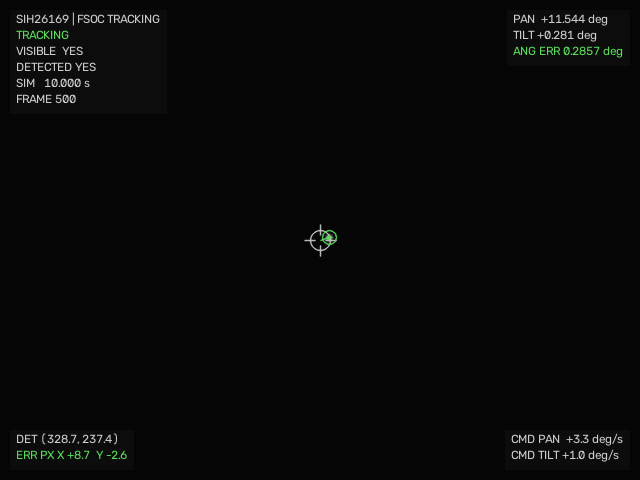

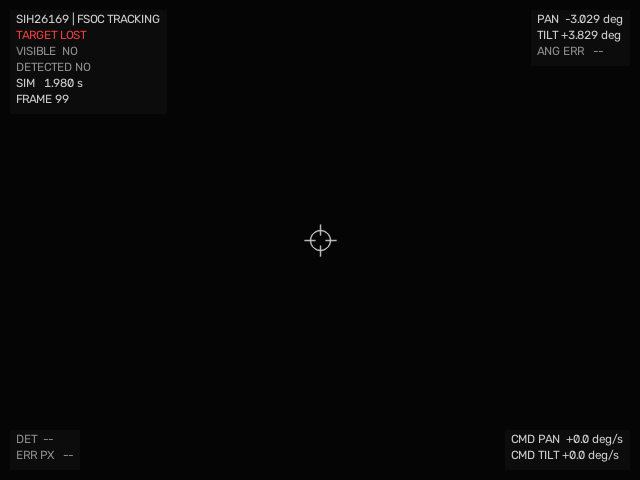

The images are native simulation visualizations. The browser UI is described below. For a narrated walkthrough, see the Golden Demo guide; recorded clips are in demo assets.

Mission Control

The frontend uses Next.js, TypeScript, Tailwind CSS, Recharts, React Three Fiber, and Framer Motion. A shared playback state keeps the experiment's displays on the same sample.

Screen	Purpose
Overview and Mission Control	Experiment context, selected source, state, and primary telemetry
Optical Tracking	Centroid reticle, boresight, error vector, and pan/tilt readouts
Spatial View	Visualize target and camera geometry
Telemetry	Inspect time series and perception/tracker diagnostics
Scenarios, Benchmarks, and Validation	Review presets and documented baseline evidence
Architecture	Explore the system's module boundaries

How data reaches the UI:

Source	Actual behavior
ENGINE	The local Next.js server executes fsoc_demo, waits for the finite run to finish, reads its CSV, and returns the computed samples for interactive playback.
REPLAY	The server loads committed recordings from the C++ engine. These fixtures use classical perception with the tracker disabled.
AUTO	The server prefers the local engine and falls back to replay when necessary. Check the returned source before interpreting a run.

ENGINE computes fresh results; the current default-branch transport is run-then-playback, rather than continuous frame streaming. Play, pause, and seek operate on the returned samples. The browser tracking viewport draws telemetry-driven overlays over a presentation background; it is not a raw camera-frame stream.

Inspect the implementation in engine.ts and the simulation API. The server needs access to the compiled native binary; a static website host alone cannot provide ENGINE mode.

Architecture

flowchart TD
    World["Target trajectory"] --> Render["Camera image and optional disturbances"]
    Render --> Classical["Classical detector"]
    Render --> AI["TinyBeaconNet"]
    Classical --> Fusion["Selected perception policy"]
    AI --> Fusion
    Fusion --> Tracker["Optional alpha-beta tracker"]
    Tracker --> Control["Steering gate, error and PID"]
    Control --> Camera["Rate-limited pan and tilt"]
    Camera -->|"Updated view"| Render
    World -.->|"Evaluation truth only"| Evidence["Metrics and CSV telemetry"]
    Control -.-> Evidence
    Evidence --> UI["Mission Control"]

Loading

The controller receives measurements, never target-truth coordinates. The simulator uses truth to construct images and evaluate results. Perception extracts the centroid from those images; the tracker and controller act on that measurement path.

The pure math/control modules remain separate from OpenCV. Angles are radians internally and converted at presentation boundaries. The baseline uses a fixed 20 ms simulation step; measured processing throughput is a separate quantity.

Perception and temporal tracking

TinyBeaconNet is a 27,282-parameter heatmap localizer trained on synthetic beacon images and exported to ONNX. It returns beacon presence and localization outputs; AiBeaconDetector runs it in C++ through OpenCV DNN. The model card documents the Stage-2 training snapshot; MVP metrics cover the subsequent C++ integration and evaluation.

In Hybrid mode, resolve_perception() uses an explicit policy:

Available detections	Control-facing result
Classical and AI agree within 8 px	Accept the classical centroid
Classical only	Accept the classical centroid
AI only	Reject the unverified candidate
Classical and AI disagree	Reject both
Neither detector finds a candidate	Report no detection

Standalone --mode ai is a separate diagnostic mode that does accept thresholded AI output. The rejection rules above apply to Hybrid.

The optional TargetTracker adds an alpha-beta position/velocity estimate, temporally consistent acquisition, and a bounded coast period. It can decline a candidate or declare loss instead of continuing an unsupported track. It is enabled with --tracker; the classical baseline remains available with it disabled.

Measured results

These are recorded simulation results, linked to their committed methods and evidence. They are not physical-camera accuracy measurements or a fresh benchmark of the reader's machine.

Classical closed-loop baseline

The Step-10 comparison runs the same sinusoidal trajectory with and without control:

Metric	Open loop	Closed loop
RMS angular error	6.4549°	0.5461°
Detection fraction	57.4%	100.0%
Lost frames	426	0

The baseline acceptance suite reports 7/7 passing scenarios: static acquisition, slow linear tracking, sinusoidal tracking, near-FOV-edge acquisition, actuator saturation, target loss/re-entry, and open-versus-closed-loop comparison. Method and results · Consolidated metrics

What the temporal tracker changes

The Stage-4 ablation evaluates 11 scenarios × 5 seeds × 400 steps = 22,000 steps per configuration:

Configuration	Severe pointing outliers >50 px	Accepted-detection coverage
Classical	2,240	99.69%
Classical + tracker	12	77.51%
Hybrid	1,808	97.35%
Hybrid + tracker	9	77.05%

Hybrid + tracker reduces severe outlier counts by approximately 99.5% versus Hybrid, while coverage falls by 20.3 percentage points. The benefit comes from rejecting unreliable measurements. It is not a 99.5% accuracy claim. Reported RMS in this ablation uses accepted-detection frames, so reduced coverage affects its interpretation. Full ablation and counterexamples

Timing and model size

Measurement	Recorded result
TinyBeaconNet parameters	27,282
ONNX Runtime ↔ C++ decoded-centroid difference	1.54 × 10⁻⁷ px on the recorded parity fixture
Hybrid + tracker full-step P95	1.21 ms in the uncontended MVP freeze run
Fixed simulation interval	20 ms / 50 Hz
CSV telemetry	42 columns: 27 core + 7 perception + 8 tracker

Timing was measured on the documented Apple M5 development machine, not embedded or flight hardware. Earlier runs report P95 values of 1.439–1.639 ms under their recorded conditions; timing depends on workload and platform. Freeze run · Timing methodology

Validation

Run the baseline checks from the repository root:

cmake --preset debug -DFSOC_ENABLE_OPENCV=ON
cmake --build --preset debug
ctest --preset debug --output-on-failure
./build/debug/step10_validation_smoke

For the frontend, run the following inside frontend/ after npm ci. The checked-in Playwright configuration uses installed Google Chrome, rather than a Playwright-managed Chromium download.

npm run typecheck
npm run lint
npm run build
npx playwright test

The CI workflow separately builds/tests C++ and checks the frontend. Its browser job uses replay fixtures; local tests that require an engine need the native build available. The badge at the top links to current runs; freeze-time test results are historical evidence.

Reproduce AI evaluation, tracker ablation, and latency measurements

From the repository root:

cmake --preset release -DFSOC_ENABLE_OPENCV=ON
cmake --build --preset release

./build/release/ai_inference_benchmark
./build/release/stage4_evaluation --out generated/ai_stage4
./build/release/stage4_tracker_ablation --out generated/ai_stage4_ablation
./build/release/mvp_dynamic_scenarios --out generated/mvp_dynamic_scenarios
./build/release/mvp_latency_budget

The full evaluation and ablation are longer-running experiments. Measure latency separately from CPU-heavy evaluations so the load condition is clear. The frozen Stage-4 protocol defines scenarios, seeds, and metrics.

Limits and next steps

The evaluation deliberately includes failure cases:

• Coherent moving distractors remain a weakness. A smoothly moving distractor defeats the temporal gate in the documented counterexample.
• Coverage is traded for reliability. The outlier reduction does not eliminate the classical detector's 44.93% common-frame false-positive rate in the degraded evaluation.
• AI recall is limited. The recorded synthetic tests report roughly 16–40% recall depending on the evaluation; real-camera generalization requires separate evidence.
• Physics and hardware remain bounded in scope. Image degradations do not establish validated atmospheric propagation. Fine optical PAT, physical gimbal tracking, and an optical data link are outside the default branch's measured capability.

Stage	Status
Deterministic C++ coarse-alignment loop	Implemented; baseline acceptance documented
Neural inference and Hybrid policy	Implemented; model, parity checks, and evaluation committed
Temporal tracking and bounded recovery	Implemented; ablation and failure cases documented
Phone/webcam frame input with virtual actuation	Separate development branch; physical measurements pending in its test documentation
Continuous streaming, stronger live-session UX, and evidence export	Further integration work
Packaged desktop application and physical pan/tilt bench	Planned
Coarse-to-fine handoff and optical-link validation	Future research

Documentation

Start here	Read it for
Documentation index	A map of the complete project
Golden Demo	Commands, narration, and expected behaviors
MVP metrics	Experiment conditions and measured results
Tracker ablation	The clutter investigation, trade-offs, and counterexamples
MVP freeze	The reproducible presentation baseline
Coordinates and math	Geometry, signs, and units
Interface contracts	Boundaries between modules
Telemetry schema	The CSV fields and their meanings
AI architecture	Learned perception and hybrid integration
Model card	Training data, checkpoint, and model limitations
Architecture decisions	Why the system is built this way
Development history	The engineering progression from the initial baseline

Repository map

Path	Contents
include/fsoc/	Public C++ interfaces and data contracts
src/	Geometry, simulation, perception, tracking, control, and telemetry
apps/	Demo, validation, dataset, and benchmark executables
tests/	C++ tests and parity fixtures
models/	Trained ONNX model, metadata, and evaluation records
tools/ai/	Optional offline Python training/export tools
frontend/	Mission Control, data adapters, and browser tests
docs/	Design, metrics, protocols, and engineering history
.github/workflows/	CI definitions
generated/	Local run artifacts; created at runtime and git-ignored

Troubleshooting

Symptom	Check
fsoc_demo is missing after a build	Reconfigure with -DFSOC_ENABLE_OPENCV=ON, resolve missing OpenCV components, then rebuild.
CMake rejects the presets	Use CMake 3.25+ for schema version 6.
ENGINE is unavailable	Build the native executable and start Next.js from frontend/. A server-side FSOC_DEMO_BIN can override its path.
AI/Hybrid falls back to Classical	Run from the repo root and check that models/tiny_beacon_net.onnx loads. Inspect the warning and active-mode banner; fallback is not evidence of an AI run.
Perception settings do not change a replay	The committed fixtures are classical/tracker-off. Use ENGINE to compute a different configuration.
Playwright cannot find Chrome	Install Google Chrome to match frontend/playwright.config.ts.

Contributing

Open an issue with the scenario, configuration, commit, and evidence needed to reproduce a problem. Keep changes focused and include relevant tests.

Read AGENTS.md and CLAUDE.md before implementation. Preserve the frozen baseline, keep truth out of the controller, retain explicit units, and document any algorithm change with its measured effect. The repository does not currently include a LICENSE file.

Built by Team IRODOV
Student project for SIH26169 · Space Technology
