hackprinceton_BK

This guide explains how to set up and connect your Flask backend (running locally) with a Swift iOS app using the provided network connector. It covers installation, configuration, LAN access, endpoint testing, and troubleshooting.

---

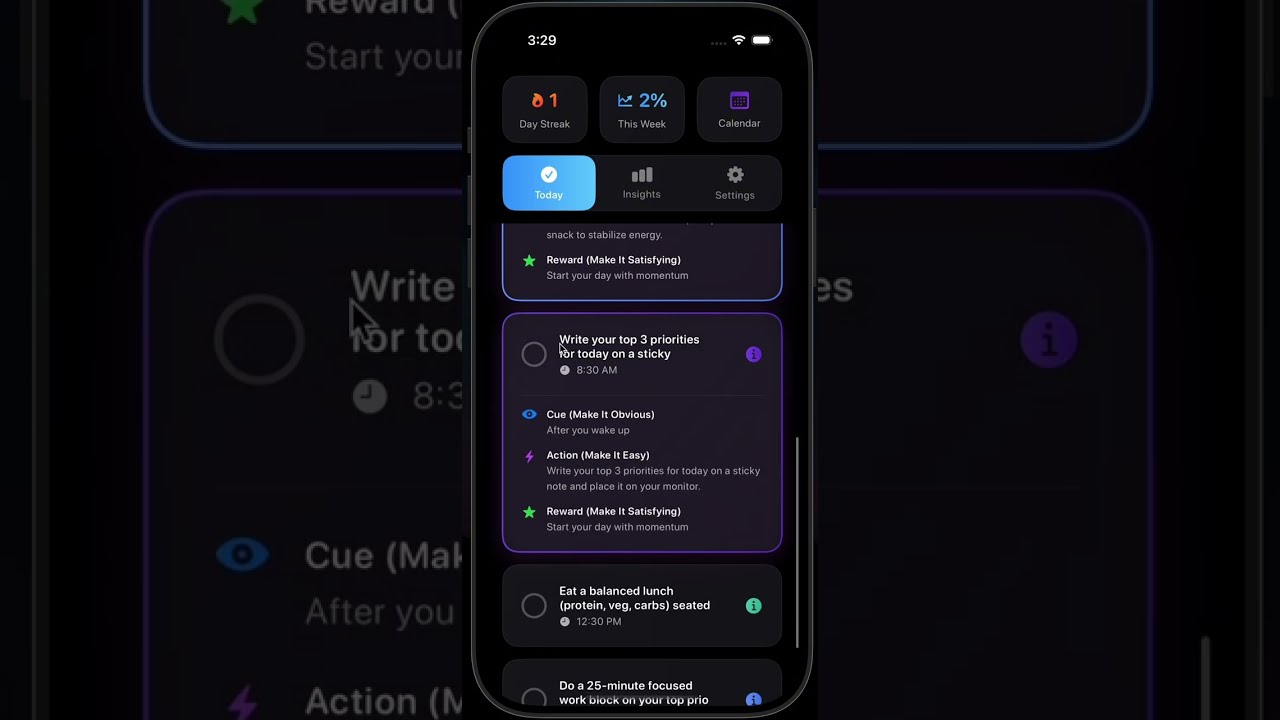

📽️ Demo Video

---

Project Overview

Your Flask app generates personalized 7-day plans using an AI backend (Dedalus MCP server) and serves them via REST endpoints. The Swift app collects user input (like wake-up time, focus habits, etc.) and requests the Flask backend to generate structured daily plans.

Flask Handles:

• /api/create-personalized-plan → Generates a 7-day structured plan.
• /api/get-tip → Returns short motivational tips.
• /api/get-routine → Returns simple 7-day routines.

Swift Handles:

• Collects user data (name, age, routines, etc.)
• Sends POST requests to Flask via the NetworkService class.
• Displays the returned JSON (plan, tips, intro) as part of the app UI.

---

Flask Backend Setup

1. Install Dependencies

pip install flask flask-cors dedalus_labs asyncio

2. Run the Flask App

Make sure app.py has this at the bottom:

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=8080)

Then run:

python app.py

You should see something like:

 * Running on http://10.29.209.147:8080 (Press CTRL+C to quit)

Note that 10.29.209.147 is your local IP — this is what your friend's Swift app must use.

3. Firewall Configuration

Allow inbound connections on port 8080:

• Windows: Allow the Python process or open TCP port 8080 on Private networks.
• macOS: If prompted, click Allow incoming connections.

4. Test with Postman

Send a POST request to:

http://10.29.209.147:8080/api/create-personalized-plan

Body (JSON):

{
  "name": "Ricardo",
  "age": 22,
  "wakeUpTime": "8:00 am",
  "sleepTime": "7:00 pm",
  "eatingHabits": "I try, but I'm inconsistent",
  "exerciseRoutine": "I am very consistent",
  "deepFocus": "I am somewhat inconsistent",
  "timeManagement": "I am very consistent",
  "notificationStyle": "Firm and direct"
}

If you get a structured JSON response with intro, days, and tips, your Flask app is ready.

---

Swift iOS Integration

1. Set Base URL in NetworkService.swift

private let baseURL = "http://10.29.209.147:8080"

⚠️ Do not use https://127.0.0.1 — that points to your friend's local machine.

2. Endpoint Structure

Swift calls:

let url = URL(string: "\(baseURL)/api/create-personalized-plan")!

That sends the POST request to your running Flask app.

3. Request Body Mapping

Your Swift connector builds the JSON using:

struct FlaskUserData: Encodable {
    let name: String
    let age: Int
    let wakeUpTime: String
    let sleepTime: String
    let eatingHabits: String
    let exerciseRoutine: String
    let deepFocus: String
    let timeManagement: String
    let notificationStyle: String
}

This matches exactly what Flask expects — no changes needed.

4. Response Parsing

Your Flask backend returns:

{
  "intro": "...",
  "days": [
    {"day": 1, "morning": ["..."], "afternoon": ["..."], "evening": ["..."]},
    ...
  ],
  "tips": ["...", "..."]
}

Swift decodes it using:

struct FlaskPlanResponse: Codable {
    let intro: String
    let days: [FlaskDay]
    let tips: [String]
}

struct FlaskDay: Codable {
    let day: Int
    let morning: [String]
    let afternoon: [String]
    let evening: [String]
}

The models are fully compatible.

---

Local Network (LAN) Connection

To allow your friend's device to reach Flask:

1. Both must be connected to the same Wi-Fi network.

2. Use your local IP address (not 127.0.0.1).

3. Ensure your firewall allows external access to port 8080.

4. Test from your friend's browser:

   http://10.29.209.147:8080/


   It should display: API is running

If that works, the Swift app will also work.

---

Troubleshooting

Issue	Cause	Fix
❌ Connection refused	Firewall blocked port	Allow Flask through firewall on 8080
❌ Network unreachable	Using 127.0.0.1 or wrong IP	Replace with your LAN IP
❌ Failed to decode response	JSON format mismatch	Ensure Swift request fields match Flask keys
⚠️ NSAppTransportSecurity error on iOS	iOS blocks HTTP by default	Add ATS exception in Xcode plist (see below)

iOS App Transport Security (ATS) Exception

In your app's Info.plist, add:

<key>NSAppTransportSecurity</key>
<dict>
  <key>NSAllowsArbitraryLoads</key>
  <true/>
</dict>

This allows HTTP connections for local development. You can remove it when deploying via HTTPS.

---

Future Upgrade: HTTPS or Remote Deployment

When you want to make it accessible outside your LAN, use one of these:

Option 1: ngrok (fastest)

ngrok http 8080

It gives you a temporary HTTPS URL like:

https://yourapp.ngrok-free.app

Update Swift's baseURL to this URL.

Option 2: Deploy to a Cloud Host

• Render.com
• Railway.app
• Fly.io
• Google Cloud Run / AWS / Azure

These platforms provide free HTTPS endpoints and persistent hosting.

---

Summary Checklist

Step	Description	Done
1️⃣	Run Flask with host='0.0.0.0'	✅
2️⃣	Find your local IP via ipconfig / ifconfig	✅
3️⃣	Use http://<your-ip>:8080 in Swift baseURL	✅
4️⃣	Open port 8080 on your firewall	✅
5️⃣	Test endpoint with Postman	✅
6️⃣	Test Swift app call	✅

Once all boxes are checked, your local Flask API and Swift connector will talk seamlessly over LAN.

---

🧩 Author Note: This setup is ideal for local development and iteration. When you're ready for production, switch from http:// to https:// using ngrok or a proper deployment host.

---
