Microscope strives to be an easy to utilize, high performance platform to visualize your platform's data flow! Unlike competitors which offer complicated solutions for data aggregation, storage and visualization, Microscope's goal is to be easy to setup, and straightforward to utilize.
For developers, Microscope exposes a RESTful API to send flow data, which means that your web services simply make fire-and-forget calls to Microscope that they are engaging in receiving our passing along some form of data.

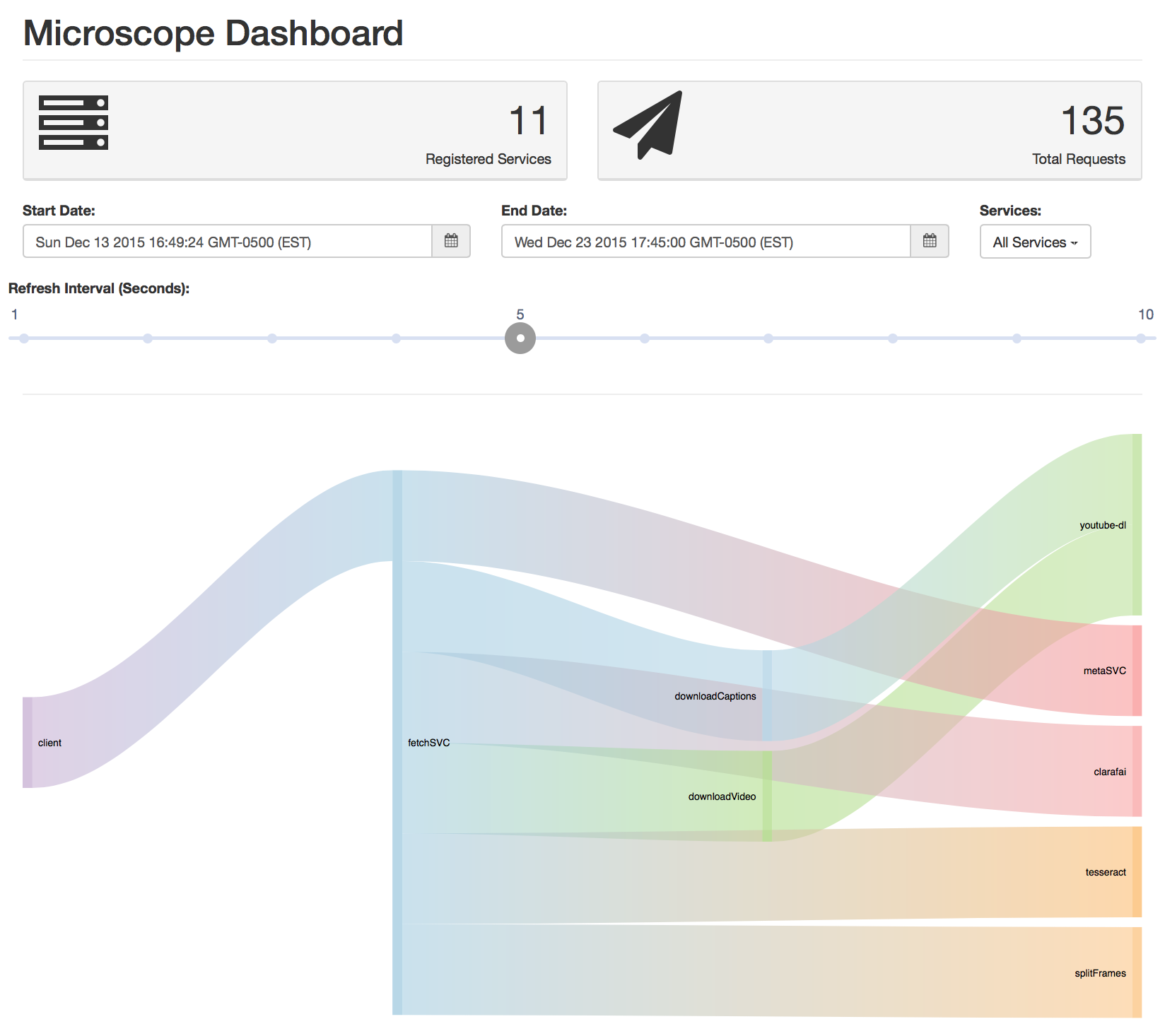

Then, the Microscope web application allows end users to query for flows based on time, for your entire platform or for a specific endpoint.
Utilize Microscope to:
- See how your services are behaving in response to an input
- Analyze over utilization / underutilization of services
- (IN PROGRESS) See response times from your service, and analyze bottlenecks.
In contradiction to utilizing a 3rd party service, you have full control over Microscope and it's 100% free, 100% open source for everyone to use.
- JVM v1.8 +
- Scala 2.11.7+
- SBT 0.13.9+
- PostgreSQL 9.4+
- DB: micro_db
- Username: microscope
- Password: microscope
- Node.js v4+
- NPM v2+
- NPM Global Dependencies
- Bower
- Gulp
Clone the repository, and navigate to the root directory in a terminal. Run the following commands:
$ sbt flywayMigrate
$ sbt run
In another terminal, navigate to the client subdirectory, and run the following commands:
$ npm install
$ gulp
$ gulp serve
You can now navigate to localhost:8080 to see the Microscope web application, which communicates with the server running at port 9000.
conf/application.conf- Database configuration parameters and CORS configurationconf/logback.xml- Logging configurationbuild.sbt- flyWay migration connection parameters (should be same asapplication.conf)
All the client side code is available within the client subdirectory. Currently it is written in angular.js utilizing only ES5 syntax.
The backend code can be found inside the app subdirectory, written entirely in Scala.
