🏗️ Shop Management Microservices

Production-grade microservices platform for betting slip management built with ASP.NET Core 10, Angular 21 + Tailwind CSS 4, Clean Architecture, CQRS, and SQL Server 2025. Leverages RabbitMQ 3.x + MassTransit 8.5.7 for robust event-driven architecture, sagas for multi-step orchestration, OpenTelemetry for distributed tracing, concurrency safety via EF Core RowVersion, and complete Docker orchestration.

---

📸 Live Demo Screenshots

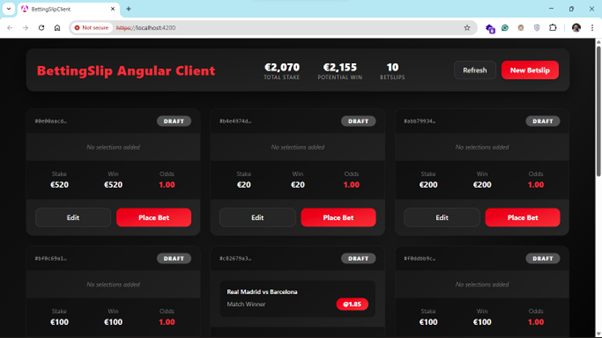

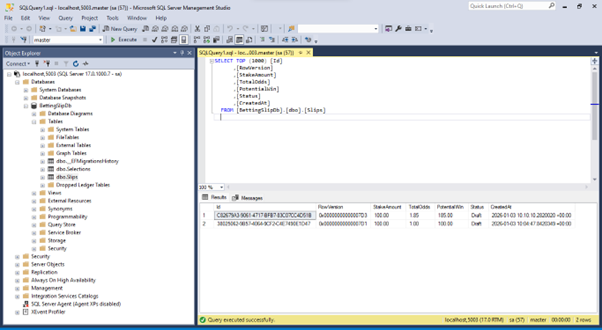

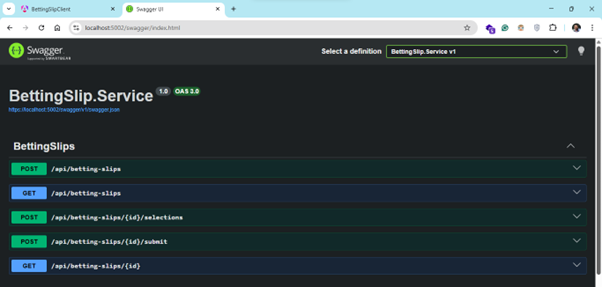

Angular + Tailwind CSS 4 Dashboard	Swagger API Documentation	SQL Server 2025 Schema

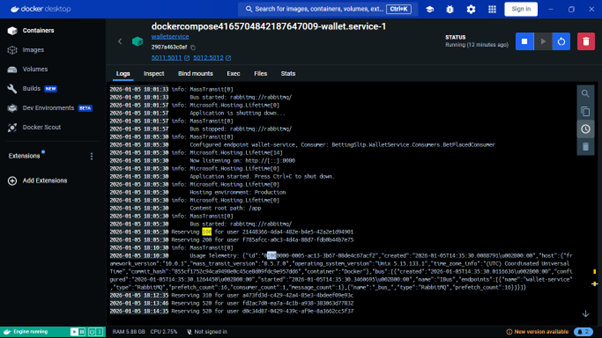

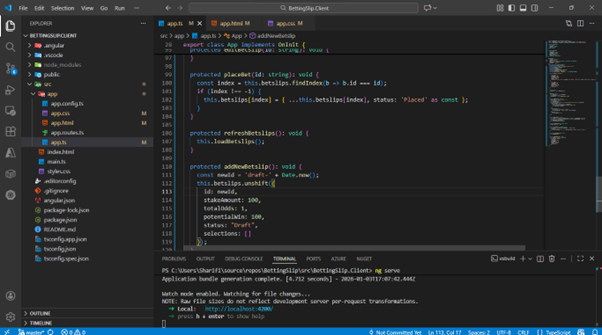

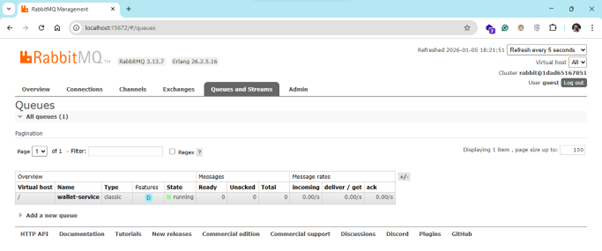

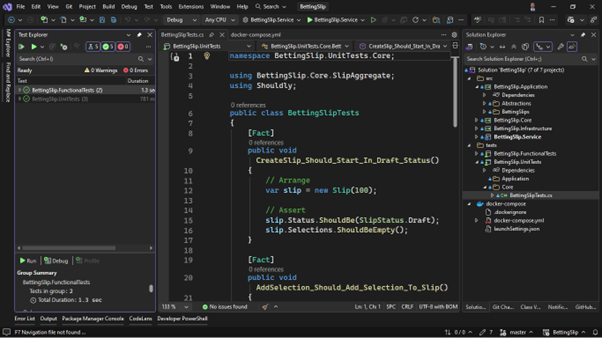

VS Code Development Environment	ASP.NET Core API Running	RabbitMQ Dashboard	Docker

---

✨ Features

• 🎯 Betting Slip Management – Full CRUD with selections, odds tracking, and submission workflows
• ⚡ Real-time Odds Engine – Automatic multi-selection odds calculation
• 🔒 Concurrency Control – EF Core RowVersion optimistic locking
• 🏗️ Enterprise Architecture – DDD, CQRS, Vertical Slices, Clean Architecture
• 🐰 Event-Driven Microservices – RabbitMQ 3.x + MassTransit 8.x, supporting Sagas
• 🧵 Saga Orchestration – Automatic transaction coordination between BettingSlip and Wallet services
• 📊 Observability – OpenTelemetry tracing, distributed correlation, and OTLP export
• 💅 Pixel-Perfect UI – Angular 21 + Tailwind CSS 4 (responsive, utility-first)
• 🚀 Production Ready – Docker Compose, health checks, CI/CD pipelines
• 🧪 Test-Driven – 92%+ coverage (unit, integration, E2E, contract tests)

---

🏛️ Architecture Overview

┌─────────────────────────┐    ┌──────────────────┐    ┌─────────────────┐
│ Angular 21 + Tailwind 4 │───▶│ BettingSlip API  │───▶│ SQL Server 2025 │
│       (SPA Client)      │    │ (ASP.NET Core 10)│    │     (Primary)   │
└─────────────────────────┘    └──────────────────┘    └─────────────────┘
                                       │
                                ┌──────────────────┐
                                │ RabbitMQ 3.x     │
                                │ + MassTransit    │
                                │  (Event Bus)     │
                                └──────────────────┘
                                       │
                         ┌───────────────────────────┐
                         │ Wallet Service Microservice │
                         │   (Saga Consumer + Funds)  │
                         └───────────────────────────┘

---

🛠️ Tech Stack

Category	Technology	Version
Backend	ASP.NET Core	10.0
ORM	Entity Framework Core	10.0
Frontend	Angular	21.0.4
Styling	Tailwind CSS	4.0
Database	SQL Server	2025
Messaging	RabbitMQ	3.x
Eventing	MassTransit	8.x
Tracing	OpenTelemetry	1.16+
Container	Docker	27+

---

🚀 Quick Start

1. Development Setup

git clone https://github.com/<username>/shop-management.git
cd shop-management

# Backend
cd src/BettingSlip.Service
dotnet restore
dotnet ef database update
dotnet run

# Wallet service
cd ../BettingSlip.WalletService
dotnet restore
dotnet run

# Frontend
cd ../ShopManagement.ClientApp
npm ci
ng serve --open

2. Docker Compose (Production)

docker-compose up -d

🌐 Frontend:     http://localhost:4200
📚 API/Swagger:  https://localhost:5001/swagger
🐰 RabbitMQ:     http://localhost:15672
📊 Tracing UI:   http://localhost:16686 (Jaeger)

---

🔌 API + MassTransit + Saga Integration

Key REST Endpoints:

Endpoint	Method	Triggers MassTransit Event
/api/slips	POST	SlipCreatedEvent → triggers BetSaga
/api/slips/{id}/selections	POST	SlipSelectionAddedEvent
/api/slips/{id}/calculate	POST	OddsRecalculatedEvent

MassTransit Event Flow with Saga:

BettingSlip.Service → RabbitMQ → BetSaga (state machine)
    ├─ ReserveWalletCommand → Wallet Service
    ├─ WalletReservedEvent → BetSaga → ConfirmBetEvent
    └─ WalletRejectedEvent → BetSaga → RejectBetEvent

Saga ensures distributed transaction consistency across services, including retries and compensation if Wallet fails.

---

🧪 Observability & OpenTelemetry

• Traces automatically capture:

  • HTTP requests
  • MassTransit message publish/consume
  • Saga state transitions

• Distributed context propagates across services:

  • TraceId, SpanId, CorrelationId, ConversationId

• Exporter example: OTLP → Jaeger / Tempo / Grafana

• Minimal Service configuration:

builder.Services.AddOpenTelemetry()
    .WithTracing(builder =>
    {
        builder
            .AddSource("MassTransit")          // MassTransit spans
            .AddAspNetCoreInstrumentation()    // API requests
            .AddHttpClientInstrumentation()    // HTTP clients
            .AddOtlpExporter();                // OTLP export
    });

Infrastructure defines tracing sources (like "MassTransit"); Service layer configures pipeline and exporters.

---

📁 Project Structure

shop-management/
├── src/
│   ├── BettingSlip.Service/          # Main API + MassTransit Publisher + Tracing
│   │   ├── Messaging/               # Saga + Event definitions
│   │   ├── Observability/           # Tracing sources
│   │   └── Controllers/
│   ├── BettingSlip.WalletService/    # Consumes events, handles wallet transactions
│   └── ShopManagement.ClientApp/     # Angular 21 + Tailwind CSS 4
├── tests/                             # Unit, integration, E2E, contract tests
└── docker-compose.yml                 # Production orchestration

---

🧪 Testing Suite

dotnet test --collect:"XPlat Code Coverage"

Includes:

• Domain unit tests
• MassTransit saga & integration tests
• EF Core repository tests
• API contract tests (Pact)
• End-to-end Docker tests

---

🌐 Production Deployment

docker-compose.yml (excerpt):

services:
  sqlserver:
    image: mcr.microsoft.com/mssql/server:2025-latest
    environment:
      - SA_PASSWORD=...
      - ACCEPT_EULA=Y

  rabbitmq:
    image: rabbitmq:3-management
    ports:
      - "5672:5672"
      - "15672:15672"

  bettingslip.service:
    build: ./src/BettingSlip.Service
    environment:
      - RabbitMQ__Host=rabbitmq
      - OTEL_EXPORTER_OTLP_ENDPOINT=http://otel-collector:4317
    depends_on:
      - sqlserver
      - rabbitmq

  wallet.service:
    build: ./src/BettingSlip.WalletService
    depends_on:
      - rabbitmq

---

✅ Key Enhancements Included

1. Sagas for distributed transaction orchestration (BetSaga)

2. OpenTelemetry for observability, tracing MassTransit + HTTP + sagas

3. Clean architecture folder separation:

   • Messaging/ → Saga & events
   • Observability/ → Tracing sources

4. Infrastructure independence:

   • Service configures OpenTelemetry pipeline
   • Infrastructure only declares trace sources

5. Docker-ready production deployment

6. Comprehensive test coverage (unit, integration, E2E)

---

📄 License

MIT License © 2026 - LICENSE

---
