TOC Project 2020(流浪動物認養平台)

這次Project主要想法是為了提倡動物領養代替購買，結合全國動物收容管理系統，去找出等待領養的浪浪們。

Setup

Prerequisite

• Python 3.6
• Pipenv
• Facebook Page and App
• HTTPS Server

Install Dependency

pip3 install pipenv

pipenv --three

pipenv install

pipenv shell

• pygraphviz (For visualizing Finite State Machine)
  • Setup pygraphviz on Ubuntu
  • Note: macOS Install error

Run Locally

You can either setup https server or using ngrok as a proxy.

a. Ngrok installation

• macOS, Windows, Linux

or you can use Homebrew (MAC)

brew cask install ngrok

ngrok would be used in the following instruction

ngrok http 8000

After that, ngrok would generate a https URL.

Run the sever

python3 app.py

b. Servo

Or You can use servo to expose local servers to the internet.

Upload project to Heroku

1. Add local project to Heroku project

   heroku git:remote -a {HEROKU_APP_NAME}

2. Upload project

   git add .
   git commit -m "Add code"
   git push -f heroku master


3. Set Environment - Line Messaging API Secret Keys

   heroku config:set LINE_CHANNEL_SECRET=your_line_channel_secret
   heroku config:set LINE_CHANNEL_ACCESS_TOKEN=your_line_channel_access_token


4. Your Project is now running on Heroku!

   url: {HEROKU_APP_NAME}.herokuapp.com/callback

   debug command: heroku logs --tail --app {HEROKU_APP_NAME}

5. If fail with pygraphviz install errors

   run commands below can solve the problems

   heroku buildpacks:set heroku/python
   heroku buildpacks:add --index 1 heroku-community/apt

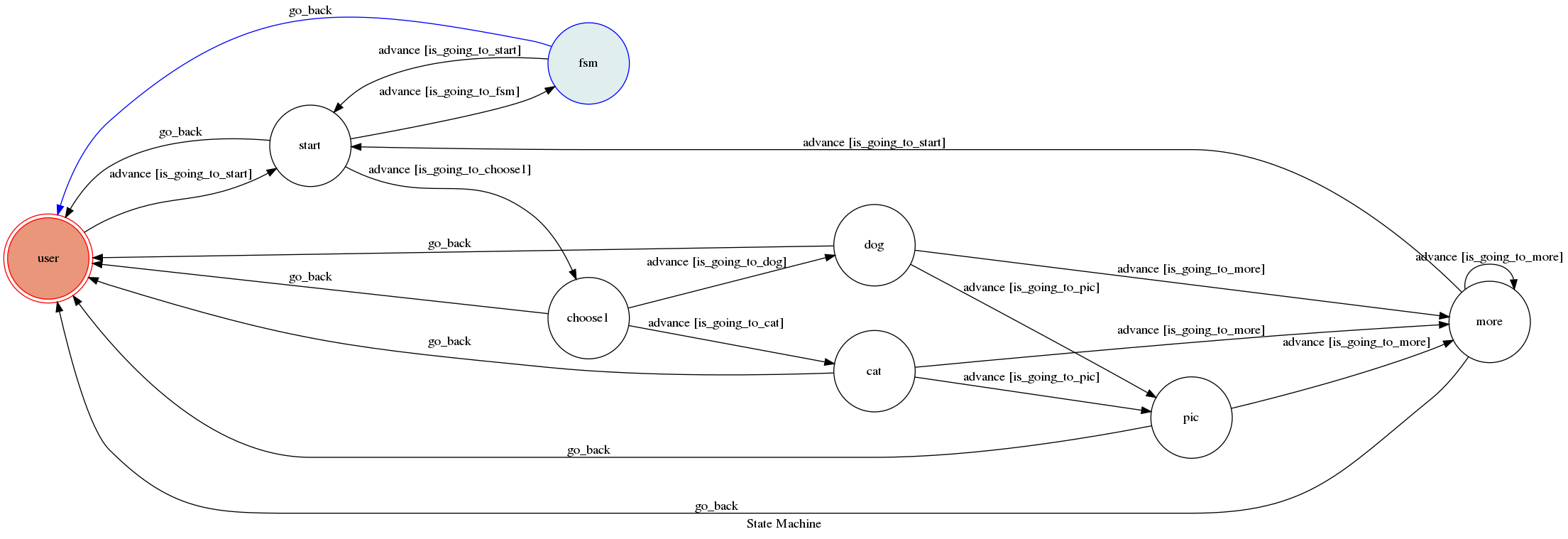

Finite State Machine

Usage

The initial state is set to user.

• user

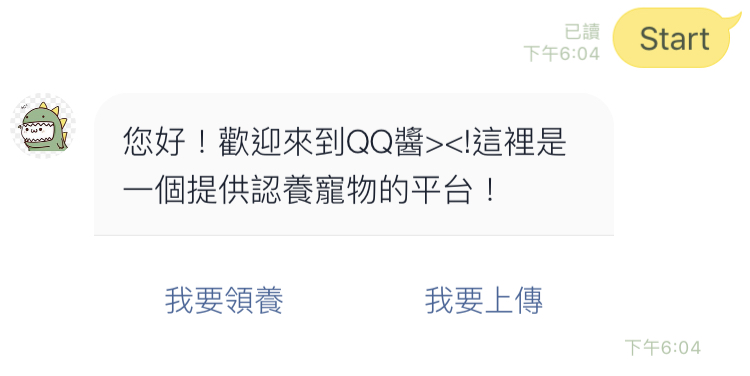

  • Input: "start"

• start

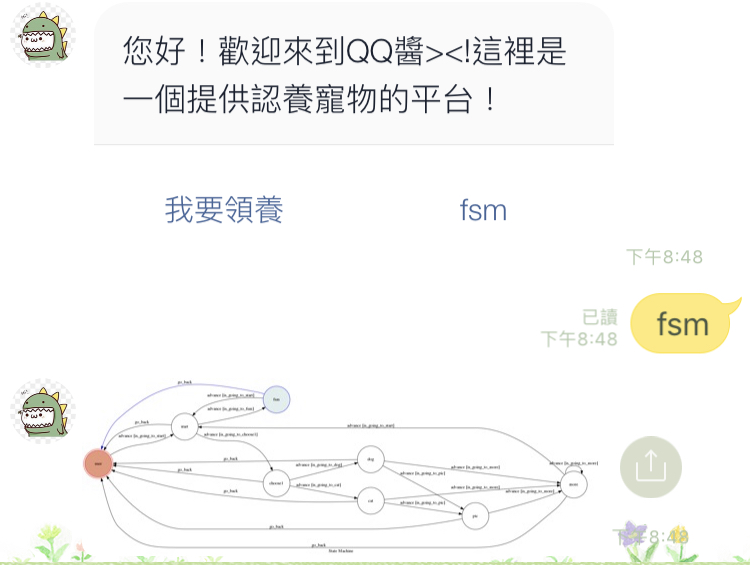

  • Input: "fsm"

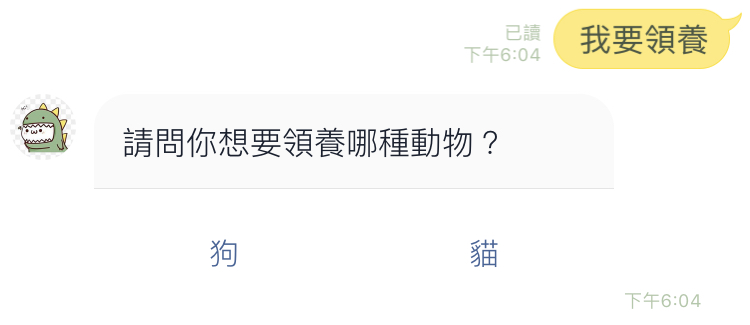

  • Input: "我要領養"

• choose1

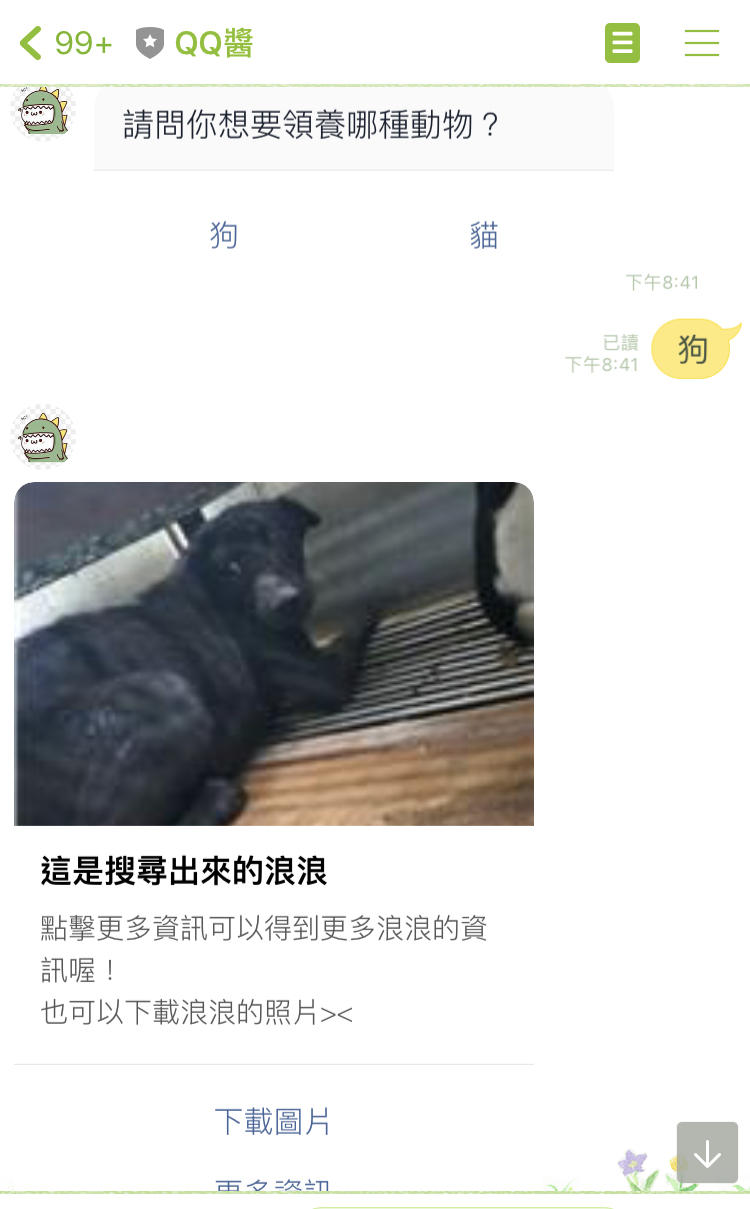

  • Input: "狗" (去爬蟲全國動物收容系統得到的資料，按更多資訊會前往網站)

  •

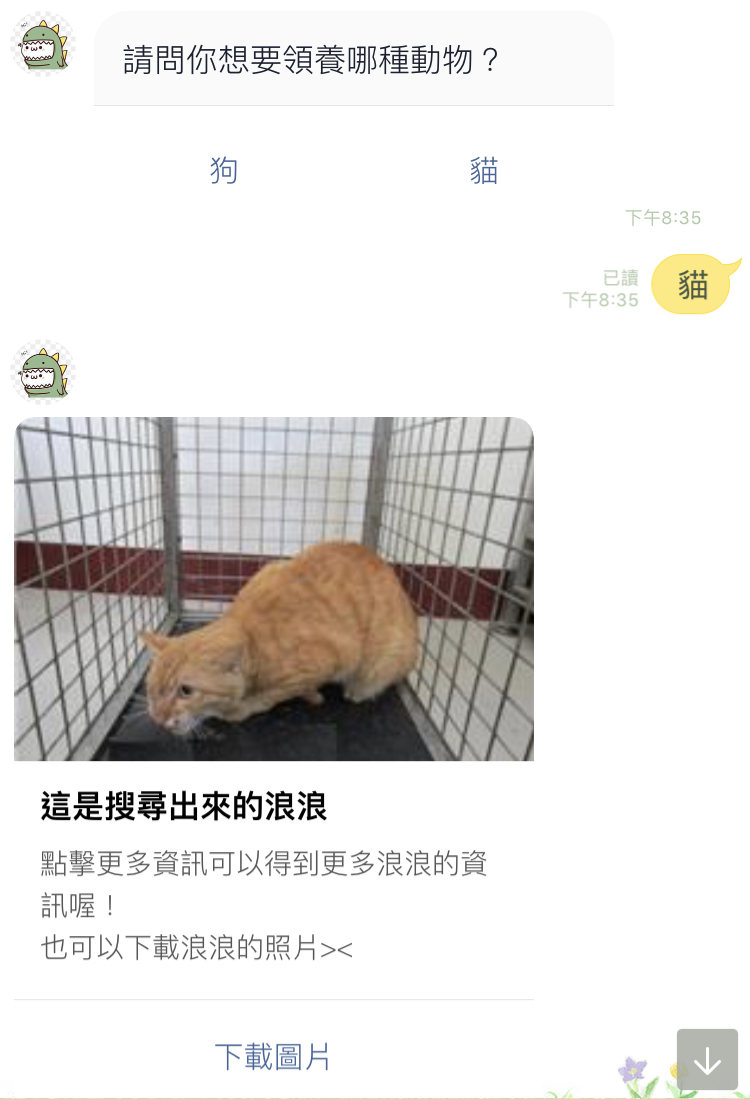

  • Input: "貓"

• dog

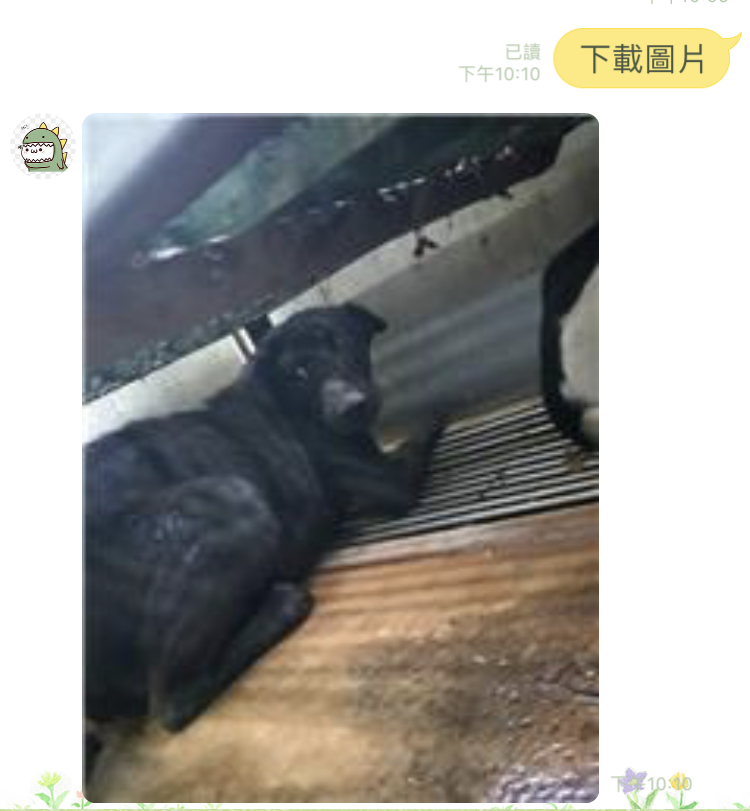

  • Input: "下載圖片"

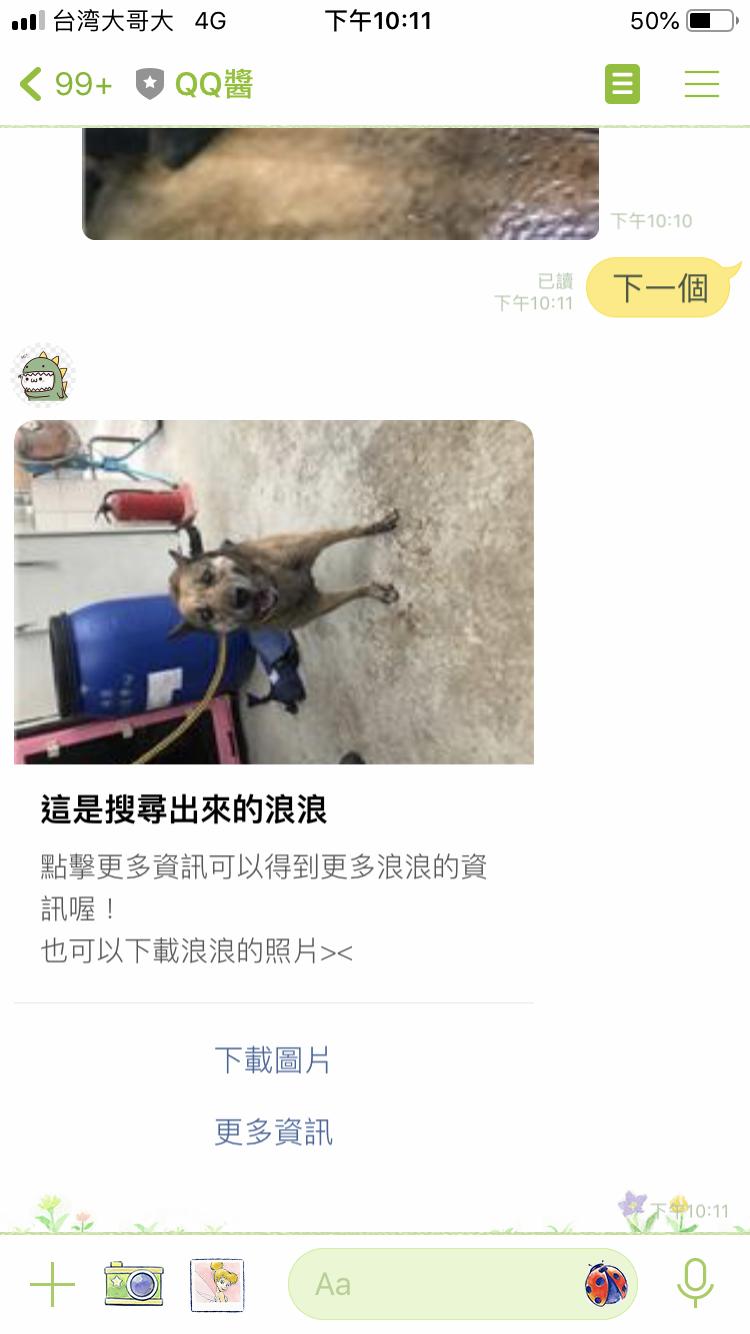

  • Input: "下一個"

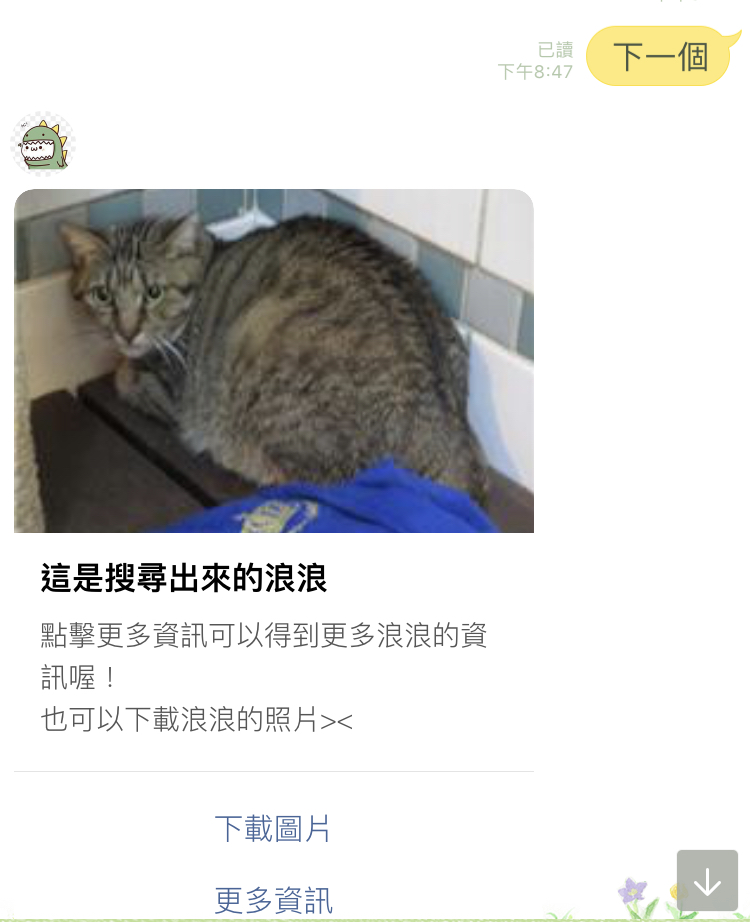

• cat

  • Input: "下載圖片"

  • Input: "下一個"

• pic

  • Input: "下一個"
