UPSTREAM PR #27013: Add php_64_bit_only codegen option to the PHP generator

[loci-dev]

Note

Source pull request: protocolbuffers/protobuf#27013

Generated PHP code currently type-hints 64-bit integer fields as int|string to cover 32-bit PHP builds, where values that overflow a native int are returned as strings. On 64-bit PHP — the mainstream deployment — the runtime always returns native int, so the union is dead weight that noisies up static analysis, IDE autocompletion, and docs for everyone who has committed to 64-bit.

This change adds an opt-in CLI option, analogous to aggregate_metadata:

protoc --php_out=php_64_bit_only=true:. foo.proto

When the flag is on, INT64/UINT64/SINT64/FIXED64/SFIXED64 fields emit int instead of int|string across setter signatures, PHPDoc @param / @return / @type, and RepeatedField<...> generics (which naturally collapse from RepeatedField<int>|RepeatedField<string> to RepeatedField<int>). Wrapper types (Int64Value, UInt64Value) honor the flag via Options threaded into the wrapper doc-comment helpers. Default behavior (flag absent or =false) is unchanged.

Scope:

• Codegen only. Runtime libraries (GPBUtil.php, convert.c) already return native int on 64-bit PHP regardless of this flag.
• No change to checked-in generated WKT .php files; they remain on default behavior unless regenerated with the flag.
• No new .proto file-level option.
• Descriptor-mode generation (is_descriptor=true) is intentionally unchanged.

Unit tests cover flag on/off/absent/invalid paths, scalar and repeated 64-bit fields, and verify the int|string union is fully absent when the flag is enabled.

[loci-review]

Overview

Analysis of 10,156 functions in build.protoc-stable shows 41 modified functions (0.4%) with negligible overall impact: power consumption decreased 0.037% (-219.75 nJ). Changes implement a php_64_bit_only codegen option for PHP generator, affecting only compile-time code generation—zero impact on runtime message parsing or serialization.

Function counts: 41 modified, 0 new, 0 removed, 10,115 unchanged

Function Analysis

Most Significant Changes:

• _upb_DefPool_LoadDefInitEx: Response time -99.5% (-564.5 μs), throughput -10.9% (-33.9 ns). Caching optimization bypasses expensive definition building when proto files are already loaded, achieving 215x speedup for protoc initialization.

• Formatter::operator(): Response time +99.9% (+89.4 ms), throughput +3.1% (+7.8 ns). Measures error path with logging infrastructure from new ABSL_LOG(FATAL) handler; normal code generation unaffected.

• PhpDocSetterTypeName: Response time -2.4% (-153.7 ns), throughput -32.5% (-145.3 ns). Implements php_64_bit_only option with optimized switch table and eliminated function overload.

• Printer::Print: Response time -0.06% (-50.5 μs), throughput -52.3% (-221 ns). Compiler optimization replaced inline hash operations with abstracted calls, reducing CFG complexity 28%.

• std::vector::_M_realloc_insert (two variants): Response time -46.5% and -7.5% from exception handling consolidation; compiler optimization without source changes.

Other analyzed functions show sub-microsecond changes from security hardening (stack canary validation) or compiler optimizations.

Flame Graph Comparison

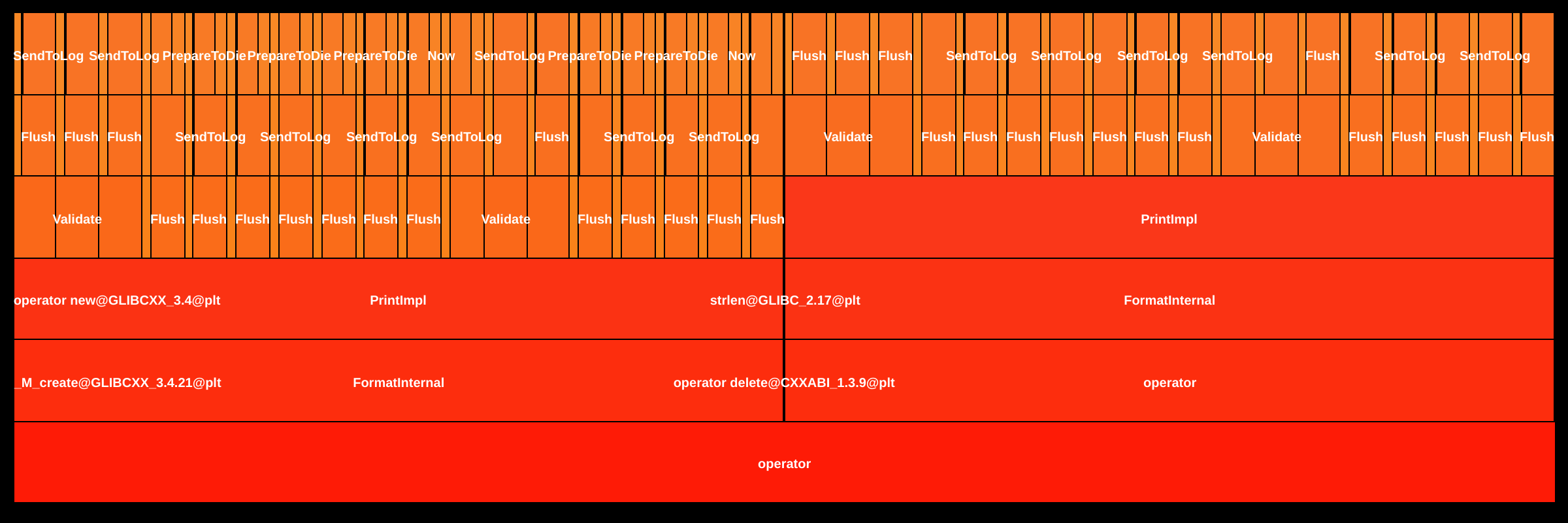

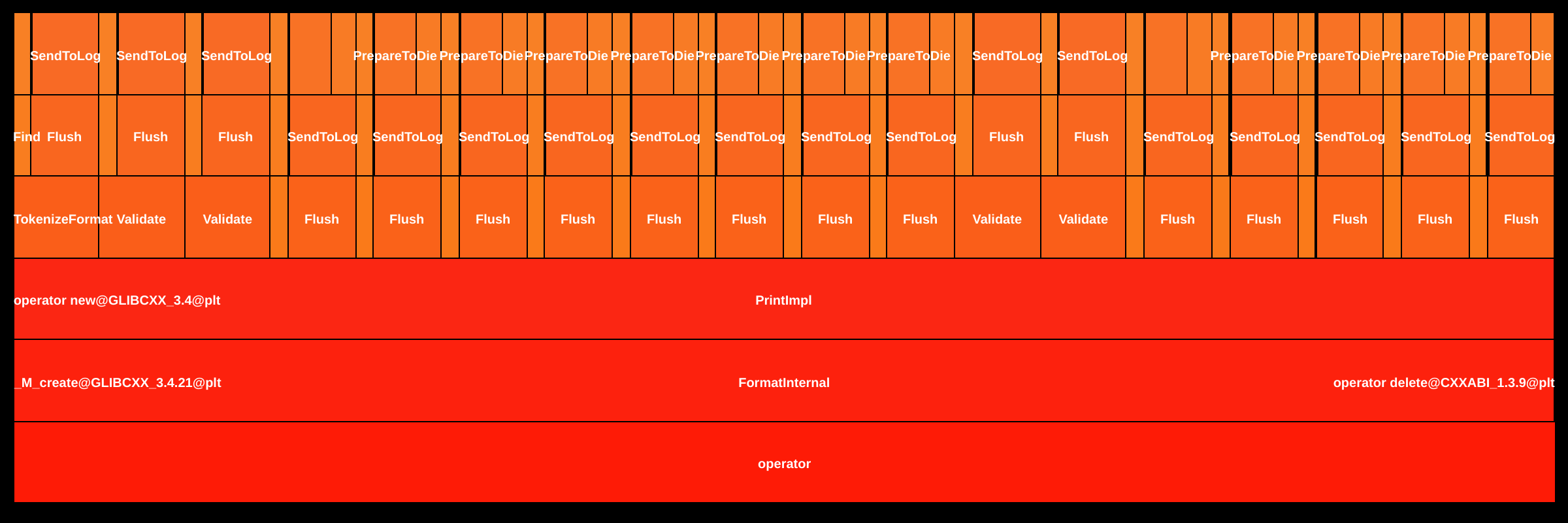

Function: Formatter::operator() — illustrates the 99.9% response time increase from new error handling path

Base version:

Target version:

Target introduces zero-argument template instantiation dominated by logging infrastructure (SendToLog 3.85ms, Flush 3.92ms, LogMessage 1.03ms), measuring error/diagnostic path rather than normal code generation.

💬 Questions? Tag @loci-dev

[loci-review]

Overview

Analysis of 10,162 functions across build.protoc-stable shows 11 modified functions (0.11%) with minor performance improvements. Power consumption decreased by 0.044% (589,046 nJ → 588,788 nJ). Changes introduce assume_64_bit_php option to the PHP code generator, enabling stricter type hints for 64-bit environments.

Function Analysis

PhpDocSetterTypeName (most impacted):

• Response time: 6,428 ns → 6,277 ns (-2.35%, -151 ns)
• Throughput time: 447 ns → 302 ns (-32.59%, -146 ns)
• Source changes: Added assume_64_bit_php flag for conditional type hint generation ("int" vs "int|string"), removed convenience overload requiring explicit Options passing

GenerateAll (entry point):

• Response time: 31,939 ms → 31,793 ms (-0.46%, -146 ms)
• Throughput time: 7,489 ns → 8,095 ns (+8.08%, +605 ns)
• Source changes: Added parsing for new option parameter; throughput regression is expected overhead from option parsing, negligible compared to 31.8-second total execution

GenerateFieldAccessor:

• Response time: 7,813 ms → 7,776 ms (-0.47%, -37 ms)
• Throughput time: 5,340 ns → 5,161 ns (-3.35%, -179 ns)
• Source changes: Modified type-name functions to conditionally emit type hints based on flag, removed convenience overloads

ConstantNamePrefix and GeneratedMetadataFileName: Minor improvements (-0.56% to -2.89% throughput) from compiler optimizations with no source code changes.

All modified functions are in the PHP code generator (compile-time), not runtime hot paths. Improvements affect protoc build times, not generated code performance. Changes demonstrate good engineering: adding functionality with minimal overhead while achieving performance gains through API cleanup.
