vfmap

vfmap is a Python package for delineating valley floors from digital elevation models (DEMs).

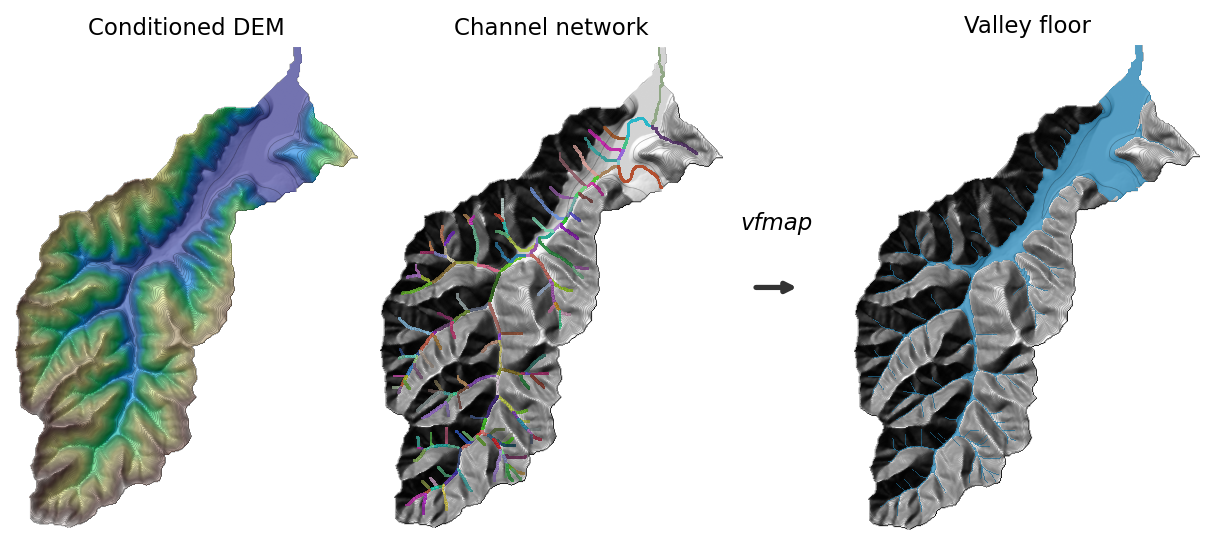

Valley floors are the topographic region between valley walls shaped mainly by fluvial processes, composed of floodplains, terraces, alluvial fans, and channels. From a hydrologically conditioned DEM and a reach-labeled channel network, vfmap produces a binary valley floor raster.

The method combines two components:

1. Region growing — low-slope pixels connected to the channel network. Captures wider, unconfined valley floors with multiple channels and floodplains.
2. Reach flooding — reach-specific relative elevation thresholds derived from cross-section analysis. Captures narrow, confined valley floors bounded by steep hillslopes.

Installation

pip install vfmap

Usage

With your own conditioned DEM and channel network (both xarray.DataArrays on the same grid). dem must be hydrologically conditioned - D8 flow directions are computed from it internally, channel_network (a reach-labeled raster) must align with the hydro conditioned dem.

from vfmap import map_valley_floor, Parameters

valley_floor = map_valley_floor(
    dem=dem,
    channel_network=channel_network,
    params=Parameters(),   # optional; defaults shown in the table below
)

Parameters

from vfmap import Parameters

params = Parameters(
    region_slope_threshold=2.0,   # degrees, tighter region growing
    flood_percentile=90.0,        # higher flood threshold per reach
    min_hole_size=20_000,         # m², smaller holes filled
)
valley_floor = map_valley_floor(dem, channel_network, params=params)

Parameters can be saved and reloaded as JSON with params.to_json(path) and Parameters.from_json(path).

Configuration parameters

All parameters live on the Parameters dataclass, grouped by pipeline stage.

Headwater filtering

Parameter	Default	Unit	Description
headwater_min_length	1,000	m	Tip reaches shorter than this are treated as headwaters and dropped from valley-floor mapping (their channel pixels are reattached at the end).
headwater_max_mean_slope	5.0	degrees	Tip reaches whose mean channel slope exceeds this are treated as headwaters and dropped.

Region growing

Parameter	Default	Unit	Description
region_smooth_sigma	90	m	Gaussian smoothing length applied to the slope surface before region growing; larger values bridge small rough patches.
region_slope_threshold	3.0	degrees	Maximum slope for a pixel to be grown into the valley floor from the channel network; lower values give tighter, more confined floors.

Cross-section sampling

Parameter	Default	Unit	Description
xs_interval_distance	100	m	Spacing between cross-sections sampled along each reach.
xs_length	1,500	m	Total length of each cross-section (extends this far to either side of the channel).
xs_point_spacing	10	m	Spacing between elevation sample points along each cross-section.

Reach flooding

Parameter	Default	Unit	Description
flood_steep_slope	10.0	degrees	Minimum DEM slope (direction-independent, not measured along the cross-section line) for a point to count as part of a valley wall when detecting slope breaks.
flood_slope_window	30.0	m	Distance over which the DEM slope raster is smoothed before slope breaks are detected, converted internally to a pixel window based on the DEM's resolution; damps single-cell noise that would otherwise interrupt an otherwise-steep run. Set to 0 to disable.
flood_min_elevation_gain	10.0	m	Minimum elevation gain across a steep segment to confirm it as a valley wall (slope-break point).
flood_default_hand	10	m	Fallback elevation-gain threshold used for a reach when too few valid slope-break points are found.
flood_percentile	85.0	percentile	Percentile of slope-break elevation-gain values used as the reach's flood threshold; higher values flood wider.
flood_min_points	10	count	Minimum number of valid slope-break points a reach needs before its threshold is computed from data instead of the default.

Postprocessing

Parameter	Default	Unit	Description
min_hole_size	40,000	m²	Holes in the valley floor smaller than this are filled; set to 0 to disable hole filling.
max_slope	15.0	degrees	Pixels steeper than this are removed from the final valley floor.
