BallPitNDF: Few-Shot Pouring with Local Neural Descriptor Fields

Report | Video

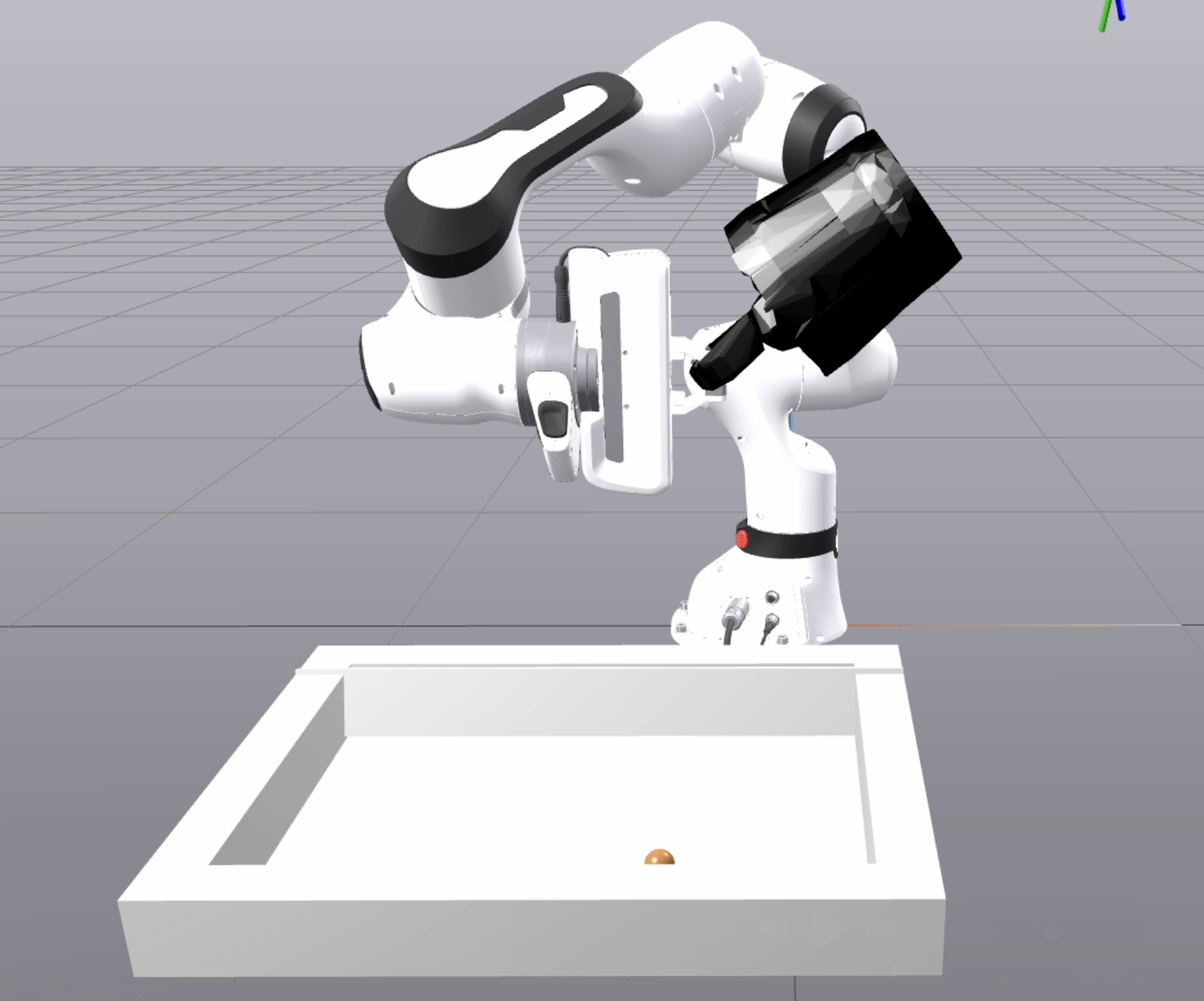

This is the final project of Brian Lee and Eric Chen for 6.4210 (Robotic Manipulation). In this project, we created a full-stack robotic system that uses Local Neural Descriptor Fields to grasp Baskets after only giving demos on Mugs and then do ball pouring.

Requirements and Development

Create a new conda environment using conda create -n ballpitndf python=3.11 pip. Then activate this environment with conda activate ballpitndf. Install the required packages using pip install -r requirements.txt. Then, install torch_scatter with pip install torch-scatter -f https://data.pyg.org/whl/torch-2.1.0+${CUDA_VERSION}.html where you can replace ${CUDA_VERSION} with your version of CUDA (supported: cpu and cu121). Python version must be 3.11 as either torch_scatter or drake doesn't support other versions.

Mac/Linux Users:

An additional pykdtree library must be installed on Unix-based devices as: pip install --no-binary pykdtree --force pykdtree.

Windows/CUDA Support:

Finally, install gcc with conda install -c conda-forge gcc=12.1.0 and get Xvbf with sudo apt-get install xvfb if you have a device with CUDA (along with any other additional nvidia cuda drivers neccesary).

Texture/Demo/Checkpoint Installation.

Please run source scripts/setup.sh.

Running the Simulation

To run the simulation run python -m main.

Running Experiments

To run the experiment run python -m run_experiments +num_runs=${NUM_RUNS} +duration=${DURATION} replacing ${NUM_RUNS} with the number of runs you will run (we use 100 in our paper) and ${DURATION} for the amount of time to be used (we typicall use 35 seconds).

Documentation

To get pretrained weights for evaluation, run sh scripts/get_lndf_sample.obj and sh scripts/get_weights.sh.

A brief documentation of the major files in our code:

• main.py: The entrypoint to our project. We use argparse to allow a configurable number of balls to be dropped into the mug.
• src/setup.py: The MakePandaManipulationStation function creates a configurable (using Hydra) manipulation station for the Franka Panda. This is then used in main.py to create a diagram for the pouring system.

Perception

• merge_point_clouds.py: Introuces the MergePointClouds system which combines the point clouds of a station into a single point cloud. The crop is done without cheat ports using a combination of the GroundingDINO algorithms and the Segment Anything algorithms for segmentation.

Grasping

• grasper.py: Contains the LNDFGrasper system that does an energy optimization to find suitable grasp poses to grasp objects (such as the basket). The main call is to pose_selector which is in the lndf_robot module.
• pose_selector.py: Contains the LocalNDF wrapper class that makes calls to models in the lndf_robot submodule to do the energy minimization from the given demonstrations.

Kinematics

• diff_ik.py: Contains a custom Differential IK class that sets joints limits for the panda arm (the hand is done manually rather than through an InverseDynamicsDriver).
• grasp_utils.py: Utility functions to create grasp trajectories from a set of keypoints.
• planner.py: Planner System that plans the whole pouring process splitting into 8 distinct states.

Debugging

All debug utilities are in debug/. The main files are:

• visualize_utils.py which introuduces visualize_camera_images and visualize_depth_images to see the camera results from a built station, visualize_point_cloud which plots a point cloud (given as an 3xN numpy array) in plotly, and visualize_diagram which plots the system diagram of a diagram (without need for iPython) along with the ability to save the SVG file onto your computer.

• visualize_utils.py which introuduces visualize_camera_images and visualize_depth_images to see the camera results from a built station, visualize_point_cloud which plots a point cloud (given as an 3xN numpy array) in plotly, and visualize_diagram which plots the system diagram of a diagram (without need for iPython) along with the ability to save the SVG file onto your computer.
