Zenclock

---

A simple, yet highly configurable analog clock widget that uses an HTML5 Canvas.

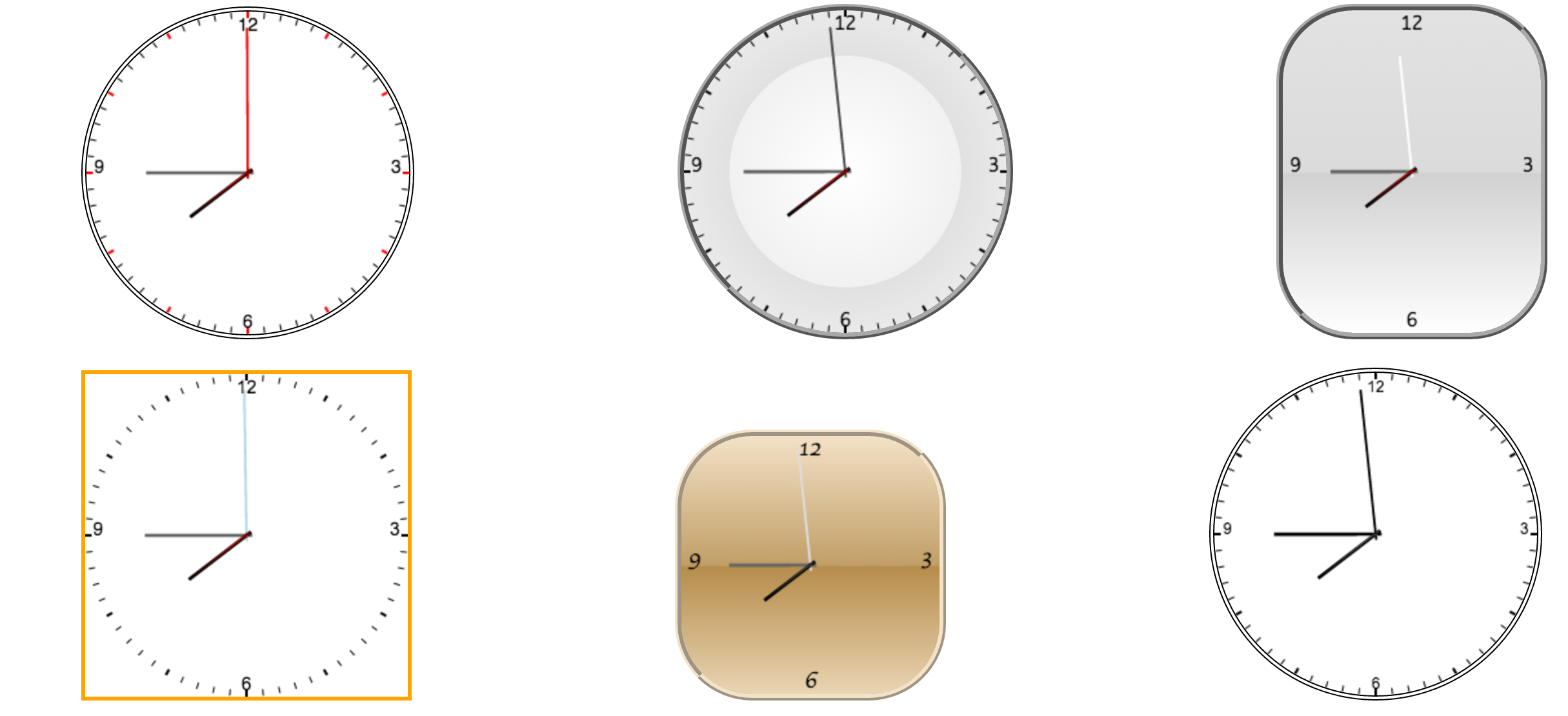

See the widget in action here.

Dependencies

• jQuery v2.1.3 (>= 1.9.0)

Usage

Add the following resources for zenclock to function correctly.

<!-- Required Javascript -->
<script src="jquery.js"></script>
<script src="zenclock.js"></script>

Create a canvas dom element with width and height attributes set:

<canvas id='clock' width='250' height='250'></div>

Initialize zenclock:

$('#clock').zenclock();

Options

Zenclock's look and behaviour can be configured using an options JSON object like so:

var clockOptions = {
  secondColor: '#fff',
  minuteColor: '#666',
  hourColor: '#000',
  dotColor: '#f00',

  showTicks: false,

  // argument is passed to CSS background property of the canvas, so it accepts pretty much everything
  background: 'linear-gradient(to bottom, rgba(226,226,226,1) 0%,rgba(219,219,219,1) 50%,rgba(209,209,209,1) 51%,rgba(254,254,254,1) 100%);',

  borderColor: 'darkgray',
  borderStyle: 'ridge',
  borderWidth: '5px',
  borderRadius: '60px',

  font: '14px Monaco'
}

$('#clock').zenclock(clockOptions);

List of options

Following options are available:

option	type	default value	description
secondColor	String	'#000'	Color for the second indicator
minuteColor	String	'#000'	Color for the minute indicator
hourColor	String	'#000'	Color for the hour indicator
dotColor	String	'#555'	Color for the dot in the center of the clock face
borderColor	String	'#000'	Color for the clock border
borderStyle	String	'double'	Border Style. Accepts all CSS border styles.
borderWidth	String	'4px'	Border width. Accepts all CSS units of measurement.
borderRadius	String	'500px'	Border radius of the canvas div. 500px gives you a nice and round clock.
showTicks	Boolean	true	Show ticks for each minute
highlightTickColor	String	'#000'	Color for highlighted ticks. Currently every 5th tick is highlighted.
highlightTickWidth	Integer	2	Width for highlighted ticks. Currently every 5th tick is highlighted.
tickColor	String	'#000'	Color for non-highlighted ticks.
tickWidth	Integer	1	Width for non-highlighted ticks.
background	String	'none'	CSS Background property of the clock's canvas element. Accepts everything from image urls to gradients to plain old background colors.
font	String	'12px Arial'	Font and font size the canvas uses to draw numbers on the watch face.
smoothSeconds	Boolean	false	Wether or not to take milliseconds into account when drawing the second indicator.
smoothMinutes	Boolean	true	Wether or not to take seconds into account when drawing the minute indicator.
smoothHours	Boolean	true	Wether or not to take minutes into account when drawing the hour indicator.

Methods

The clock widget can be interacted with using the following methods, like so:

$('#clock2').zenclock('stop');

List of methods

Following methods are available:

method	arguments	description
start	-	Starts the update interval that fetches the current time and renders the clock
stop	-	Stops the update interval
