CyClaw: Local AI you can Trust.

Offline-first, RAG-enforced, $ecure Local AI chatbot / agentic coding harness w/ Dropbox Sync for RAG data/corpus/.md/.txt

Table of Contents

• What It Does
• Architecture
• API Key Setup (Soul Mutations)
• Quick Start
• Full Setup Guide
• Project Structure
• Dropbox Corpus Sync
• NeMo Guardrails
• GitHub Agentic Coding Harness
• Security Model
• Remaining Work
• Archive & Roadmap

---

What It Does

CyClaw is a personal RAG (Retrieval-Augmented Generation) backend that:

1. Answers questions exclusively from your local Markdown corpus — no internet by default
2. Enforces every safety invariant via LangGraph topology — not prompts, not config flags, not discipline
3. Maintains a persistent soul/personality layer (soul.md) with SHA-256 drift detection, atomic evolution writes, and user-gated modification
4. Falls back to an external LLM only with explicit user confirmation in hybrid mode — Grok (xAI) or Claude (Anthropic), selected per-query, each independently triple-gated at config, env, and per-query level
5. Exposes both a FastAPI HTTP gateway and an MCP server for Claude Desktop / Copilot Studio integration
6. Ships optional, out-of-band operator layers for Dropbox corpus sync (sync/) and agentic GitHub context / governed local workflows (agentic/, .claude/) — never imported into the request path, now also drivable from the browser terminal via governed Sync and Agentic consoles
7. Extends the agentic layer to local data (v1.8) with an opt-in filesystem connector (agentic/fsconnect/ — scoped reads + gated writes over local/SMB shares, TOCTOU-safe) and a read-only SQL connector (agentic/sqlconnect/ — SELECT-only Postgres/MSSQL scaffold) — both disabled by default and out-of-band
8. Adds an optional NeMo Guardrails content-safety layer (v1.8, guardrails/) that soft-imports nemoguardrails and degrades to offline heuristic rails — defense-in-depth only, never a routing authority (graph topology stays the sole policy)
9. Scaffolds an optional LangChain Deep Agents / governed harness-optimizer layer (v1.9, agentic/deepagent_github/ + agentic/harness_optimizer/) — opt-in, disabled by default, and out-of-band like every other agentic feature above; phases 0-9 are implemented and tested — phases 0-5 (config, workspace tools, mock scoring/acceptance gate) plus phases 6-9 (real subagent wiring, fixture-based GitHub coding evaluator, governed propose/apply), which landed in PR #515 (2026-07-13). Superseded by item 11 below: P10 has since landed a real draft-PR write path and a sandboxed verification executor — both still shipped disarmed

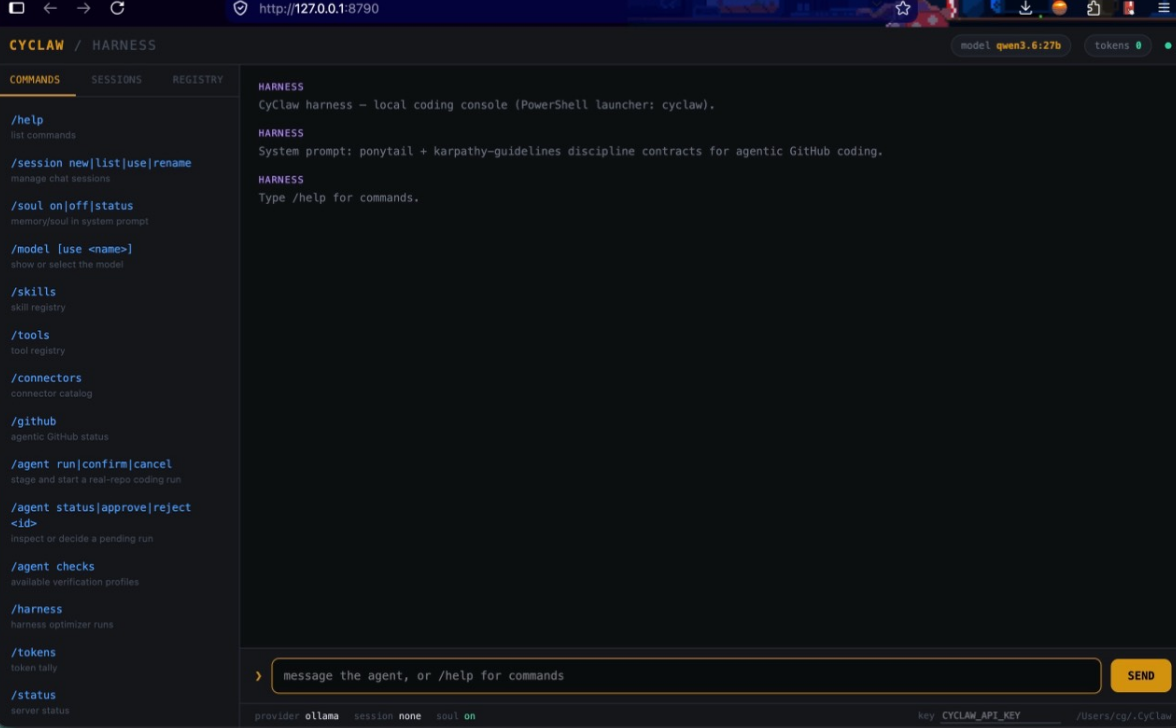

10. Ships a local PowerShell coding-harness console (v1.9, harness/ + powershell/, merged 2026-07-22) — a grok-build-style slash-command console on 127.0.0.1:8790 chatting with the local model over the OpenAI-compatible endpoint, with per-session token tallies, a seeded skills catalog under %USERPROFILE%\.CyClaw, and the same I6 isolation as every other out-of-band layer
11. Adds a real-repo GitHub agentic coding harness (v1.9, agentic/real_repo_loop.py + agentic/executor/) — clone → plan → patch → verify → human decides → commit, with pushing a claude/* branch and opening a draft PR as two further separate decisions; a diff-scope gate refuses candidates that rewrite the tests judging them, verification runs as sandboxed argv-list subprocesses, and every gate ships closed (the draft-PR step behind a hardcoded EXECUTION_ENABLED = False that no config file can flip)

---

Architecture

User Query (HTTP POST /query or MCP tool call)
         │
         ▼
    ┌─────────────────────────────────────────────────────┐
    │  gate.py  (FastAPI, 127.0.0.1:8787)                 │
    │  • Rate limit (60 req/min per IP — RUNS FIRST)      │
    │  • Injection filter (sanitizer.py, config-driven)   │
    │  • Soul init (PersonalityManager closure)           │
    │  • Telemetry kill block (before any SDK import;     │
    │    shared — MCP + indexer apply the same block)     │
    └──────────────────┬──────────────────────────────────┘
                       │
                       ▼
    ┌─────────────────────────────────────────────────────┐
    │  graph.py  (LangGraph 10-node State Machine)        │
    │                                                     │
    │  [ENTRY]                                            │
    │     ↓                                               │
    │  1. retrieve  (Chroma + BM25 + RRF fusion)          │
    │     ↓                                               │
    │  2. route_by_score  (top_score >= 0.028 RRF?)       │
    │     ├─ YES ──→ 3. guardrail_input (offline rail;    │
    │     │           opt-in, pass-through when disabled) │
    │     │           blocked ──→ 9. audit_logger          │
    │     │           passed  ──→ 4. local_llm             │
    │     │                        (Ollama :11434)        │
    │     └─ NO  ──→ 5. user_gate (needs_confirm=true)    │
    │                    ├─ not yet answered ──→          │
    │                    │      9. audit_logger           │
    │                    ├─ confirmed + hybrid ──→        │
    │                    │      6. grok_fallback OR       │
    │                    │         claude_fallback        │
    │                    └─ declined / offline ──→        │
    │                       3. guardrail_input (again)    │
    │                           blocked ──→ 9. audit_logger│
    │                           passed  ──→                │
    │                           7. offline_best_effort    │
    │     ↓ (all four answer nodes converge)              │
    │  8. guardrail_output (offline output rail; opt-in;  │
    │     grounding check applies to local_llm answer only)│
    │     ↓                                               │
    │  9. audit_logger (SHA-256 + PII redact → jsonl)     │
    │     ↓                                               │
    │  [END]                                              │
    └─────────────────────────────────────────────────────┘
                       │
                       ▼
    ┌─────────────────────────────────────────────────────┐
    │  HybridRetriever  (retrieval/hybrid_search.py)      │
    │  • ChromaDB  (semantic, all-MiniLM-L6-v2, 384d)    │
    │  • BM25Okapi (keyword, Porter stemming)             │
    │  • RRF fusion (k=60, equal 1.0/1.0 weighting)      │
    │  • Per-chunk provenance metadata in every result    │
    └─────────────────────────────────────────────────────┘

LangGraph Topology (rendered)

flowchart TD
    A(["🌐 Client\nHTTP POST /query\nor MCP tool call"])
    A --> B

    subgraph GATEWAY ["gate.py — FastAPI 127.0.0.1:8787"]
        B["TrustedHostMiddleware\nHost header allowlist"]
        B --> C["Rate Limiter\n60 req/min per IP"]
        C --> D["Prompt Injection Filter\n40 patterns · config-driven · lru_cache"]
        D --> E["Build GraphState\nquery + user_confirmed_online"]
    end

    E --> F

    subgraph GRAPH ["graph.py — LangGraph 10-node State Machine"]
        F(["① retrieve\nChroma + BM25 + RRF"])
        F --> G["② route_by_score\ntop_score ≥ 0.028?"]
        G -->|"YES — local context"| X["③ guardrail_input\noffline rail · opt-in\npass-through when disabled"]
        X -->|"blocked"| L
        X -->|"passed · high score"| H["④ local_llm\nOllama :11434\nqwen3.6:27b"]
        G -->|"NO — vault miss"| I["⑤ user_gate\nneeds_confirm = true"]
        I -->|"confirmed=true + hybrid\n+ grok.enabled + provider=grok"| J["⑥ grok_fallback\nxAI grok-4.5\ntriple-gated · not railed"]
        I -->|"confirmed=true + hybrid\n+ claude.enabled + provider=claude"| W["⑦ claude_fallback\nAnthropic claude-sonnet-5\ntriple-gated · not railed"]
        I -->|"confirmed=false\nor offline mode"| X
        X -->|"passed · vault miss"| K["⑧ offline_best_effort\nlocal LLM · no RAG gate"]
        I -->|"confirmed=None — PAUSE\nreturn needs_confirm to the client"| L
        H --> Y["⑨ guardrail_output\noffline rail · opt-in\ngrounding check: local_llm only"]
        J --> Y
        W --> Y
        K --> Y
        Y --> L
        L(["⑩ audit_logger\nSHA-256 hash · PII redact\n→ logs/audit.jsonl"])
    end

    L --> M(["📤 QueryResponse\nanswer · sources · model_used\nretrieval_mode · needs_confirm"])

    subgraph RETRIEVAL ["retrieval/hybrid_search.py"]
        N["ChromaDB\nsemantic · 384-dim cosine"]
        O["BM25Okapi\nkeyword · Porter stemming"]
        P["RRF fusion\nk=60 · equal weighting"]
        N --> P
        O --> P
    end

    F <-->|"hybrid search"| P

    subgraph SOUL ["utils/personality.py"]
        Q["soul.md\nSHA-256 drift detection"]
        R["SQLite / Postgres\nversion history · TTL prune"]
        Q <--> R
    end

    H <-->|"soul preamble\n≤ 8000 chars"| Q
    K <-->|"soul preamble"| Q

    subgraph OOB ["Out-of-band — never imported by gate/graph/MCP"]
        S["agentic/cli.py\nGitHub read ops"]
        T["agentic/fsconnect/\nscoped FS read/write"]
        U["sync/cli.py\nDropbox corpus pull"]
        V["guardrails/\nNeMo rails skeleton"]
    end

    style GATEWAY fill:#1a3a5c,color:#ffffff,stroke:#4a90d9
    style GRAPH fill:#1a3a2a,color:#ffffff,stroke:#4a9d5a
    style RETRIEVAL fill:#3a2a1a,color:#ffffff,stroke:#d9904a
    style SOUL fill:#3a1a3a,color:#ffffff,stroke:#d94ad9
    style OOB fill:#2a2a2a,color:#aaaaaa,stroke:#666666,stroke-dasharray:5 5
    style J fill:#5c1a1a,color:#ffffff
    style W fill:#5c1a1a,color:#ffffff
    style L fill:#1a1a3a,color:#ffffff

Loading

---

API Key Setup (Soul Mutations)

CyClaw's soul mutation endpoints (/soul/propose, /soul/apply, /soul/reload, /soul/restore) require a Bearer API key. Without it they return HTTP 401 immediately — intentional fail-closed behavior.

All /soul/* endpoints — including GET /soul — require a valid Authorization: Bearer <key> token. Only /health, /query, and the console pages (GET /, /static/*) are unauthenticated.

macOS — zsh (the default shell) or bash

Set for the current Terminal tab. Generate a real value instead of typing one — openssl ships with macOS:

export CYCLAW_API_KEY="$(openssl rand -hex 20)"
echo "$CYCLAW_API_KEY"        # copy it; you paste this into the console UI
uvicorn gate:app --host 127.0.0.1 --port 8787

Persist it. macOS has defaulted to zsh since Catalina, so that means ~/.zshrc unless you switched — check with echo $SHELL first:

echo 'export CYCLAW_API_KEY="your-strong-local-secret"' >> ~/.zshrc
source ~/.zshrc
echo "$CYCLAW_API_KEY"        # confirm it survived
uvicorn gate:app --host 127.0.0.1 --port 8787

On bash, append it to the first existing login file in this order: ~/.bash_profile, ~/.bash_login, ~/.profile. Create ~/.bash_profile only when none exists; macOS bash login shells do not read ~/.bashrc.

Full macOS walkthrough — including launching the harness console beside the gateway and exercising every REST endpoint with curl — is in setup-guide.md.

Linux — bash / zsh

Set for the current session:

export CYCLAW_API_KEY="your-strong-local-secret"
uvicorn gate:app --host 127.0.0.1 --port 8787

Persist in your shell profile (~/.bashrc, ~/.zshrc, or ~/.profile):

echo 'export CYCLAW_API_KEY="your-strong-local-secret"' >> ~/.bashrc
source ~/.bashrc
uvicorn gate:app --host 127.0.0.1 --port 8787

Windows — PowerShell

(Windows is the fallback path; CyClaw is developed and verified on macOS first. Everything below still works and is CI-covered on windows-latest.)

Set for the current session only (cleared on terminal close):

$env:CYCLAW_API_KEY = "your-strong-local-secret"
uvicorn gate:app --host 127.0.0.1 --port 8787

Persist across sessions (writes to the current user's environment permanently):

[System.Environment]::SetEnvironmentVariable(
    "CYCLAW_API_KEY",
    "your-strong-local-secret",
    [System.EnvironmentVariableTarget]::User
)
# Restart your terminal, then launch normally:
uvicorn gate:app --host 127.0.0.1 --port 8787

Verify it is set before launching:

echo $env:CYCLAW_API_KEY

Windows — Command Prompt (cmd.exe)

set CYCLAW_API_KEY=your-strong-local-secret
uvicorn gate:app --host 127.0.0.1 --port 8787

Persist permanently (takes effect in new sessions):

setx CYCLAW_API_KEY "your-strong-local-secret"

Windows Server 2022 — System-wide (all users, requires admin)

[System.Environment]::SetEnvironmentVariable(
    "CYCLAW_API_KEY",
    "your-strong-local-secret",
    [System.EnvironmentVariableTarget]::Machine
)

Or via GUI: System Properties → Advanced → Environment Variables → System variables → New.

All platforms — .env file (already in .gitignore)

Create .env in the repo root:

# Keys live here, never in config.yaml — config.yaml only names which
# provider is enabled; the key itself is read from the environment.
CYCLAW_API_KEY=your-strong-local-secret
GROK_API_KEY=your-xai-key-or-dummy-when-offline
ANTHROPIC_API_KEY=your-anthropic-key

The Claude variable is ANTHROPIC_API_KEY, not CLAUDE_API_KEY — llm/client.py and agentic/config.py both read the former, and nothing in the codebase reads the latter. Setting the wrong name is silent: Claude simply reports unavailable and the query falls back to a local answer.

Load it before launching:

# Bash / Zsh
export $(grep -v '^#' .env | xargs)
uvicorn gate:app --host 127.0.0.1 --port 8787

# PowerShell
Get-Content .env | ForEach-Object {
    if ($_ -match '^([^#=][^=]*)=(.*)$') {
        [System.Environment]::SetEnvironmentVariable($Matches[1].Trim(), $Matches[2].Trim())
    }
}
uvicorn gate:app --host 127.0.0.1 --port 8787

Choosing an API key value

CyClaw is loopback-only (127.0.0.1:8787) — the key never crosses a network. Still:

• Use at least 20 random characters: openssl rand -hex 20 (Linux/macOS) or [System.Web.Security.Membership]::GeneratePassword(24,4) (PowerShell)
• Do not reuse a password from elsewhere
• Do not commit the key to Git (.env is already in .gitignore)
• Don't forget to set the api key via terminal on Mac or env var in Windows or the web app will not recognize it.

Quick Start

Prerequisites

Requirement	Version	Notes
Python	3.12	Primary supported runtime
Ollama	Any	Must be running on localhost:11434
Model pulled in Ollama	—	qwen3.6:27b (default), mistral:7b, or any chat model
macOS (primary)	14 Sonoma+	Apple Silicon only. An Intel Mac cannot install this repo's pinned torch at all — no x86_64 wheel is published at that pin
Windows / Linux (fallback)	—	Both fully supported and CI-covered; they share the +cpu torch path below

Install — macOS (Apple Silicon)

macOS is the primary supported platform, and it needs a different torch step than Windows/Linux: the +cpu local-version wheel does not exist for macOS, and both manifests hardcode that pin, so the generic block fails twice on a Mac.

git clone https://github.com/CGFixIT/CyClaw
cd CyClaw
python3.12 -m venv .venv
source .venv/bin/activate

# 1) torch FIRST, and PLAIN — no +cpu suffix, no --index-url override.
#    Apple Silicon has one arm64 wheel; there is no CPU/CUDA build to pick between.
pip install "torch==2.13.0"

# 2) Everything else, from copies of both manifests with the torch and
#    PyTorch-index lines stripped out. Same thing CI's macos-latest leg runs.
grep -v -e '^torch==' -e '^--extra-index-url https://download.pytorch.org' \
    requirements.txt > /tmp/requirements-macos.txt
grep -v '^torch==' constraints.txt > /tmp/constraints-macos.txt
pip install -r /tmp/requirements-macos.txt -c /tmp/constraints-macos.txt \
    --ignore-installed PyYAML

Prefer a script? bash ./macos/install-cyclaw.sh branches on uname -s and handles the torch difference for you — but it targets the harness console, not the RAG gateway, and skips Ollama, the index, and the API keys. The tradeoffs are tabulated in setup-guide.md.

Install — Windows / Linux (fallback)

git clone https://github.com/CGFixIT/CyClaw
cd CyClaw
python3.12 -m venv .venv
source .venv/bin/activate        # Windows: .venv\Scripts\activate

# 1) Install CPU-only torch first (CVE-2025-32434 fixed in 2.6.0; 2.13.0 is within the patched range)
pip install torch==2.13.0+cpu --index-url https://download.pytorch.org/whl/cpu

# 2) Install the rest, pinned to the verified transitive tree.
pip install -r requirements.txt -c constraints.txt

Every optional feature in one environment (any platform)

For a from-scratch dev box or a full manual smoke test — Postgres/pgvector, NeMo Guardrails, dev/test tools, and both cloud providers — substitute step 2 with:

pip install -e ".[all]" -c constraints.txt

Required local prep

mkdir -p index logs   # optional — gate.py/the retriever/logger self-create these on first run
export GROK_API_KEY=dummy

data/personality/soul.md ships committed to git with CyClaw's real personality already in place — do not recreate it from a placeholder on a fresh clone. If it's ever deleted, PersonalityManager self-heals with a generic default, but that's a recovery path, not the normal first-run state.

Run

CyClaw ships two independent local web apps. Neither starts the other; run whichever you need, or both in separate terminal tabs.

# The RAG gateway — serves static/terminal.html at / plus the whole REST API
python -m retrieval.indexer                          # once, before the first /query
uvicorn gate:app --host 127.0.0.1 --port 8787        # → http://127.0.0.1:8787

# The coding-harness console — serves static/harness.html
python -m harness.server                             # → http://127.0.0.1:8790

The cyclaw-* short names need a self-install. cyclaw-server, cyclaw-harness, cyclaw-index, cyclaw-mcp, cyclaw-metrics, and cyclaw-clear-cache are [project.scripts] console scripts, and pip writes those shims only when the CyClaw project itself is installed. The install steps above install requirements.txt — a third-party pin list with no self-install line — so those names are command not found after them. Add pip install -e . -c constraints.txt if you want them; otherwise use the python -m … forms, which always work and are what both shipped launchers use.

Override the harness port with CYCLAW_HARNESS_PORT=8795 python -m harness.server, not a CLI flag; it refuses to bind a non-loopback address.

uvicorn harness.server:app also works, via a lazy module-level app (harness/server.py builds it on first attribute access rather than at import, so merely importing the module never touches ~/.CyClaw). Prefer the -m form anyway: the uvicorn form bypasses the bind-address guard, so --host 0.0.0.0 opens a public socket that python -m harness.server would have refused. TrustedHostMiddleware still rejects any non-loopback Host header either way, so the containment holds — but one layer fewer.

Open / for the terminal UI and /health for readiness. The terminal exposes five operator consoles — Soul, Sync, Agentic, Filesystem, and SQL — the latter four calling POST /ops/sync, /ops/agentic, /ops/fsconnect, and /ops/sqlconnect (API-key gated, rate-limited, audited).

Every gateway route with a copy-pasteable curl invocation, plus what each status code means, is in setup-guide.md.

---

Project Structure

CyClaw/
├── gate.py
├── graph.py
├── config.yaml                 # single source of truth
├── README.md
├── Dropbox_Sync_Guide.md
├── mcp_hybrid_server.py        # retrieval-only MCP server
├── agentic/                    # out-of-band GitHub context + governed registry
│   ├── cli.py
│   ├── context.py
│   ├── gh_client.py
│   ├── registry.py
│   ├── writer.py               # gh pr create --draft, implemented but shipped disarmed
│   ├── fsconnect/              # (v1.8) local/SMB filesystem connector
│   │   ├── cli.py
│   │   ├── client.py           # scoped reads (fs_list/stat/read/grep)
│   │   ├── pathsafe.py         # TOCTOU-safe openat/O_NOFOLLOW security core
│   │   ├── writer.py           # gated, atomic writes (default-disabled)
│   │   └── indexer.py          # toggleable RAG-corpus indexing of the share
│   ├── sqlconnect/             # (v1.8) read-only SQL scaffold (Postgres/MSSQL)
│   │   ├── cli.py
│   │   └── client.py           # SELECT-only query guard, env-only DSN
│   ├── harness_optimizer/      # (v1.9) governed better-harness-style optimizer scaffold
│   │   ├── core.py             # Experiment/Surface/RunReport/CandidateDecision models
│   │   ├── proposer.py         # scoped train/holdout workspace builder
│   │   ├── mcp/tools.py        # audited, symlink-hardened proposer workspace tools
│   │   └── governance.py       # visible-case-hardcoding + governance-finding gates
│   └── deepagent_github/       # (v1.9) optional LangChain Deep Agents GitHub harness
│       ├── builder.py          # lazy create_deep_agent() seam, never imported unless enabled
│       ├── permissions.py      # phase-5 no-write policy refusal
│       └── subagents.py        # validated SubAgent specs, no bare-string tools
├── guardrails/                 # (v1.8) optional NeMo Guardrails layer (out-of-band)
│   ├── cli.py
│   ├── config.py
│   ├── integration.py          # soft-imports nemoguardrails; degrades gracefully
│   ├── rails.py                # offline heuristic rails (injection/soul/grounding)
│   ├── metrics.py              # separate logs/guardrails.jsonl stream (hashes only)
│   └── config/                 # NeMo config.yml + rails.co (Colang flows)
├── harness/                    # (v1.9) PowerShell coding-harness console (out-of-band)
│   ├── server.py               # FastAPI control plane, 127.0.0.1:8790 (cyclaw-harness)
│   ├── sessions.py             # JSON session store with per-session token tallies
│   ├── ollama.py               # loopback-only OpenAI-compatible /v1 chat client
│   ├── config.py               # %USERPROFILE%\.CyClaw home layout + config.json
│   ├── prompts.py              # system prompt from ponytail + karpathy skills (+ soul, read-only)
│   ├── registry_view.py        # merged skills/tools/connectors view (AST-parses MCP tools)
│   └── schemas.py              # request models
├── telegram/                   # (v1.9) optional Telegram channel (out-of-band), shipped enabled: false
│   ├── cli.py
│   ├── client.py               # Bot API client — outbound notify + long-poll inbound chat
│   ├── config.py               # loads config.yaml's `telegram:` block
│   ├── runner.py                # long-poll loop; answers via loopback POST /query only
│   ├── state.py                 # T3 hybrid-confirm consent state (default off)
│   ├── media.py                 # T4 attachment staging via agentic/fsconnect (default off)
│   └── ratelimit.py
├── powershell/                 # Windows installer/launcher for the harness
│   ├── Install-CyClaw.ps1      # home + venv + PATH shim + profile function
│   ├── Invoke-CyClaw.ps1
│   └── Uninstall-CyClaw.ps1
├── .claude/                    # local operator workflows and prompts
│   ├── commands/
│   ├── hooks/
│   ├── memory/
│   ├── patterns/
│   ├── rules/
│   ├── skills/
│   ├── tools/
│   └── utility-prompts/
├── retrieval/
│   ├── indexer.py
│   ├── hybrid_search.py
│   ├── embeddings.py
│   └── stemmer.py
├── llm/
│   └── client.py
├── sync/                       # optional Dropbox corpus sync
│   ├── cli.py
│   ├── runner.py
│   └── scheduler.py
├── utils/
│   ├── sanitizer.py
│   ├── logger.py
│   ├── personality.py
│   ├── health.py
│   ├── ratelimit.py
│   └── telemetry_kill.py       # shared kill block — applied by gate.py, mcp_hybrid_server.py, retrieval/vector_store.py
├── tests/
├── docs/
├── static/
├── data/
│   ├── corpus/
│   └── personality/
└── .github/workflows/

---

Dropbox Corpus Sync

CyClaw includes an optional, out-of-band Dropbox sync layer that mirrors a Dropbox corpus into data/corpus/ without touching gate.py, graph.py, or the MCP request path.

Key capabilities

• rclone-backed pull sync with safety fuses (max_delete, max_transfer)
• crash-safe single-instance locking — an OS-backed lock (fcntl.flock / msvcrt.locking) prevents a scheduled run and a manual run from racing, and releases automatically even if the process dies
• audit logging for changed corpus files
• optional scheduler integration for Linux and Windows
• optional reindex trigger when corpus changes

Core commands

python -m sync.cli test
python -m sync.cli sync --dry-run
python -m sync.cli sync
python -m sync.cli status
python -m sync.cli schedule
python -m sync.cli unschedule

The same actions are available from the Sync Console panel in the terminal UI via POST /ops/sync (loopback-only, API-key gated, audited).

See Dropbox_Sync_Guide.md for full setup and scheduling details, and docs/SYNC_README.md for module internals (lock lifecycle, exit codes, error taxonomy).

---

Agentic Layer (v1.6.0)

CyClaw now includes a concise, governed agentic layer for local operator workflows. It is opt-in, disabled by default, and fully out-of-band: it is never imported by gate.py, graph.py, or mcp_hybrid_server.py.

What it adds

• Read-only GitHub context through the gh CLI
• Governed local skills registry with explicit human gating
• Project workflows and operator helpers under .claude/
• Reusable local patterns for memory, commands, tools, hooks, and utility prompts

Security posture

• reads only in normal operation
• no GitHub token is stored or forwarded by CyClaw
• gh is invoked as an argv list, not via shell execution
• the GitHub write path (gh pr create --draft) is IMPLEMENTED but shipped DISARMED: EXECUTION_ENABLED is a hardcoded False in agentic/writer.py that no config file can flip, plus four config/per-call gates. Arming it is a filed-checklist operator procedure (docs/agentic/GITHUB_WRITE_ENABLEMENT.md)
• all agentic reads, refusals, and registry changes are audit logged

Enable it

agentic:
  enabled: true
  repo: "CGFixIT/CyClaw"
  mode: "read"
  writes_enabled: false
  gh_min_version: "2.40.0"
  registry_path: "data/agentic/skills_registry.json"

Main agentic commands

python -m agentic.cli status
python -m agentic.cli context --repo
python -m agentic.cli context --pr 123
python -m agentic.cli context --issue 45
python -m agentic.cli test
python -m agentic.cli propose-skill --name deploy --desc "..." --body-file s.md --reason "draft"
python -m agentic.cli apply-skill --name deploy --desc "..." --body-file s.md --reason "add deploy runbook" --confirm

The Agentic Console panel drives these from the terminal UI via POST /ops/agentic; skill-Apply stays disabled behind a 4-gate checklist (mode=write + writes_enabled + reason + --confirm) — dry-run only under shipped defaults.

Key areas in agentic folders

• skills/ — reusable project skills / workflows
• commands/ — shortcut command entry points
• patterns/ — repeatable operating patterns
• tools/ — tool wrappers and helper definitions
• utility-prompts/ — reusable operator prompts
• memory/ — memory-oriented helpers / artifacts
• hooks/ and rules/ — local guardrails and automation boundaries

Examples from the current repo

• run / smoke-test workflows for CyClaw
• architecture, tests, logging, and speed refactor loops
• wrap-up / session-end workflows
• memory orchestration support patterns

---

Filesystem & SQL Connectors (v1.8)

v1.8 extends the agentic layer beyond GitHub to local data, for the regulated or security conscious use case where AI use is compliance heavy. Both connectors are opt-in, disabled by default, and fully out-of-band — never imported by gate.py, graph.py, or mcp_hybrid_server.py, so the six security invariants hold by construction. While disabled, their CLIs are a pure no-op (exit 0).

agentic/fsconnect/ — local / SMB filesystem connector

Scoped reads and separately-gated writes over a local or SMB file share, sharing one TOCTOU-safe security core.

• pathsafe.py security core — POSIX openat / O_NOFOLLOW handle-descent from a held root directory fd (so the root cannot be swapped under the process). Denies UNC, NTFS alternate data streams (file::$DATA), \\?\ / \\.\ device paths, .. traversal, and any symlink / reparse point. Segment-aware containment closes CVE-2025-53110 (sibling-prefix) and realpath + O_NOFOLLOW close CVE-2025-53109 (symlink/junction escape).
• Reads (fs_list / fs_stat / fs_read / fs_grep) confined to allowed_roots, audited, with a 5 MiB read cap and advisory OWASP∪banned_patterns content scanning.
• Writes (fs_write / fs_append / fs_mkdir / fs_move) — fully built but writes_enabled: false by default; confined to a separate writable_roots list; gated by a human reason + --confirm (for destructive ops); atomic (tmp + os.replace); content-agnostic (never calls the LLM — an operator pipes local-LLM/QWEN output in). A code-level FS_WRITE_HARD_DISABLE kill switch forces dry-run regardless of config.
• Toggleable RAG-corpus indexing of the share (index_enabled, dry-run default) stages eligible files into the corpus and triggers a reindex subprocess — enabling a generate → write → index loop without importing the retrieval layer.

python -m agentic.fsconnect.cli status
python -m agentic.fsconnect.cli read  <path>            # scoped read
python -m agentic.fsconnect.cli grep  <path> <pattern>
python -m agentic.fsconnect.cli write <path> --reason "..."   # dry-run unless writes_enabled
python -m agentic.fsconnect.cli index --apply           # stage share → corpus
python -m agentic.fsconnect.cli test                    # pre-flight self-test

Enable in config.yaml:

fsconnect:
  enabled: true
  allowed_roots: ["/srv/share"]   # REQUIRED when enabled; existing dirs
  max_file_bytes: 5242880         # 5 MiB read cap
  writes_enabled: false           # master write switch (dry-run plans while false)
  writable_roots: [null]          # null => OS default (/var/lib/cyclaw-fs | C:\CyClaw-FS)
  max_write_bytes: 10485760       # 10 MiB write cap
  index_enabled: false            # toggle RAG-corpus indexing of the share

agentic/sqlconnect/ — read-only SQL connector (v0.1 scaffold)

A disabled-by-default scaffold for read-only on-prem SQL (Postgres / MSSQL). Read-only is enforced three ways: a SELECT/WITH-only query guard (rejects DDL/DML, stacked statements, and comment-hidden keywords by scanning a quote-stripped copy), a session-level read-only transaction, and a hard allow_write: false. The DSN is read from an environment variable only (CYCLAW_SQL_DSN), never hardcoded; drivers (psycopg / pyodbc) are imported lazily. The quote-stripping scan (layer 1) is a single left-to-right pass that gives '...', "...", [...], and Postgres $tag$...$tag$ quoting the same precedence the database itself gives them — an earlier regex-alternation version could be fooled by a quote character nested inside a different quoting form (e.g. $$'$$) into treating a stacked DROP as part of one SELECT; layers 2 and 3 were never affected.

python -m agentic.sqlconnect.cli status
python -m agentic.sqlconnect.cli schema                 # list table schemas (read-only)
python -m agentic.sqlconnect.cli query --table public.users   # bounded preview
python -m agentic.sqlconnect.cli test

sqlconnect:
  enabled: false
  driver: "postgres"             # "postgres" | "mssql"
  dsn_env: "CYCLAW_SQL_DSN"      # DSN from this env var only
  statement_timeout_ms: 5000
  max_rows: 1000
  allow_write: false             # reserved; v0.1 cannot write regardless

---

NeMo Guardrails (v1.8)

An opt-in content-safety layer in guardrails/. Absence of the guardrails: block, or enabled: false (the shipped default), is a pure no-op. Since Phase 2, when enabled, utils/guardrail_bridge.py wires its offline input rail into one visible graph.py node (guardrail_input, between route_by_score and local_llm) — still defense-in-depth only, never a routing authority: the graph's own guardrail_router edge (topology, not guardrails code) decides where a blocked query goes. guardrails itself is still never imported directly by gate.py or graph.py — utils/guardrail_bridge.py is the only seam, preserving module isolation (invariant I6). mcp_hybrid_server.py never touches it at all.

• nemoguardrails is an optional dependency. The layer soft-imports it and, when it is absent, degrades to offline heuristic rails that need no second LLM call:
  • input — light prompt-injection marker scan + soul/identity-mutation intent detection (the content-layer arm of the Soul-Governance invariant);
  • output — token-overlap grounding check against the retrieved context, flagging likely-ungrounded (hallucinated) answers below hallucination_threshold.
• When nemoguardrails is installed, the same Python checks back the live NeMo actions (via the Colang flows in guardrails/config/rails.co), so the offline heuristics and live rails never drift.
• Decisions are recorded to a separate metrics stream (logs/guardrails.jsonl) that stores only SHA-256 hashes — never raw text — mirroring the audit log's privacy posture.

python -m guardrails.cli status                         # config + nemoguardrails availability
python -m guardrails.cli check "your query here"        # run offline rails (no LLM/NeMo needed)
python -m guardrails.cli metrics                         # summarize the guardrail stream
python -m guardrails.cli test                            # pre-flight self-test

guardrails:
  enabled: false                 # opt-in; also gates the graph.py guardrail_input node
  engine: "openai"               # Ollama OpenAI-compatible endpoint
  model: "qwen3.6:27b"            # keep in sync with models.local_llm.model
  hallucination_threshold: 0.18  # token-overlap floor for the grounding rail
  metrics_path: "logs/guardrails.jsonl"   # separate from logs/audit.jsonl (hashes only)

Full design / wiring plan: docs/NeMo/later_development_guideline.md. Phase 2 implementation contract: docs/NeMo/phase2_implementation_plan.md.

---

Agentic Harness Scaffold (v1.9)

A governed, opt-in, disabled-by-default, and out-of-band scaffold for two related future capabilities — never imported by gate.py, graph.py, or mcp_hybrid_server.py, same isolation guarantee as every other agentic feature above:

• agentic/harness_optimizer/ — a better-harness-style optimizer that would evaluate candidate improvements to allowed harness surfaces against visible train cases and hidden holdout cases, deterministic scoring, and a hard acceptance gate (no score regression, no unallowed surface changed, no visible-case hardcoding, no critical governance finding).
• agentic/deepagent_github/ — an optional LangChain Deep Agents-backed local GitHub coding harness using Ollama and scoped CyClaw tool wrappers, lazily importing deepagents only when explicitly enabled.

Status: phases 0-9 are implemented. Phases 0-5 (config validation, the proposer workspace + its audited, symlink-hardened tool boundary, mock scoring/acceptance gate, the lazy deepagent_github builder seam) are covered by tests/test_agentic_harness_optimizer.py and tests/test_agentic_harness_phase345.py. Phases 6-9 (real Deep Agents subagent wiring, a fixture-based GitHub coding evaluator, and governed propose/apply with human-confirmed acceptance) landed in PR #515 (merged 2026-07-13), are covered by tests/test_agentic_harness_phase679.py, and are documented in docs/work/DEEP_AGENT_HARNESS_PHASES_6_9.md — phase 9 is a security gate, not authorization to add an executor. Full plan and phase ledger: docs/work/GITHUB_DEEP_AGENT_HARNESS_OPTIMIZER_PLAN.md.

Superseded 2026-08-01. Phase 9's security gate was subsequently satisfied and P10 landed, so "not authorization to add an executor" no longer describes the current tree: a sandboxed verification executor (agentic/executor/) and a draft-PR write path (agentic/writer.py::execute_write) both exist, and the live real-repo coding pipeline is agentic/real_repo_loop.py — not the deepagents-backed graph this section describes. Both new capabilities still ship disarmed. See GitHub Agentic Coding Harness below for what is actually wired today.

Every gate below the master agentic.enabled switch defaults to false; while disabled, nothing under either package is reachable from agentic.cli, and no deepagents/langchain optional dependency is imported.

agentic:
  deepagent_github:
    enabled: false
    allow_deepagents_dependency: false    # extras must be installed explicitly
    allow_filesystem_write_tools: false
    allow_shell_execution: false
    allow_github_writes: false            # writer.py remains the write-policy boundary
  harness_optimizer:
    enabled: false
    require_human_confirm_for_accept: true
    allow_local_model_judge: false

---

Coding Harness Console (v1.9)

A grok-build-style local coding console, shipped as the strictly out-of-band harness/ package (Windows merged 2026-07-22; macOS/Linux port merged 2026-08-01). Like agentic/, sync/, and guardrails/, it is never imported by gate.py, graph.py, or mcp_hybrid_server.py and never imports them (invariant I6).

harness/ itself is pure Python with no OS branch in its request-handling path — same routes, same slash commands, same security posture everywhere. Only the install/launch glue is platform-coupled, which is why there are two sibling script trees (powershell/, macos/) rather than one abstraction.

• Launch: python -m harness.server serves a slash-command console at http://127.0.0.1:8790 (static/harness.html); loopback-only bind, non-loopback hosts refused. gate.py keeps :8787. (cyclaw-harness is the same entry point, but only exists after pip install -e . — see Quick Start.)
• Install (Windows): powershell -ExecutionPolicy Bypass -File .\powershell\Install-CyClaw.ps1 sets up %USERPROFILE%\.CyClaw (config, sessions, seeded skills catalog), a venv, a cyclaw.cmd PATH shim, and a cyclaw profile function.
• Install (macOS / Linux): bash ./macos/install-cyclaw.sh sets up the same ~/.CyClaw layout, a venv, a cyclaw shim, and a PATH entry plus a cyclaw() function in your rc file (~/.zshrc on zsh; macOS bash preserves the first existing login file among .bash_profile, .bash_login, and .profile, creating .bash_profile only when none exists; Linux retains its .bash_profile/.bashrc selection). Targets bash (including macOS's stock 3.2) and zsh; BSD userland assumed, no Homebrew dependency, no GNU-only flags. It branches on uname -s to install the correct plain torch build on macOS — the one step a hand-install most often gets wrong. Uninstall: bash ./macos/uninstall-cyclaw.sh (add --remove-home to delete ~/.CyClaw too).
• Chat: talks to the local model through the OpenAI-compatible /v1 endpoint from config.yaml's models.local_llm.base_url (Ollama by default) — no keys, no login, offline. Every reply shows prompt/completion token counts; sessions persist as human-inspectable JSON with atomic writes.
• Reuse, not duplication: GitHub actions go through the same utils.ops_runner subprocess shim as /ops/agentic (read mode by default); the skills/tools/connectors panes are read-only registry views — including the governed data/agentic/skills_registry.json catalog alongside the repo's own filesystem skills — composed by harness/registry_view.py; the system prompt is composed from the repo's own ponytail + karpathy-guidelines skills, with the governed soul appended read-only when enabled.

Full setup, slash-command reference, home layout, and security posture: docs/HARNESS_POWERSHELL.md (Windows) and docs/HARNESS_MACOS.md (macOS/Linux). The macOS doc covers only what genuinely differs — install glue, the torch build, git credential helpers (git-credential-osxkeychain rather than Windows Credential Manager), and the note that pathsafe.ScopedRoots' POSIX openat/O_NOFOLLOW containment is the stronger branch, so macOS is not on a weaker path than Windows here.

---

GitHub Agentic Coding Harness (v1.9)

The real-repo coding pipeline: clone → plan → patch → verify → human decides → commit, with pushing and opening a draft PR as two further, separate decisions. Driven by agentic/real_repo_loop.py, which fuses three previously-independent pieces — the planner's model call, a jailed real clone (agentic/deepagent_github/repo_workspace.py), and the sandboxed verification executor (agentic/executor/). Out-of-band like every other agentic feature: never imported by gate.py, graph.py, or mcp_hybrid_server.py (invariant I6).

It ships fully disarmed. Every gate below defaults to closed, and the draft-PR step is gated by a constant in code that no config file can flip.

How a run works

0. real-repo-run-plan (optional, two-stage) asks a model for an implementation plan and prints it. It clones nothing, writes nothing, and commits nothing. You read the plan, edit it, and feed it back with --plan-file — so one model plans, a human approves, and another model codes against the approved text. The plan is injection-scanned on load, truncated at 6,000 chars, and its SHA-256 is recorded on the run so the record says which plan was in force.
1. real-repo-run clones the configured repo into a jailed workspace, asks the planner for whole-file replacements, writes them, and runs the selected verification checks. It stops before committing and reports status: pending_decision. A run that never passes reports exhausted.
2. real-repo-run-decide --decision approve is what actually commits (locally). reject discards. Neither pushes.
3. real-repo-run-push puts the claude/* branch on origin.
4. real-repo-run-publish opens a draft PR (gh pr create --draft).
5. real-repo-run-discard reclaims the clone — the only step that frees disk. An approved run keeps its clone on purpose, since push and publish still need it.

Each escalation is its own command and its own decision, deliberately not folded into approve.

Security posture

• Diff-scope gate. A candidate that writes into tests/, conftest.py, .github/, .git/, pyproject.toml, setup.cfg, pytest.ini, or .claude/skills/ is refused outright — those are the files that judge the candidate's own acceptance, and rewriting them is the classic reward-hacking failure mode of a make-the-checks-pass loop. Also budget-capped (max_write_budget_bytes, 100000 bytes per iteration).
• Two scanners, two questions, on the same bytes. Proposed file content is run through an injection scan (is this trying to talk to a model?) and a code-shape scan (is this code trying to exfiltrate a key? — inspect_code_shape, agentic.deepagent_github.scan_code_shape, ships true). The second exists because a working SSH-key exfiltration payload contains no injection phrase at all: it matches on combinations — a secret path plus a network egress call, a decode plus a dynamic exec, a socket plus an fd-dup or a shell path, a pipe-to-shell. Every hit is CRITICAL and refuses the candidate.
• Verification runs as argv-list subprocesses, never a shell, with cwd pinned to the clone, a scrubbed environment allowlist (PATH, HOME, LANG, LC_ALL, PYTHONPATH, VIRTUAL_ENV, PYTHONIOENCODING) plus forced NO_PROXY=* / PIP_NO_INDEX=1, and a 120s per-check timeout. Containment is best-effort software, not a hard boundary — the env scrub cannot stop a determined test file from opening a raw socket. See agentic/executor/runner.py's own statement of its limits.
• The console sends check-profile names, never argv. harness/agent_policy.py resolves them against a fixed allow-list (pytest, ruff); a request body that could carry an argv would make an authenticated route a remote shell.
• push_branch passes no credential. Its four-name env allowlist deliberately excludes GH_TOKEN/GITHUB_TOKEN, because that environment is shared with the executor that runs model-proposed check commands. It authenticates only via a HOME-resident credential helper (gh auth setup-git).
• Branch names are forced into the claude/ namespace; run_id is validated as 32-char lowercase hex before it can become an argv element.

Enable it

All five ship false; the run path needs the first three, and nothing here arms the draft-PR step:

agentic:
  enabled: false                        # master switch
  deepagent_github:
    enabled: false
    allow_git_write_tools: false        # gates every write/commit/push in the clone
    model: ""                           # must be set for the local planner
    workspace_root: "data/agentic/workspaces"
    max_write_budget_bytes: 100000
    max_handoff_chars: 200000           # outbound-prompt cap for cloud egress
    allow_cloud_providers: false        # gate 3 of the cloud chain
    providers:
      grok:   { enabled: false, model: "grok-4.5" }
      claude: { enabled: false, model: "claude-sonnet-5" }

Opening a PR additionally requires agentic.mode: "write", writes_enabled: true, and flipping EXECUTION_ENABLED in agentic/writer.py — a hardcoded False that is deliberately not config-reachable. Arming it is a filed-checklist procedure with a sign-off line, not a toggle: docs/agentic/GITHUB_WRITE_ENABLEMENT.md.

Commands

# Optional stage 0: plan, review by hand, then hand the approved text to the coder.
python -m agentic.cli real-repo-run-plan \
  --pr 123 --instruction "fix the off-by-one in the parser" --out plan.md

python -m agentic.cli real-repo-run \
  --pr 123 --instruction "fix the off-by-one in the parser" \
  --read-file src/parser.py --checks-file checks.json \
  --plan-file plan.md \
  --branch claude/parser-fix --commit-message "fix: off-by-one" \
  --reason "triage issue 123" --confirm

python -m agentic.cli real-repo-run-status  --run-id <32-hex>
python -m agentic.cli real-repo-run-decide  --run-id <32-hex> --decision approve
python -m agentic.cli real-repo-run-push    --run-id <32-hex>
python -m agentic.cli real-repo-run-publish --run-id <32-hex> --reason "..." --confirm
python -m agentic.cli real-repo-run-discard --run-id <32-hex>

Exit codes are an API: 0 ok · 2 failed · 3 env/config · 4 write refused. real-repo-run exits 0 whether or not a candidate was accepted — the record's status field carries that.

From the harness console

Seven routes on 127.0.0.1:8790. GET /api/agent/checks is open (it lists a hardcoded allow-list and spawns nothing); the other six require a Bearer CYCLAW_API_KEY plus an Origin/Sec-Fetch-Site cross-site check: POST /api/agent/run, GET /api/agent/runs/{id}, and POST /api/agent/runs/{id}/{decision,push,publish,discard}. POST /api/agent/run is deliberately synchronous — the run record is written only when the run ends, and the run_id first exists in that response. Its wall-clock budget is derived from what the request asked for, not a flat constant: iterations × planner_timeout + iterations × checks × 120s + 300s overhead, capped at 3600s. A flat budget was a real bug — subprocess.run(timeout=) sends an uncatchable SIGKILL, so a request whose own planner budget exceeded it left a leaked clone and a permanently running record that no later status call could resolve. Console equivalents are /agent run|confirm|status|approve|reject|push|publish|discard.

Optional cloud planner (Grok / Claude)

The loop is local-only by default, and the local path (no --provider flag) needs nothing beyond the base install — LocalProposerClient is a plain httpx call, and nothing on that code path (real_repo_loop.py, repo_workspace.py, executor/runner.py) imports deepagents or langchain. If you just want to try the harness against your own Ollama model, pip install -e . is enough; skip the rest of this section.

--provider grok|claude --confirm-online drives the loop with a cloud model instead, behind a six-condition chain: agentic.enabled → deepagent_github.enabled → allow_cloud_providers → providers.<name>.enabled → the provider's API key env var (GROK_API_KEY / ANTHROPIC_API_KEY, key presence only, never a network probe) → per-run --confirm-online. Every outbound prompt is injection-scanned, redacted, hashed, and audited as egress before it leaves the process.

Cloud SDKs are opt-in extras, deliberately absent from the default install, requirements.txt, and the Docker image — installing them is a separate, explicit step, matched to which provider(s) you actually want:

# Claude only
pip install -e ".[agentic-deepagents]"                        -c constraints.txt

# Grok only — lighter: just langchain-xai, no deepagents/langchain pulled in
pip install -e ".[agentic-deepagents-cloud]"                   -c constraints.txt

# Both providers, one command
pip install -e ".[agentic-deepagents,agentic-deepagents-cloud]" -c constraints.txt

(Want Postgres/pgvector and NeMo Guardrails too, not just the cloud providers? pip install -e ".[all]" in Quick Start installs every optional extra in one command.)

Neither cloud extra is part of full (what CI and full-installed dev boxes get) — that split is deliberate, so a machine that never touches cloud providers never carries their SDKs. The published Docker image installs requirements.txt only (base deps, no extras at all), so running this feature — local or cloud — in a container means installing on top: add pip install -e . for local mode, or one of the three commands above for cloud, after the image's own install step.

---

Security Model

Layer	Mechanism
Network	Binds 127.0.0.1:8787 — no external exposure by design
Input	Config-driven injection filter (policy.prompt_filter)
Rate limit	60 req/min per IP
Telemetry	Shared kill block (utils/telemetry_kill.py) runs before any SDK import in every entry point — gateway, MCP server, and indexer CLI; HF Hub network calls are also cut off once the embedding model is confirmed cached (retrieval/embeddings.py)
Audit	All paths log SHA-256 query hash + PII-redacted metadata
Grok gating	Triple gate: mode=hybrid AND grok.enabled=true AND user_confirmed_online=true
Claude gating	Same triple gate, independently: mode=hybrid AND claude.enabled=true AND user_confirmed_online=true
Soul writes	Explicit human reason string + enforced write-boundary scan + atomic write
Agentic writes	pr_create implemented, shipped disarmed behind six gates (one of them a source constant); pr_comment/issue_comment remain plan-only
Filesystem connector	Reads scoped to allowed_roots (5 MiB cap); writes default-OFF, confined to a separate writable_roots, gated by human reason + --confirm, atomic; TOCTOU-safe pathsafe core denies UNC/ADS/device-path/../symlink escapes
SQL connector	Read-only: SELECT/WITH-only query guard + session read-only + hard allow_write: false; DSN from env var only; disabled scaffold by default
Guardrails	Out-of-band, opt-in defense-in-depth; degrades to offline heuristic rails without nemoguardrails; never a routing authority; separate hash-only metrics stream
/ops/* routes	Loopback-only, require_api_key gated, rate-limited (60/min), every call audited (ops_sync_executed / ops_agentic_executed / ops_fsconnect_executed / ops_sqlconnect_executed); shells out via subprocess.run([...]) — never imports sync/ or agentic/
Container	Non-root, no-new-privileges, cap_drop: ALL, read-only rootfs, seccomp, resource limits; optional eBPF/Falco detection (deploy/falco/, off by default)

Scope: CyClaw is a single-operator, loopback-bound local server. The full threat model — what the sandbox does and does not cover (no microVM by design) and why — is documented in docs/THREAT_MODEL.md.

---

Envisioned and initially created then vibe coded further (via AI) by Chris Grady · cgfixit.com/linkedin
