ViTAL is a tool which provides model-checking of EAST-ADL systems with regard to timing/behavioral requirements.
We implement an automatic model transformation so that UPPAAL PORT can handle EAST-ADL models as input and provide functional and timing behavior of functional blocks using timed automata semantics. UPPAAL PORT is an extension of UPPAAL tool which supports simulation and model-checking without conversion or flattening to the model of network of timed automata that is usually used in UPPAAL.
UPPAAL PORT uses a Partial Order Reduction Technique (PORT) in order to improve the efficiency of the model-checking analysis.
Download: https://www.dropbox.com/s/28caje6h1gevqp6/vitalFinal.zip?dl=0
The latest version 0.32 is available for download, see also the release notes.

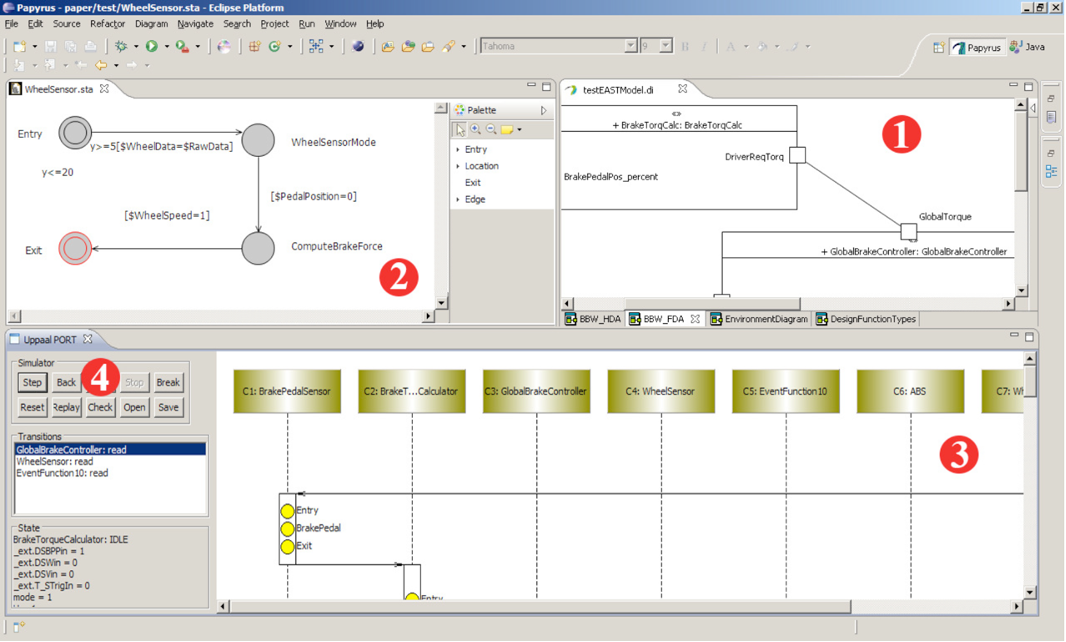

(1) Integrated EAST-ADL Platform Editor (2) Timed Automata Editor (3) UPPAAL PORT Simulator (4) UPPAAL PORT Verifier
References:
Enoiu, E. P., Marinescu, R., Seceleanu, C., & Pettersson, P. (2012, July). Vital: A verification tool for east-adl models using uppaal port. In 2012 IEEE 17th International Conference on Engineering of Complex Computer Systems (pp. 328-337). IEEE. http://www.es.mdh.se.ep.bib.mdh.se/pdf_publications/2370.pdf
Kang, Eun-Young, Eduard Paul Enoiu, Raluca Marinescu, Cristina Seceleanu, Pierre-Yves Schobbens, and Paul Pettersson. "A methodology for formal analysis and verification of EAST-ADL models." Reliability Engineering & System Safety 120 (2013): 127-138. http://www.es.mdh.se.ep.bib.mdh.se/pdf_publications/3881.pdf
