@charlesvestal

@charlesvestal charlesvestal commented Aug 29, 2026

Copy link
Copy Markdown

Adds short_name to this module's parameters, so the Schwung knob grid can
label each cell with the word that identifies it rather than a squeezed
abbreviation of the full name.

Part of a fleet-wide pass over every catalogued module. Each name was chosen
by hand against the page it appears on: where a page is already called
"Filter Envelope", its cells say ATTACK and DECAY rather than F.ATK and FENVDEC.

What changes

  • fizzik — 43 parameters labelled

Nothing else is touched: no version bump, no behaviour change, no new params.

fizzik — rendered

fizzik

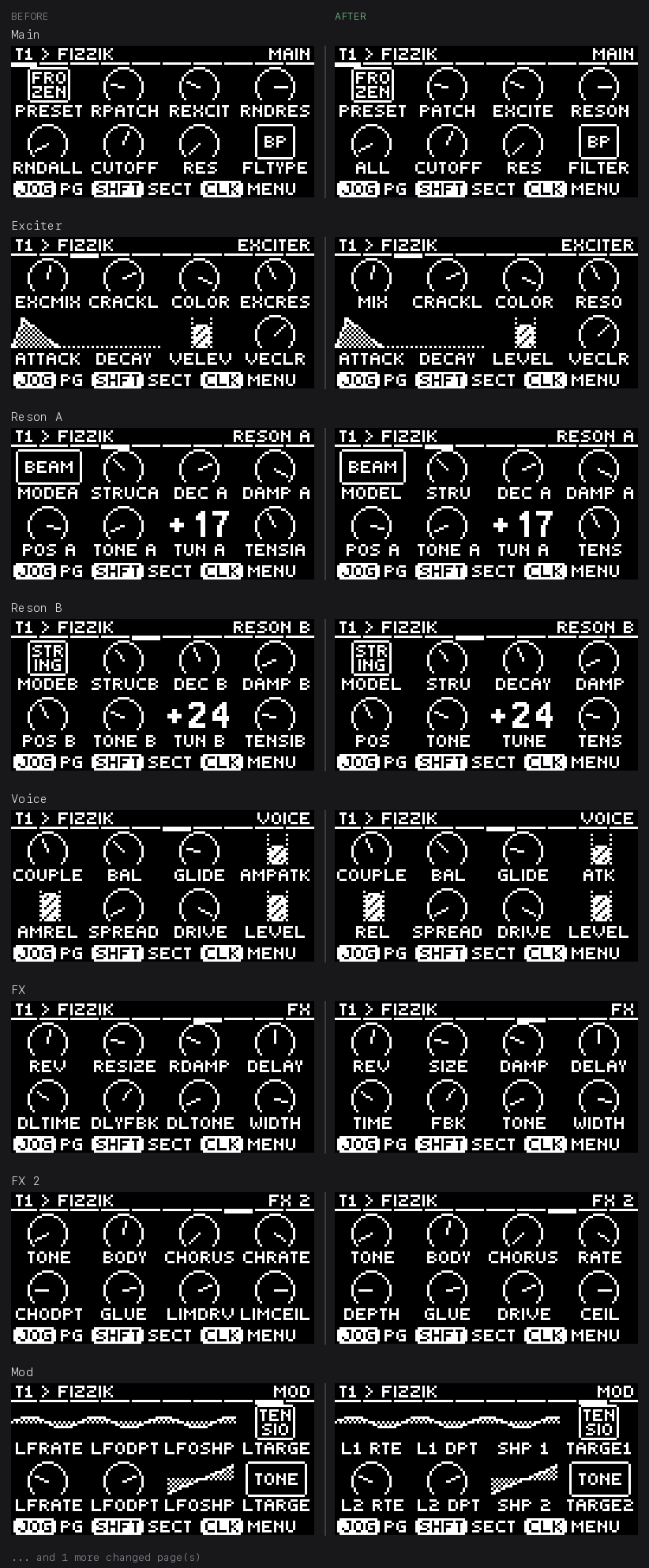

Left is what the grid draws today, right is with this change — 8 of 9 changed pages.

Before / after

page key grid drew now draws
Main rnd_patch RPATCH PATCH
Main rnd_exc REXCIT EXCITE
Main rnd_reson RNDRES RESON
Main rnd_all RNDALL ALL
Main ftype FLTYPE FILTER
Exciter exc_mix EXCMIX MIX
Exciter exc_reso EXCRES RESO
Exciter vel_level VELEV LEVEL
Reson A a_model MODEA MODEL
Reson A a_struct STRUCA STRU

The page matters where a name repeats: the same role under two sections
gets the same short name, and the section it sits under is what tells
them apart.

The full name is not lost

A short name is what the cell says at rest. The moment a knob is
touched, the header shows that parameter's full name and its value
so nothing becomes unidentifiable, it just stops being shouted at you
eight times on one page.

touched

rnd_patch on Main: the cell reads PATCH at rest, and the header reads RND PATCH under the finger.

Safe to merge now

short_name is a new field — it lands in the next Schwung release. On the
currently released host (v0.12.1) it is simply ignored.

This was checked rather than assumed: for every file here, the v0.12.1
page planner was run against the module contract before and after the change
and asserted to produce byte-identical pages — same page count, same cells,
same order. Merging today changes nothing; the labels appear when users update.

If a label is wrong

These are suggestions from someone reading the grid, not from the person who
wrote the synth. Change any of them in this branch, or close it — no hard
feelings either way. Layout problems are a separate matter and will come as
their own issues.

Labels each knob cell with the word that identifies the control rather than
a squeezed abbreviation of its full name. Additive only -- the released
host (v0.12.1) ignores the field, and its page planner was verified to
produce identical pages before and after.
