Short knob-grid labels for 18 parameter(s)

[charlesvestal]

Adds short_name to this module's parameters, so the Schwung knob grid can
label each cell with the word that identifies it rather than a squeezed
abbreviation of the full name.

Part of a fleet-wide pass over every catalogued module. Each name was chosen
by hand against the page it appears on: where a page is already called
"Filter Envelope", its cells say ATTACK and DECAY rather than F.ATK and FENVDEC.

What changes

• forge — 18 parameters labelled

Nothing else is touched: no version bump, no behaviour change, no new params.

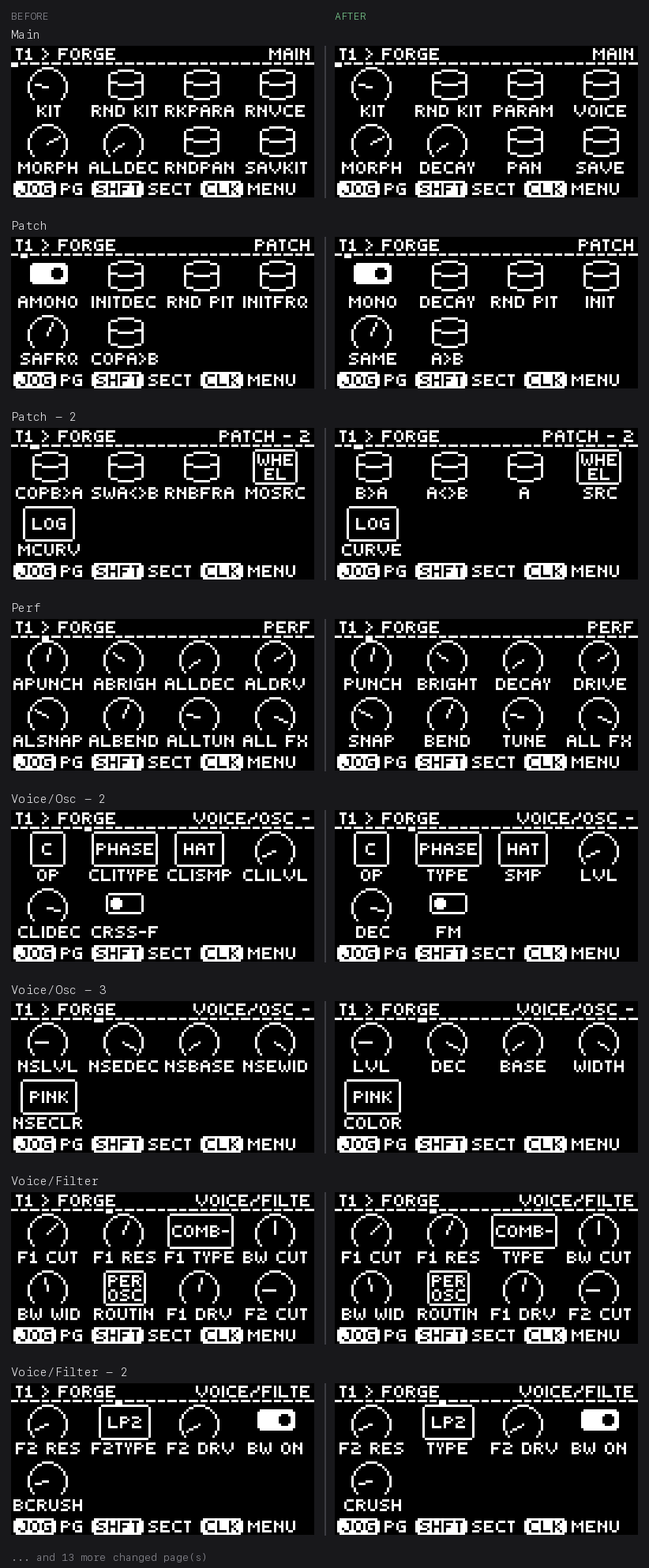

forge — rendered

Left is what the grid draws today, right is with this change — 8 of 21 changed pages.

Before / after

page	key	grid drew	now draws
Main	rnd_kit_params	RKPARA	PARAM
Main	rnd_voice	RNVCE	VOICE
Main, Perf	all_decay	ALLDEC	DECAY
Main	rnd_pan	RNDPAN	PAN
Main	save_kit	SAVKIT	SAVE
Perf	all_punch	APUNCH	PUNCH
Perf	all_bright	ABRIGH	BRIGHT
Perf	all_drive	ALDRV	DRIVE
Perf	all_snap	ALSNAP	SNAP
Perf	all_bend	ALBEND	BEND

The page matters where a name repeats: the same role under two sections
gets the same short name, and the section it sits under is what tells
them apart.

The full name is not lost

A short name is what the cell says at rest. The moment a knob is
touched, the header shows that parameter's full name and its value —
so nothing becomes unidentifiable, it just stops being shouted at you
eight times on one page.

rnd_kit_params on Main: the cell reads PARAM at rest, and the header reads RND KIT PARAMS under the finger.

Safe to merge now

short_name is a new field — it lands in the next Schwung release. On the
currently released host (v0.12.1) it is simply ignored.

This was checked rather than assumed: for every file here, the v0.12.1
page planner was run against the module contract before and after the change
and asserted to produce byte-identical pages — same page count, same cells,
same order. Merging today changes nothing; the labels appear when users update.

Not included — these live in your DSP

78 more parameters take their metadata from the plugin's chain_params at runtime, so they
cannot be labelled from module.json. Adding short_name beside each one
in your chain_params JSON is all that is needed. Suggested values:

all_mono  ->  Mono                            # Patch
init_decay  ->  Decay                         # Patch
init_freq  ->  Init                           # Patch
same_freq  ->  Same                           # Patch
copy_a_b  ->  A→B                             # Patch
copy_b_a  ->  B→A                             # Patch - 2
swap_ab  ->  A↔B                              # Patch - 2
rnd_b_from_a  ->  A                           # Patch - 2
morph_src  ->  Src                            # Patch - 2
morph_curve  ->  Curve                        # Patch - 2
cv_click_type  ->  Type                       # Voice/Osc - 2
cv_click_smp  ->  Smp                         # Voice/Osc - 2
cv_click_lvl  ->  Lvl                         # Voice/Osc - 2
cv_click_dec  ->  Dec                         # Voice/Osc - 2
cv_xfm  ->  FM                                # Voice/Osc - 2
cv_noise_lvl  ->  Lvl                         # Voice/Osc - 3
cv_noise_dec  ->  Dec                         # Voice/Osc - 3
cv_noise_base  ->  Base                       # Voice/Osc - 3
cv_noise_width  ->  Width                     # Voice/Osc - 3
cv_noise_type  ->  Color                      # Voice/Osc - 3
cv_f1_type  ->  Type                          # Voice/Filter
cv_f2_type  ->  Type                          # Voice/Filter - 2
cv_bit  ->  Crush                             # Voice/Filter - 2
cv_rate  ->  Crush                            # Voice/Filter - 3
cv_kt1  ->  F1                                # Voice/Filter - 3
cv_kt2  ->  F2                                # Voice/Filter - 3
cv_e1_crv  ->  Curve 1                        # Voice/Env
cv_e1_rep  ->  Repeat                         # Voice/Env
cv_e2_crv  ->  Curve 2                        # Voice/Env
cv_e2_dest  ->  Dest 2                        # Voice/Env - 2
cv_e1_rep_rate  ->  E1 Rep                    # Voice/Env - 2
cv_pe_crv  ->  Curve                          # Voice/Env - 2
cv_v_e1_lvl  ->  Vel→E1                       # Voice/Env - 2
cv_v_e1_t  ->  Vel→E1                         # Voice/Env - 3
cv_v_e2_amt  ->  VelE                         # Voice/Env - 3
cv_fie1_amt  ->  FM Env1                      # Voice/Env - 3
cv_fie1_dec  ->  FM Dec 1                     # Voice/Env - 3
cv_fie2_amt  ->  FM Env2                      # Voice/Env - 3
cv_fie2_dec  ->  FM Dec 2                     # Voice/Env - 3
cv_lfo_w  ->  Wave                            # Voice/Mod
cv_lfo_r  ->  Rate                            # Voice/Mod
cv_lfo_s  ->  Sync                            # Voice/Mod
cv_lfo_d  ->  LFO                             # Voice/Mod
cv_xlfo_src  ->  Src                          # Voice/Mod
cv_trig_rst  ->  Reset                        # Voice/Mod
cv_mod_dest  ->  Dest                         # Voice/Mod
cv_mod_dpth  ->  Depth                        # Voice/Mod
cv_lfo_p  ->  Phase                           # Voice/Mod - 2
cv_lfo_pol  ->  Pola                          # Voice/Mod - 2
cv_lfo_rt  ->  Resta                          # Voice/Mod - 2
cv_mod_src  ->  Src                           # Voice/Mod - 2
cv_mod_crv  ->  Curve                         # Voice/Mod - 2
cv_lfo_w2  ->  LFO Wave                       # Voice/Mod - 2
cv_lfo_morph  ->  Morph                       # Voice/Mod - 2
cv_lvl  ->  Lvl                               # Voice/Setup
cv_tune  ->  Tune                             # Voice/Setup
cv_init  ->  Init                             # Voice/Setup
cv_pan  ->  Pan                               # Voice/Setup - 2
cv_mute  ->  Mute                             # Voice/Setup - 2
cv_fx1  ->  FX1                               # Voice/Setup - 2
... and 18 more

If a label is wrong

These are suggestions from someone reading the grid, not from the person who
wrote the synth. Change any of them in this branch, or close it — no hard
feelings either way. Layout problems are a separate matter and will come as
their own issues.

[charlesvestal]

While rendering every page of every catalogued module to review knob-grid
layout, a contract checker flagged the following here. Posting it because
it is easy to miss — none of it shows up as a crash, it shows up as a page
that quietly has less on it than you meant.

No action implied, and I have deliberately not sent a patch: each of
these is a question about intent that only you can answer.

forge

Characters the device font cannot draw

8 string(s) contain characters the 5x7 device font cannot draw (they render as nothing): copy_a_b.name: "Copy A→B"; copy_b_a.name: "Copy B→A"; swap_ab.name: "Swap A↔B"; Filter.cv_e1_to_cut.label: "E1→F1" and 4 more

Parameters no page can reach

152 chain_params are listed in no level, so no UI can reach them: pv1_level, pv1_pwm, pv1_fbk, pv1_f1_cut, pv1_f1_res, pv1_f1_drv, …

---

Checked with Schwung's validate_contract, against the contract the
module publishes on-device. Happy to be wrong about any of it.
