TUMSearch – PageRank Explorer

Hackathon Project by Team Bandersnatchers

TUMSearch is an interactive web application that crawls a website, constructs its internal link graph, computes PageRank across all discovered pages, and visualizes the network with an interactive force-directed graph. It was built during the TUM Hackathon by Team Bandersnatchers.

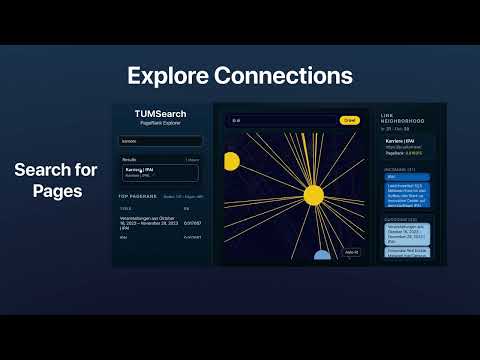

Demo Video

---

⭐ Features

🔍 Website Crawler

• Crawls the cit.tum.de domain (subdomains allowed) with polite delays
• Extracts internal hyperlinks and detects page titles
• Filters non-HTML assets (PDFs, images, binaries, etc.)

📊 PageRank Computation

• Builds a directed hyperlink graph
• Computes PageRank scores server-side (Python) and returns node scores to the UI

🎨 Interactive Visualization

• Node size/color reflect PageRank score (blue → yellow)
• Hover to preview; click to explore incoming/outgoing links
• Smooth force-directed layout powered by react-force-graph-2d

🧭 Keyword Search

• Search discovered pages by title or URL
• Jump directly to nodes in the visualization

---

🧱 Tech Stack

• Frontend: React, react-force-graph-2d, custom CSS
• Backend: Node.js, Express; spawns the Python crawler
• Crawler: Python 3, requests, beautifulsoup4

Architecture (high level)

• Frontend (src/): React app with graph view, keyword search, and link neighborhood panel. It consumes PageRank-scored nodes/links directly from the backend response.
• Backend (server.js): Express API on port 5001 exposing /api/crawl, which shells out to the Python crawler in src/search.py.
• Crawler (src/search.py): Domain-scoped crawler for cit.tum.de that returns titles, adjacency, PageRank, and a force-graph-friendly nodes/links payload. A standalone PageRank helper exists at crawler/pagerank_calc.py.

---

📁 Project Structure

project/
├── server.js              # Node backend API
├── crawler/
│   └── pagerank_calc.py   # Standalone PageRank helper (optional/offline)
├── src/
│   ├── search.py          # Python crawler (cit.tum.de), emits nodes/links with PageRank
│   ├── components/        # Sidebar, GraphCard, Controls, Neighborhood
│   ├── hooks/
│   ├── App.js / App.css
│   └── graphUtils.js      # Legacy helpers (not used for PageRank in the UI)
├── public/
└── package.json

---

⚙️ Installation & Setup

1) Install Node dependencies

npm install

2) Install Python dependencies

pip install requests beautifulsoup4

3) Start the backend (uses PYTHON env var if set, otherwise python3)

node server.js

Backend runs at http://localhost:5001.

4) Start the frontend

npm start

Frontend runs at http://localhost:3000.

Optional: use a virtualenv for Python

python3 -m venv .venv
source .venv/bin/activate
pip install aiohttp beautifulsoup4

---

🚀 Using the Application

1. Open http://localhost:3000.
2. Enter a URL in the cit.tum.de domain (e.g., https://www.cit.tum.de) and click Crawl.
3. After crawling:
   • Graph appears in the center.
   • Sidebar shows top PageRank pages.
   • Right panel shows incoming/outgoing links.

Interactions: drag to move, scroll to zoom, hover for PageRank/title, click to view link neighborhood.

---

🔌 API Quick Reference

GET http://localhost:5001/api/crawl?url=https://www.cit.tum.de

Example response:

{
  "graph": { "https://www.cit.tum.de": ["https://www.cit.tum.de/page"] },
  "titles": { "https://www.cit.tum.de": "Department of Computer Science" },
  "nodes": [
    {
      "id": "https://www.cit.tum.de",
      "title": "Department of Computer Science",
      "pagerank": 0.12
    }
  ],
  "links": [
    { "source": "https://www.cit.tum.de", "target": "https://www.cit.tum.de/page" }
  ],
  "crawl_info": {
    "start_url": "https://www.cit.tum.de",
    "domain": "www.cit.tum.de",
    "max_pages": 30,
    "pages_crawled": 12,
    "delay": 0.0,
    "total_time": 2.4
  }
}

Defaults (max pages, delay) live in src/search.py.

---

🕷️ Python Crawler Overview

• Normalizes URLs and accepts subdomains (*.tum.de)
• Ignores PDFs, images, videos, etc.; checks HTML via Content-Type
• Handles redirects/bot-detection pages gracefully
• Uses concurrent workers for speed
• Returns JSON with graph, titles, and crawl_info

Manual test:

python3 src/search.py https://www.cit.tum.de --max-pages 30 --delay 0.2

Standalone PageRank helper:

python3 crawler/pagerank_calc.py input_graph.json output_pr.json

---

🛠️ Troubleshooting

• Crawler failed to start: Set PYTHON to your interpreter (export PYTHON=python on mac/Linux, set PYTHON=python on Windows).
• Graph is empty: Backend not running, invalid URL, or domain blocks bots.
• Windows SSL issues: Try pip install certifi or test another site.

---

📜 License

MIT License.

---

👥 Team

Bandersnatchers — TUM Hackathon Project
