DeepLens

Interactive AI Model Interpretability & Embedding Explorer

Powered by the HoloViz ecosystem — combines embedding visualization, SHAP attribution, counterfactual exploration, data drift detection, multi-model comparison, dataset profiling, error analysis, and LLM-powered insights in a single cross-filtered dashboard.

import deeplens
deeplens.explore("iris")

---

The Problem

Understanding ML models requires jumping between 5+ disconnected tools: TensorBoard for embeddings, SHAP for explanations, custom scripts for drift detection, notebooks for data profiling, and spreadsheets for annotation. None of these tools cross-filter, so you lose context at every step.

DeepLens puts everything in one dashboard where selecting points in the embedding space instantly updates SHAP explanations, error analysis, counterfactuals, and annotation queues.

Feature	TensorBoard	Arize Phoenix	W&B	What-If Tool	DeepLens
Interactive embedding viz	Partial	Yes	No	No	Yes (Datashader)
SHAP integration	No	No	Limited	No	Yes (Interactive)
Counterfactual explorer	No	No	No	Static	Yes (Drag-to-explore)
Dataset profiling	No	Partial	No	No	Yes (Auto)
Data drift detection	No	Static	No	No	Yes (KS + PSI)
Multi-model comparison	No	No	Yes	No	Yes (Agreement zones)
DR quality assessment	No	No	No	No	Yes (Shepard + metrics)
Active learning annotation	No	No	No	No	Yes (Lasso + label)
Error analysis deep dive	No	No	No	No	Yes (Hardest samples)
NL data filtering	No	No	No	No	Yes (LLM + filter)
Notebook export	No	No	Yes	No	Yes (1-click .ipynb)
Cross-filtered everything	No	No	No	No	Yes

---

Built With



---

Interactive Dashboard

The dashboard features 8 tabs with lazy-loaded modules, a collapsible sidebar with dataset selection, model training, NL filtering, and AI analyst chat. All views are cross-filtered through a shared reactive state.

Iris dataset - train a RandomForest, explore embeddings with per-class coloring, cluster summary, and DR quality metrics

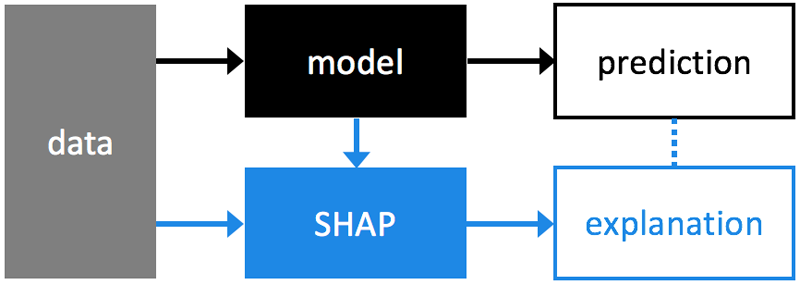

SHAP Explanations & Counterfactual Explorer

SHAP waterfall plot with feature importance, counterfactual sliders to modify features and watch predictions change in real-time

Lasso Selection & Details

Select points with lasso or box-select to see class distribution, feature statistics, and sample table

Full embedding scatter with cluster summary	Lasso selection - class distribution + feature stats

Model Training & Iris Explorer

Train RandomForest on Iris - 96.67% accuracy, per-class coloring with setosa/versicolor/virginica legend

Model Inspector

Confusion matrix (clickable cells), per-class F1 scores, ROC curves with AUC

Error Analysis & Drift Detection

Misclassification scatter, top confused pairs, feature distributions	KS statistic bars, PSI scores, reference vs production overlays

DR Quality & Active Learning

Shepard diagram, trustworthiness/continuity curves, method recommendation	Uncertainty heatmap, suggestion queue, label + export

Dashboard Tabs

• Explore: Datashader scatter, lasso select, k-NN similarity search, auto-clustering, DR quality indicators
• Profile: Overview stats, data types, missing values heatmap, correlations, class balance, feature distributions, outlier summary
• Explain: SHAP waterfall/importance/distribution + counterfactual explorer with feature sliders
• Inspect: Confusion matrix, ROC curves, per-class F1 + Error Analysis (misclassification scatter, confused pairs, hardest samples)
• Compare: Side-by-side model comparison with agreement zones (train 2+ models)
• Drift: KS statistic bars, PSI scores, reference vs production distribution overlays
• Quality: Shepard diagram, trustworthiness/continuity curves, stress comparison, auto-recommendation
• Annotate: Entropy-based uncertainty heatmap, suggestion queue, lasso + label + undo, CSV/JSON export

---

Features

Category	Feature
Embeddings	TF-IDF, sentence-transformers, CLIP; PCA/t-SNE/UMAP reduction with live tuning
Exploration	Datashader scatter (100K+ points), lasso select, k-NN similarity, auto-clustering
Profiling	Missing values heatmap, correlations, class balance, distributions, IQR outliers
SHAP	Interactive waterfall, beeswarm, dependence, feature importance (HoloViews)
Counterfactual	Feature sliders, real-time prediction, minimum-change finder
Inspection	Confusion matrix (clickable), ROC curves, per-class F1, decision boundary
Error Analysis	Misclassification scatter, confused pairs, correct vs error distributions, hardest samples
Comparison	Agreement zones, complementarity score, side-by-side metrics
Drift	KS test, PSI, per-feature distribution overlay, temporal analysis
DR Quality	Shepard diagram, trustworthiness/continuity curves, stress, auto-recommendation
Annotation	Uncertainty sampling, lasso + label + undo, progress tracking, CSV/JSON export
LLM	NL filter (query → pandas), AI analyst chat, cluster storytelling, Gemini/Groq/Ollama

Sidebar Controls

• 5 built-in datasets: Iris, Wine, Digits, Breast Cancer, 20 Newsgroups
• File upload: CSV, TSV, JSON, JSONL, Parquet, Excel
• Remote URL fetch: Load datasets from any URL
• 5 sklearn classifiers: LogisticRegression, RandomForest, SVM, GradientBoosting, KNN
• Pre-trained model upload: .pkl / .joblib files
• NL Filter: Natural language queries converted to pandas expressions
• AI Analyst: Floating chat panel with LLM insights
• Export: Download snapshot (JSON), export as Jupyter notebook (1-click)
• Guided Tour: Interactive walkthrough for new users

---

Quick Start

One-liner

import deeplens
deeplens.explore("iris")

With your own data

import pandas as pd
import deeplens

df = pd.read_csv("my_data.csv")
deeplens.explore(df, text_col="review", label_col="sentiment")

Full dashboard

deeplens.dashboard(dataset="iris")

Compare two models

from sklearn.linear_model import LogisticRegression
from sklearn.ensemble import RandomForestClassifier

model_a = LogisticRegression().fit(X_train, y_train)
model_b = RandomForestClassifier().fit(X_train, y_train)

deeplens.compare(model_a, model_b, X_test, y_test)

Detect data drift

deeplens.drift(train_df, prod_df, timestamp_col="date")

CLI

python -m deeplens --dataset iris
python -m deeplens --dataset wine --llm gemini --port 5006

Run the Dashboard

# Built-in dataset
python -m deeplens --dataset iris

# With LLM-powered AI Analyst
GOOGLE_API_KEY="your-key" python -m deeplens --dataset iris --llm gemini

# Custom port, no browser auto-open
python -m deeplens --dataset wine --port 5006 --no-browser

---

Individual Components

Every module works standalone in a Jupyter notebook:

from deeplens.embeddings.explorer import EmbeddingExplorer
from deeplens.explain.engine import ExplainabilityEngine
from deeplens.explain.counterfactual import CounterfactualExplorer
from deeplens.compare.models import ModelArena
from deeplens.compare.drift import DriftDetector
from deeplens.quality.dr_quality import DRQualityDashboard
from deeplens.annotate.labeler import ActiveLearningAnnotator
from deeplens.data.profiler import DatasetProfiler
from deeplens.models.error_analysis import ErrorAnalyzer
from deeplens.export.notebook import NotebookExporter

# Any component can be displayed standalone
explorer = EmbeddingExplorer(state=my_state)
explorer.servable()

---

Architecture

User Data (CSV, Parquet, sklearn, URL, file upload)
    |
    v
DeepLensState (param.Parameterized) - single reactive state object
    |
    +---> EmbeddingComputer (TF-IDF / sentence-transformers / features)
    |         |
    |         v
    |     DimensionalityReducer (PCA / t-SNE / UMAP)
    |         |
    |         v
    |     embeddings_2d --> all visualization modules
    |
    +---> ModelTrainer (async via ThreadPoolExecutor)
    |         |
    |         v
    |     trained_model + predictions + probabilities
    |         |
    |         v
    |     Inspector, ErrorAnalyzer, SHAP, Counterfactual, Annotator
    |
    +---> state.selected_indices (cross-filter propagation)
              |
              v
        All views update reactively via param.depends()

---

Test Suite

$ pytest tests/ -v
======================= 1200+ passed, 5 skipped in ~80s ========================

Module	Tests	Covers
test_dashboard.py	80+	Dashboard creation, tab building, ingestion, sidebar, layout
test_profiler.py	57	Dataset profiling: overview, missing, correlations, outliers, class balance
test_llm.py	56	LLM providers (Gemini/Groq/Ollama), CompositeLLM, sanitize_expression
test_embeddings.py	40+	TF-IDF, feature embeddings, NaN handling, sparse matrix, dispatch
test_shap_plots.py	55	Waterfall, beeswarm, dependence, importance, real model integration
test_counterfactual.py	57	Binary search, slider logic, feature perturbation, panel interface
test_error_analysis.py	43	Misclassification, confusion pairs, hardest samples, cluster errors
test_inspector.py	42	Confusion matrix, ROC, metrics, per-class F1, decision boundary
test_explorer.py	38	Embedding scatter, selection, similarity, clustering, datashader
test_quality.py	48	Shepard diagram, stress, trustworthiness, continuity, recommendation
test_compare_models.py	33	Model arena, agreement zones, complementarity, binary support
test_notebook_export.py	42	Jupyter notebook generation, conditional cells, save/load
test_drift.py	24	PSI, KS test, caching, panel rendering
test_sources.py	52	SklearnSource, EmbeddingSource
test_transforms.py	48	NormalizeTransform, EmbeddingTransform, DRTransform, SHAP
Other modules	100+	Config, chat, init, main, loaders, trainer, NL filter, labeler

---

Installation

git clone https://github.com/ghostiee-11/deeplens.git
cd deeplens
pip install -e ".[all,dev]"

Dependency Tiers

Install	What you get
pip install deeplens	Core: Panel, HoloViews, Datashader, sklearn, embedding explorer
pip install deeplens[explain]	+ SHAP waterfall/beeswarm/counterfactual
pip install deeplens[embeddings]	+ sentence-transformers, UMAP
pip install deeplens[images]	+ CLIP embeddings for image datasets
pip install deeplens[llm]	+ Gemini Flash for AI analyst
pip install deeplens[all]	Everything

---

LLM Configuration

DeepLens supports multiple LLM providers for the AI Analyst and NL Filter:

# Gemini (default, free tier)
export GOOGLE_API_KEY="your-key"
python -m deeplens --dataset iris --llm gemini

# Groq (free tier)
export GROQ_API_KEY="your-key"
python -m deeplens --dataset iris --llm groq

# Ollama (local, free)
ollama pull llama3.2
python -m deeplens --dataset iris --llm ollama

---

Project Structure

deeplens/
├── deeplens/
│   ├── __init__.py          # Public API: explore(), compare(), drift(), dashboard()
│   ├── __main__.py          # CLI: python -m deeplens
│   ├── config.py            # DeepLensState - central reactive state
│   ├── data/
│   │   ├── loaders.py       # Dataset loading (sklearn, CSV, URL, HuggingFace)
│   │   ├── sources.py       # Custom Lumen Sources
│   │   ├── transforms.py    # Custom Lumen Transforms
│   │   └── profiler.py      # Automatic dataset profiling
│   ├── embeddings/
│   │   ├── compute.py       # Embedding computation (TF-IDF, sentence-transformers, CLIP)
│   │   ├── reduce.py        # Dimensionality reduction with quality metrics
│   │   └── explorer.py      # Datashader scatter + lasso + similarity search
│   ├── explain/
│   │   ├── shap_plots.py    # Interactive SHAP plots as HoloViews elements
│   │   ├── engine.py        # SHAP - embeddings cross-filtering engine
│   │   └── counterfactual.py# Drag-to-explore counterfactual UI
│   ├── models/
│   │   ├── trainer.py       # Model training with async support
│   │   ├── inspector.py     # Confusion matrix, ROC, metrics dashboard
│   │   └── error_analysis.py# Error analysis deep dive
│   ├── compare/
│   │   ├── models.py        # Multi-model comparison arena
│   │   └── drift.py         # Data drift detector (KS + PSI)
│   ├── analyst/
│   │   ├── llm.py           # LLM abstraction (Gemini / Groq / Ollama)
│   │   ├── chat.py          # ChatInterface + cluster storyteller
│   │   └── nl_filter.py     # Natural language → pandas query
│   ├── annotate/
│   │   └── labeler.py       # Active learning annotator
│   ├── quality/
│   │   └── dr_quality.py    # DR quality metrics (Shepard, trustworthiness)
│   ├── export/
│   │   └── notebook.py      # Jupyter notebook export
│   └── dashboard/
│       └── app.py           # Main dashboard (FastListTemplate + async)
├── tests/                   # 1200+ tests across 20+ modules
├── screenshots/             # Dashboard screenshots
└── pyproject.toml

---

Design Decisions

Decision	Choice	Rationale
Default embedding	TF-IDF	Zero GPU, zero extra deps, instant
Default DR	PCA	Sub-second, good starting point
Datashader mode	rasterize() not datashade()	Preserves selection capability
State management	Single param.Parameterized	Simple, Panel-native reactivity
Component pattern	pn.viewable.Viewer	Composable, servable, notebook-compatible
Async strategy	run_in_executor with ThreadPoolExecutor	Non-blocking UI for heavy compute
LLM default	Gemini Flash	Most generous free tier
Security	sanitize_expression()	Blocks code injection in NL filter
Tab loading	Lazy (build on first visit)	Fast startup, no wasted compute
Cross-filtering	state.selected_indices + HoloViews streams	Unified selection across all views
Label detection	Smart heuristic	Auto-detects label columns (Survived, Species, etc.)

---

License

BSD-3-Clause
