A2UI Concierge

A demo of the A2UI protocol running side-by-side on Android (Kotlin / Jetpack Compose chrome + WebView-hosted Lit components) and the web (the same Lit components, no hybrid). A streaming Python backend (Anthropic Claude Sonnet 4.6 + tool use) drives both clients with the exact same A2UI fragments — so every UI you see was authored once and rendered identically on both platforms.

The use case is a "Lumen Concierge" gift-shopping flow: the agent picks products, asks clarifying questions, places an order, and confirms — all via streamed A2UI components, not text.

High-fidelity prototype, not a production app.

Video demo

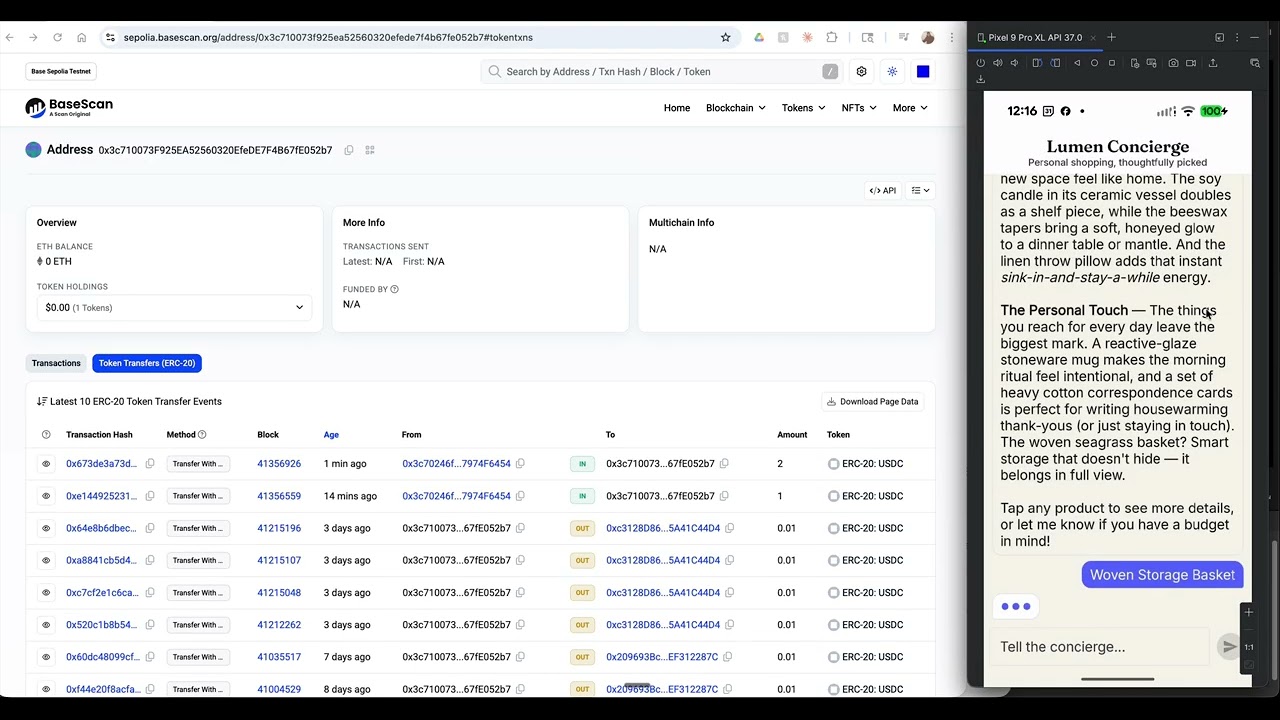

▶ On-chain settle — Android, BaseScan, MetaMask, split-screen — the AI agent pays the wallet on the left with real Base Sepolia USDC, in real time. StrongBox-bound EIP-3009 signing → public x402 facilitator → on-chain confirmation.

Earlier walkthroughs (mock settlement) — same Lit components, two surfaces, no rewrites between them:

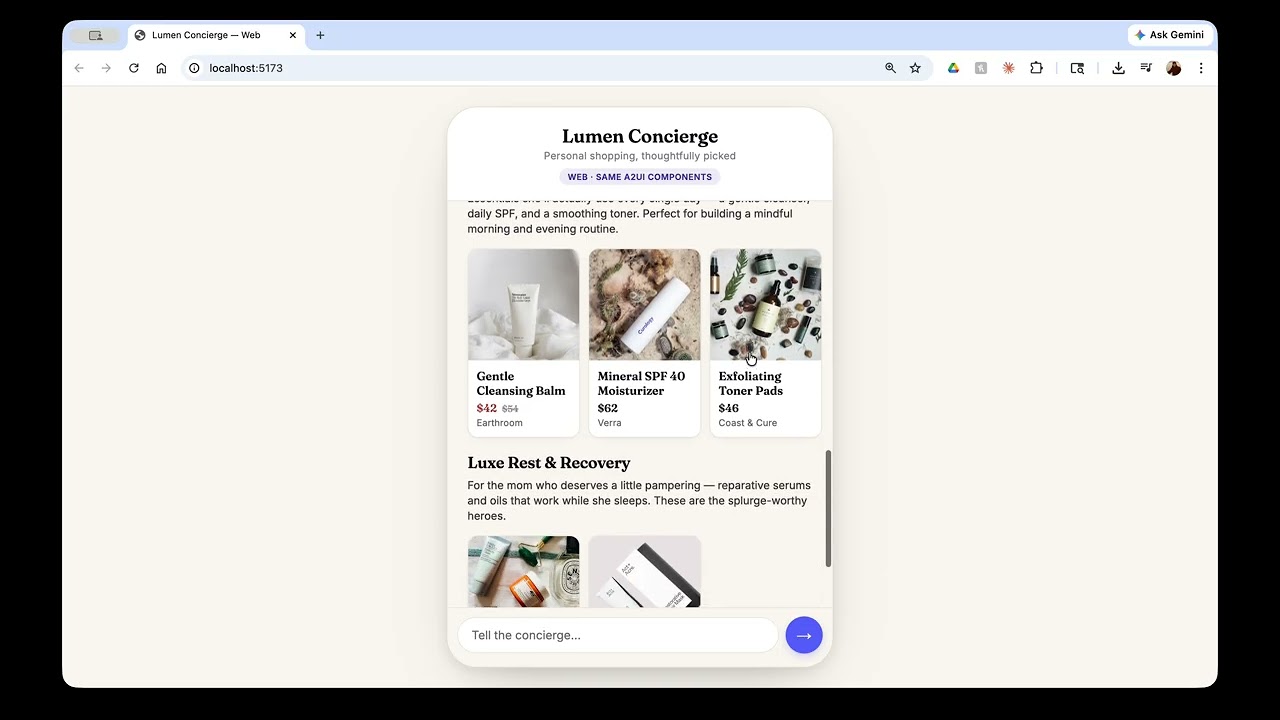

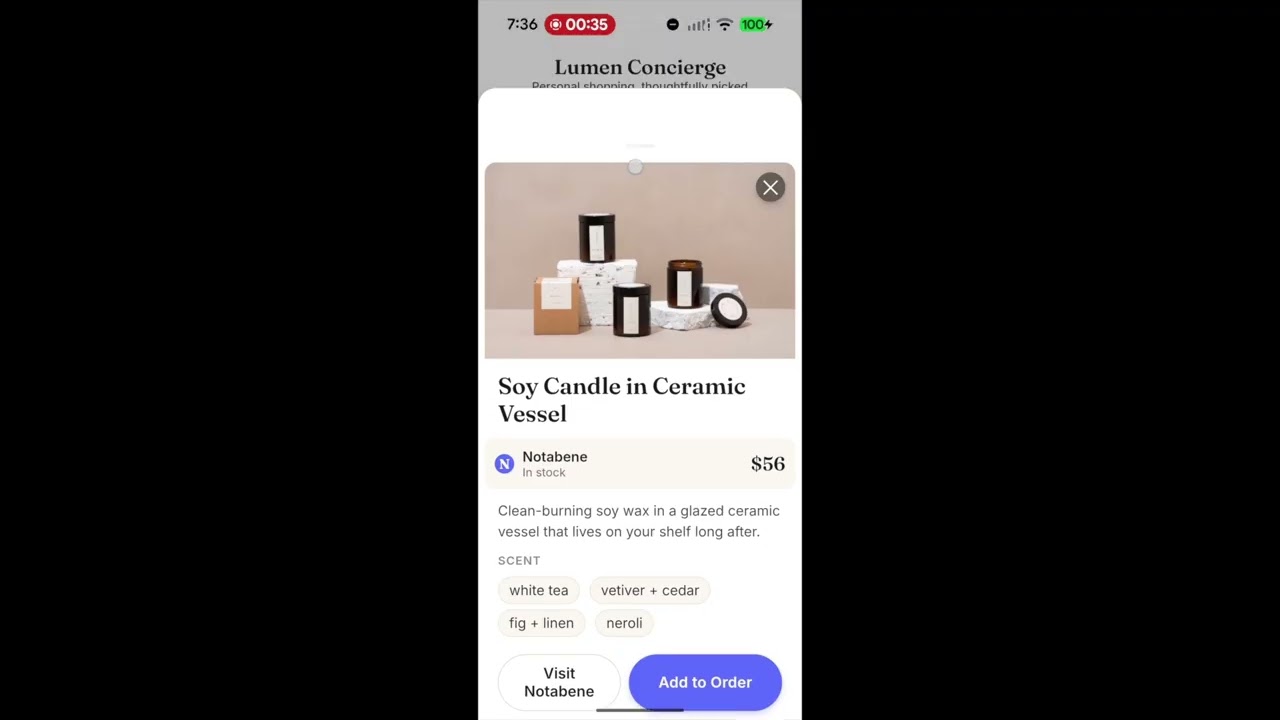

▶ Android walkthrough — Compose chrome + Lit components in a WebView.	▶ Web walkthrough — same Lit bundle, browser-native.

Variations

The same demo runs in several settlement modes, all on one codebase. Each is a config flip — same app, same components, same agent. The matrix below tracks what's on main versus what's still on a branch.

Variation	Branch / flag	Settlement	Authorization
Default shopping	main	mocked x402 challenge	per-cart tap
x402 on-chain (Base Sepolia)	main + X402_SETTLE_REAL=1	real EIP-3009 → public x402 facilitator	per-cart tap + StrongBox biometric
AP2 HITL (in progress)	explore/ap2	x402 settlement	cryptographic Cart Mandate (per-cart sign)
AP2 non-HITL (planned)	TBD	x402 settlement	Intent Mandate (delegated, no per-cart consent)

x402 on-chain mode

The Android app can perform real Base Sepolia USDC settlements. Tap Pay → biometric prompt → a StrongBox-bound private key signs an EIP-3009 transferWithAuthorization → the backend forwards the signed envelope to the public x402 facilitator → on-chain tx settles → the confirmation card surfaces the real BaseScan link.

To enable, add the env vars to backend/.env:

X402_SETTLE_REAL=1
X402_PAY_TO_ADDRESS=0x...               # recipient wallet you control
# Demo cap — clamps every cart's settled total to this dollar amount,
# so a single faucet drip (5-10 USDC) covers many orders. The catalog
# pricing stays realistic; only the on-chain amount is capped. Off by
# default; recommended for testnet demos.
X402_DEMO_MAX_PRICE=2

# Optional overrides:
# X402_NETWORK=base-sepolia
# X402_CHAIN_ID=84532
# X402_USDC_ADDRESS=0x036CbD53842c5426634e7929541eC2318f3dCF7e
# X402_FACILITATOR_BASE=https://www.x402.org/facilitator

Fund the payer wallet — the address the Android client derives from its StrongBox-bound seed on first wallet creation. It's printed in the backend log the first time you tap Pay, on a line that looks like:

[x402] envelope from='0x3c70...6454' to='0x...' value='1000000' sig=0x...

Send Base Sepolia USDC to that from address with the Coinbase Developer Platform faucet (select Base Sepolia → USDC → paste the payer address). EIP-3009 is gas-abstracted: the facilitator pays gas, so the payer only needs USDC — no Base Sepolia ETH required.

Verify:

• The confirmation card carries a tappable "View on BaseScan" row.
• Or open the recipient's incoming-transfers page directly: https://sepolia.basescan.org/address/<X402_PAY_TO_ADDRESS>#tokentxns

Under the hood:

• backend/src/concierge/payments.py — challenge construction, canonical facilitator paymentPayload / paymentRequirements body, /verify before /settle.
• app/.../x402/SecureWallet.kt — AES-256-GCM-wrapped seed in the Android Keystore (StrongBox-backed where the device supports it, TEE otherwise), Class-3 biometric per signing op.
• app/.../x402/X402Signer.kt — EIP-712 hashing via web3j's StructuredDataEncoder and secp256k1 sign via Sign.signMessage.

What this shows

• One agent, two surfaces. Same /chat SSE stream feeds an Android app and a web app.
• Five A2UI components, all written once in Lit, used by both clients: chip-group, card-grid (horizontal swipe rail), product-detail, form (toggles + saved-address pills), confirmation-card.
• Hybrid Compose chrome on Android. The chat shell, top bar, input row, thinking dots, and bubble entry/exit motion are pure Compose; only the A2UI bubble itself is a WebView. Bubbles spring into view, the product-detail arrival is emphasized, and the previous card-grid fades back to demote it.
• Bridge parity. The same window.AndroidBridge interface (onAction, log, reportSize) that Android exposes is synthesized on the web build, so component code doesn't branch.

Architecture

[ Android device — Kotlin / Jetpack Compose ]            [ Web browser ]
  ChatScreen (Compose)                                     index.html (~250 LOC)
    ├── TopAppBar / theme / Scaffold                         ├── chat shell + SSE parser
    ├── LazyColumn of bubbles                                └── synthesizes window.AndroidBridge
    │     ├── UserBubble        (Compose)
    │     ├── AgentTextBubble   (Compose, MarkdownText)
    │     ├── ThinkingDots      (Compose, infinite anim)
    │     └── AgentA2uiBubble   ← AndroidView { WebView } host.html → Lit components
    └── InputRow (Compose)
                       │
                       └── HTTPS POST /chat (text/event-stream)
                                   ▼
[ Backend — Python / FastAPI / sse-starlette ]
  /chat       — accepts user message, streams text + a2ui events
  GiftAgent   — Anthropic SDK, Claude Sonnet 4.6, tool-use loop
  Tools       — search_catalog, get_product, place_order,
                present_chips, present_products, present_product_detail,
                present_form, present_confirmation
  catalog.json — curated mock product catalog

The Lit components live in host-bundle/src/components/. The Vite build bundles them into a single IIFE (a2ui-host.iife.js). Two delivery modes:

• Android — npm run build:android copies the bundle and index-android.html into app/app/src/main/assets/, where WebView.loadUrl("file:///android_asset/host.html") picks them up.
• Web — npm run dev serves index.html (the full chat shell) at localhost:5173, proxying /chat and /health to the Python backend at :8000.

Repository layout

a2ui-concierge/
├── backend/        Python / FastAPI agent (uv-managed)
├── host-bundle/    Vite project — Lit components + dual entry points (Android, web)
├── app/            Android Studio project (Kotlin / Jetpack Compose)
└── docs/           Spec, plan, runbook, smoke checklist, A2UI shapes reference

Prerequisites

• An Anthropic API key (the agent uses Claude Sonnet 4.6).
• Backend: Python 3.11+, uv.
• Host bundle: Node 18+ and npm.
• Android: Android Studio Hedgehog or newer, JDK 17, adb on PATH, an emulator or a physical device with USB debugging.
• Web: any modern browser.

Running it

1. MCP server (required for both clients)

The backend delegates credential verification to a FastMCP sidecar that runs on port 3001. Start it first:

cd mcp
uv sync
uv run python server.py

You should see FastMCP output indicating it's listening on http://0.0.0.0:3001/mcp.

2. Backend (required for both clients)

In a separate terminal:

cd backend
echo "ANTHROPIC_API_KEY=sk-ant-..." > .env       # gitignored
uv sync --all-extras
uv run uvicorn concierge.app:app --port 8000 --host 0.0.0.0

/health should now return {"status":"ok"}.

By default the backend expects the MCP server at http://localhost:3001/mcp. Override with MCP_URL=http://... in backend/.env if you run them on different hosts.

3a. Web app

cd host-bundle
npm install
npm run dev

Open http://localhost:5173. The Vite dev server proxies /chat to the backend automatically — no extra configuration needed. Try: "a necklace under 200 for my sister".

3b. Android app

Emulator (default)

The default BACKEND_BASE_URL in androidApp/build.gradle.kts points to http://10.0.2.2:8000, which is the emulator's alias for the host loopback. No extra configuration needed.

cd host-bundle && npm install && npm run build:android
cd ../app && ./gradlew installDebug
adb shell am start -n com.diegoz.a2uiconcierge/.MainActivity

Physical device (USB)

Forward the backend port to the device, then build and install as above:

adb reverse tcp:8000 tcp:8000

Then change BACKEND_BASE_URL in androidApp/build.gradle.kts to http://localhost:8000 and rebuild:

cd host-bundle && npm run build:android
cd ../app && ./gradlew installDebug

Physical device (Wi-Fi, no USB)

If you can't use USB, set BACKEND_BASE_URL in androidApp/build.gradle.kts to your machine's LAN IP (e.g. http://192.168.1.x:8000) and rebuild. The backend already binds to 0.0.0.0 so it's reachable over the local network — check your firewall if connections fail.

After any change to a Lit component, re-run npm run build:android and reinstall the APK to refresh the WebView assets. The Compose-side code reloads via Android Studio in the normal way.

3c. iOS app (simulator)

cd host-bundle && npm install && npm run build:android   # reuses the same Lit bundle
cd ../app && ./gradlew :shared:linkDebugFrameworkIosSimulatorArm64
open iosApp/iosApp.xcodeproj

Run the iosApp scheme in Xcode on a Simulator. The default BACKEND_BASE_URL in MainViewController.kt is http://localhost:8000, which routes to the host machine from the simulator automatically.

For a physical iOS device, change the constant to your machine's LAN IP before building.

4. Wallet App

You should have the latest version of the Multipaz TestApp (or any other wallet app that supports presentation using W3C DC API) on your device

You can download the multipaz testapp from here.

Demo script

A 90-second walkthrough lives in docs/runbook.md. Short version:

1. "Find me a necklace under $200 for my sister" → card-grid arrives.
2. Tap a card → product-detail bubble pops in (with an emphasized spring entrance; the previous card-grid bubble dims to demote it).
3. "Add it to my order" → form arrives (gift-wrap toggle + saved-address pills).
4. Tap Place order → confirmation-card pops in with a haptic tap.

Pointers

• Spec: docs/superpowers/specs/2026-05-07-a2ui-android-shopping-demo-design.md
• Plan: docs/superpowers/plans/2026-05-07-a2ui-android-shopping-demo.md
• A2UI fragment shapes: docs/a2ui-shapes.md
• Runbook: docs/runbook.md
• Smoke checklist: docs/smoke-checklist.md

Known limitations

• Catalog is a mock JSON file; ordering writes to memory only.
• Single conversation per session id; no persistence.
• iOS support is in progress on this branch (feat/migrate-kmp); not yet merged to main.
• WebView clipping math depends on devicePixelRatio; tested on Pixel 9 Pro XL.

License

Demo / prototype. No license attached; treat as source-available reference, not OSS.
