Summary

Implements a LangGraph-based AI agent that enables users to describe their app idea in natural language and have it automatically deployed as a working Violet Rails application.

Key Features:

  • 🧠 Diagnose user requirements from natural language descriptions
  • 📐 Generate app specifications (subdomains, namespaces, pages)
  • 🔧 Create resources via Violet Rails API
  • 🚀 Deploy to local/GitHub/Heroku targets

Architecture: Deep Agent principles (DIAGNOSE → MULTI-EXPERT → ARTIFACT-FIRST → DOMAIN-NATIVE)

Tools (6):

Tool Purpose
diagnose_requirements Parse app descriptions, identify entities/relationships
generate_specification Create YAML specs for app structure
create_subdomain Provision tenant subdomains
create_namespace Create API namespaces with JSONB properties
create_page Generate CMS pages with Liquid templates
trigger_deployment Handle deployment orchestration

Subagents (5):

Subagent Role
Architect App structure & data modeling (DHH-style Rails)
CMS Designer Page layouts & Liquid templates
Content Researcher Extract styles from reference sites
Deployer GitHub/deployment orchestration
Security Input validation & security review

Walking Through The Workflow

The Violet App Agent follows a Plan → Act → Verify workflow pattern. Here's how to try it yourself:

Step 1: Start the Services

# 1. Start Docker containers (if not running)
docker-compose up -d solutions_db solutions_redis

# 2. Start Rails server
cd /path/to/violet_rails
bin/rails server -p 5250 -b 0.0.0.0

# 3. Start LangGraph agent
cd violet-app-agent
source apps/agent/.venv/bin/activate
export RAILS_ROOT=/path/to/violet_rails
export DATABASE_HOST=localhost DATABASE_PORT=6000
export DATABASE_USERNAME=postgres DATABASE_PASSWORD=password
export DATABASE_NAME=r_solutions_development
export REDIS_URL=redis://localhost:6380/0
langgraph dev --port 8123 --no-browser

Step 2: Open the Streaming UI

Open violet-app-agent/apps/agent/chat_ui_streaming.html in your browser.

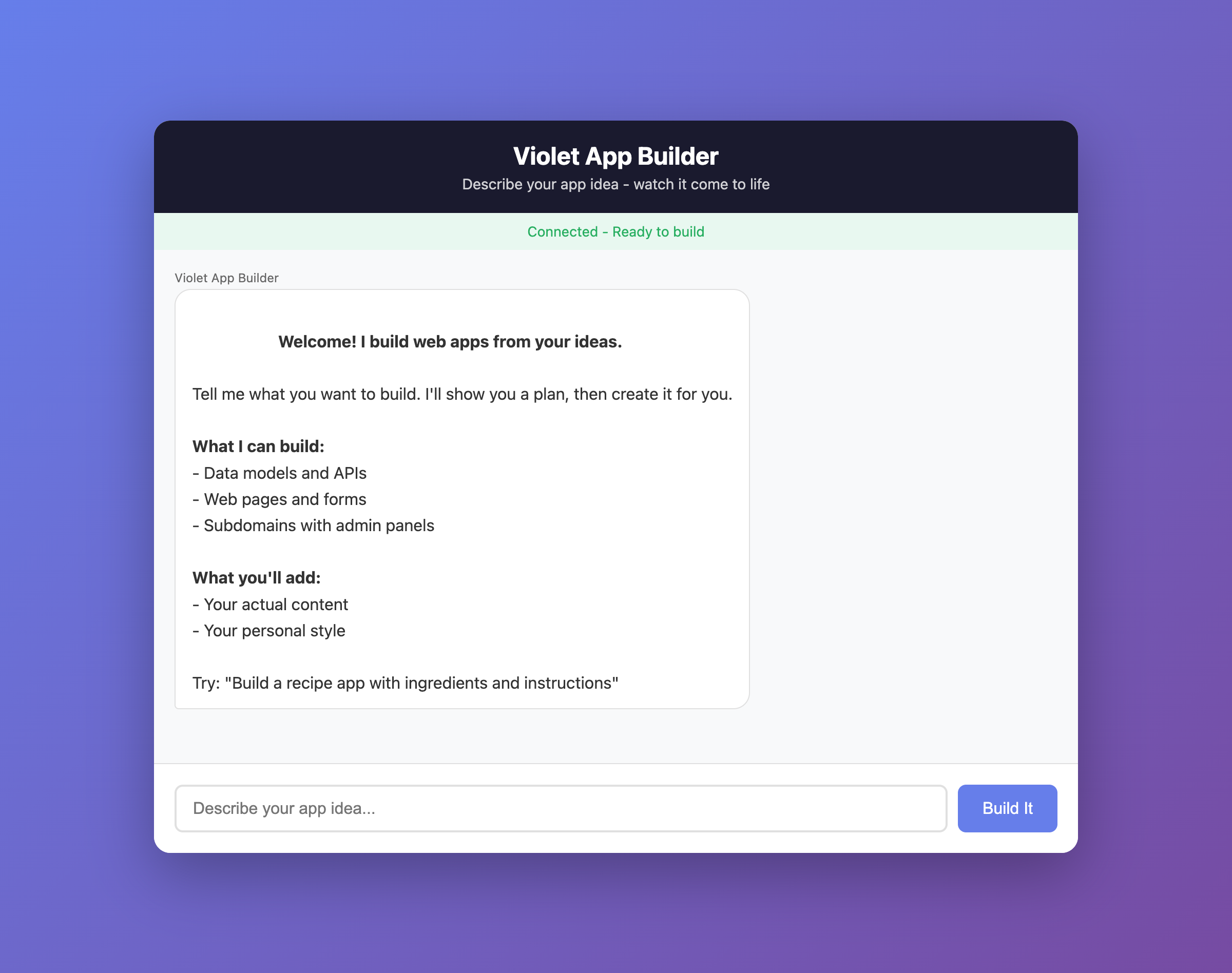

Screenshot: Welcome Screen

Welcome Screen

The UI shows:

  • What I can build: Data models, APIs, web pages, forms, subdomains
  • What you'll add: Your actual content and personal style

Step 3: Describe Your App Idea

Type a natural language description of the app you want to build.

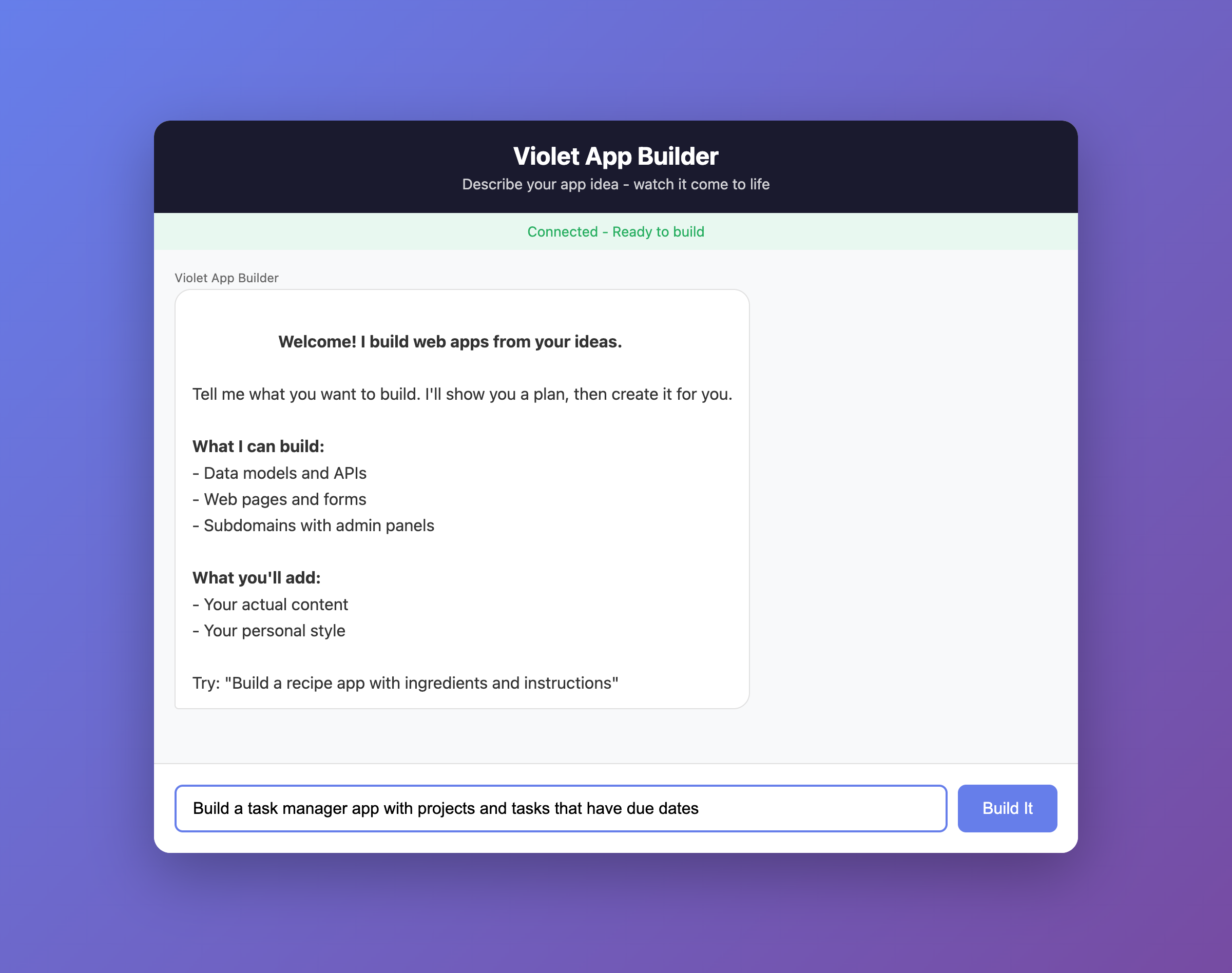

Screenshot: User Input

User Input

Example: "Build a task manager app with projects and tasks that have due dates"

Step 4: Plan Phase - Requirements Gathering

The agent asks clarifying questions to understand your requirements.

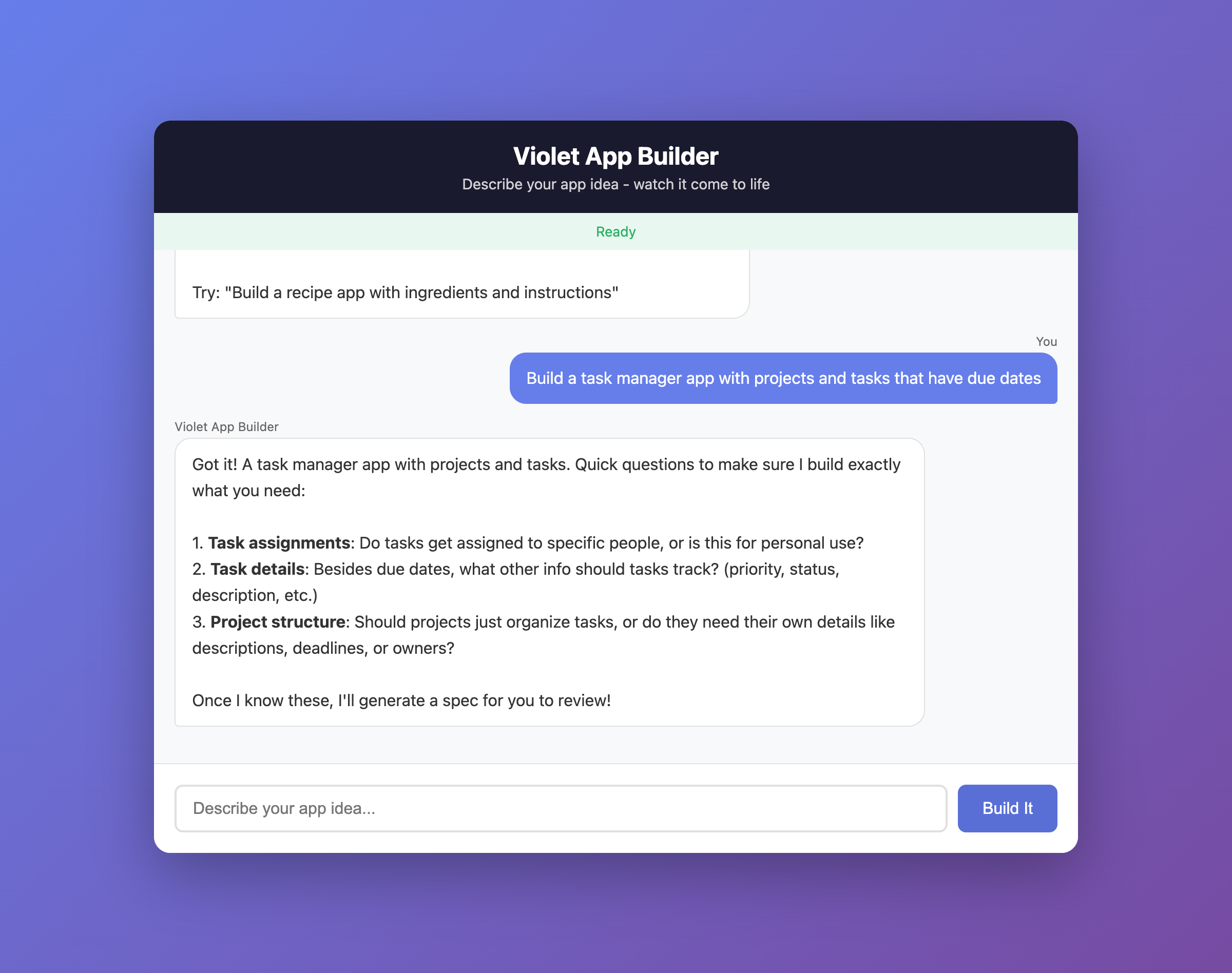

Screenshot: Clarifying Questions

Clarifying Questions

Step 5: Plan Preview - Specification Review

After gathering requirements, the agent generates a specification with:

  • Data models (entities and properties)
  • Pages to be created
  • Relationships between entities

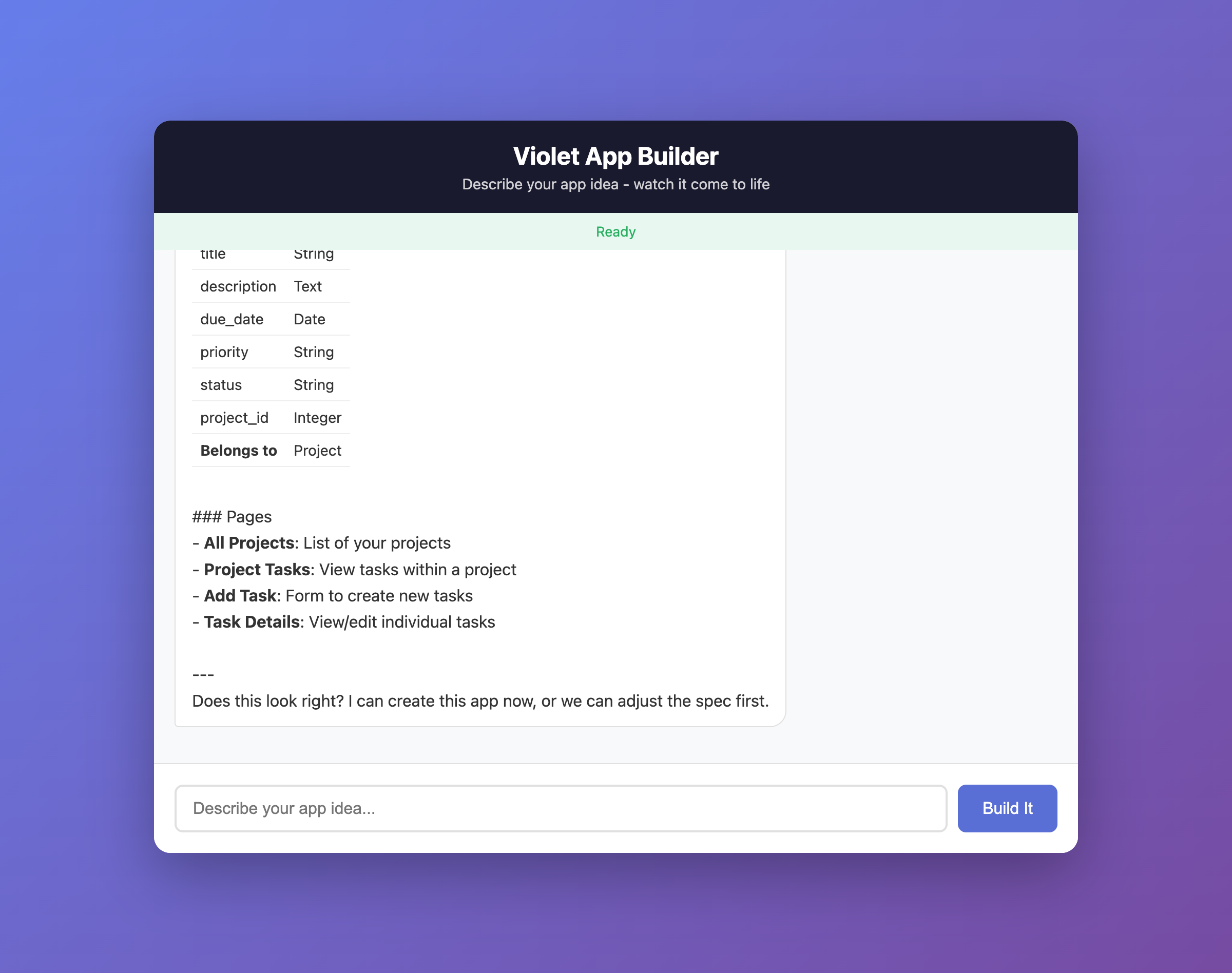

Screenshot: Plan Preview

Plan Preview

Review and approve the spec, or ask for adjustments.

Step 6: Act Phase - Building

Once approved, the agent executes the plan:

  • Creates subdomain
  • Creates API namespaces
  • Creates CMS pages

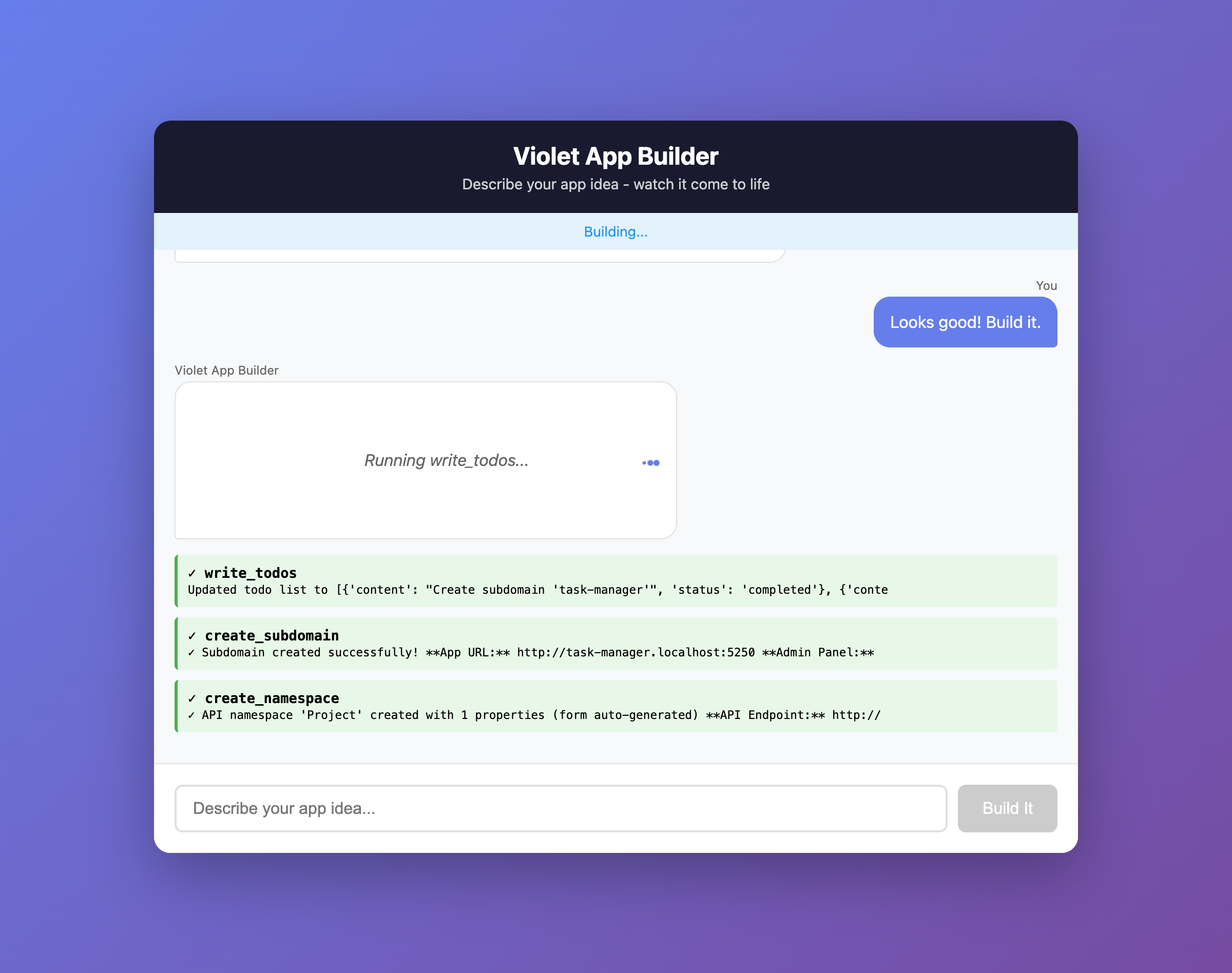

Screenshot: Build Progress

Build Progress

Tool calls show real-time progress with checkmarks for completed steps.

Step 7: Verify Phase - Completion Summary

After building, you'll see a summary with links to your app.

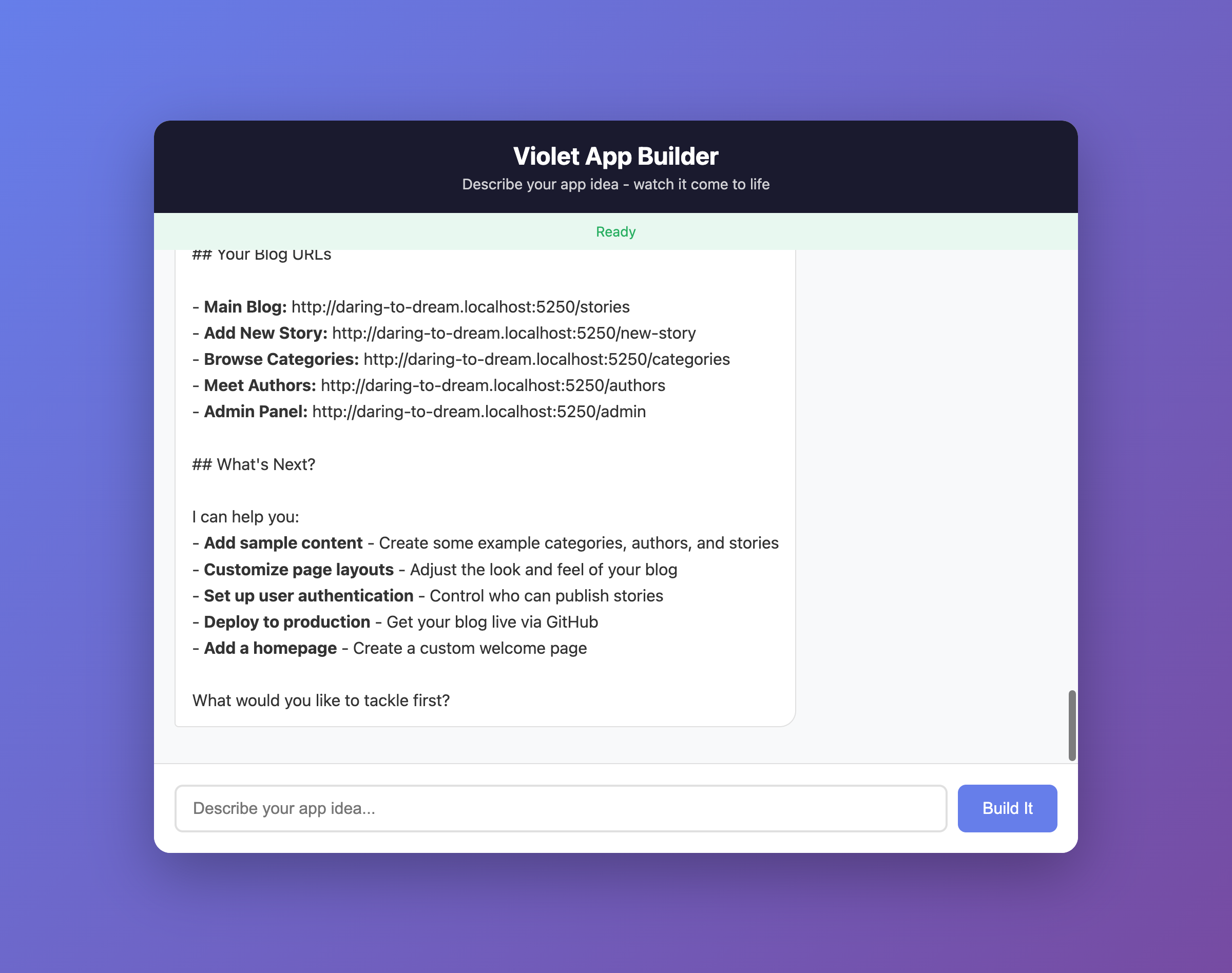

Screenshot: Final Result

Final Result

Recent Changes (INC-20251208-003 Remediation)

Database persistence fixes:

  • Added DISABLE_SPRING=1 to prevent fork() issues on macOS
  • Two-step create + verify pattern for all database operations
  • DB health check at agent startup
  • Integration tests for verification

Test Plan

  • E2E tests for JTBD flow (11+ tests passing)
  • test_diagnose_requirements_parses_pet_adoption_app
  • test_generate_specification_creates_valid_yaml
  • test_create_subdomain_validates_name
  • test_create_namespace_validates_properties
  • test_create_page_requires_namespace_for_typed_pages
  • test_trigger_deployment_local_needs_no_repo
  • test_trigger_deployment_heroku_requires_repo
  • test_full_jtbd_flow_pet_adoption (integration)
  • test_blog_app_spec
  • test_inventory_app_spec
  • Subdomain validation edge cases
  • Database verification tests (INC-20251208-003)

Run tests: cd violet-app-agent/apps/agent && pytest tests/ -v

Related

Closes #1715, #1716, #1717, #1720, #1721, #1722

🤖 Generated with Claude Code

Jai Bhagat and others added 2 commits December 8, 2025 20:11
@claude
feat(agent): add Web UI Agent for natural language app deployment
ccee53d
Implements a LangGraph-based AI agent that allows users to describe their app
idea in natural language and generates working Violet Rails apps with GitHub
deployment.

Architecture follows Deep Agent principles (DIAGNOSE, MULTI-EXPERT,
ARTIFACT-FIRST, DOMAIN-NATIVE):

Tools:
- diagnose_requirements: Analyze app descriptions and identify entities
- generate_specification: Create YAML specs for app structure
- create_subdomain: Provision tenant subdomains via API
- create_namespace: Create API namespaces with properties
- create_page: Generate CMS pages with Liquid templates
- trigger_deployment: Handle local/GitHub/Heroku deployments

Subagents:
- Architect: App structure and data modeling (DHH-style Rails)
- CMS Designer: Page layout and Liquid template design
- Deployer: GitHub and deployment orchestration
- Security: Input validation and security review

Includes E2E tests for core JTBD: "describe app idea → deployed app"
11 tests covering diagnostic, specification, validation, and deployment flows.

Closes #1715

🤖 Generated with [Claude Code](https://claude.com/claude-code)

Co-Authored-By: Claude Opus 4.5 <noreply@anthropic.com>
@claude
fix(agent): use Rails runner pattern for tool implementations
a022f10
Refactors the Violet App Agent tools to use direct Rails model access
via `bin/rails runner` instead of non-existent API endpoints. This is
the DHH-approved pattern for direct model manipulation.

Key changes:
- agent.py: Fixed deepagents 0.3.0 API compatibility by using
  ChatAnthropic model object instead of string
- Added rails_runner.py: Core implementation for subprocess-based
  Rails model access
- Refactored subdomain.py, namespace.py, cms.py: Replaced httpx API
  calls with rails_runner functions
- Added langgraph.json: Local development configuration
- Added docs/README.md: Required for package installation

Tested E2E via Playwright:
- create_subdomain: pr1719-test subdomain created
- create_namespace: Task namespace with 4 properties
- create_page: Task Manager Home page at /home

🤖 Generated with [Claude Code](https://claude.com/claude-code)

Co-Authored-By: Claude Opus 4.5 <noreply@anthropic.com>
@ChaiWithJai ChaiWithJai mentioned this pull request Dec 9, 2025
Open
4 tasks
Jai Bhagat and others added 3 commits December 8, 2025 22:24
@claude
feat(agent): add Plan/Act/Verify UX enhancements and E2E test suite
1c43f54
Implements RFC-001 Plan Mode UX for the Violet App Agent with streaming UI
that provides real-time feedback during app building.

UX Enhancements:
- chat_ui_streaming.html: Enhanced streaming UI with Plan/Act/Verify phases
- detectBuildPhase(): Detects plan-preview vs verify-complete phases
- renderCapabilityCard(): Shows "What I Can Build" vs "What You'll Add"
- renderPlanPreview(): Displays YAML spec with Approve/Adjust buttons
- renderBuildProgress(): Shows numbered progress steps during build

New Subagent:
- content_researcher.py: Bridges infrastructure and content creation
  - research_reference_site: Extract style patterns from reference sites
  - extract_writing_style: Create style guides from author references
  - generate_content_brief: Produce actionable content briefs

E2E Test Suite:
- 22 semantically-labeled screenshots covering full UX flow
- trace_summary.md: Documents tool execution sequence (18 tool results)
- Verified Plan/Act/Verify pattern with real blog creation

RFC Documentation:
- RFC-001-plan-mode-ux.md: Complete specification for Plan Mode UX
- Defines capability separation (CAN_BUILD vs YOULL_ADD)
- Outlines streaming progress events and upsell path

Related: #1720, #1721, #1722, #1723

🤖 Generated with [Claude Code](https://claude.com/claude-code)

Co-Authored-By: Claude Opus 4.5 <noreply@anthropic.com>
@claude
fix(agent): database verification + Act/Verify UI enhancements
591d1ad
Incident Response (INC-20251208-003):
- Add DISABLE_SPRING=1 to prevent macOS fork() issues
- Add OBJC_DISABLE_INITIALIZE_FORK_SAFETY=YES for subprocess safety
- Implement two-step create + verify pattern for all Rails operations
- Add check_db_health() for startup connectivity validation
- Add startup health check to agent.py module load

Act Phase UI Enhancements:
- Implement build tracker with [1/N] numbered step progress
- Dark themed build-tracker div with animated pulse icons
- Tool name mapping for human-readable step descriptions
- Real-time progress updates during build phase

Verify Phase UI Enhancements:
- Success summary with green gradient design
- List of verified resources with checkmarks
- Clickable App URL and Admin Panel links
- "What You'll Add Next" guidance section

Plan Approval UI:
- Styled three-button approval group
- "Approve & Build" (green), "Modify" (orange), "Start Over" (grey)
- State machine transitions (idle → plan → act → verify)

Testing:
- TestDatabaseVerification class with 5 integration tests
- Verify DISABLE_SPRING in environment
- Confirm verified:true in all create responses

Related: INC-20251208-003

🤖 Generated with [Claude Code](https://claude.com/claude-code)

Co-Authored-By: Claude Opus 4.5 <noreply@anthropic.com>
@claude
docs(agent): add E2E workflow screenshots for PR walkthrough
624f6bf
Screenshots documenting the Plan/Act/Verify workflow:
- 01-welcome-screen.png: Initial UI with capability cards
- 02-user-input.png: Natural language app description
- 03-building-started.png: Agent clarifying questions
- 04-plan-preview-spec.png: Generated specification review
- 05-act-phase-building.png: Tool execution starting
- 06-act-phase-progress.png: Build progress with checkmarks
- 07-act-phase-pages.png: Page creation in progress

🤖 Generated with [Claude Code](https://claude.com/claude-code)

Co-Authored-By: Claude Opus 4.5 <noreply@anthropic.com>
