Continuum

A knowledge graph for capturing engineering decisions from human-AI coding sessions

Research project exploring how decisions are made, communicated, and preserved during AI-assisted software development.

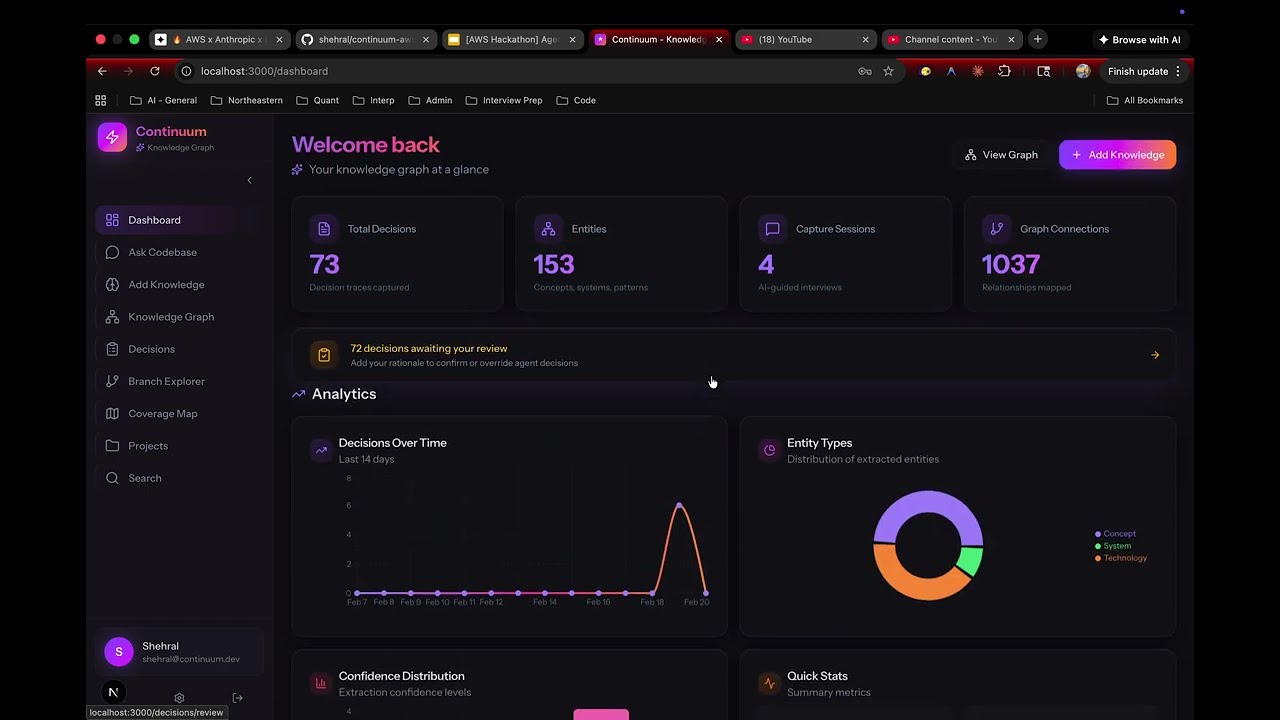

Demo

Overview

Continuum automatically extracts decision traces from AI-assisted coding conversations and visualizes them as an interactive knowledge graph. It transforms ephemeral human-AI collaboration into structured, searchable knowledge.

Project Lead: Ali Shehral (shehral.m@northeastern.edu) | HCAI Lab, Northeastern University

Features

Knowledge Capture

Passive Extraction -- Automatically extract decisions from Claude Code conversation logs with file watching for continuous monitoring
AI-Guided Interviews -- 7-stage interview agent with stage-specific prompts (opening, trigger, context, options, decision, rationale, summary)
Real-time Capture -- WebSocket streaming for live interview sessions
Bulk Import/Export -- JSON import (up to 500 decisions), export with source filtering

Knowledge Graph

Interactive Visualization -- React Flow graph with custom decision and entity node types, minimap, zoom controls, keyboard navigation
Entity Resolution -- 8-stage deduplication pipeline (cache, exact match, canonical lookup, alias search, fulltext prefix, fuzzy match, embedding similarity, create new) with ~530 canonical mappings
Graph Analysis -- Batch relationship detection (SUPERSEDES, CONTRADICTS), circular dependency checks, orphan detection, entity deduplication
Entity Evolution -- Timeline tracking and decision evolution chains

Search & Discovery

Hybrid Search -- Combined lexical (fulltext) and semantic (vector) search with configurable score fusion
GraphRAG -- Graph-aware retrieval-augmented generation with SSE streaming, combining hybrid search + knowledge graph traversal + LLM synthesis
Advanced Search UI -- Mode selector (hybrid/lexical/semantic), confidence slider, matched field highlights, keyboard shortcuts (Cmd+K)
Graph Expansion -- Opt-in subgraph expansion via K-hop traversal on search results

Agent Integration

MCP Server -- 5 tools for AI agent access: continuum_check (prior art), continuum_remember (record decisions), continuum_search (hybrid query), continuum_context (entity details), continuum_summary (project overview)
Multi-Provider LLM -- Pluggable provider system supporting NVIDIA NIM and Amazon Bedrock with runtime switching and automatic failover

Project Management

Project Organization -- Group decisions by project with stats, reset, and deletion
Decision Review Queue -- Confidence-ordered review with agree/disagree voting and human rationale
Dashboard Analytics -- Stats cards, source breakdowns, recent decision summaries
Timeline View -- Chronological decision grouping by month/year

Architecture

                     +------------------+
                     |   Next.js 16     |
                     |   (React 19)     |
                     |   Port 3000      |
                     +--------+---------+
                              |
                              | REST / SSE / WebSocket
                              |
                     +--------+---------+
                     |    FastAPI        |
                     |    Port 8000     |
                     +--+-----+-----+--+
                        |     |     |
              +---------+  +--+--+  +----------+
              |            |     |             |
     +--------+---+  +----+----+  +----+------+
     | PostgreSQL  |  |  Neo4j  |  |   Redis   |
     | (Relational |  | (Graph  |  | (Cache,   |
     |  data, auth)|  |  store) |  |  rate     |
     | Port 5432   |  | 7474/   |  |  limits)  |
     |             |  | 7687    |  | Port 6379 |
     +-------------+  +---------+  +-----------+

Tech Stack

Layer	Technologies
Frontend	Next.js 16, React 19, TailwindCSS 4, shadcn/ui, Framer Motion
Backend	FastAPI, SQLAlchemy (async), Pydantic v2, Python 3.12+
Databases	PostgreSQL 18, Neo4j 2025.01, Redis 7.4
AI	NVIDIA NIM API (Llama 3.3 Nemotron, NV-EmbedQA), Amazon Bedrock (Claude)
Auth	Auth.js v5 (next-auth), JWT with per-user isolation
Runtime	Node.js 24 LTS, pnpm

Project Structure

continuum/
├── apps/
│   ├── web/                    # Next.js frontend
│   │   ├── app/                # App Router pages
│   │   │   ├── dashboard/      # Analytics dashboard
│   │   │   ├── decisions/      # Decision list and detail views
│   │   │   ├── graph/          # Interactive knowledge graph
│   │   │   ├── search/         # Hybrid search interface
│   │   │   ├── ask/            # GraphRAG chat interface
│   │   │   ├── capture/        # Decision capture (interview + import)
│   │   │   ├── projects/       # Project management
│   │   │   └── settings/       # User settings
│   │   ├── components/         # React components
│   │   │   ├── ui/             # shadcn/ui primitives
│   │   │   ├── graph/          # Graph visualization components
│   │   │   ├── ask/            # Chat UI components
│   │   │   ├── capture/        # Capture flow components
│   │   │   └── layout/         # App shell, sidebar
│   │   └── lib/                # Utilities (api client, helpers)
│   │
│   └── api/                    # FastAPI backend
│       ├── routers/            # API endpoints
│       │   ├── ask.py          # GraphRAG SSE streaming
│       │   ├── search.py       # Hybrid search with graph expansion
│       │   ├── decisions.py    # CRUD for decisions
│       │   ├── graph.py        # Graph operations
│       │   ├── capture.py      # WebSocket capture
│       │   ├── agent.py        # MCP server tools
│       │   └── ...
│       ├── services/           # Business logic
│       │   ├── graph_rag.py    # GraphRAG pipeline
│       │   ├── llm.py          # LLM client (provider-agnostic)
│       │   ├── llm_providers/  # NVIDIA NIM + Amazon Bedrock
│       │   ├── embeddings.py   # NVIDIA NV-EmbedQA client
│       │   ├── extractor.py    # Decision extraction from logs
│       │   ├── entity_resolver.py # 8-stage entity deduplication
│       │   └── validator.py    # Graph validation
│       ├── models/             # SQLAlchemy + Pydantic schemas
│       ├── db/                 # Database connections
│       ├── config.py           # All settings with env var defaults
│       └── tests/              # Test suite
│
├── docker-compose.yml          # PostgreSQL, Neo4j, Redis
├── pnpm-workspace.yaml         # Monorepo config
└── docs/                       # Design docs and plans

Getting Started

Prerequisites

Node.js 24 LTS and pnpm (package manager)
Python 3.12+
Docker and Docker Compose (for databases)
NVIDIA NIM API key (from build.nvidia.com) or AWS credentials for Bedrock

1. Clone and configure

git clone https://github.com/shehral/continuum.git
cd continuum

# Copy environment template and fill in your keys
cp .env.example .env

Edit .env with your credentials. At minimum, set:

NVIDIA_API_KEY and NVIDIA_EMBEDDING_API_KEY (or configure Bedrock)
POSTGRES_PASSWORD, NEO4J_PASSWORD, REDIS_PASSWORD (generate secure passwords)
SECRET_KEY and NEXTAUTH_SECRET (must match, generate with python3 -c "import secrets; print(secrets.token_urlsafe(32))")
Update the connection strings (DATABASE_URL, REDIS_URL) with your passwords

2. Start infrastructure

docker-compose up -d

This starts PostgreSQL (5432), Neo4j (7474/7687), and Redis (6379), all bound to localhost only.

3. Install dependencies

# Frontend
pnpm install

# Backend
cd apps/api
python3 -m venv .venv
.venv/bin/pip install -e ".[dev]"
cd ../..

4. Run database migrations

pnpm db:migrate

5. Start development servers

pnpm dev        # Both frontend (3000) + backend (8000)
# or individually:
pnpm dev:web    # Frontend at http://localhost:3000
pnpm dev:api    # Backend at http://localhost:8000

6. Create an account

Navigate to http://localhost:3000/register to create your user account.

Available Scripts

pnpm dev          # Start frontend + backend in parallel
pnpm dev:web      # Frontend only
pnpm dev:api      # Backend only (uvicorn --reload)
pnpm build        # Build frontend
pnpm typecheck    # TypeScript type checking
pnpm lint         # ESLint
pnpm test         # Run all tests
pnpm test:api     # Backend tests (pytest)
pnpm db:migrate   # Run Alembic migrations
pnpm db:reset     # Reset database
pnpm docker:up    # Start Docker services
pnpm docker:down  # Stop Docker services

API Overview

All endpoints are prefixed with /api. Authentication is via JWT (Bearer token).

Endpoint	Method	Description
`/api/ask`	GET (SSE)	GraphRAG Q&A with streaming responses
`/api/search`	GET	Hybrid search with optional graph expansion
`/api/decisions`	GET/POST	CRUD for decision traces
`/api/graph/*`	GET/POST	Graph operations and statistics
`/api/capture/ws`	WebSocket	Real-time interview capture
`/api/agent/*`	GET/POST	MCP server tools for AI agents
`/api/projects`	GET/POST	Project management
`/api/auth/*`	POST	Registration and login

GraphRAG (`/api/ask`)

The Ask endpoint uses a hybrid retrieval pipeline:

Parallel retrieval -- Fulltext search (Neo4j Lucene indexes) + vector search (NVIDIA NV-EmbedQA embeddings) run concurrently
Score fusion -- Reciprocal Rank Fusion (RRF) combines rankings without normalizing different score scales
Subgraph expansion -- Top-K seed nodes are expanded via K-hop Cypher traversal (apoc.path.subgraphAll)
LLM synthesis -- Serialized subgraph context is streamed to the LLM for grounded answer generation

Query params: q (required), depth (1-3, default 2), top_k (1-10, default 5)

Response: Server-Sent Events with context, token, done, and error event types.

Environment Variables

Copy .env.example to .env. Key variables:

Variable	Required	Description
`NVIDIA_API_KEY`	Yes (if nvidia)	NVIDIA NIM API key
`NVIDIA_EMBEDDING_API_KEY`	Yes (if nvidia)	Separate key for embedding model
`LLM_PROVIDER`	No	`nvidia` (default) or `bedrock`
`DATABASE_URL`	Yes	PostgreSQL async connection string
`NEO4J_URI` / `NEO4J_PASSWORD`	Yes	Neo4j connection
`REDIS_URL`	Yes	Redis connection with password
`SECRET_KEY`	Yes	JWT signing key (must match `NEXTAUTH_SECRET`)
`NEXTAUTH_SECRET`	Yes	Auth.js secret (must match `SECRET_KEY`)

Testing

# Backend unit tests
cd apps/api && .venv/bin/pytest tests/ -v

# Frontend type checking
cd apps/web && pnpm typecheck

# Lint
pnpm lint

# Load testing (requires k6)
cd apps/api/tests/load && k6 run load_test.js

Contributing

We welcome contributions. See CONTRIBUTING.md for guidelines.

Quick summary:

Fork the repository
Create a feature branch (feat/your-feature)
Make your changes with tests
Run pnpm lint && pnpm typecheck && cd apps/api && .venv/bin/pytest tests/ -v
Open a pull request

Third-Party Services

NVIDIA NIM API -- Subject to NVIDIA Terms of Service
Amazon Bedrock -- Subject to AWS Terms of Service
Claude Code conversation format from Anthropic

License

This software is provided for academic review and research collaboration purposes only.

For collaboration inquiries, contact Ali Shehral at shehral.m@northeastern.edu
