torch-sla

PyTorch Sparse Linear Algebra - A differentiable sparse linear equation solver library with multiple backends.

arXiv GitHub Documentation PyPI version License: Apache 2.0 Python 3.8+

📖 Introduction • 🔧 Installation • 📚 API Reference • 💡 Examples • 📊 Benchmarks

Features

  • 🔥 Differentiable: Full gradient support through torch.autograd
  • 🚀 Multiple Backends: SciPy, Eigen (CPU), CuPy, cuDSS, PyTorch-native (CUDA)
  • 📦 Batched Operations: Support for batched sparse tensors [..., M, N, ...]
  • 🎯 Property Detection: Auto-detect symmetry and positive definiteness
  • ⚡ High Performance: Auto-selects best solver based on device, dtype, and problem size
  • 🌐 Distributed: Domain decomposition with halo exchange (CFD/FEM style)
  • 🔧 Easy to Use: SparseTensor class with solve, norm, eigs methods
  • 🧮 Nonlinear Solve: Adjoint-based Newton/Anderson solvers with implicit differentiation

Installation

# Basic installation
pip install torch-sla

# GPU users: choose one or both CUDA 12+ backends
pip install torch-sla[cupy]    # + CuPy backend
pip install torch-sla[cudss]   # + cuDSS backend (fastest direct solver on GPU)

# Full installation with all runtime backends (does not include dev/docs)
pip install torch-sla[all]

# From source (for development)
git clone https://github.com/walkerchi/torch-sla.git
cd torch-sla
pip install -e ".[dev]"     # development tools (pytest, black, isort, mypy)
pip install -e ".[docs]"    # documentation tools (sphinx, furo)

Note: The core install (pip install torch-sla) pulls in torch, numpy, scipy, and ninja — enough to run CPU solvers out of the box. torch-sla[all] additionally bundles pytest, nvmath-python, and cupy-cuda12x, but does not include [dev] or [docs] — install those separately if needed.

After installation, you can inspect which backends are available on your machine:

import torch_sla
torch_sla.show_backends()

Quick Start

Basic Solve

import torch
from torch_sla import SparseTensor

# Create sparse matrix from dense (for small matrices)
dense = torch.tensor([[4.0, -1.0,  0.0],
                      [-1.0, 4.0, -1.0],
                      [ 0.0, -1.0, 4.0]], dtype=torch.float64)
A = SparseTensor.from_dense(dense)

# Solve Ax = b
b = torch.tensor([1.0, 2.0, 3.0], dtype=torch.float64)
x = A.solve(b)

# Specify backend and method
x = A.solve(b, backend='scipy', method='lu')

CUDA Solve

# Move to CUDA
A_cuda = A.cuda()
b_cuda = b.cuda()

# Auto-selects cudss+cholesky (best for CUDA)
x = A_cuda.solve(b_cuda)

# Or explicitly specify
x = A_cuda.solve(b_cuda, backend='cudss', method='cholesky')

# For very large problems (DOF > 2M), use iterative
x = A_cuda.solve(b_cuda, backend='pytorch', method='cg')

Recommended Backends

Based on benchmarks on 2D Poisson equations (tested up to 400M DOF multi-GPU):

Problem Size CPU CUDA Notes
Small (< 100K DOF) scipy+lu cudss+cholesky Direct solvers, machine precision
Medium (100K - 2M DOF) scipy+lu cudss+cholesky cuDSS is fastest on GPU
Large (2M - 169M DOF) N/A pytorch+cg Iterative only, ~1e-6 precision
Very Large (> 169M DOF) N/A DSparseMatrix multi-GPU Multi-GPU domain decomposition

Key Insights

  1. PyTorch CG+Jacobi scales to 169M+ DOF on single GPU with near-linear O(n^1.1) complexity
  2. Multi-GPU scales to 400M+ DOF with DSparseMatrix domain decomposition (3x H200)
  3. Direct solvers limited to ~2M DOF due to memory (O(n^1.5) fill-in)
  4. Use float64 for best convergence with iterative solvers
  5. Trade-off: Direct = machine precision (~1e-14), Iterative = ~1e-6 but 100x faster

Backends and Methods

Available Backends

Backend Device Description Recommended For
scipy CPU SciPy (LU/UMFPACK) CPU default - fast + machine precision
eigen CPU Eigen C++ (CG, BiCGStab) Alternative CPU iterative
cupy CUDA CuPy (LU, CG, GMRES) GPU direct + iterative via cupyx.scipy
cudss CUDA NVIDIA cuDSS (LU, Cholesky, LDLT) CUDA default - fastest direct
pytorch CUDA PyTorch-native (CG, BiCGStab) Very large problems (> 2M DOF)

Solver Methods

Method Backends Best For Precision
lu scipy, cupy, cudss General matrices (direct) Machine precision
cholesky cudss SPD matrices (fastest) Machine precision
ldlt cudss Symmetric matrices Machine precision
umfpack scipy General matrices (requires scikit-umfpack) Machine precision
cg scipy, eigen, cupy, pytorch SPD matrices (iterative) ~1e-6 to 1e-7
bicgstab scipy, eigen, pytorch General (iterative) ~1e-6 to 1e-7
gmres scipy, cupy General (iterative) ~1e-6 to 1e-7

Batched Solve

Two batched solving modes are supported:

Batched matrices — same sparsity structure, different values per batch:

batch_size = 4
val_batch = val.unsqueeze(0).expand(batch_size, -1).clone()

# Create batched SparseTensor [B, M, N]
A = SparseTensor(val_batch, row, col, (batch_size, 3, 3))

b = torch.randn(batch_size, 3, dtype=torch.float64)
x = A.solve(b)  # Shape: [batch_size, 3]

Multiple right-hand sides — single matrix, multiple RHS columns (factorized once for direct solvers):

A = SparseTensor(val, row, col, (3, 3))
b = torch.randn(3, 5, dtype=torch.float64)  # 5 right-hand sides
x = A.solve(b)  # Shape: [3, 5]

Distributed Computing (DSparseMatrix)

For large-scale problems across multiple GPUs, use domain decomposition:

import torch.distributed as dist
from torch_sla.distributed import DSparseMatrix, partition_simple

# Initialize distributed (each process runs this)
dist.init_process_group(backend='nccl')  # or 'gloo' for CPU
rank = dist.get_rank()
world_size = dist.get_world_size()

# Each rank creates its local partition
A = DSparseMatrix.from_global(
    val, row, col, shape,
    num_partitions=world_size,
    my_partition=rank,
    partition_ids=partition_simple(n, world_size),
    device=f'cuda:{rank}'
)

# Distributed CG solve (default: distributed=True)
x_owned = A.solve(b_owned, atol=1e-10)

# Distributed LOBPCG eigenvalues
eigenvalues, eigenvectors_owned = A.eigsh(k=5)

# Local subdomain solve (no global communication)
x_local = A.solve(b_owned, distributed=False)
# Run with 4 GPUs
torchrun --standalone --nproc_per_node=4 your_script.py

Gradient Support

All operations support automatic differentiation:

val = val.requires_grad_(True)
b = b.requires_grad_(True)

x = A.solve(b)
loss = x.sum()
loss.backward()

print(val.grad)  # Gradient w.r.t. matrix values
print(b.grad)    # Gradient w.r.t. RHS

Gradient Support Summary

SparseTensor

Operation CPU CUDA Notes
solve() ✓ ✓ Adjoint method, O(1) graph nodes
det() ✓ ✓ Adjoint method, ∂det/∂A = det(A)·(A⁻¹)ᵀ
eigsh() / eigs() ✓ ✓ Adjoint method, O(1) graph nodes
svd() ✓ ✓ Power iteration, differentiable
nonlinear_solve() ✓ ✓ Adjoint, params only
@ (A @ x, SpMV) ✓ ✓ Standard autograd
@ (A @ B, SpSpM) ✓ ✓ Sparse gradients
+, -, * ✓ ✓ Element-wise ops
T() (transpose) ✓ ✓ View-like, gradients flow through
norm(), sum(), mean() ✓ ✓ Standard autograd
to_dense() ✓ ✓ Standard autograd

DSparseTensor (Multi-GPU)

Operation CPU (Gloo) CUDA (NCCL) Notes
matvec() ✓ ✓ Halo exchange + local SpMV
solve() ✓ ✓ Distributed CG (default distributed=True)
det() ✓ ✓ Gathers all partitions, then computes (with warning)
eigsh() ✓ ✓ Distributed LOBPCG
halo_exchange() ✓ ✓ P2P communication with neighbors

Communication per iteration:

  • solve(): Halo exchange + 2 all_reduce
  • eigsh(): Halo exchange + O(k²) all_reduce

Note: DSparseMatrix uses true distributed algorithms that only require distributed matvec + global reductions. No data gather is needed for core operations.

Persistence (I/O)

Save and load sparse tensors using safetensors format:

from torch_sla import SparseTensor, DSparseTensor, DSparseMatrix
from torch_sla import load_sparse_as_partition, load_distributed_as_sparse

# Save SparseTensor
A = SparseTensor(val, row, col, shape)
A.save("matrix.safetensors")

# Load SparseTensor
A = SparseTensor.load("matrix.safetensors", device="cuda")

# Save as partitioned (for distributed loading)
A.save_distributed("matrix_dist", num_partitions=4)

# Each rank loads only its partition
rank = dist.get_rank()
partition = DSparseMatrix.load("matrix_dist", rank, world_size)

# Load partitioned data as single SparseTensor
A = load_distributed_as_sparse("matrix_dist")

# Load single file as partition (each rank reads full file, keeps its part)
partition = load_sparse_as_partition("matrix.safetensors", rank, world_size)

Cross-Format Conversion

Save Format Load as SparseTensor Load as DSparseMatrix
A.save("file.safetensors") SparseTensor.load("file") load_sparse_as_partition("file", rank, world_size)
A.save_distributed("dir", n) load_distributed_as_sparse("dir") DSparseMatrix.load("dir", rank, world_size)
D.save("dir") load_distributed_as_sparse("dir") DSparseTensor.load("dir")

Nonlinear Solve (Adjoint Method)

Solve nonlinear equations F(u, A, θ) = 0 with automatic differentiation using the adjoint method:

from torch_sla import SparseTensor

# Create sparse matrix (e.g., FEM stiffness matrix)
A = SparseTensor(val, row, col, (n, n))

# Define nonlinear residual: A @ u + u² = f
def residual(u, A, f):
    return A @ u + u**2 - f

# Parameters with gradients
f = torch.randn(n, requires_grad=True)
u0 = torch.zeros(n)

# Solve with Newton-Raphson
u = A.nonlinear_solve(residual, u0, f, method='newton')

# Gradients flow via adjoint method
loss = u.sum()
loss.backward()
print(f.grad)  # ∂L/∂f via implicit differentiation

Methods:

  • newton: Newton-Raphson with line search (default, fast convergence)
  • picard: Fixed-point iteration (simple, slow)
  • anderson: Anderson acceleration (memory efficient)

Key Features:

  • Memory-efficient adjoint method (no Jacobian storage)
  • Jacobian-free Newton-Krylov via autograd
  • Multiple parameters with mixed requires_grad
  • Seamless integration with SparseTensor class

Matrix Operations

# Create sparse matrix from dense (for small matrices)
dense = torch.tensor([[4.0, -1.0,  0.0],
                      [-1.0, 4.0, -1.0],
                      [ 0.0, -1.0, 4.0]], dtype=torch.float64)
A = SparseTensor.from_dense(dense)

# Norms
norm = A.norm('fro')  # Frobenius norm

# Determinant (with gradient support)
det = A.det()  # ∂det/∂A = det(A)·(A⁻¹)ᵀ
# Note: CPU is faster for sparse matrices (CUDA uses dense conversion)
# For CUDA tensors: A_cuda.cpu().det() is ~3x faster than A_cuda.det()

# Eigenvalues
eigenvalues, eigenvectors = A.eigsh(k=6)

# SVD
U, S, Vt = A.svd(k=10)

# Matrix-vector product
y = A @ x

# LU factorization for repeated solves
lu = A.lu()
x = lu.solve(b)

Benchmark Results

2D Poisson equation (5-point stencil), NVIDIA H200 (140GB), float64:

Performance Comparison

Solver Performance

DOF SciPy LU cuDSS Cholesky PyTorch CG+Jacobi
10K 24ms 128ms 20ms
100K 29ms 630ms 43ms
1M 19.4s 7.3s 190ms
2M 52.9s 15.6s 418ms
16M - - 7.3s
81M - - 75.9s
169M - - 224s

Memory Usage

Memory Usage

Method Memory Scaling Notes
SciPy LU O(n^1.5) fill-in CPU only, limited to ~2M DOF
cuDSS Cholesky O(n^1.5) fill-in GPU, limited to ~2M DOF
PyTorch CG+Jacobi O(n) ~443 bytes/DOF Scales to 169M+ DOF

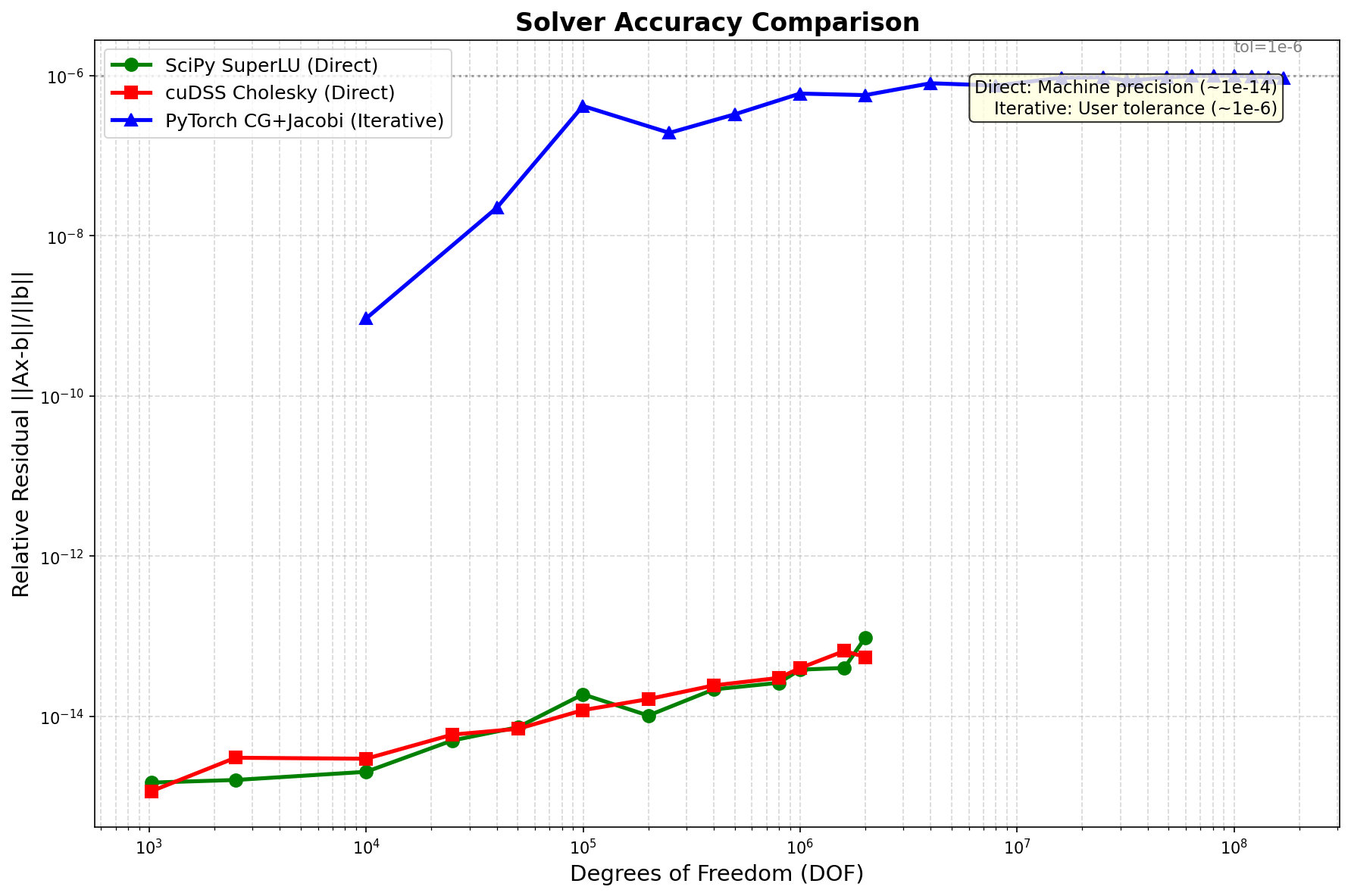

Accuracy

Accuracy

Method Precision Notes
Direct solvers ~1e-14 Machine precision
Iterative (tol=1e-6) ~1e-6 User-configurable tolerance

Key Findings

  1. Iterative solver scales to 169M DOF with O(n^1.1) time complexity
  2. Direct solvers limited to ~2M DOF due to O(n^1.5~2) memory fill-in
  3. PyTorch CG+Jacobi is 100x faster than direct solvers at 2M DOF
  4. Memory efficient: 443 bytes/DOF (vs theoretical minimum 144 bytes/DOF)
  5. Trade-off: Direct solvers achieve machine precision, iterative achieves ~1e-6

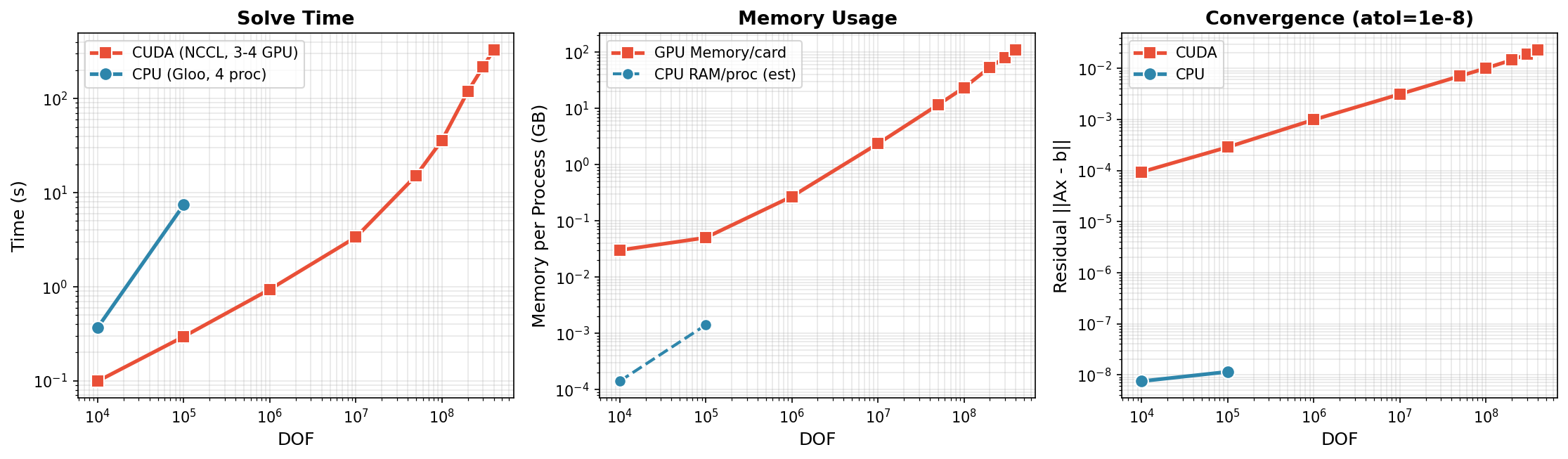

Distributed Solve (Multi-GPU)

3-4x NVIDIA H200 GPUs with NCCL backend:

Distributed Benchmark

CUDA (3-4 GPU, NCCL) - Scales to 400M DOF:

DOF Time Memory/GPU Notes
10K 0.1s 0.03 GB 4 GPU
100K 0.3s 0.05 GB 4 GPU
1M 0.9s 0.27 GB 4 GPU
10M 3.4s 2.35 GB 4 GPU
50M 15.2s 11.6 GB 4 GPU
100M 36.1s 23.3 GB 4 GPU
200M 119.8s 53.7 GB 3 GPU
300M 217.4s 80.5 GB 3 GPU
400M 330.9s 110.3 GB 3 GPU

Key Findings:

  • Scales to 400M DOF on 3x H200 GPUs (110 GB/GPU)
  • Near-linear scaling: 10M→400M is 40x DOF, ~100x time
  • Memory efficient: ~275 bytes/DOF per GPU
  • 500M DOF requires >140GB/GPU, exceeds H200 capacity
# Run distributed solve with 4 GPUs
torchrun --standalone --nproc_per_node=4 examples/distributed/distributed_solve.py

API Reference

Core Classes

  • SparseTensor - Wrapper with batched solve, norm, eigs, svd methods
  • SparseTensorList - List of SparseTensors with batched operations and isolated graph priors
  • DSparseTensor - Distributed sparse tensor with halo exchange
  • DSparseTensorList - Distributed list for batched graph operations across GPUs
  • LUFactorization - LU factorization for repeated solves

Class Hierarchy

Sparse Tensor Class Hierarchy

Single Matrix List (isolated graph priors)
Local SparseTensor SparseTensorList
Distributed DSparseTensor DSparseTensorList

Conversions:

  • Horizontal: to_block_diagonal() / to_connected_components() / to_list()
  • Vertical: partition() / gather()

Main Functions

  • spsolve(val, row, col, shape, b, backend='auto', method='auto') - Solve Ax=b
  • spsolve_coo(A_sparse, b, **kwargs) - Solve using PyTorch sparse tensor
  • nonlinear_solve(residual_fn, u0, *params, method='newton') - Solve F(u,θ)=0 with adjoint gradients

Backend Utilities

  • get_available_backends() - List available backends
  • get_backend_methods(backend) - List methods for a backend
  • select_backend(device, n, dtype) - Auto-select backend
  • is_scipy_available(), is_cudss_available(), etc.

Performance Tips

  1. Use float64 for iterative solvers (better convergence)
  2. Use cholesky for SPD matrices (2x faster than LU)
  3. Use scipy+lu for CPU (all sizes)
  4. Use cudss+cholesky for CUDA (up to ~2M DOF)
  5. Use pytorch+cg for very large problems (> 2M DOF)
  6. Use cupy for GPU iterative solvers (CG, GMRES) or as a direct solver fallback
  7. Use LU factorization for repeated solves with same matrix
  8. Determinant computation:
    • Use CPU for sparse matrices - CUDA requires dense conversion (much slower)
    • For CUDA tensors, use .cpu().det().cuda() for better performance
    • Use float64 for numerical stability
    • Avoid for very large matrices (det values can overflow)
    • For distributed matrices, be aware of data gather overhead
    • Singular matrices may cause LU decomposition to fail

Requirements

  • Python >= 3.8
  • PyTorch >= 1.10.0
  • SciPy (recommended for CPU)
  • CUDA Toolkit (for GPU backends)
  • nvmath-python (optional, for cuDSS backend)
  • cupy-cuda12x (optional, for CuPy backend)

Performance Tips

Determinant Computation

# ❌ Slow for sparse matrices
det = A_cuda.det()  # 2.5 ms

# ✅ Fast - use CPU even for CUDA tensors
det = A_cuda.cpu().det()  # 1.3 ms (1.9x faster!)

Why? cuDSS doesn't expose sparse determinant, requiring O(n²) dense conversion. CPU sparse LU is O(nnz^1.5), much faster for sparse matrices.

Linear Solve

  • Small matrices (< 1000): Use CPU with SciPy backend
  • Large matrices (> 1000): Use CUDA with cuDSS backend
  • Iterative methods: Use method='cg' or method='bicgstab' for large systems

See benchmarks/README.md for detailed performance analysis.

Contributing

We welcome contributions! Please see CONTRIBUTING.md for:

  • Development workflow
  • Code conventions
  • Testing guidelines
  • Benchmark standards
  • Release process (push a vX.Y.Z tag → auto-publish to PyPI)

Quick conventions:

  • Benchmarks: benchmarks/benchmark_<feature>.py → results/benchmark_<feature>/
  • Examples: examples/<feature>.py
  • Tests: tests/test_<module>.py

See TODO.md for the development roadmap.

License

Apache License 2.0 - Copyright 2024-2026 Mingyuan Chi and Shizheng Wen. See LICENSE.

Citation

If you find this library useful, please cite our paper:

@article{chi2026torchsla,
  title={torch-sla: Differentiable Sparse Linear Algebra with Adjoint Solvers and Sparse Tensor Parallelism for PyTorch},
  author={Chi, Mingyuan and Wen, Shizheng},
  journal={arXiv preprint arXiv:2601.13994},
  year={2026},
  url={https://arxiv.org/abs/2601.13994}
}

About

torch sparse linear algebra library

www.torchsla.com/

Topics

distributed-computing cuda pytorch gpu-computing sparse-matrix differentiable-programming adjoint-method sparse-linear-algebra linear-solver

Resources

Readme

License

Apache-2.0 license

Contributing

Contributing
Activity
Custom properties

Stars

35 stars

Watchers

1 watching

Forks

1 fork
Report repository

Releases 5

Release v0.2.1 Latest
May 19, 2026
+ 4 releases

Packages





Contributors

Languages
