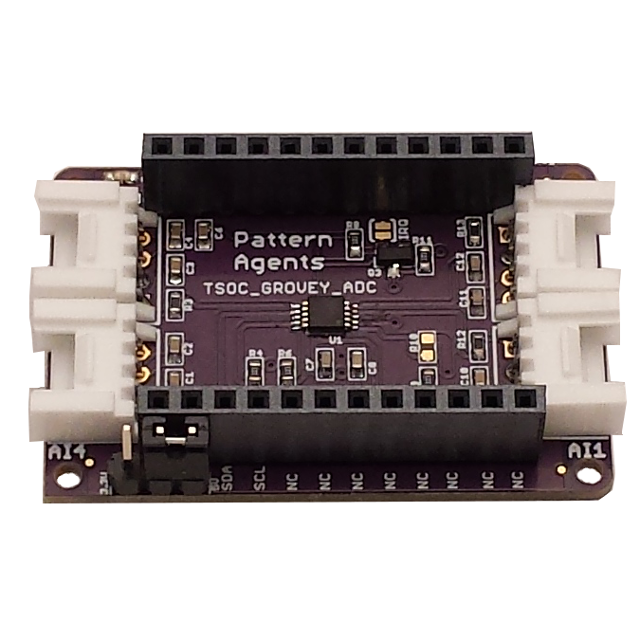

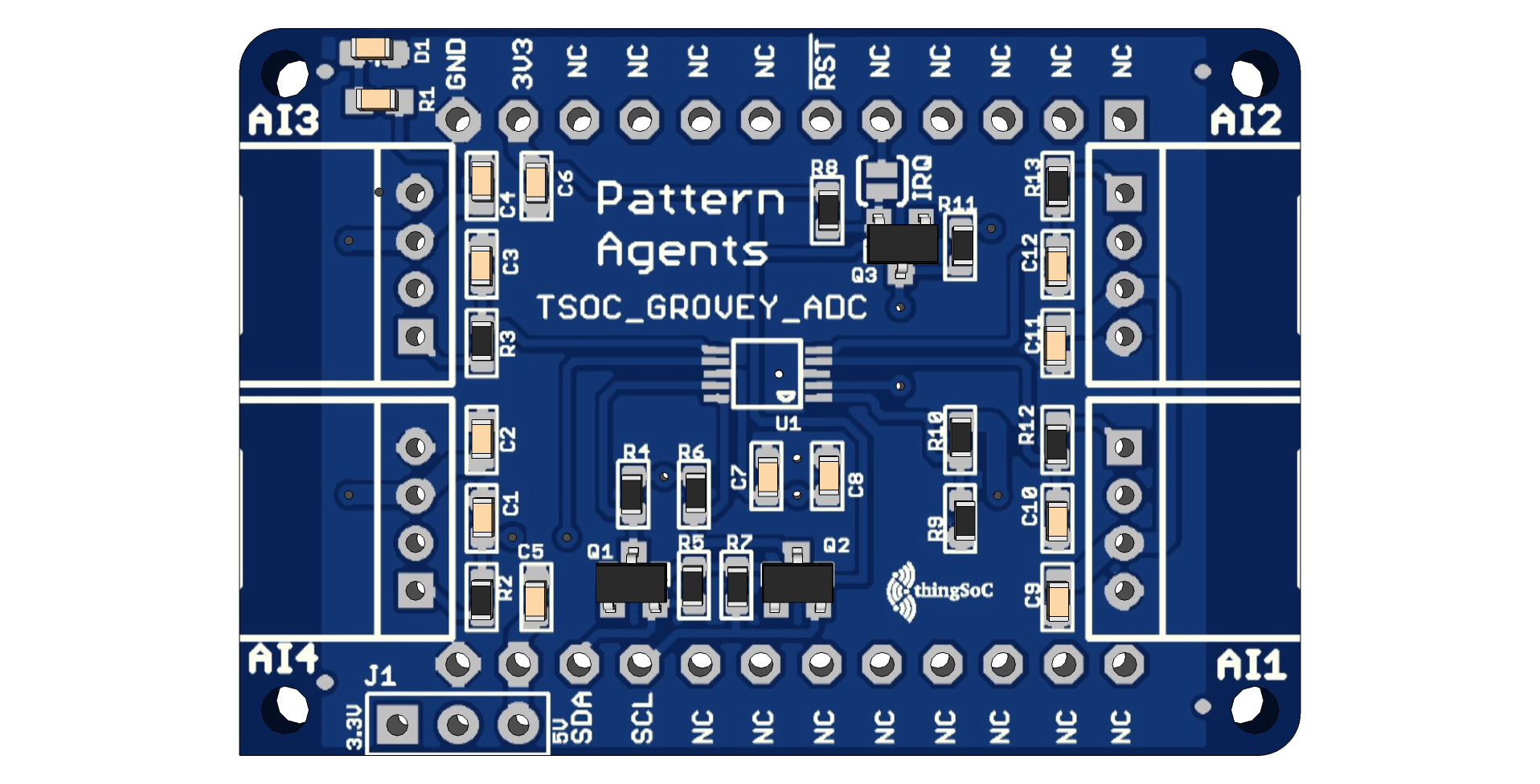

TSOC_GROVEY_ADC is a four(4) port Analog-to-Digital converter board, an Embedded Module for thingSoC.
The TSOC_GROVEY_ADC can operate at either 3.3V or 5V, and can also level translate 3.3V processor bus to 5V Analog peripherals when needed.
The TSOC_GROVEY_ADC allows you to connect thingSoC, Mikrobus, and/or Grove System Modules all at the same time, with any processor module. This gives you maximum flexiblity for sensor and actuator selection, and reuse. When populated with the ADS1115 device it provides 16 bit ADC conversion, and when populated with the ADS1015 device provides 12 bit ADC conversion.
The thingSoC "Grovey Series" was designed as "Everyday Electronics", a no-frills, low cost, approach to modular embedded product design. thingSoC boards are similar in size to most break-out-boards (BOBs), but feature a standardized stacking pinout, as well as an I2C metadata store (EEPROM) to indicate what peripherals are installed.
TSOC_GROVEY_ADC11/06/2016: Revision 1.0 - Initial Layout released to OSHpark
01/10/2017: Revison 2.0 - released to OSHpark
