fix(sim): load_scene keeps an exported robot registered, and names the robots/objects/cameras it dropped

[cagataycali]

load_scene replaces the live world with a fresh SimWorld, so every registered robot, object and camera was discarded — and the result said only Scene loaded from table.xml / Bodies: 3. Through the tool the caller is Robot("so101", mode="sim"), a facade named after the very arm this drops, and the loss surfaced two calls later as No robots registered in the simulation.

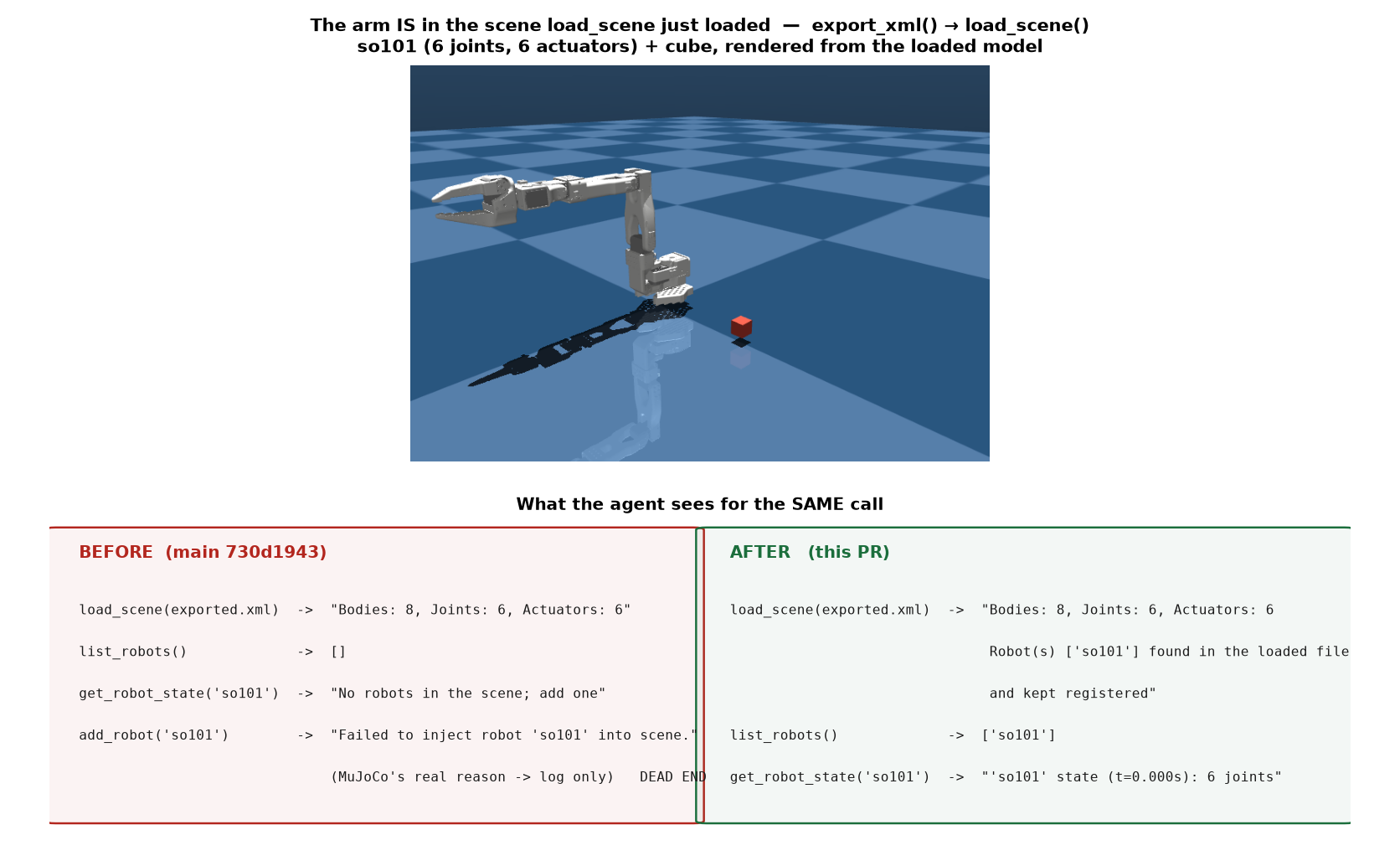

The render is the model load_scene just loaded: the arm is standing right there, 6 joints and 6 actuators — and list_robots() returned [].

export_xml → load_scene was a dead end, not just silent

Measured live on Thor, same call sequence in a worktree at main (730d194) and on this branch:

call	before	after
load_scene(exported.xml)	Bodies: 8, Joints: 6, Actuators: 6	+ Robot(s) ['so101'] found in the loaded file … kept registered
list_robots()	[]	['so101']
get_robot_state('so101')	No robots in the scene; add one	'so101' state (t=0.000s): 6 joints
add_robot('so101')	Failed to inject robot 'so101' into scene. — reason (repeated name 'so101/base_motor_holder…' in mesh) left in the log	Robot 'so101' already exists.

The arm was in the file, unregistered, and the one call that could recover it was refused with its reason swallowed. Now a robot whose namespaced joints all resolve in the loaded model is carried over (ids re-resolved, mesh back-reference re-pointed at the new world); anything actually discarded is named with the call that puts it back:

REPLACED the live world: dropped robot(s) ['so101'], object(s) ['cube'], camera(s) ['wrist'] - the loaded
file is now the whole scene (robot-scoped actions refuse with 'No robots registered' until then).
add_robot(name='so101', data_config='so101') puts the arm back INTO the loaded scene; add_object re-adds
objects; add_camera re-adds cameras.

plus a json block of carried_robots / dropped_* / still_in_loaded_file. A fresh world keeps the historical text byte-for-byte; the seeded free camera "default" is not reported as dropped.

Two defects found while verifying, fixed here

Probing the round trip with an object registered turned up dead-end advice of the same shape this PR removes for the robot:

	before	after
dropped object the loaded file still carries	add_object re-adds objects → Failed to inject 'cube': repeated name 'cube' in body	The loaded file already carries object(s) ['cube'] under the same name: … re-adding them is refused ('repeated name') - use a different name
robot carried, object dropped	kept registered - robot-scoped actions keep working and robot-scoped actions refuse with 'No robots registered' — self-contradictory in one envelope	the warning is only given when a robot was really dropped

The presence probe goes through mj_name_to_id from .backend, not mj.mj_name2id — test_entity_name_lookup_type_safety caught the direct call, so a non-string name cannot crash the process.

Verification

check	result
pre-fix control (behaviour reverted, additive formatter kept)	8 failed / 45 passed
new + touched files	57 passed
mutants	4/4 caught — never re-point _world; re-point unconditionally; always advise add_object; always warn No robots registered
tests/simulation/mujoco	4616 passed, 2 failed — both pre-existing on main, empty two-way comm against a clean worktree, already owned by #3798
ruff / format --check	clean, 2129 files
mypy	28 errors in 12 files = clean-main baseline, 0 in the four touched files
overlap	#3784 / #3791 / #3796 all merge clean with this branch (different functions in the same file); #3343 conflicts only in simulation/base.py + isaac/recording.py, which it already conflicts with on main

LOC: +487 / −15. Additions are the carry-over path plus its pins; load_scene previously had no test for what its world swap discards, and the _world re-point was unpinned (a pass mutant left all 53 cells green).

The _world re-point matters beyond tidiness: _attach_robot_to_mesh sets SimRobot._world so the child Mesh's _read_state can read joint positions, so a carried robot left pointing at the discarded world would publish state from a dead model. An off-mesh robot keeps None, the documented value.

Found by the Thor harness (lab PC2-075), verified headless with MUJOCO_GL=egl.

[cagataycali]

Independent re-verification on Thor (Jetson AGX Thor, MUJOCO_GL=egl, mujoco 3.13.0, python 3.13.12). I was dispatched to open a PR from this same fork branch and found this one already open and a strict superset of the commits I was handed (git merge-base --is-ancestor ffc2743b6 584f68f75 = yes), so nothing was authored and nothing was pushed. What I can add is a second measurement, against a newer main than the body's 730d1943.

Round trip re-measured on today's main (e12fe59d7) vs this head (584f68f75)

Same process, editable tree swapped by git checkout --detach, one probe script:

call	before e12fe59d7	after 584f68f75
load_scene(exported.xml)	Bodies: 8, Joints: 6, Actuators: 6 — nothing else	+ Robot(s) ['so101'] found in the loaded file (same namespaced joints) and kept registered
list_robots()	[]	['so101']
get_robot_state('so101')	error — No robots in the scene; add one	success — 6 joints, pos=0.0000, vel=0.0000
add_robot('so101')	error — bare Failed to inject robot 'so101' into scene.	error — Robot 'so101' already exists. Pick a different name, or omit name= to auto-number.
run_policy(robot_name='so101', policy_provider='mock')	error	success
render()	success	success

run_policy is the row I would add to the body's table: before this branch the arm the file still contains is not merely unlisted, a rollout on it is refused outright.

The contract change I went looking for

inject_robot_into_scene changing return False -> raise is the one hunk a reviewer should worry about. Audited rather than assumed:

• exactly one production caller, simulation.py:2547, and an AST walk puts it inside try (2489-2669) with except Exception at 2654 — which is the handler that produces the new hinted message and does self._world.robots.pop(name, None).
• the early-guard return False paths in the helper survive, so the if not ok: branch at the call site is still live, not dead code.
• no other production reference (grep over strands_robots/); 6 test modules reference the helper and all pass.

Gates, measured here

check	result
pre-fix control (the 2 production files reverted to upstream/main, the test file's one helper-importing cell dropped so it still collects)	8 failed / 44 passed — incl. the bare Failed to inject robot 'so101' into scene. and DID NOT RAISE ValueError
test_load_scene_names_what_it_dropped.py + test_scene_ops_guardrails.py on this head	57 passed
tests/simulation/mujoco/	4612 passed, 2 failed
the 2 failures	test_stop_policy_resolves_the_only_rollout.py — reproduced with my files reverted to pure main (2 failed / 6 passed), so pre-existing and not this branch's; owned by #3798, which is APPROVED
ruff check / format --check	clean, 2133 files
mypy	28 errors in 12 files = my recorded clean-main baseline (examples/isaac_gs owns 18), 0 in the four touched files
merge onto current main	conflict-free

No objection from here — behaviour, blast radius and the raise contract all check out. Blocked only on REVIEW_REQUIRED; auto-merge (squash) is already armed.

[yinsong1986]

Summary

load_scene swaps in a fresh SimWorld, silently discarding every registered robot, object and camera; the export_xml -> load_scene round trip was a dead end (arm present in the model but unregistered, add_robot refused with the reason swallowed). This PR carries over any registered robot whose namespaced joints all resolve in the loaded model (ids re-resolved via the extracted rediscover_robot_ids, mesh back-reference re-pointed at the new world under self._lock), names everything actually dropped with the exact recovery call, distinguishes untracked-but-present objects/cameras from absent ones, and lets MuJoCo's attach-refusal reason travel instead of folding into a bare False.

What's good

• The attach-failure contract change (return False -> raise after spec rollback) has exactly one production caller, which converts the exception into a structured error dict with registry cleanup - consistent with the error-handling contract in AGENTS.md.
• All carried-robot state mutations (robot._world re-point, registry insert, id rediscovery) happen inside the existing self._lock critical section; the world swap stays atomic.
• Fresh-world output is byte-identical to the historical text, and the {"json": ...} content block follows the established result pattern (physics.py, rendering.py) - purely additive.
• Tests pin every reviewed behavior, including the mutation-tested _world re-point, the off-mesh None back-reference, the seeded "default" camera exclusion, and the round-trip recovery paths; guardrail test updated to the new raise contract.
• Plain-ASCII user-facing strings, no host paths, changelog entry included.
