🚗 Trace Car — ROS2 Autonomous Line-Following Simulation

A ROS2-based autonomous trace-car simulation built in Gazebo, featuring a custom race track and vehicle model.

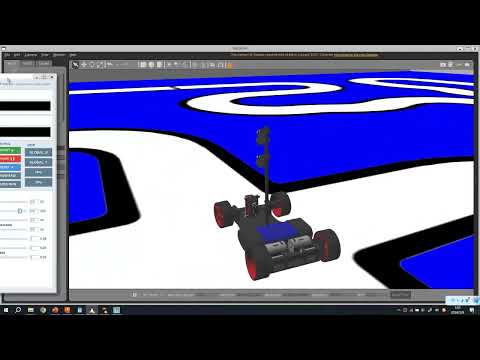

📺 Demo Video

Introduction

trace_car is a ROS 2 + Gazebo line-tracing car project built with colcon and CMake, and implemented with both C++ and Python. It uses CCD-style perception, a controller state machine, and a Gazebo camera/control plugin to simulate an autonomous car following a road map in a closed track.

The project is centered on these goals:

• build the car model from CAD/Fusion360 assets and convert meshes into Gazebo-friendly formats
• build a 9 m x 9 m road/ground map and surround it with walls
• spawn the model in Gazebo, attach the camera and ros2_control plugins, and run the controller stack
• detect road position and road type from CCD images using NumPy-based image processing
• publish steering and wheel commands to keep the car on track
• provide a Tkinter GUI for simulation control, parameter tuning, and live status monitoring

Tech Stack

• ROS 2
• Gazebo
• colcon / CMake
• NumPy
• OpenCV
• Tkinter
• Qt / Gazebo plugin interface

Project Workflow

This repository follows the same development flow used in the codebase:

1. Install the ROS 2, Gazebo, controller, and Python dependencies with scripts/install_deps.sh.
2. Build the model from CAD/Fusion360, export to obj, then convert to dae for Gazebo.
3. Build the road and ground texture/mesh assets for the 9 m x 9 m simulation area.
4. Create the ROS 2 package trace_car and wire the model, world, and messages into the build.
5. Build the world configuration.
   • Add the road map into Gazebo.
   • Add surrounding walls.
6. Build the car model configuration.
   • body
   • wheel_L_back
   • wheel_R_back
   • steer_axis_L
   • steer_axis_R
   • wheel_L_front
   • wheel_R_front
   • ccd_close
   • ccd_far
7. Build the launch files.
   • gzserver
   • gzclient
   • car model publisher
   • car model spawn
8. Add the Gazebo plugins.
   • libgazebo_ros_camera.so
   • libgazebo_ros2_control.so
9. Add controller_manager launch steps.
   • joint_state_broadcaster
   • wheel_velocity_controller
   • steer_position_controller
10. Implement ccd_node.py / ccd_node.cpp.
    • startup warm-up loop
    • subscribe to CCD camera images
    • spatial median filter
    • temporal median filter
    • local smoothing and edge detection
    • enumerate edges, build light windows, and choose the correct lane window
    • compute road center and center error
    • debounce road type detection
    • publish road_type and center_error to the controller node
11. Implement controller_node.py / controller_node.cpp.
    • startup warm-up loop
    • subscribe to perception data
    • PD steering control from center error
    • speed target selection from road type
    • state machine for cross/stop locking
    • cross unlock after odometer distance
    • cross center-error decay for lane estimation
    • steering dynamics limiting and Ackermann steering calculation
    • subscribe to Gazebo joint states
    • record odometer during cross and stop
    • speed dynamics limiting and rear-wheel differential speed calculation
    • publish steering and wheel commands back to Gazebo
12. Build the Tkinter GUI.
    • CCD image monitor: image, left edge, right edge, center, road width, average brightness
    • car information monitor: steer, speed, road type
    • simulation control: start, pause, reset
    • runtime parameter tuning via declare_parameter + sliders
    • show and hide raw CCD images even under strong noise
13. Add user camera switching in Gazebo.
    • self-built plugin reads camera_view_cmd
    • reads car_info to get current steering state
    • applies frame transformation and pose composition
    • supports global static view, global track view, first-person view, and third-person view
14. Convert the Python implementation to C++, complete the CMakeLists.txt, and build the whole project.
15. Add ccd_node, controller_node, and GUI monitor nodes to the launch file.

Current Package Layout

• launch/: Gazebo and robot launch files
• models/: robot and mesh assets
• worlds/: track/world definitions
• config/: controller configuration
• msg/: custom ROS 2 messages
• src/: C++ nodes and plugin code
• trace_car/: Python nodes and logic
• rviz/: RViz configuration
• scripts/: helper scripts

Main Runtime Pieces

• launch/car_sim.launch.py: starts the full simulation stack
• launch/car_model.launch.py: publishes the robot description and spawns the model
• trace_car/ccd_node.py and src/ccd_node.cpp: CCD perception pipeline
• trace_car/controller_node.py and src/controller_node.cpp: steering and wheel control pipeline
• trace_car/monitor_gui.py: Tkinter GUI for simulation control and live monitoring
• src/camera_view_plugin.cpp: custom Gazebo camera plugin

Install Dependencies

You can install the project dependencies with the helper script in scripts/install_deps.sh.

From the package root:

chmod +x scripts/install_deps.sh
./scripts/install_deps.sh

The script installs the ROS 2, Gazebo, controller, and Python packages used by the project, then prints the workspace build command for the next step.

Building

From the workspace root:

colcon build --symlink-install
source install/setup.bash

If this is a new shell, source your ROS 2 installation first, then source the workspace overlay.

Running

Launch the full simulation:

ros2 launch trace_car car_sim.launch.py

This brings up:

• Gazebo server
• Gazebo client
• robot description publisher and model spawn
• ccd_node
• controller_node
• GUI monitor

Runtime Topics

The main nodes communicate through these topics:

• /ccd/ccd_close/image_raw and /ccd/ccd_far/image_raw: CCD camera images
• /perception: road type and center error
• /joint_states: wheel joint feedback from Gazebo
• /wheel_velocity_controller/commands: rear wheel speed commands
• /steer_position_controller/commands: steering commands
• /car_info: controller state for the GUI
• /ccd_detection: CCD monitor data for the GUI
• /gui_control: start, pause, and reset commands
• /camera_view_cmd: camera view switching commands

CCD Pipeline

The CCD node is designed around a stable warm-up and a two-stage filter pipeline:

• wait for a fixed number of frames before publishing control data
• apply a spatial median filter to suppress pixel noise
• apply a temporal median filter to stabilize frame-to-frame fluctuations
• smooth the detected light window before doing edge detection
• detect left and right edges from averaged brightness differences
• choose the best window around the road center
• compute road center and center error
• debounce road type classification before publishing it

Controller Pipeline

The controller node turns perception into motion with a small state machine:

• use center error for steering PD control
• use road type for target speed selection
• lock cross and stop decisions when they are detected
• release cross lock after the odometer passes the cross distance
• decay the stored cross center error during the cross section to estimate lane position
• limit steering change rate and speed change rate
• compute Ackermann steering and rear wheel speed split
• publish commands to the Gazebo controllers

GUI

The Tkinter GUI is used for interactive tuning and monitoring:

• CCD image monitor with edges, center, road width, and average brightness
• car information monitor with steering, speed, and road type
• simulation controls for start, pause, and reset
• live parameter adjustment through sliders backed by ROS 2 parameters
• raw CCD image display toggle for noisy input debugging

Camera Views

The custom Gazebo camera plugin supports multiple viewpoints:

• GLOBAL static view: set once in pre-render and keep the camera at a fixed pose
• GLOBAL track view: follow the car position while keeping a preset camera rotation
• FIRST PERSON view: compose the car pose with a relative pose
• THIRD PERSON view: combine car pose, steering yaw, and a relative offset, with low-pass filtering to reduce jitter

Notes

• The package is tuned around the included CCD image width and track geometry.
• If you change the mesh names, joint names, or topic names, update the launch files, model file, and controller code together.
• The current codebase contains both Python and C++ versions of the perception/controller stack; the C++ path is already wired into CMakeLists.txt.

Troubleshooting

• If Gazebo cannot find the plugin, make sure the workspace has been built and sourced.
• If the car does not move, confirm that controller_manager, joint_state_broadcaster, and the wheel/steer controllers are running.
• If the CCD pipeline is noisy, lower the raw-image threshold values or adjust the GUI parameters.
