X50T

(UNUSED) Nema 17 bracket for 20x40 extrusion

Function

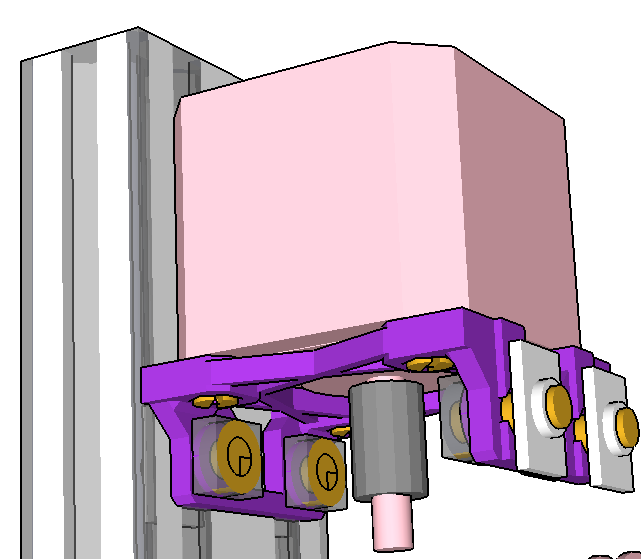

Nema 17 motor bracket attaches motor between two parallel 20x40 extrusions. In the diagram, above, the right extrusion is omitted for clarity.

Included:

• bracket

Required:

• Nema 17 motor
• M5 screw (4)
• M5 extrusion locknut (4)
• M3 screw (4)

NOTE: This is nylon and stepper motors run hot. Adding a metal washer or two may assist with thermal isolation. Consult Materials Data Sheet for thermal properties.

Sources

• http://shpws.me/n21o (single part)
• http://shpws.me/n6ht (assembly)

See Also

• DGI5 Idler
• [DGC3 GT2 belt clamp] (DGC3)
